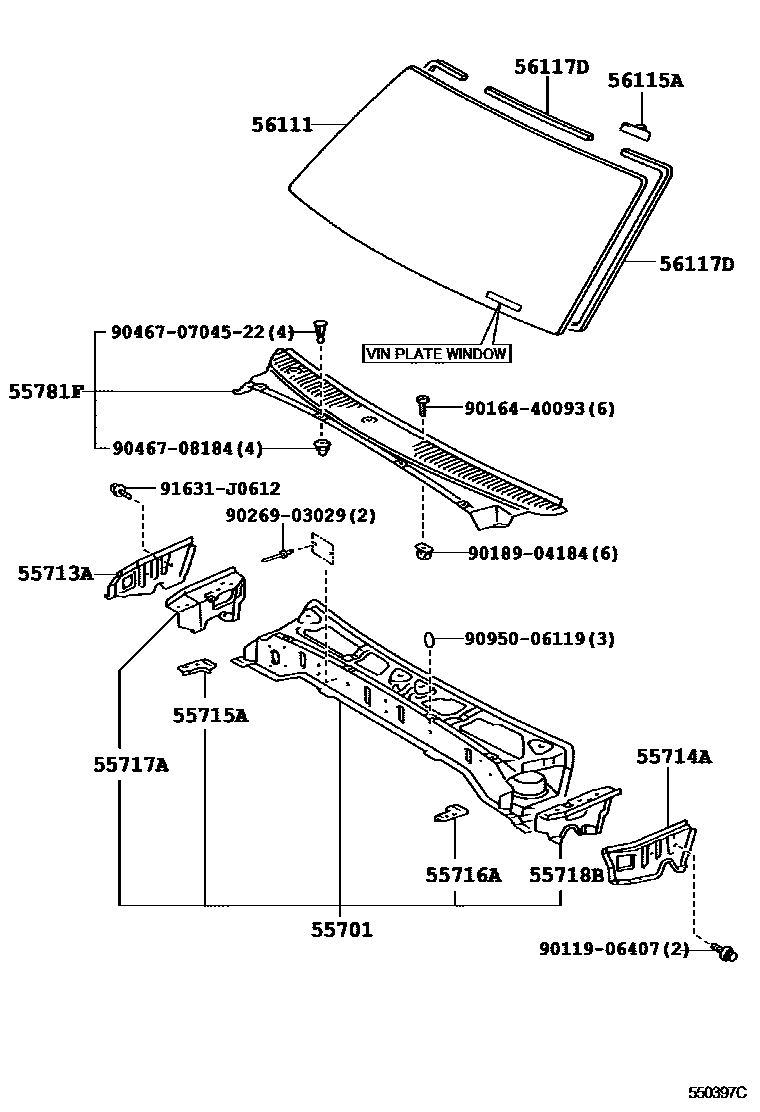

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55701 | Front apron sub-assembly | 55700-35330 · 55700-35550 · 55700-35560 |
| 55713A | Right front wall upper side panel | 55713-35011 |
| 55714A | Left front wall upper side panel | 55714-35011 |
| 55715A | From cowl upper cover to fender right stay | 55715-35010 |
| 55716A | From cowl upper cover to fender left stay | 55716-35010 |
| 55717A | Upper right inner panel of cowl | 55717-35020 |
| 55718B | Upper left inner panel of front wall | 55718-35020 |
| 55781F | Ventilation grille on front panel | 55708-35030 · 55708-35031 · 55708-35032 |
| 56111 | windshield | 56111-35010 · 56111-35011 · 56111-35012 |
| 56115A | Windshield block No. 1 | 56116-35050 |
