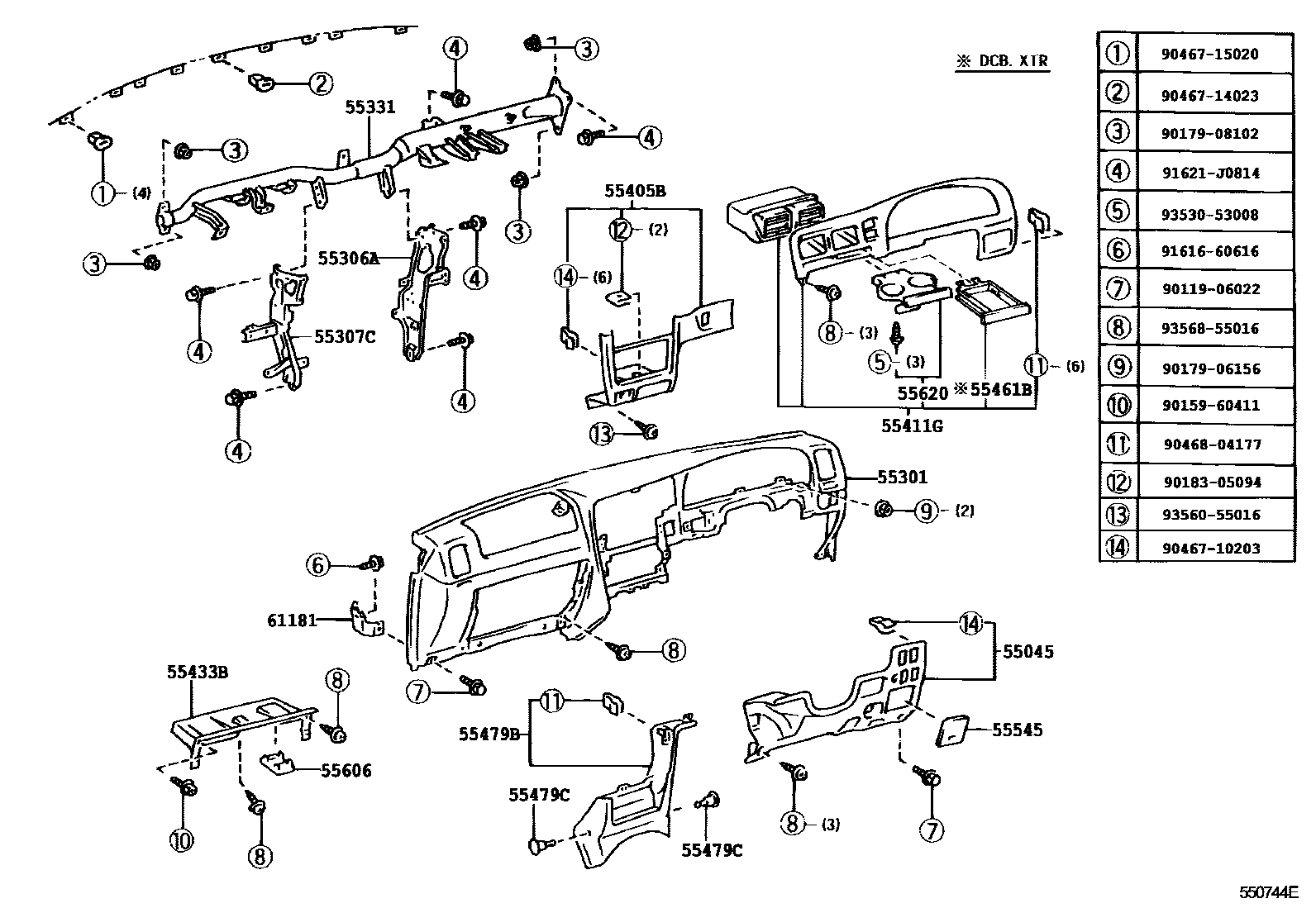

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-35040 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-35040 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-35020 |
| 55331 | Dashboard reinforcement | 55330-35070 · 55330-35071 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-35010 |
| 55411G | Instrument cluster No. 1 decorative panel | 55404-35130 · 55404-35170 · 55404-35171 · 55404-35200 |
| 55433B | No. 2 lower decorative panel of instrument panel | 55433-35030 |
| 55444A | Dashboard storage box spring | 55444-35010 |
| 55460C | Dashboard storage box lock assembly | 55460-35010 |
| 55461B | Center dash storage box | 55461-35040 |
| 55477A | Cigarette lighter hole frame | 55477-35010 |
| 55479C | Clip (for instrument panel lower cover) | 90467-07041 |
| 55503B | Cushion pad (for glove box) | 90541-05080 |
| 55510A | Cushion (for glovebox lid) | 58871-30020 |
| 55521C | stereo system hole cover | 55521-89102 |
| 55521H | Stereo system hole cover assembly | 55521-89104 |
| 55558 | Glove box cover reinforcement | 55558-35030 |
| 55573A | Glove box lid hinge | 55573-32010 |
| 55574 | Glove box cover hinge shaft | 90254-04016 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-35010 · 55606-35020 · 55606-60010 |
| 55620 | Dashboard cup holder assembly | 55620-35050 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-35050 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-35070 |
| 55950 | Defroster nozzle assembly | 55950-35010 |
| 61181 | Dashboard side bracket | 61181-35020 |
