Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

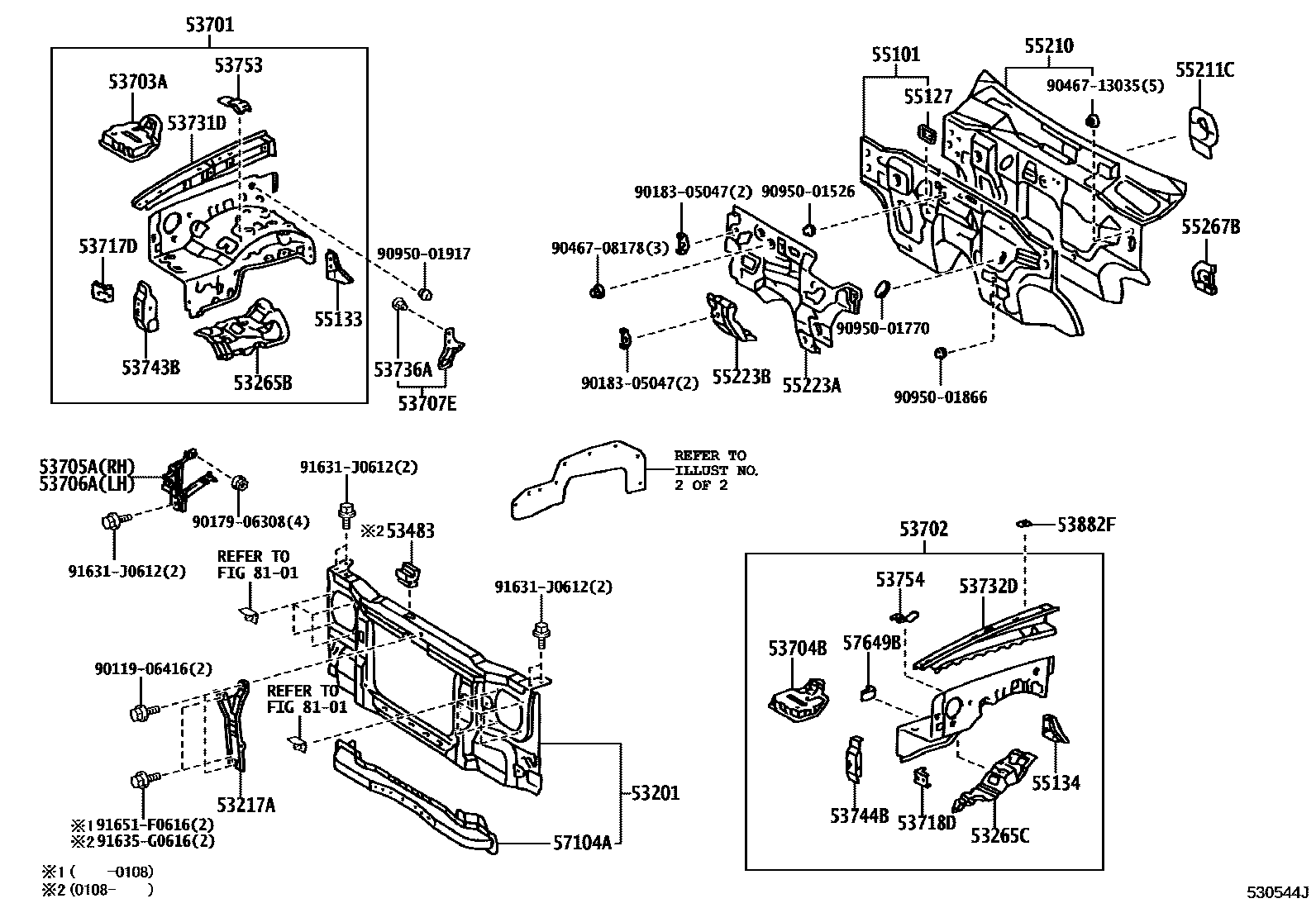

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-35130 · 53201-35200 |
| 53217A | engine cover lock bracket | 53217-35030 · 53217-35050 |
| 53265B | No. 1 right battery bracket mounting bracket | 53265-35040 |
| 53265C | No. 1 left battery bracket mounting bracket | 53266-35030 |
| 53483 | Engine cover support rod protector | 53483-35010 |
| 53701 | Right front fender fender sub-assembly | 53701-35660 · 53701-35670 · 53701-35720 · 53701-35740 · 53701-3D110 · 53701-3D120 · 53701-3D180 · 53701-3D190 |
| 53702 | Left front fender fender sub-assembly | 53702-35620 · 53702-35630 · 53702-35660 · 53702-35670 · 53702-35690 · 53702-35700 · 53702-35880 · 53702-35881 · 53702-35890 · 53702-35891 · 53702-3D040 · 53702-3D050 · 53702-3D060 · 53702-3D070 |
| 53703A | Battery right side bracket sub-assembly | 53703-35030 |
| 53704B | Battery left side bracket sub-assembly | 53704-35060 |
| 53705A | Right fender fender bracket sub-assembly | 53705-35040 · 53705-35070 |
| 53706A | Left fender fender bracket sub-assembly | 53706-35040 · 53706-35070 |
| 53707E | Fender right fender sub-assembly | 53707-35010 · 53707-35020 |
| 53717D | Right fender fender corner panel | 53717-35010 |
| 53718D | Left fender fender corner panel | 53718-35010 |
| 53731D | Right front fender to cowl side upper beam | 53731-35050 |
| 53732D | Left front fender to cowl side upper beam | 53732-35050 |

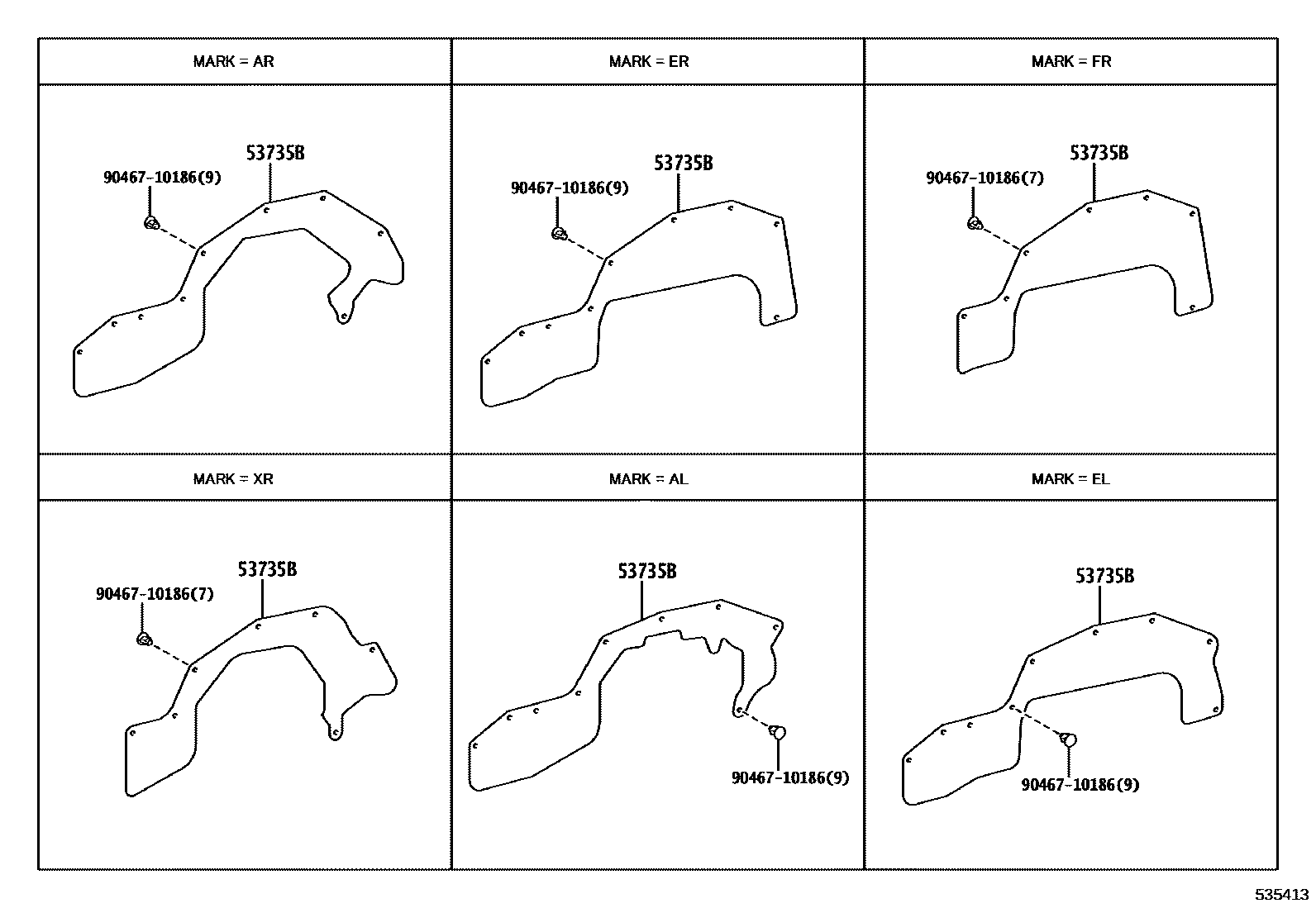

| 53735B | Front fender fender seal | 53735-35040 · 53735-35041 · 53735-35050 · 53735-35051 · 53735-35070 · 53735-35071 · 53735-35100 · 53735-35101 · 53735-35102 · 53735-35110 · 53735-35111 · 53735-35120 · 53735-35121 · 53735-35122 |
| 53736A | Clip (for front fender fender seal) | 90467-10186 |
| 53743B | Right front fender fender front reinforcement | 53743-35020 |
| 53744B | Left front fender fender front reinforcement | 53744-35020 |
| 53753 | No. 2 relay box mounting bracket | 53753-35020 |
| 53754 | No. 2 relay box mounting bracket | 53754-35020 |
| 53882F | front fender seal | 53882-16030 |
| 55101 | Front apron sub-assembly | 55101-3D690 · 55101-3G180 · 55101-3G190 · 55101-3G350 · 55101-3G510 · 55101-3G530 · 55101-3G540 · 55101-3G620 · 55101-3G640 · 55101-3G670 · 55101-3G880 · 55101-3N530 · 55101-3N580 |
| 55127 | Parking brake reinforcement | 55127-35020 |
| 55133 | Right front fender fender lower fixing plate | 55133-35010 |
| 55134 | Left front fender fender lower fixing plate | 55134-35010 |
| 55210 | Front wall insulation pad assembly | 55210-35180 · 55210-35210 · 55210-35211 · 55210-35320 |
| 55211C | cowl heat insulation pad cover | 55211-35040 · 55211-35060 |
| 55223A | Front wall outer heat insulation pad | 55223-35020 · 55223-35050 · 55223-35051 |
| 55223B | No. 1 insulation pad for front wall panel | 55225-35100 · 55225-35101 |
| 55267B | No. 3 heat insulation pad cover for front wall | 55267-35010 |
| 57104A | Front cross member sub-assembly | 57104-35040 · 57104-35041 |
| 57649B | Wire harness bracket | 57649-35010 |
