Toyota HILUX 发动机盖和前翼子板 — Figure 5353

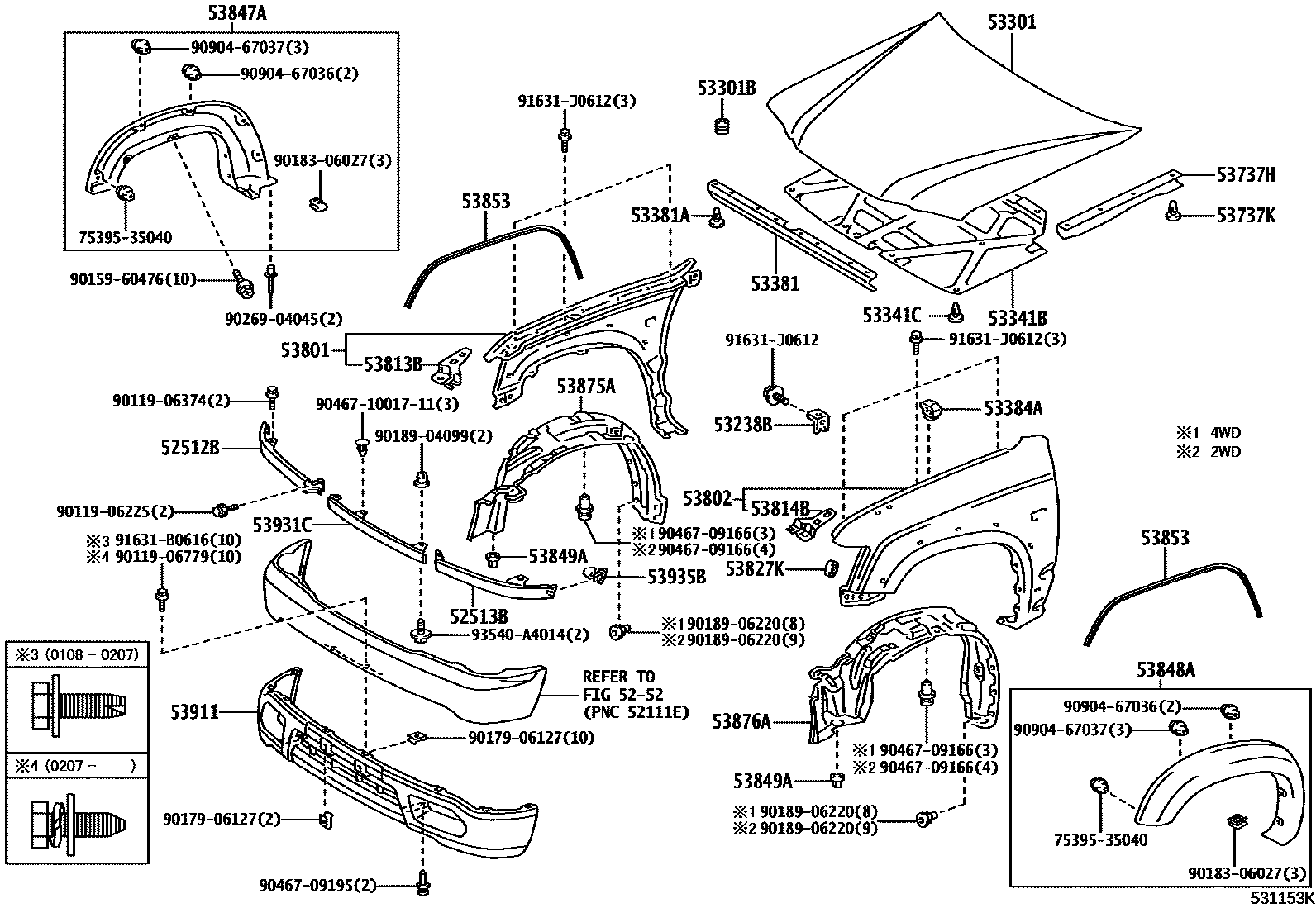

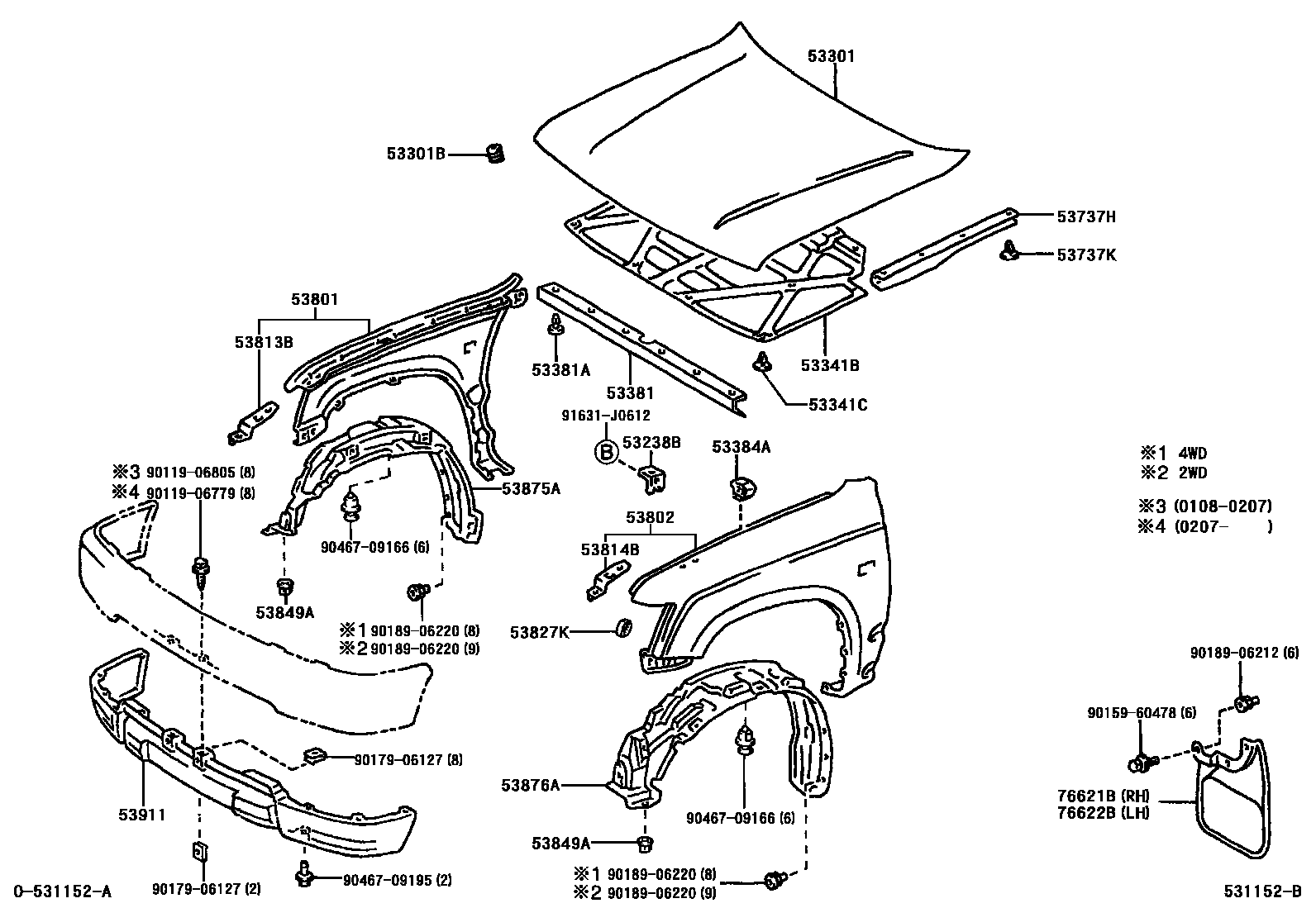

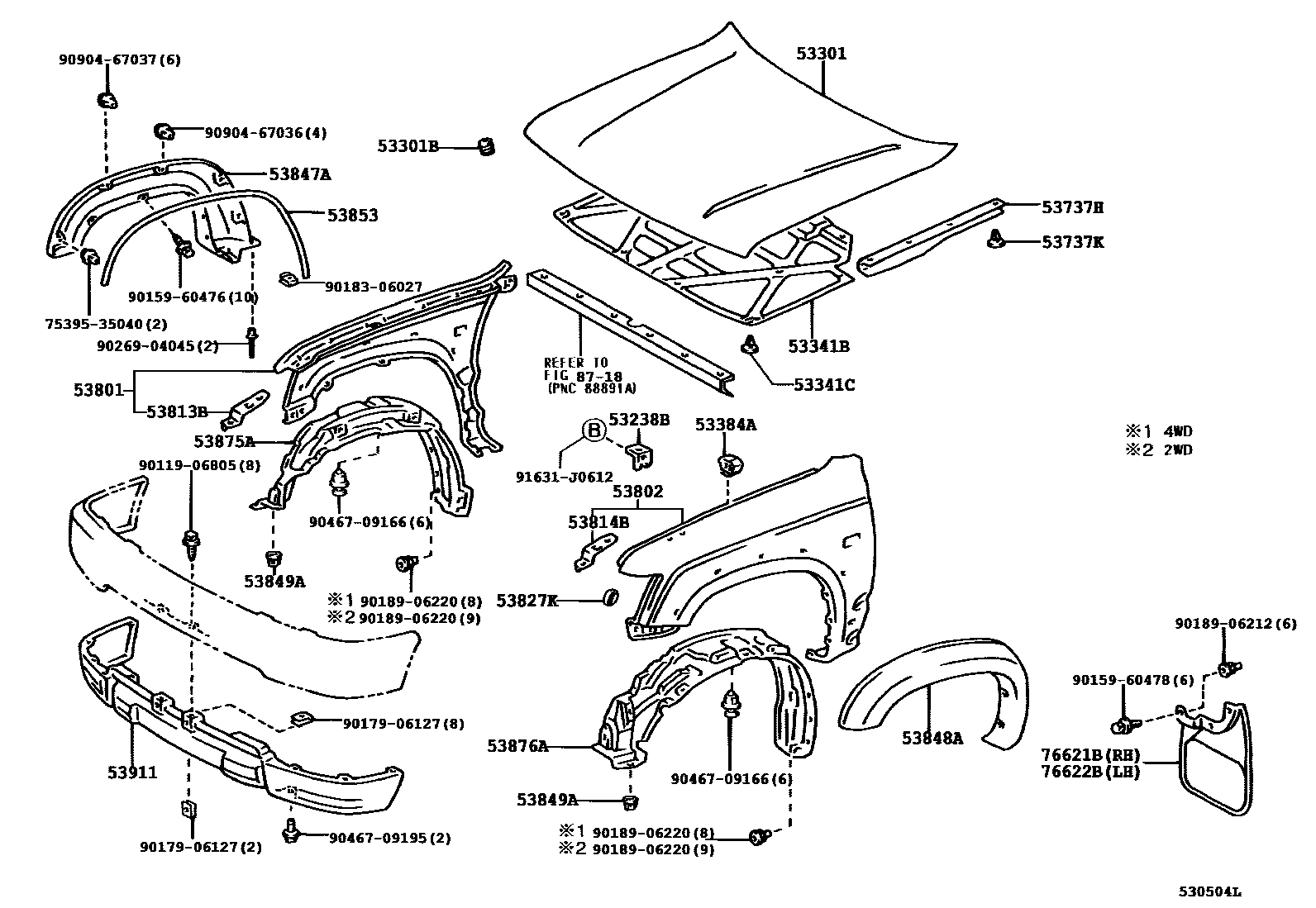

Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52512B | Front bumper right curved filler | 52512-35070 |
| 52513B | Front bumper left curved filler | 52513-35070 |
| 53238B | Engine cover bumper mounting bracket | 53238-35010 |
| 53301 | Engine cover sub-assembly | 53301-35060 · 53301-35100 |
| 53301B | engine cover cushion | 90541-15004 · 90541-15010 |
| 53341B | engine cover gasket | 53341-35060 · 53341-35110 · 53341-35120 · 53341-35121 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-09118 |
| 53381 | Engine cover to radiator bracket seal | 53381-35030 · 53381-35040 · 53381-35041 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-35010 |
| 53737H | Left front fender fender seal | 53737-35040 |
| 53737K | Clip (for front fender fender seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53801-35080 · 53801-35081 · 53801-35090 · 53801-35091 · 53801-35120 · 53801-35121 · 53801-35140 · 53801-35141 · 53801-35150 · 53801-35151 · 53801-35160 · 53801-35190 · 53801-35191 · 53801-35311 · 53801-35360 · 53801-35470 |
| 53802 | Left front fender sub-assembly | 53802-35210 · 53802-35211 · 53802-35220 · 53802-35221 · 53802-35250 · 53802-35251 · 53802-35300 · 53802-35301 · 53802-35310 · 53802-35311 · 53802-35380 · 53802-35381 · 53802-35400 · 53802-35401 · 53802-35500 · 53802-35560 |
| 53813B | Right front fender extension | 53813-35010 · 53813-35040 |
| 53814B | Left front fender extension | 53814-35010 · 53814-35040 |
| 53827K | Right front fender side panel protector | 53827-35010 · 53827-35011 |
| 53847A | Right front fender or wheel arch guard strip extension | 53087-35901 |
| 53848A | Left front fender or wheel arch guard strip extension | 53088-35901 |
| 53849A | front wheel cover | 53849-35010 |
| 53875A | Right front fender lining | 53875-35030 · 53875-35040 · 53875-35060 · 53875-35070 · 53875-35080 |
| 53876A | Left front fender lining | 53876-35020 · 53876-35030 · 53876-35050 · 53876-35060 · 53876-35070 |
| 53911 | front fender | 53911-35190 · 53911-35200 · 53911-35220 · 53911-35230 · 53911-35250 · 53911-35360 · 53911-35390 · 53911-35907 |
| 53931C | front board | 53931-35010 |
| 53935B | Front panel protector | 53935-35010 · 53936-35010 |
| 76621B | Right front body fender | 76621-35050 |
| 76622B | Left front body fender | 76622-35050 |
