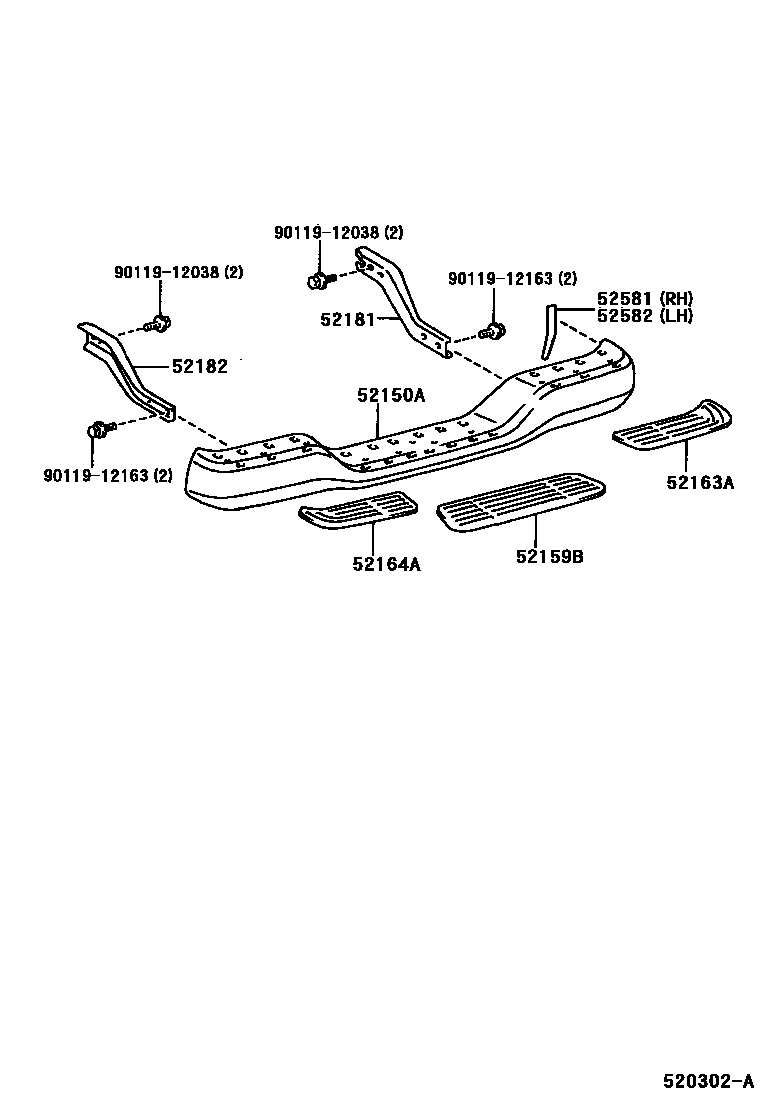

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52150A | Rear bumper assembly | 52105-35190 · 52105-35210 · 52105-35320 |
| 52159B | rear bumper bezel | 52159-35030 |
| 52163A | Rear bumper right side fender | 52163-35030 |
| 52164A | Rear bumper left fender | 52164-35030 |
| 52181 | Rear bumper right arm | 52181-35040 · 52181-35060 |
| 52182 | Rear bumper left arm | 52182-35040 · 52182-35060 |
| 52581 | Rear bumper right side protector | 52581-35010 |
| 52582 | Rear bumper left protector | 52582-35010 |
