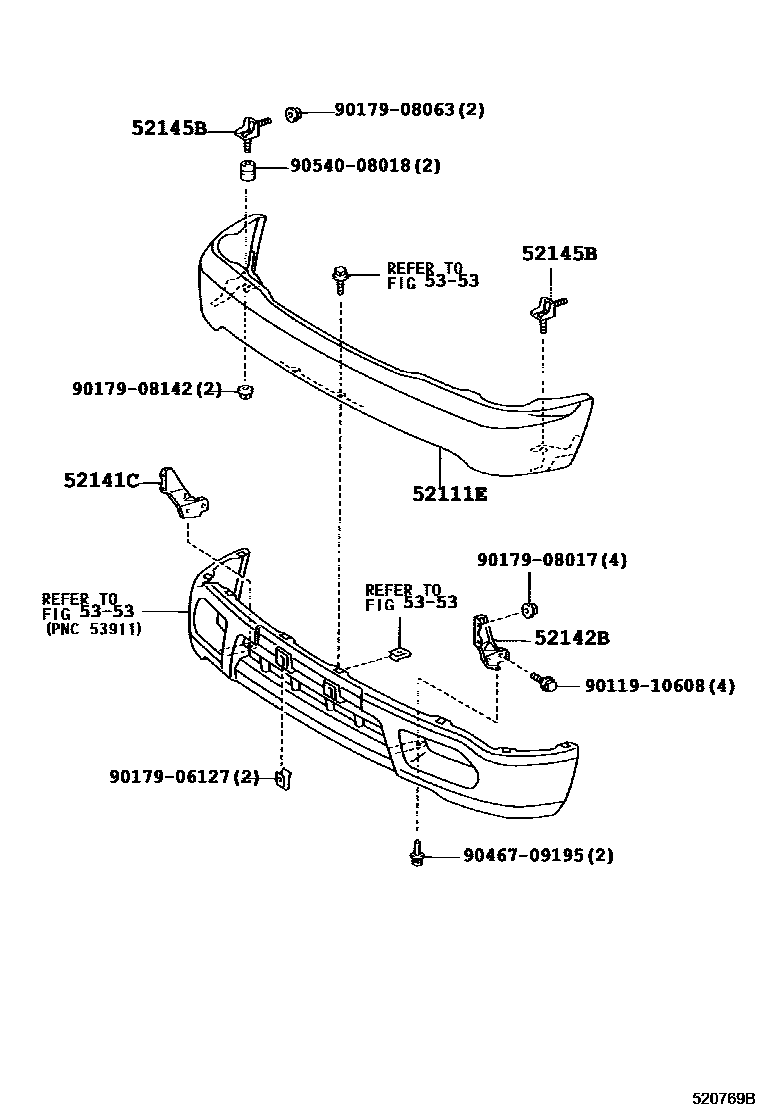

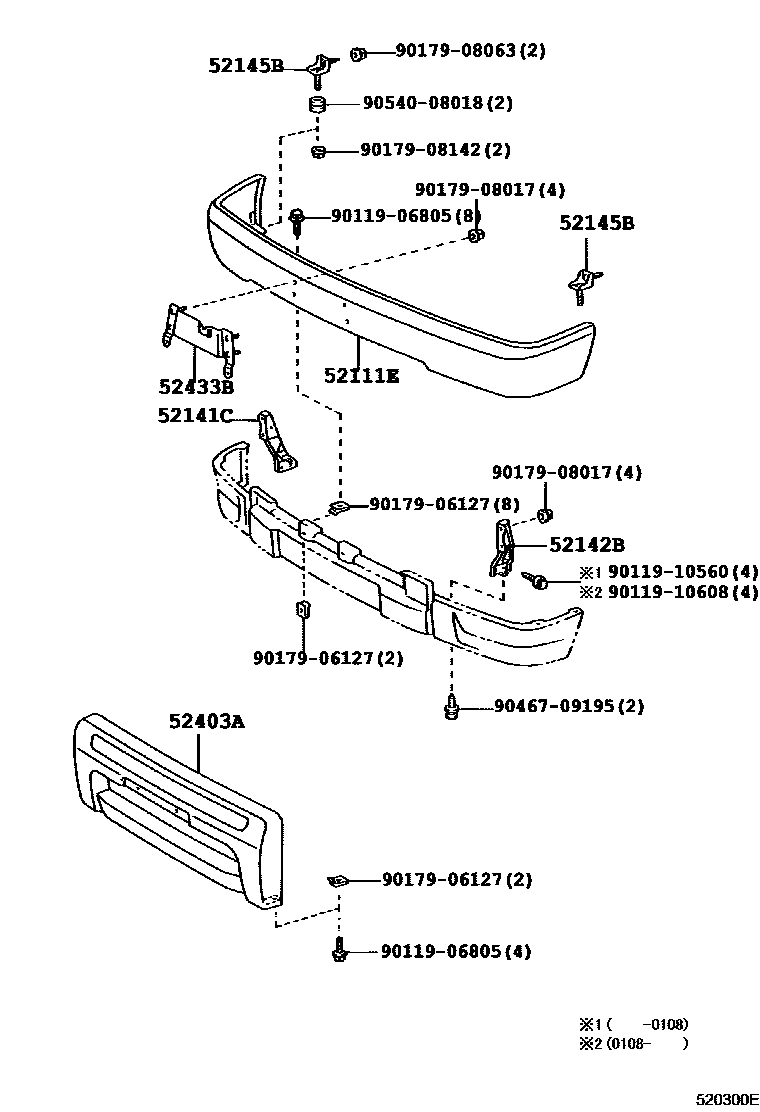

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111E | front bumper stay | 52101-35370 · 52101-35410 · 52101-35440 · 52101-35450 · 52101-35470 · 52101-35480 · 52101-35500 · 52101-35610 · 52101-35900 · 52101-35904 |
| 52141C | Front bumper right arm | 52141-35060 · 52141-35080 |
| 52142B | Front bumper left arm | 52142-35060 · 52142-35080 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
| 52403A | Front bumper anti-collision bar gasket sub-assembly | 52403-35030 |
| 52433B | Front bumper anti-collision bar support | 52433-35030 |
