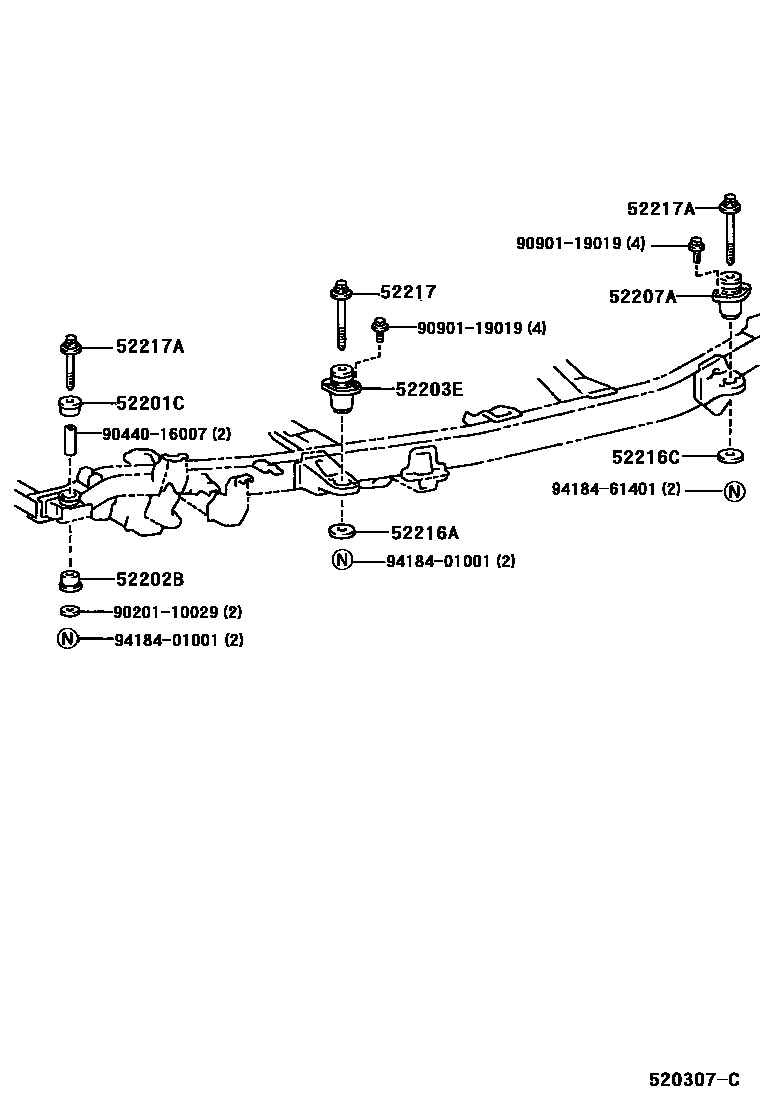

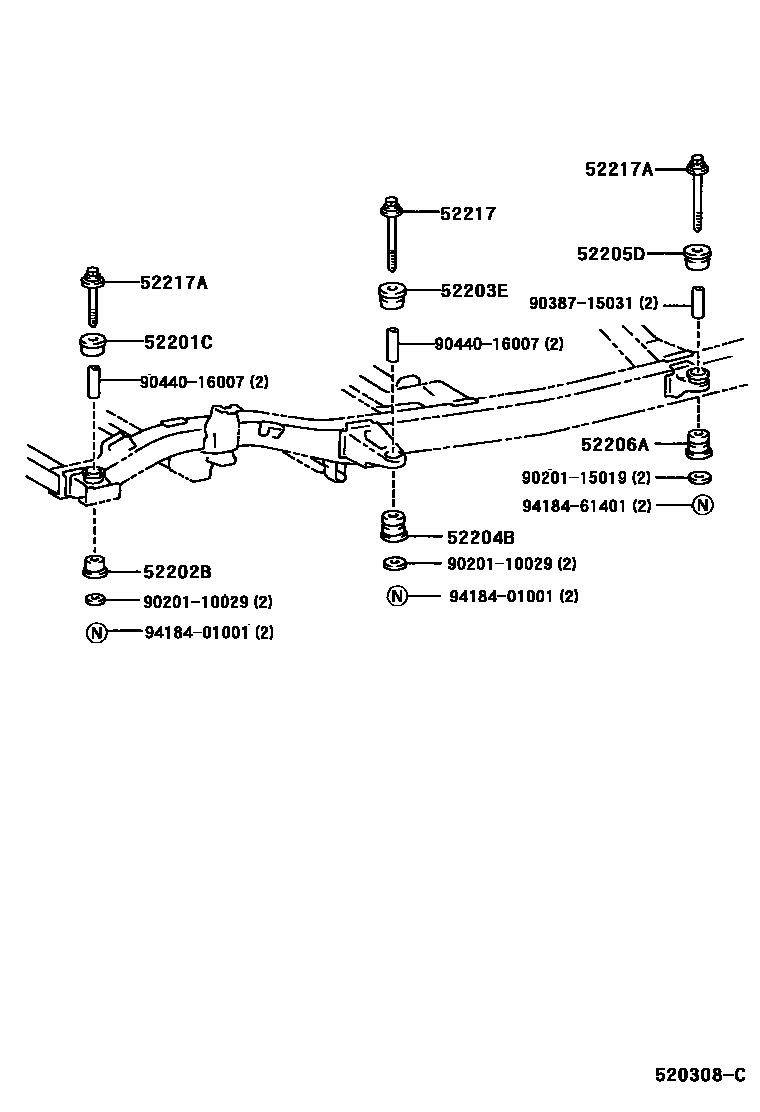

Toyota HILUX 驾驶室悬置和车身悬置 — Figure 5251
Toyota HILUX EPC diagram 5251, 驾驶室悬置和车身悬置, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52201C | Cab suspension No. 1 upper cushion pad sub-assembly | 52201-35120 |
| 52202B | Cab suspension No. 1 lower cushion pad sub-assembly | 52202-35110 |
| 52203E | Cab suspension No. 2 cushion pad sub-assembly | 52203-35230 · 52203-35240 |
| 52204B | Cab suspension No. 2 lower cushion pad sub-assembly | 52204-35140 |
| 52205D | Cab suspension No. 3 upper cushion pad sub-assembly | 52205-35170 · 52205-35180 · 52205-35190 |
| 52206A | Cab suspension No. 3 lower cushion pad sub-assembly | 52206-35050 |
| 52207A | Cab suspension No. 4 upper cushion pad sub-assembly | 52207-35070 |
| 52216A | Cab suspension cushion block | 52216-34020 |
| 52216C | Cab suspension cushion block | 52216-35050 · 52216-35060 |
| 52217 | Body mounting bolts | 52217-35070 |
| 52217A | Body mounting bolts | 52217-35010 · 52217-35060 · 52217-35080 |
