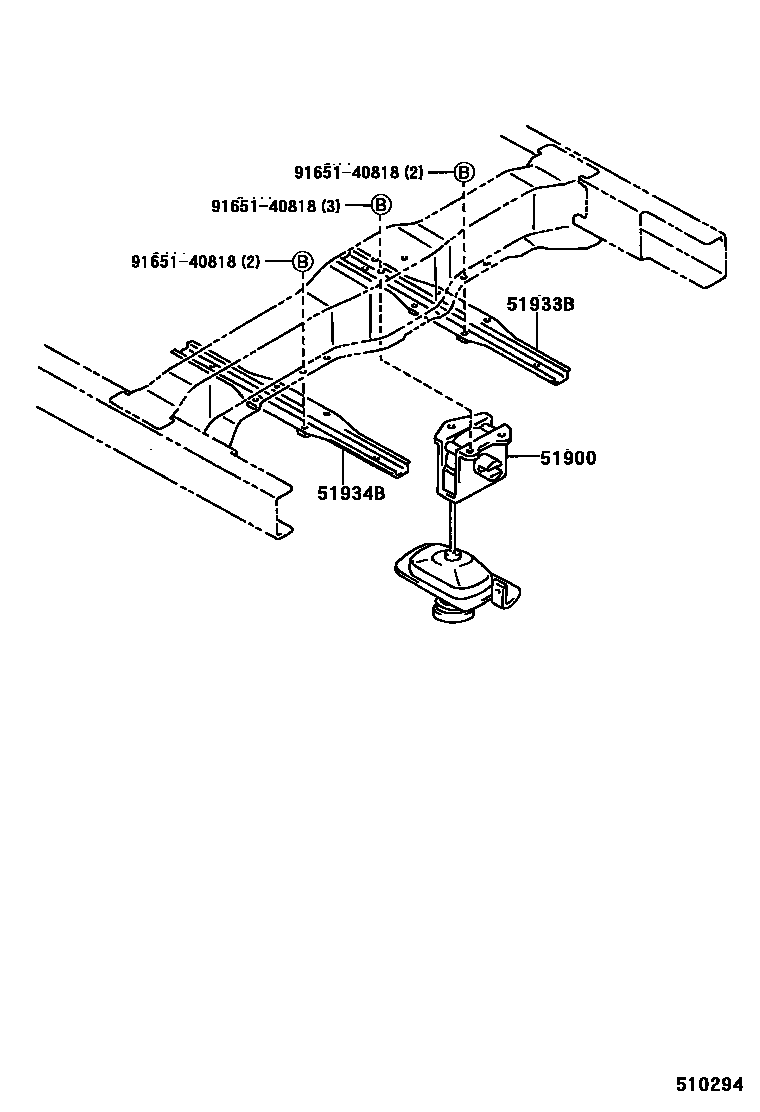

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35310 · 51900-35311 · 51900-35312 · 51900-35313 · 51900-35330 · 51900-35331 · 51900-35332 · 51900-35333 |
| 51933B | Spare tire rack right block | 51933-34010 |
| 51934B | Spare tire rack left block | 51933-34010 |
