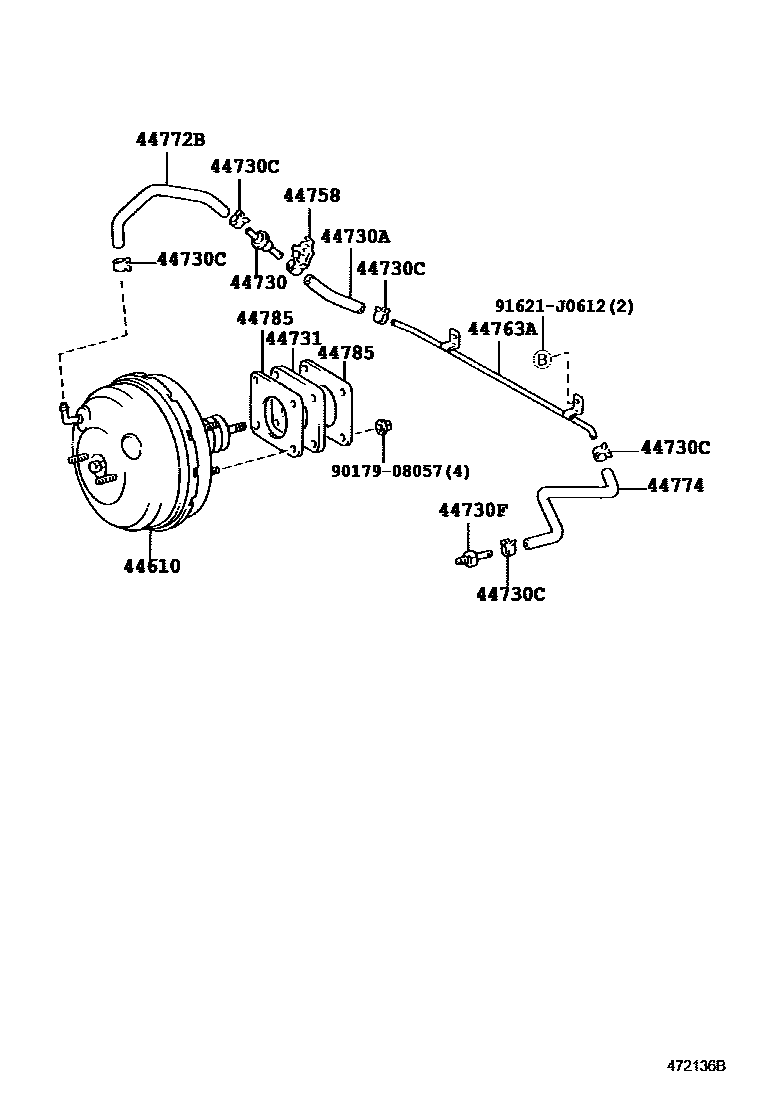

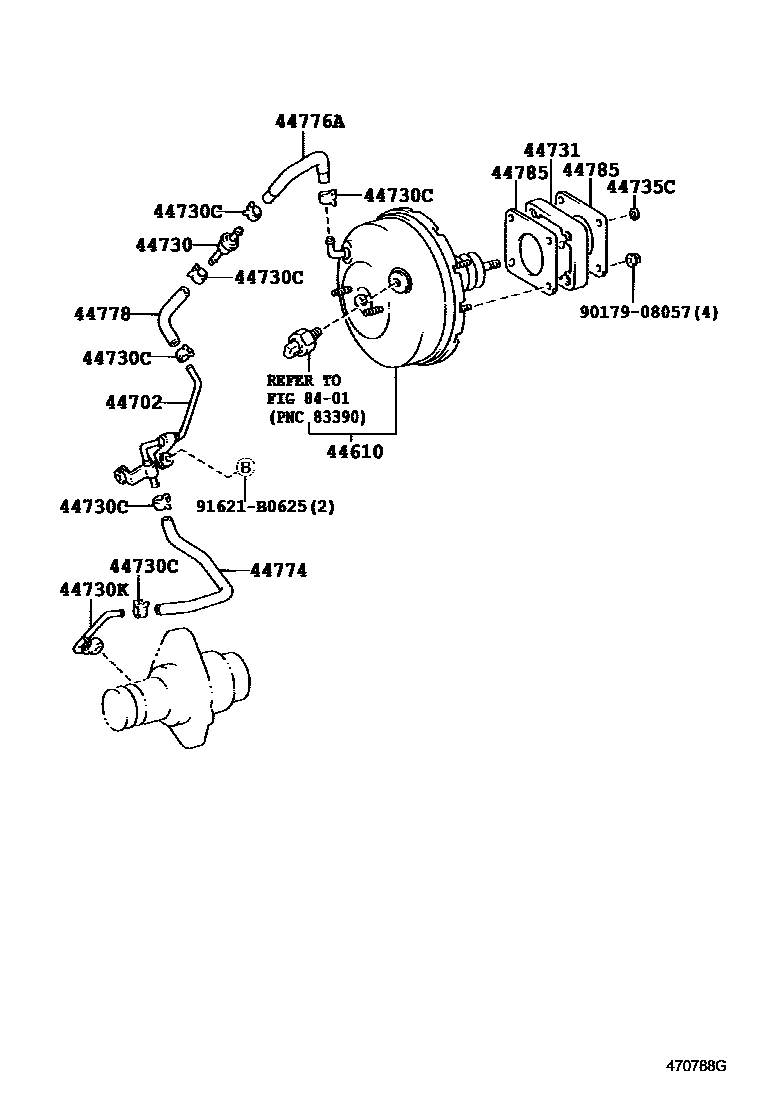

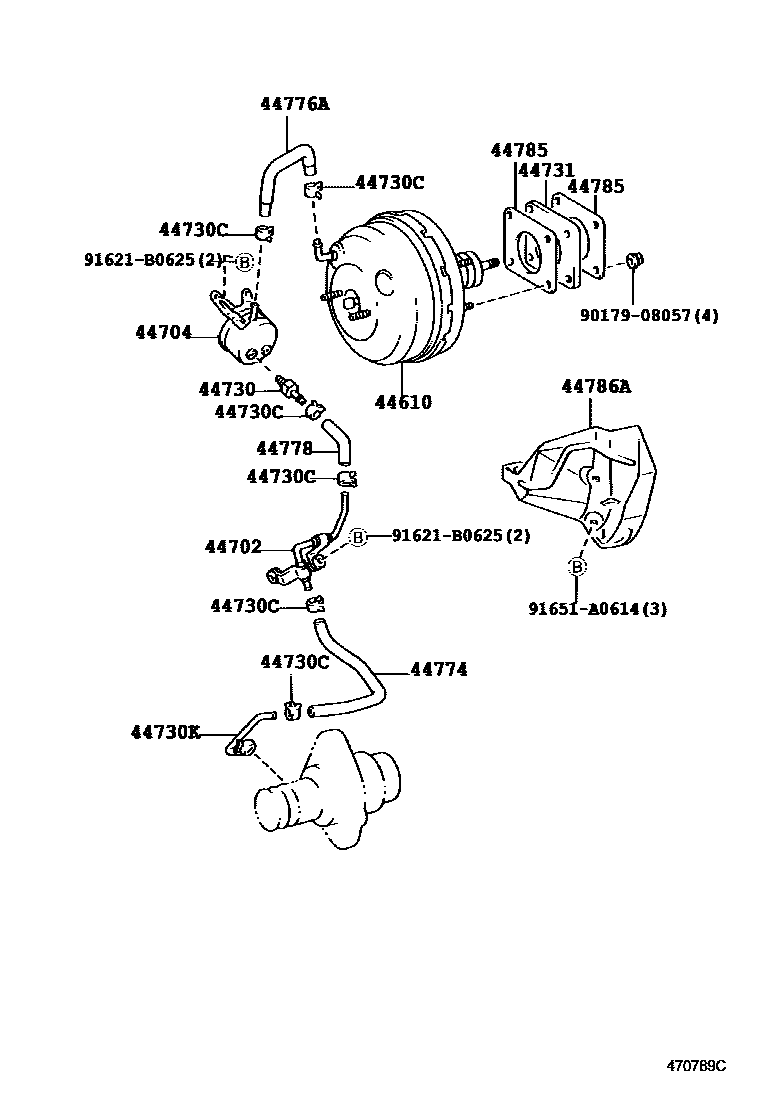

Toyota HILUX 制动助力器和真空管 — Figure 4703
Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-3D710 · 44610-3D720 · 44610-3D750 |
| 44702 | No. 1 air pipe sub-assembly | 44702-35010 · 44702-35030 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-35090 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-35010 · 44730-60050 |
| 44730A | No. 1 vacuum hose | 95446-09100 |
| 44730C | Clip (for vacuum hose) | 90467-16002 · 96133-41500 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44730K | Vacuum hose connector (for vacuum pump) | 90405-09183 |
| 44731 | Front brake booster bracket | 44731-35090 · 44731-35130 |
| 44735C | Booster bracket retaining ring | 44735-30010 |
| 44758 | Vacuum check valve bracket | 44758-35070 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-35030 |
| 44772B | Hoses (check valve to brake booster) | 44772-35340 |
| 44774 | Hoses (joints to connector tubes) | 44774-35070 · 44774-35100 · 44774-35120 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-35030 |
| 44778 | Hoses (connector to check valve) | 44778-35060 · 90445-17039 |
| 44785 | brake booster pad | 44785-35020 |
| 44786A | Brake booster insulation pad | 44786-35040 |
