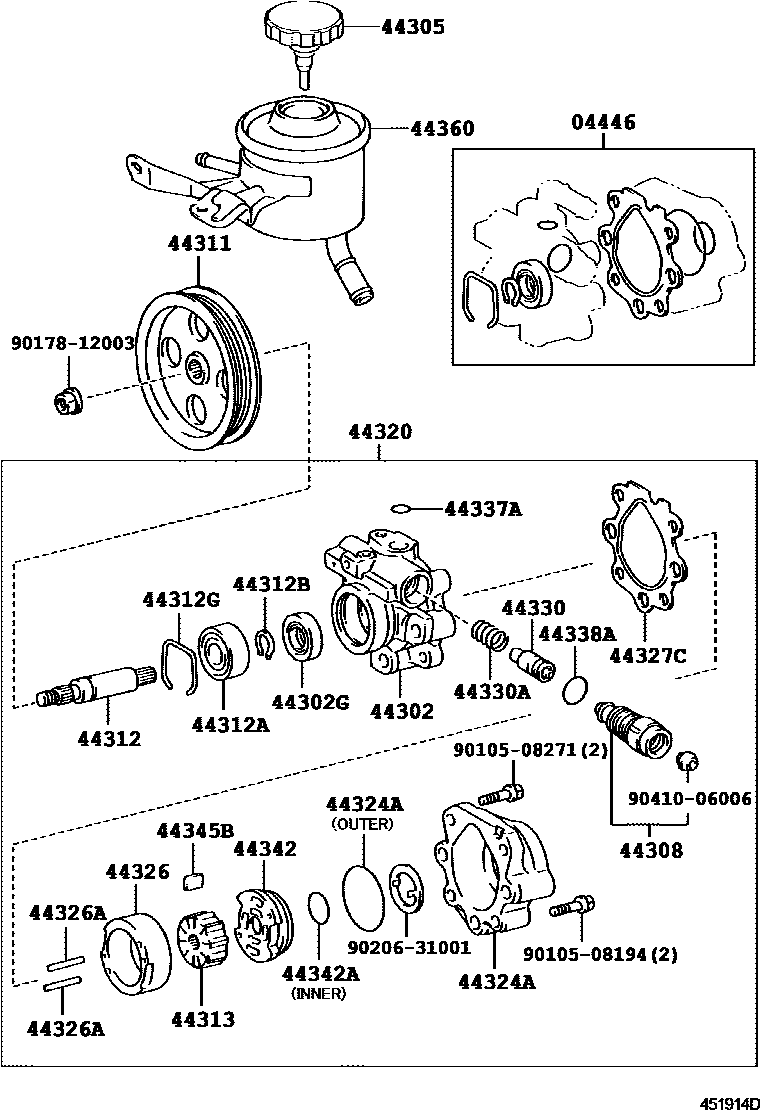

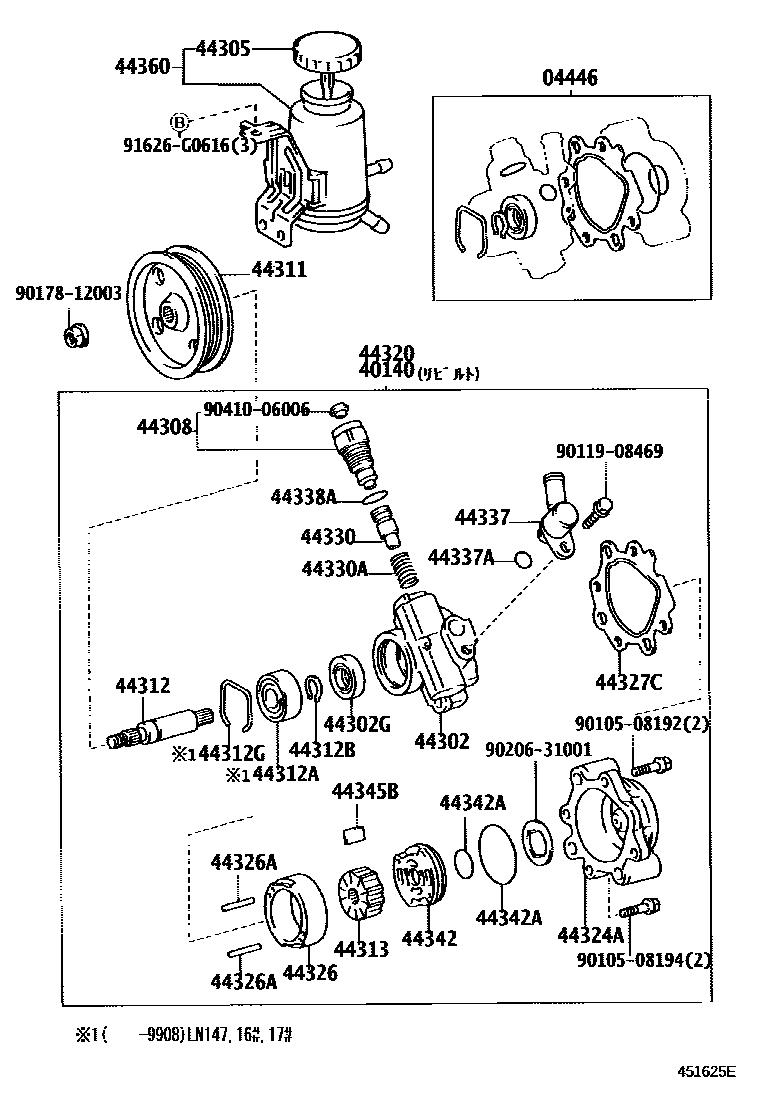

Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502
Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-30120 · 04446-53030 |
| 40140 | Refurbished vane pump assembly | 40140-35520 · 40140-35521 · 40140-35540 |
| 44302 | Front vane pump housing sub-assembly | 44302-26012 · 44302-26030 · 44302-34010 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-17007 · 90311-18015 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-35020 |
| 44308 | Pressure hole connector sub-assembly | 44308-26041 |
| 44311 | vane pump pulley | 44311-26010 · 44311-26040 · 44311-26060 · 44311-34020 · 44311-35070 |
| 44312 | vane pump shaft | 44312-26010 · 44312-32020 |
| 44312A | Bearings (for vane pump shafts) | 90363-17013 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 · 90520-15005 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90521-44002 |
| 44313 | vane pump rotor | 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 |
| 44320 | Vane pump assembly | 44320-35520 · 44320-35521 · 44320-35540 · 44320-35560 |
| 44324A | Pump back shell | 44324-26031 · 44324-28030 · 44324-34010 |
| 44326 | Cam ring (for vane pumps) | 44325-32270 · 44325-32280 · 44325-32290 · 44325-32300 · 44325-32310 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-26010 |
| 44330 | Flow control valve assembly | 44330-26071 · 44330-26081 · 44330-26091 · 44330-26101 · 44330-26111 · 44330-26121 · 44330-28011 · 44330-28021 · 44330-28031 · 44330-28041 · 44330-28051 · 44330-28061 |
| 44330A | Compression spring (for flow control valve) | 90501-13034 |
| 44337 | Power steering suction port connector | 44337-20050 · 44337-35070 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11016 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-19018 |
| 44342 | Vane pump rear end cover | 44342-26020 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-18007 · 90301-47001 |
| 44345B | vane pump disc | 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 |
| 44360 | Vane pump oil storage tank assembly | 44306-35250 · 44360-35140 |
