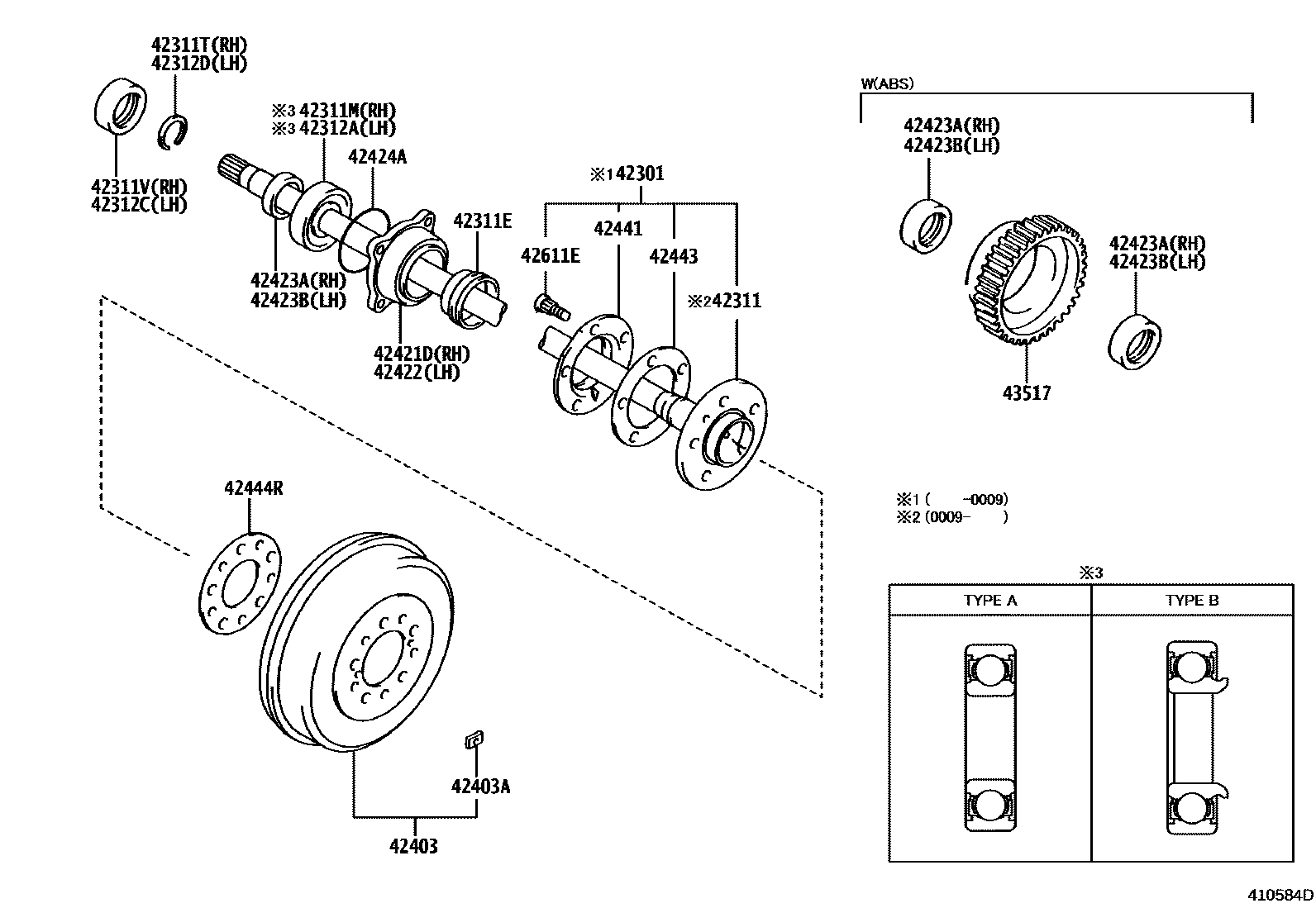

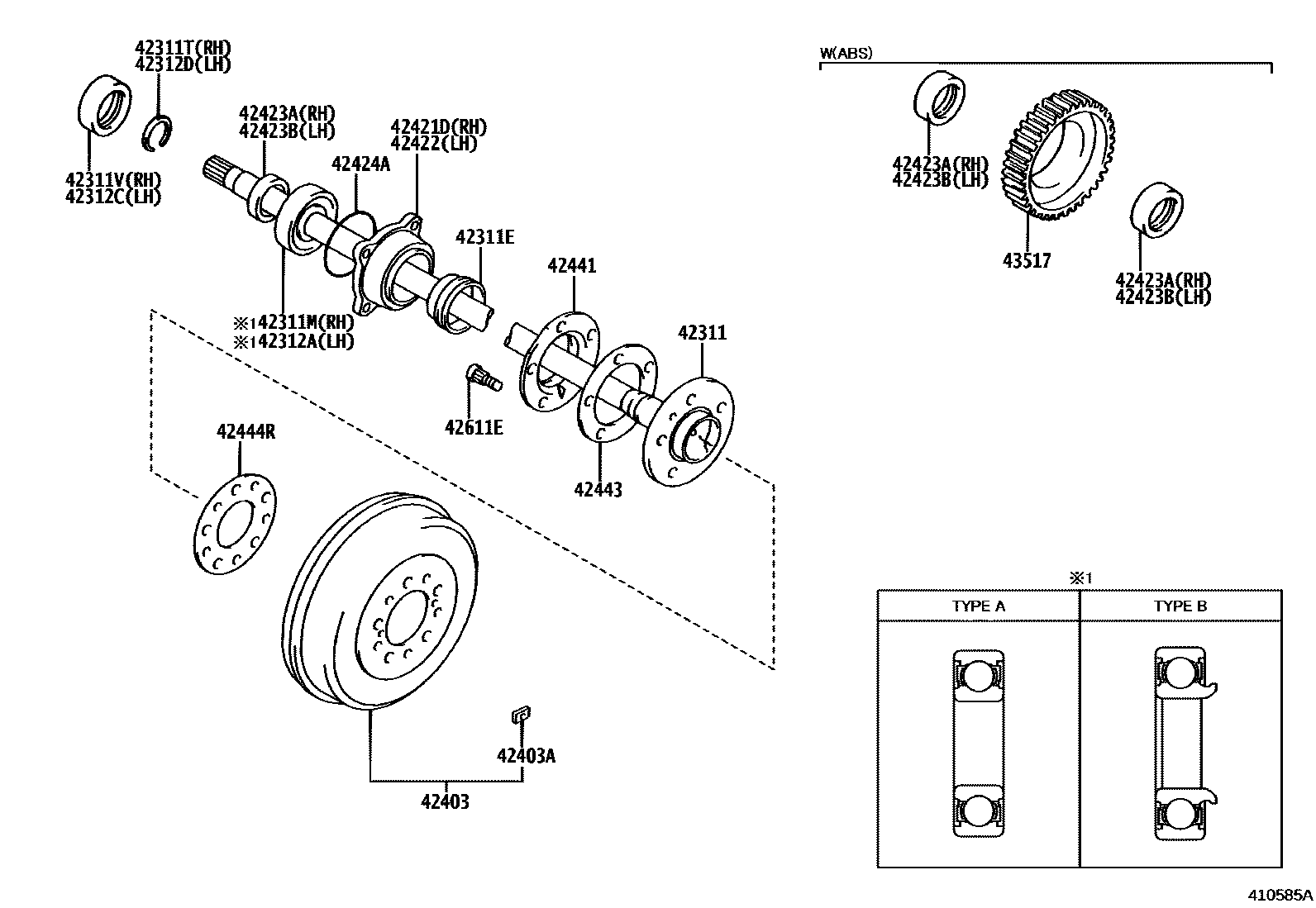

Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102
Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42301 | Rear axle half-shaft sub-assembly | 42301-35090 · 42301-35100 |
| 42311 | Rear axle half shaft | 42311-35190 · 42311-35200 · 42311-35310 · 42311-35320 · 42311-35410 · 42311-35420 |
| 42311E | External oil seal (for rear axle half shaft) | 90313-48001 · 90313-54001 |
| 42311M | Bearing (for rear axle right half shaft) | 90363-40020 · 90363-40068 |
| 42311T | Snap ring (for rear axle right half shaft) | 90520-36045 |
| 42311V | Oil seal (for rear axle right half shaft) | 90310-50001 · 90310-50006 |
| 42312A | Bearing (for rear axle left half shaft) | 90363-40020 · 90363-40068 |
| 42312C | Oil seal (for rear axle left half shaft) | 90310-50001 · 90310-50006 |
| 42312D | Snap ring (for rear axle left half shaft) | 90520-36045 |
| 42403 | Rear brake drum sub-assembly | 42431-26081 · 42431-35151 · 42431-35180 |
| 42403A | Balance weight (for rear brake drum) | 90937-01100 · 90937-01117 · 90937-01118 · 90937-01119 · 90937-01195 · 90937-01196 · 90937-01287 · 90937-01288 · 90937-01289 |
| 42421D | Rear axle right bearing shell | 42421-34010 · 42421-35030 · 42421-35040 · 42421-35050 |
| 42422 | Rear axle left bearing housing | 42421-34010 · 42421-35030 · 42421-35040 · 42421-35050 |
| 42423A | Rear axle right bearing inner retainer | 42423-20010 |
| 42423B | Rear axle left bearing inner retainer | 42423-20010 |
| 42424A | O-ring (for bearing retainer assembly) | 90301-88077 |
| 42441 | brake drum oil baffle | 42441-26010 · 42441-35020 |
| 42443 | Brake drum oil deflector gasket | 42443-30010 · 42443-55020 |
| 42444R | Brake drum gasket (for rear axle) | 42444-35050 · 42444-35070 |
| 42611E | Hub bolts (for rear axle) | 90942-02049 · 90942-02052 |
| 43517 | Rear anti-skid control rotor | 43517-35010 |
