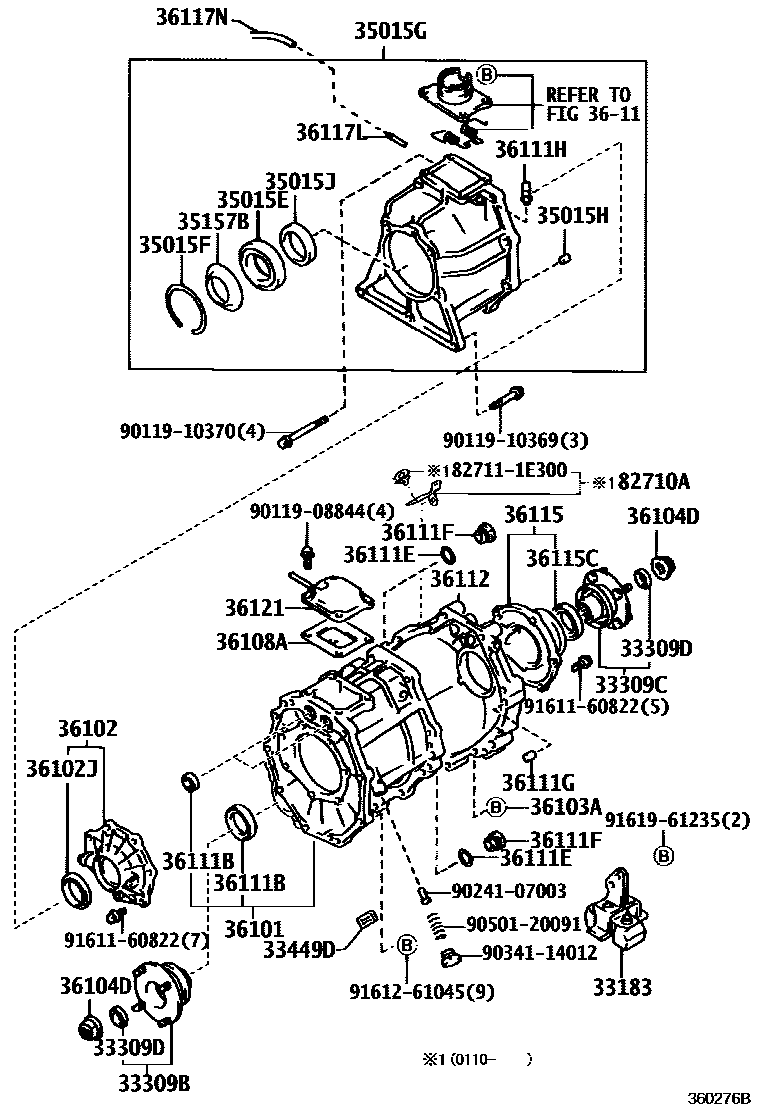

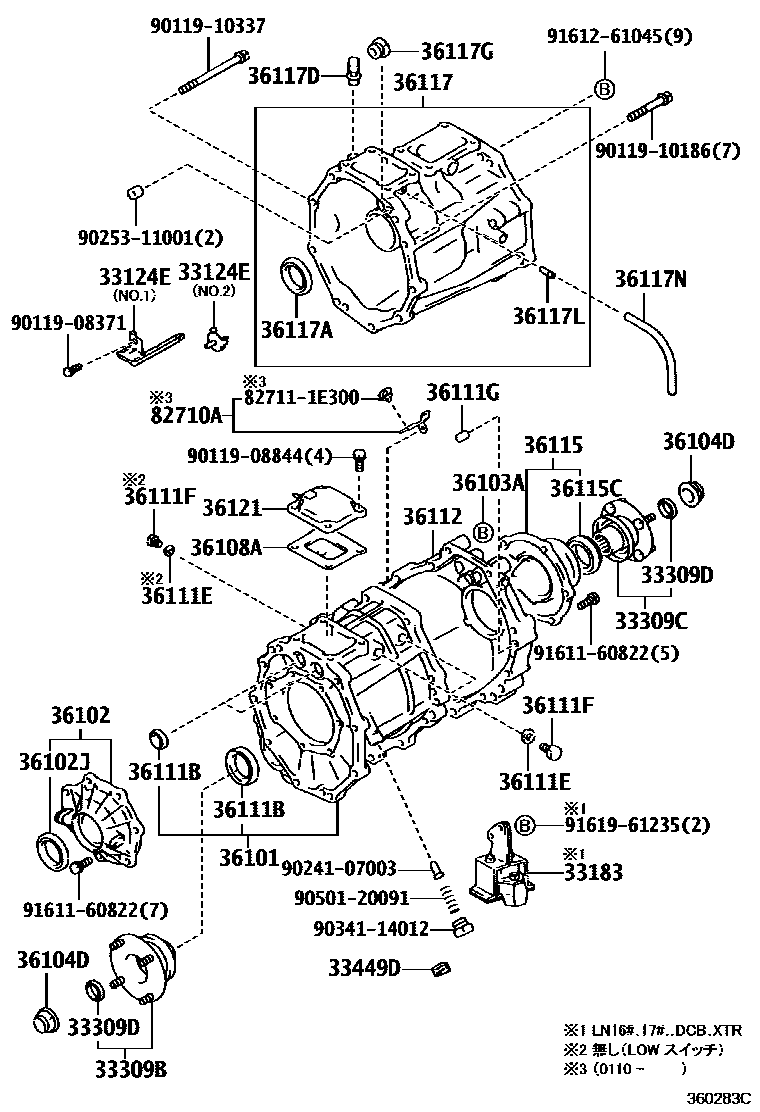

Toyota HILUX Transfer Case & Extension Housing — Figure 3609
Toyota HILUX EPC diagram 3609, Transfer Case & Extension Housing, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33124E | Oil collector pipe (for transfer case) | 33124-35070 · 33124-36010 |
| 33183 | Transfer case dynamic damper | 33183-34031 |
| 33309B | Output shaft combined with flange sub-assembly | 33309-35061 |
| 33309C | Output shaft combined with flange sub-assembly | 33309-35100 |
| 33309D | Oil seal (for transfer case output shaft coupling flange) | 90312-23001 |
| 33449D | Magnet (for transfer case) | 33449-32020 |
| 35015E | Radial ball bearing (for transfer case adapter) | 90363-37001 |
| 35015F | Hole snap ring (for transfer case adapter) | 90521-72001 |
| 35015G | transfer case rear clutch | 35015-35011 |
| 35015H | Ring pin (for transfer case) | 90253-11001 |
| 35015J | Oil seal (for rear transfer case adapter) | 90311-40007 |
| 35157B | Rear transfer case adapter oil collection tank | 35157-35010 · 35157-60010 |
| 36101 | Transfer case sub-assembly | 36101-35120 |
| 36102 | Transfer Case Cover Sub-Assembly | 36102-35050 · 36102-35051 |
| 36102J | T-type oil seal (for transfer case cover) | 90311-40021 |
| 36103A | Bolt (for transfer case) | 90119-08A28 |
| 36104D | Nut (for transfer case output shaft) | 90179-22016 |
| 36108A | Air vent oil baffle sub-assembly | 36108-35030 · 36108-35031 · 36128-35060 |
| 36111B | Oil seal (for transfer case) | 90311-15008 · 90311-41008 · 90311-41010 · 90311-41011 |
| 36111E | Gasket (for transfer case) | 90430-18008 |
| 36111F | Screw plug (for transfer case) | 90341-18006 |
| 36111G | Direct sales (for transfer case) | 90250-10214 |
| 36111H | Breather plug (for transfer case) | 90930-03085 |
| 36112 | Rear transfer case | 36112-35070 |
| 36115 | Transfer case extension housing | 36105-35020 · 36105-35040 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-41007 |
| 36117 | Transfer case clutch | 36107-35100 |
| 36117A | Oil seal (for transfer case clutch) | 90311-40007 · 90311-40023 |
| 36117D | Thread plug (for transfer case adapter) | 90930-03085 |
| 36117G | Headed straight thread plug (for transfer case adapter) | 90341-20010 |
| 36117L | Tube (for transfer case adapter) | 90441-05001 |
| 36117N | Hoses (for transfer case adapter) | 90904-45005 |
| 36121 | No. 1 transfer case cover | 36102-35020 · 36102-35040 |
| 82710A | Wire harness clamp assembly | 82710-35040 |
