Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

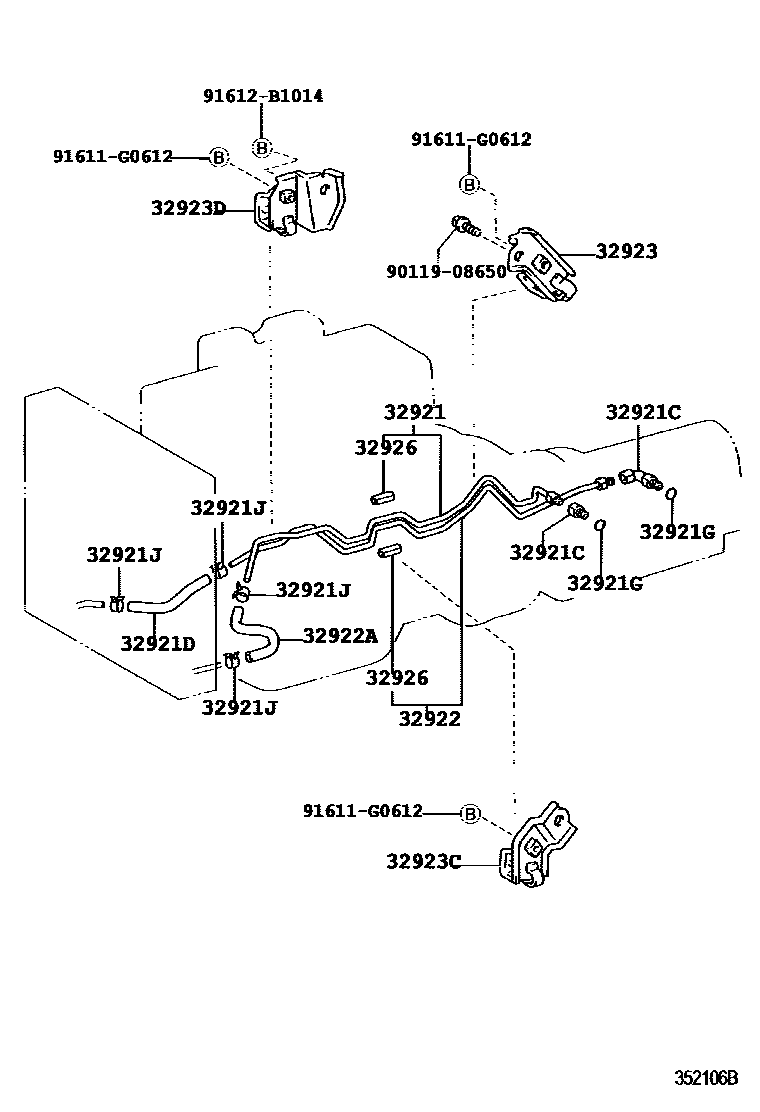

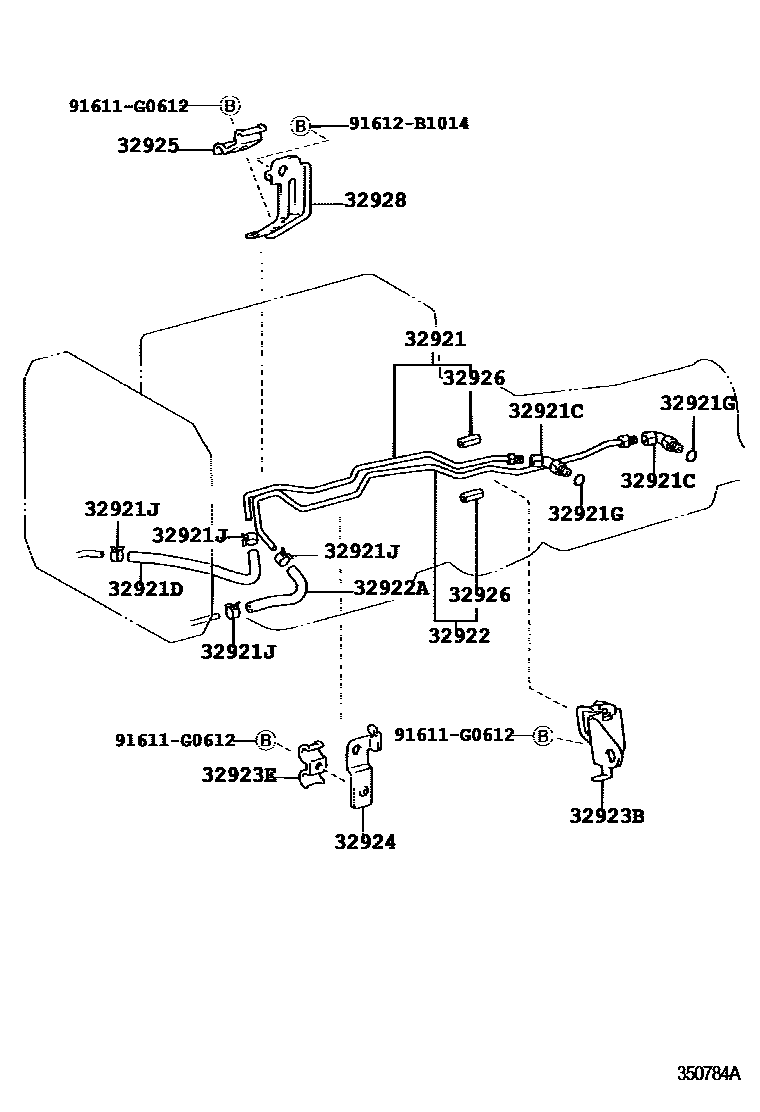

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35310 · 32921-35320 · 32921-35350 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-16021 · 90407-16009 · 90407-16010 · 90407-16012 · 90407-16023 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-17096 · 90445-17097 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 · 90467-16022 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35340 · 32922-35350 · 32922-35380 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32943-36050 · 90445-17102 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32909-35150 · 32909-35180 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32909-35140 |
| 32923C | No. 4 automatic transmission oil cooler pipe clamp | 32909-35160 · 32909-38010 |
| 32923D | No. 5 automatic transmission oil cooler pipe clamp | 32909-34040 |
| 32923E | No. 6 automatic transmission oil cooler pipe clamp | 90462-12044 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-30090 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 90462-12044 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 · 32926-30060 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-35050 |
