Toyota HILUX 节气阀连杆和阀杆(ATM) — Figure 3513

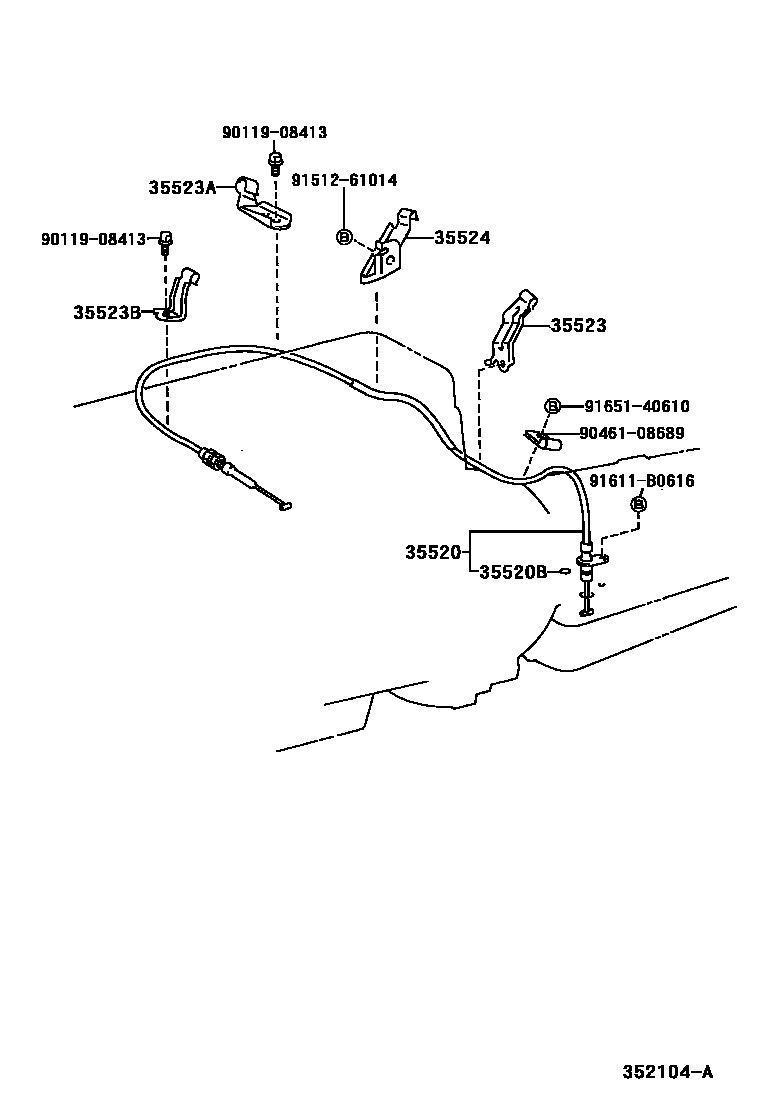

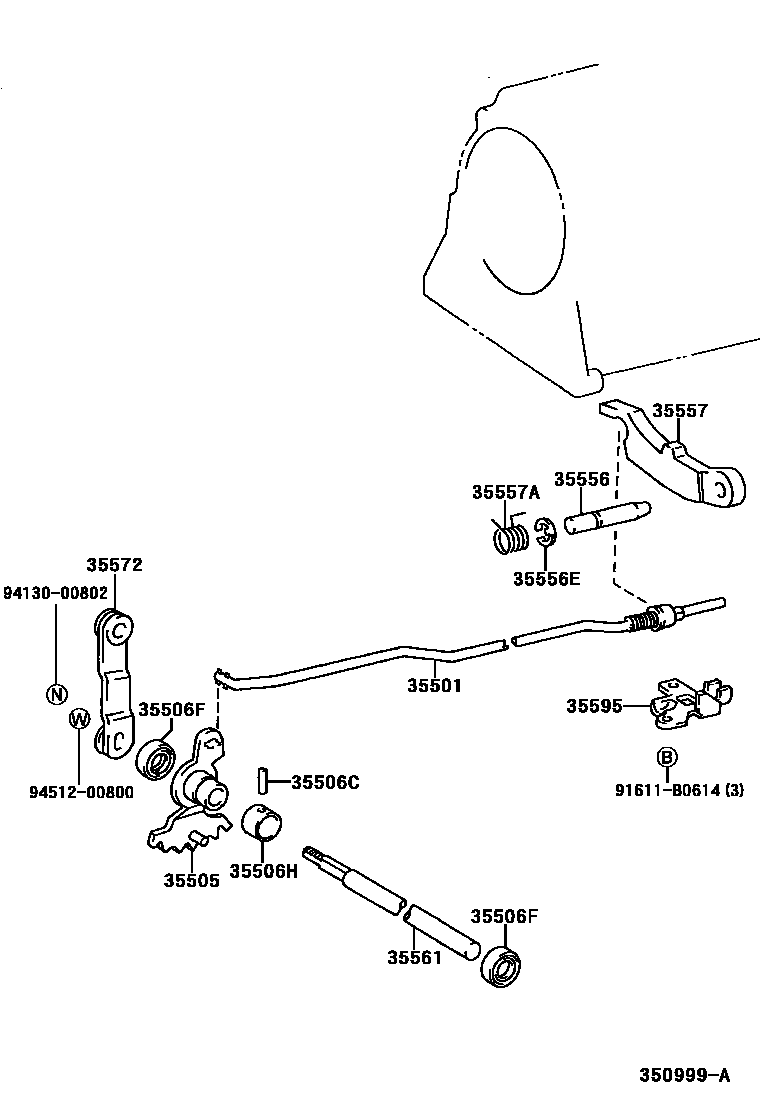

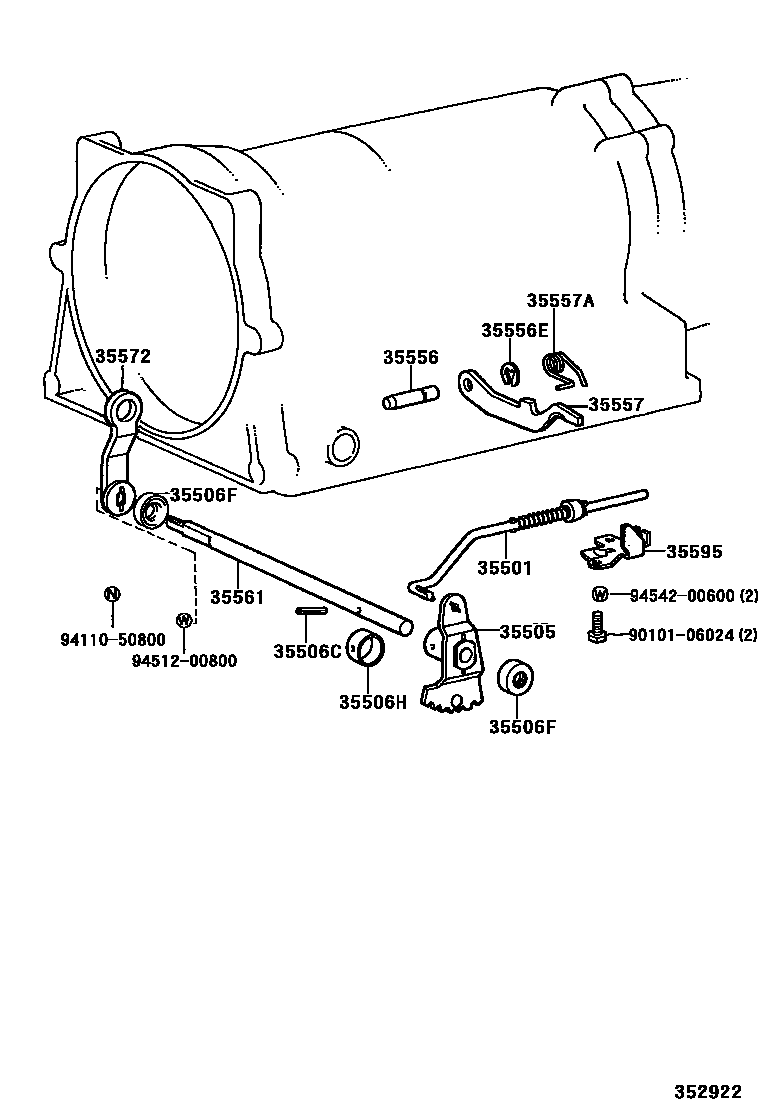

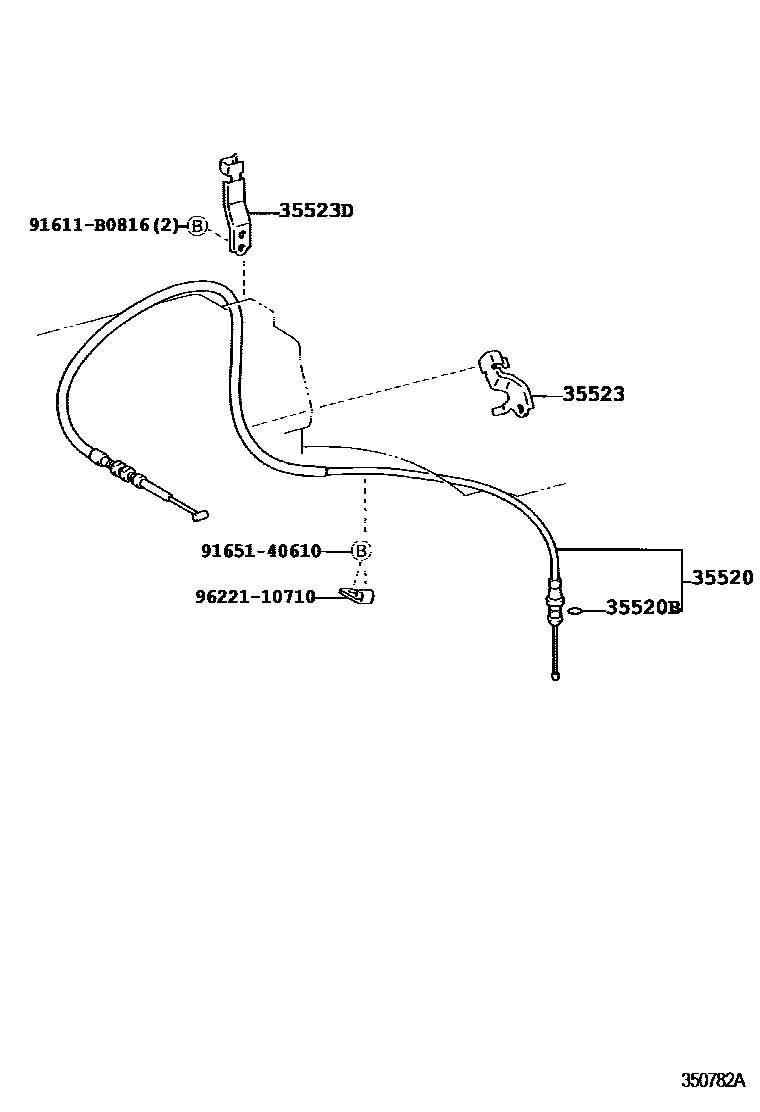

Toyota HILUX EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-22020 · 35501-60010 |
| 35505 | Manual valve stem sub-assembly | 35505-22040 · 35505-30020 · 35505-30021 · 35505-50010 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-11003 · 90311-12002 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20003 · 90560-20006 · 90560-20025 |
| 35520 | Throttle valve cable assembly | 35520-26080 · 35520-35250 · 35520-35270 |
| 35520B | O-ring (for throttle valve cable) | 90301-09012 |
| 35523 | Throttle valve cable clamp | 35523-26060 · 35523-35180 · 35523-35270 |
| 35523A | No. 1 throttle valve cable clamp | 35524-35030 |
| 35523B | No. 3 throttle valve cable clamp | 35523-35190 |
| 35523D | No. 5 throttle valve cable clamp | 35524-26050 |
| 35524 | No. 2 throttle valve cable clamp | 35523-35230 · 35524-35050 |
| 35556 | Parking lock pawl shaft | 35556-26010 · 35556-30020 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-26020 · 35557-60020 |
| 35557A | Torsion spring (for parking pawl) | 90508-21002 · 90508-25001 |
| 35561 | Manual valve stem shaft | 35561-30070 · 35561-40010 |
| 35572 | Transmission right control lever | 35572-35020 · 35572-35030 |
| 35595 | Parking lock pawl bracket | 35595-40010 · 35595-60010 |
