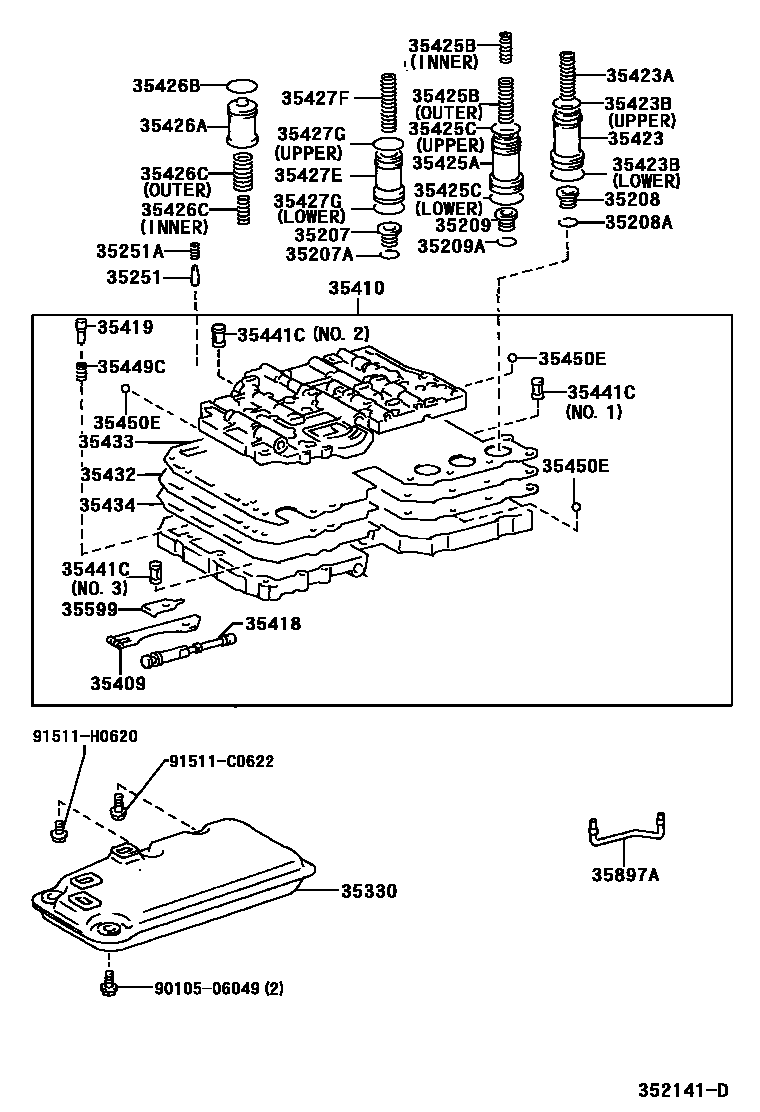

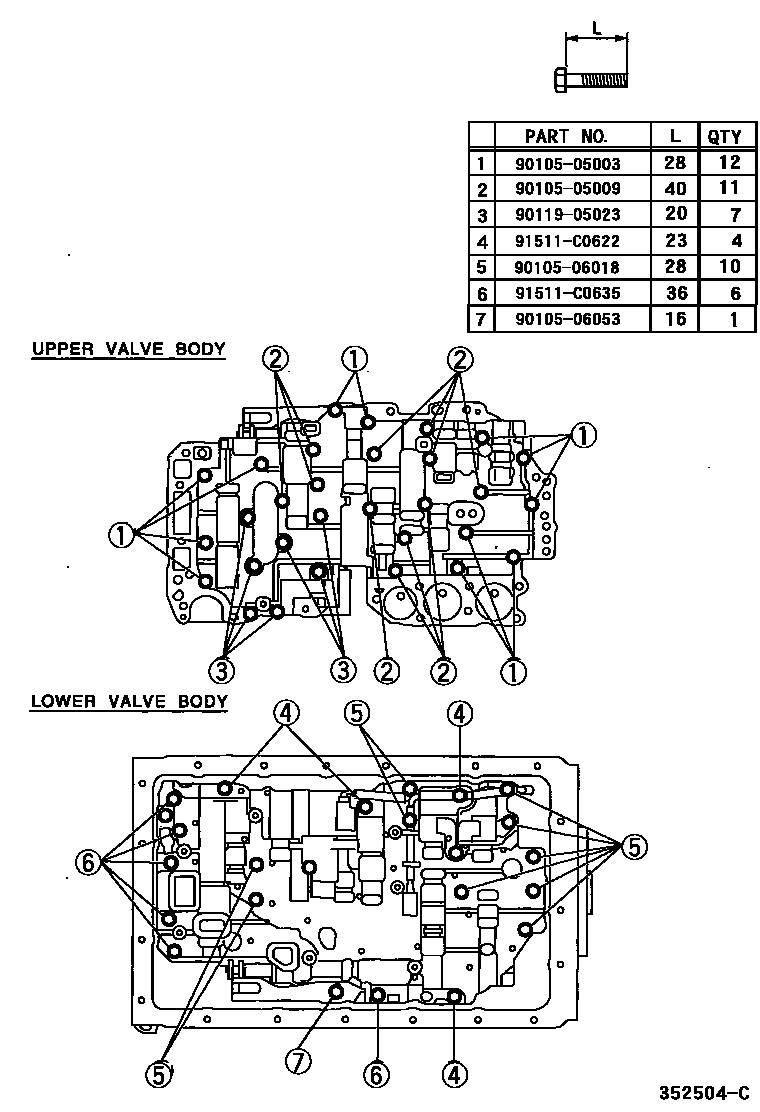

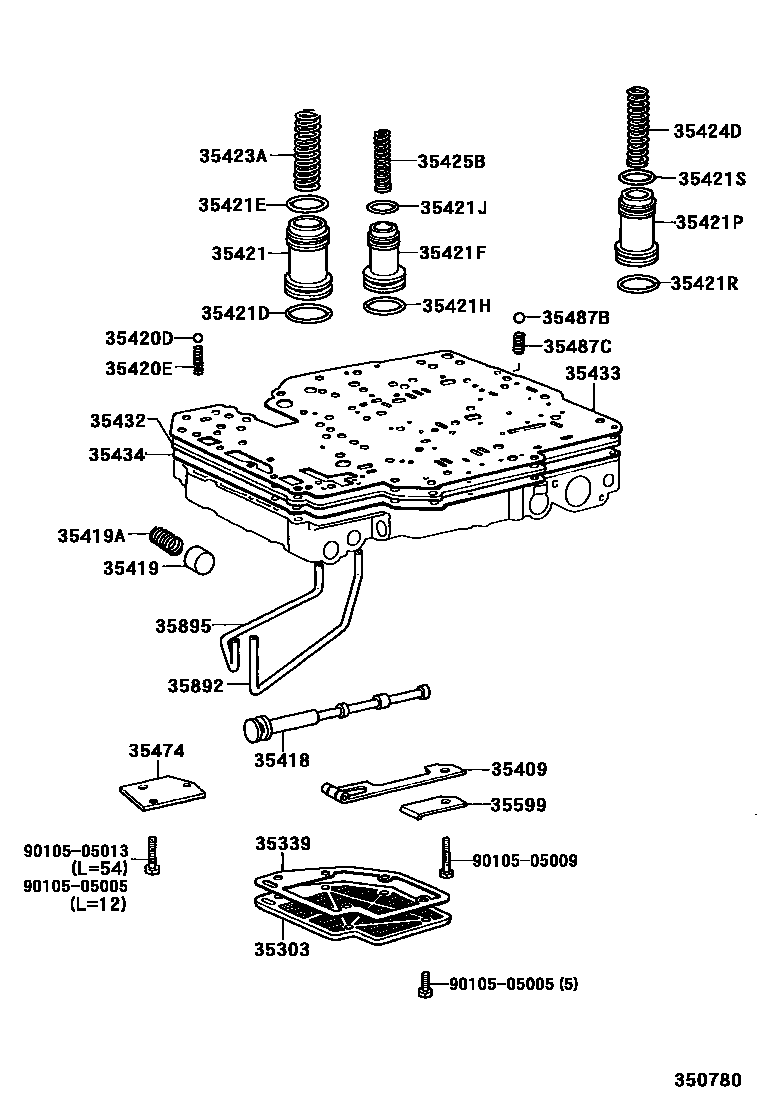

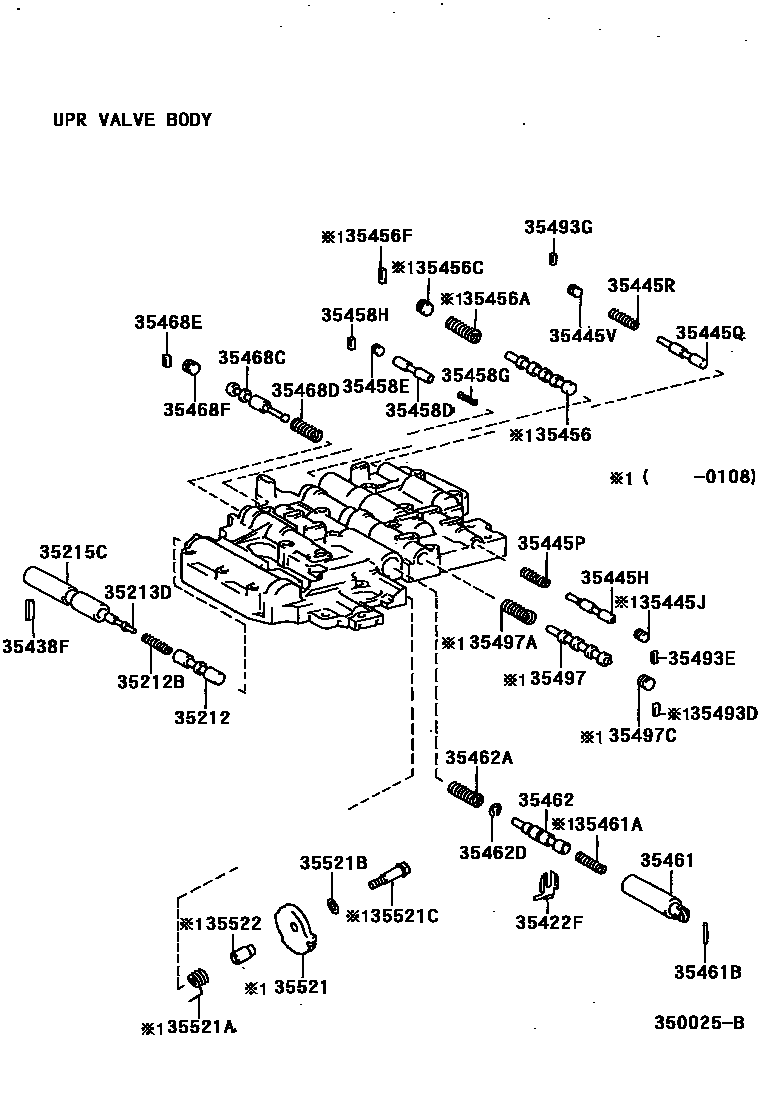

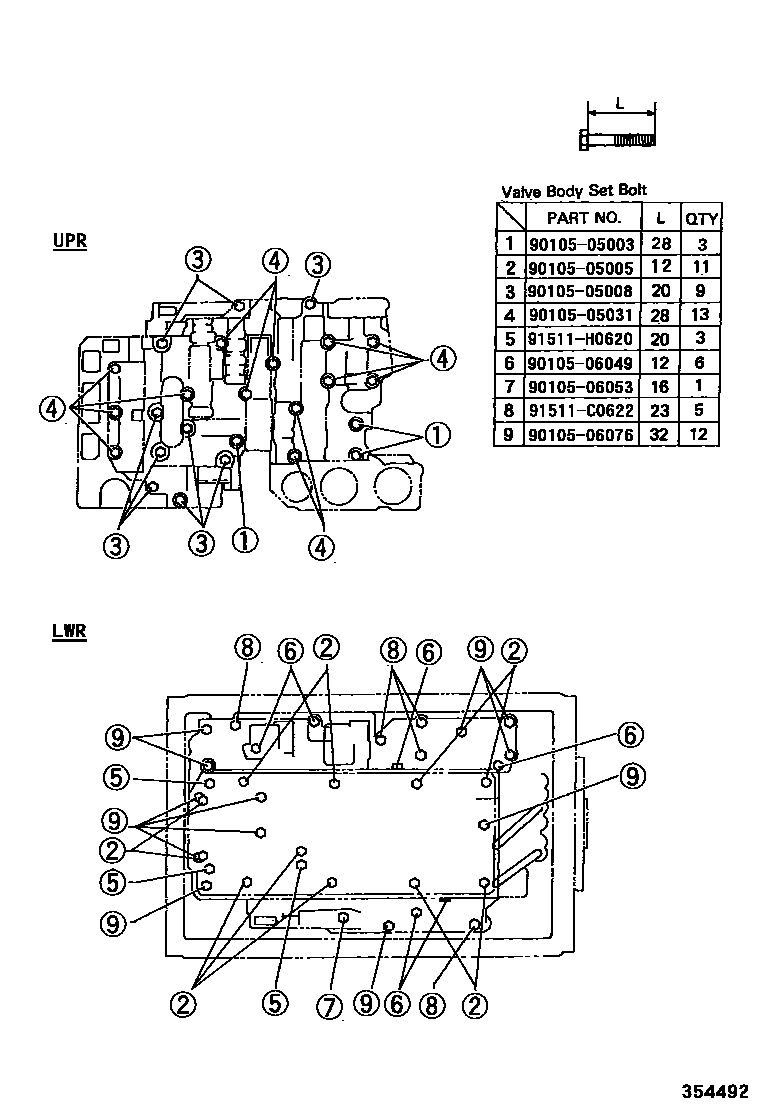

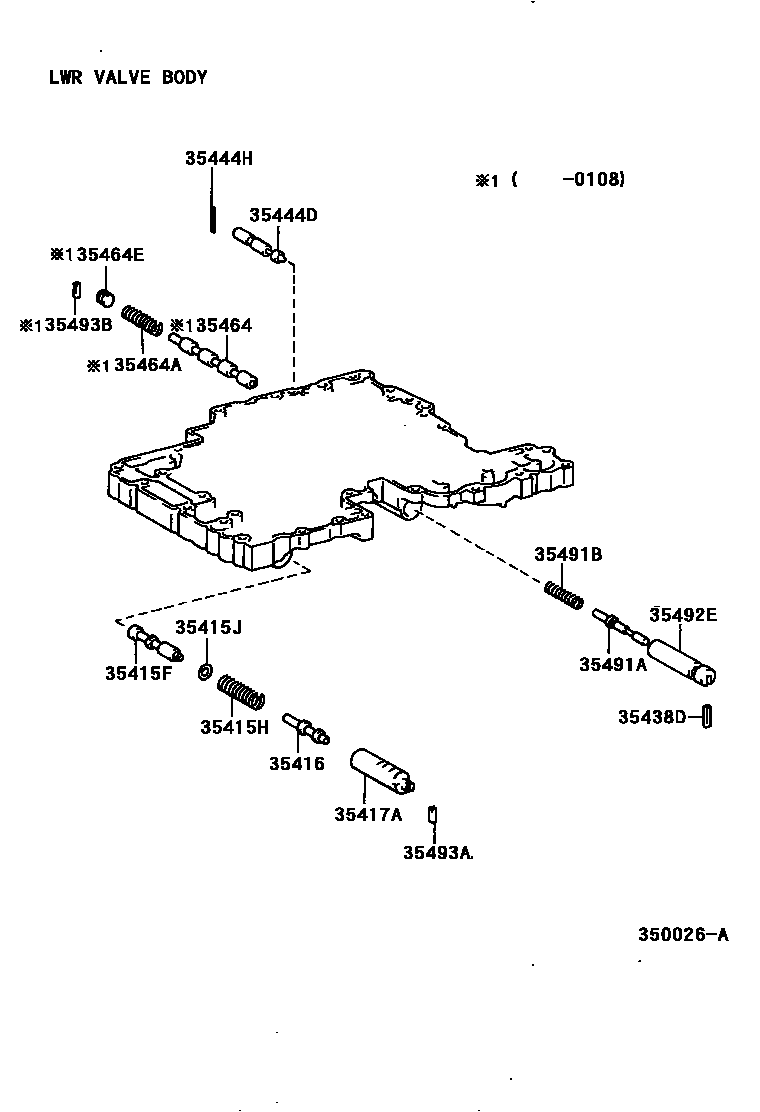

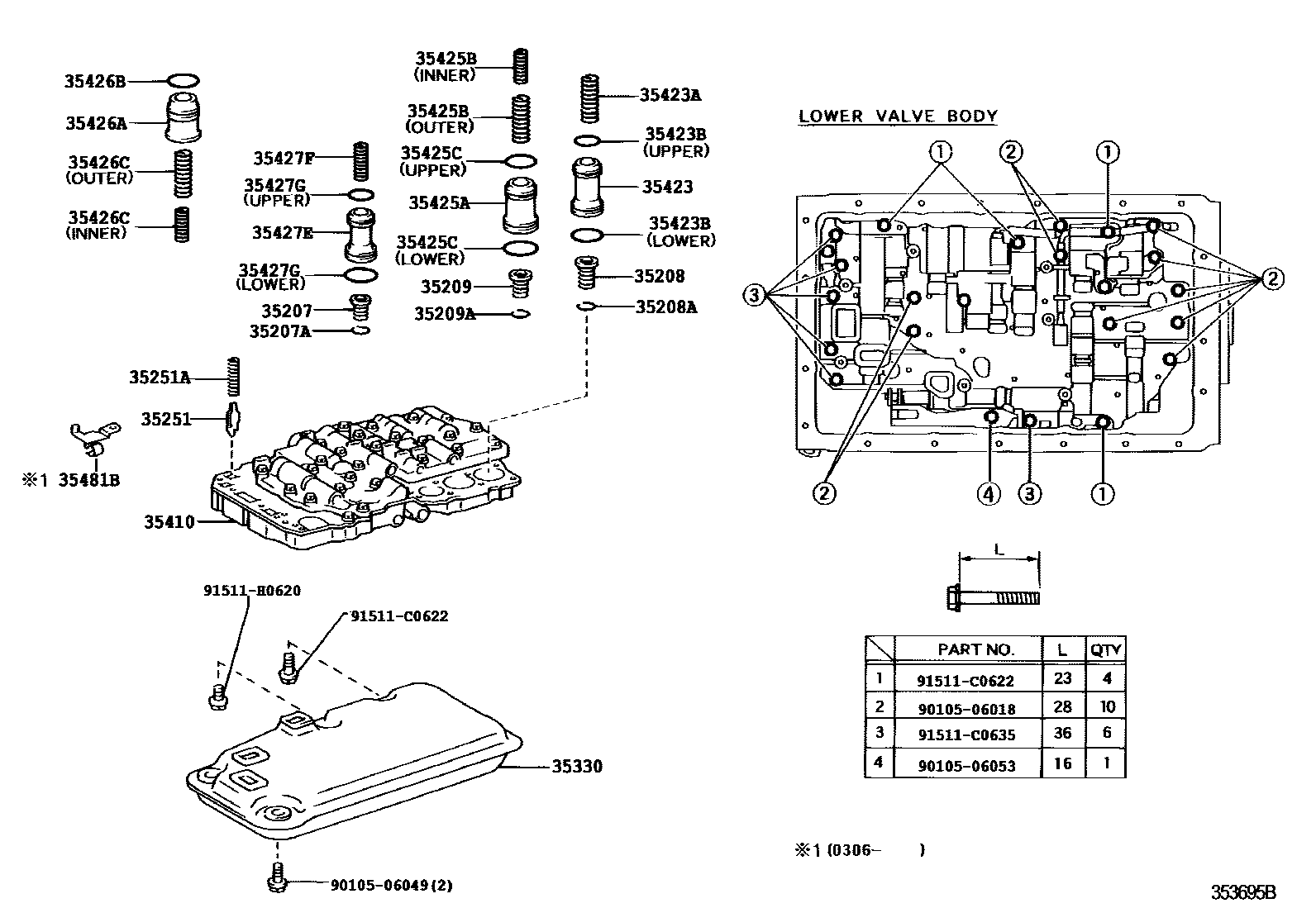

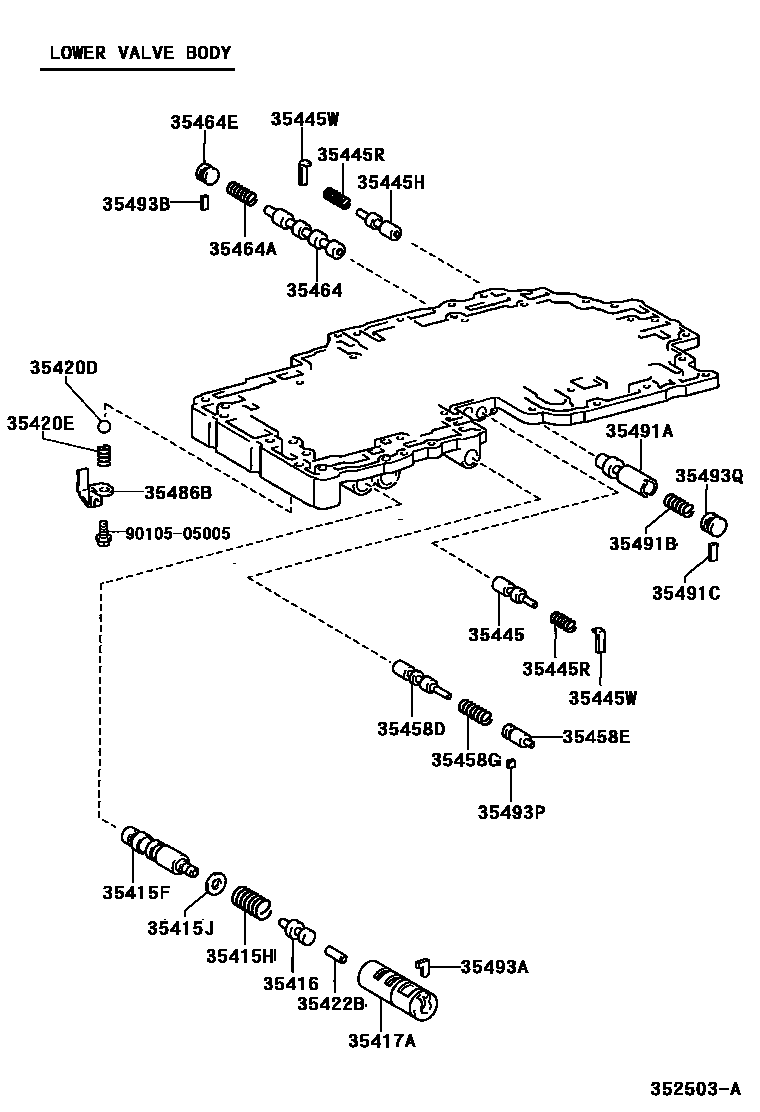

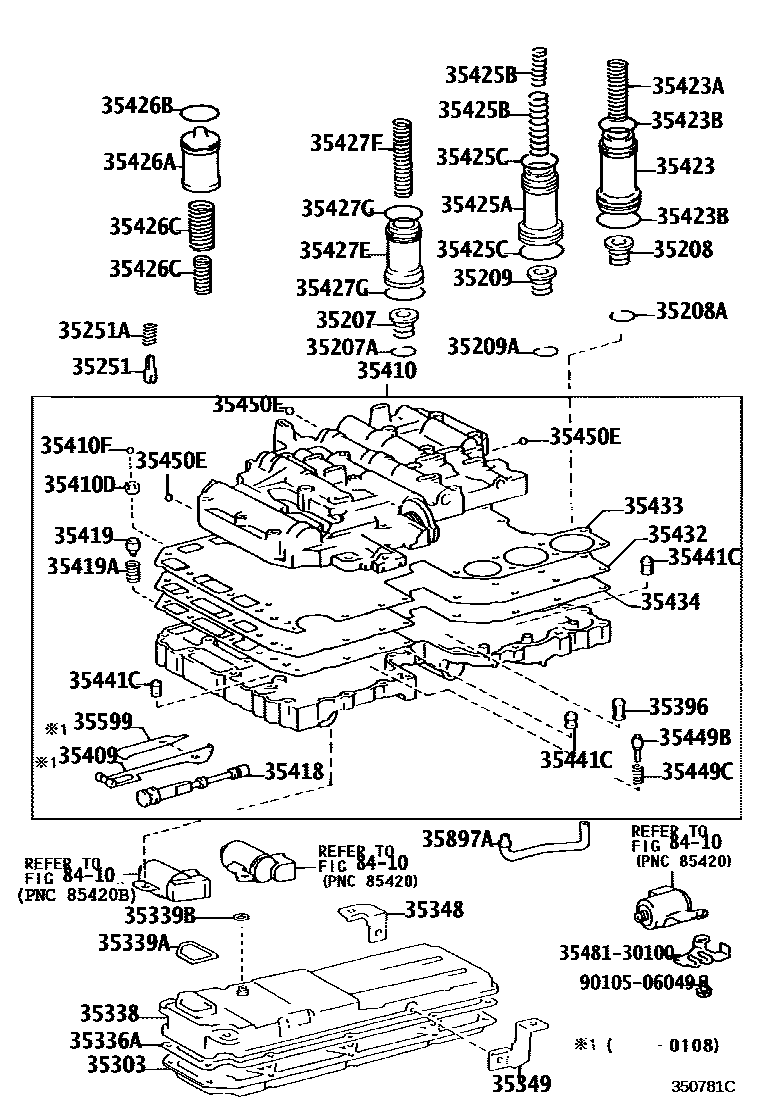

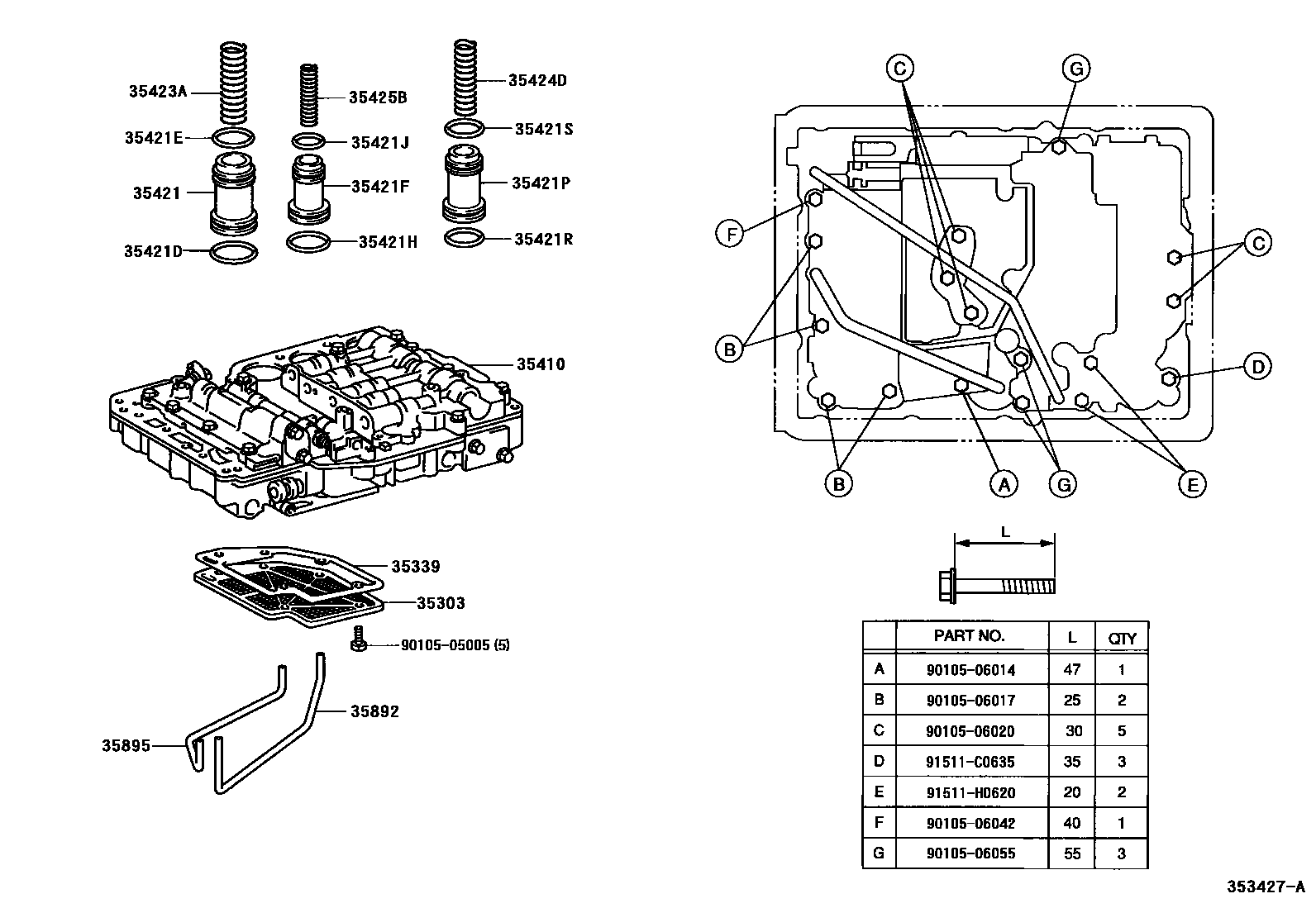

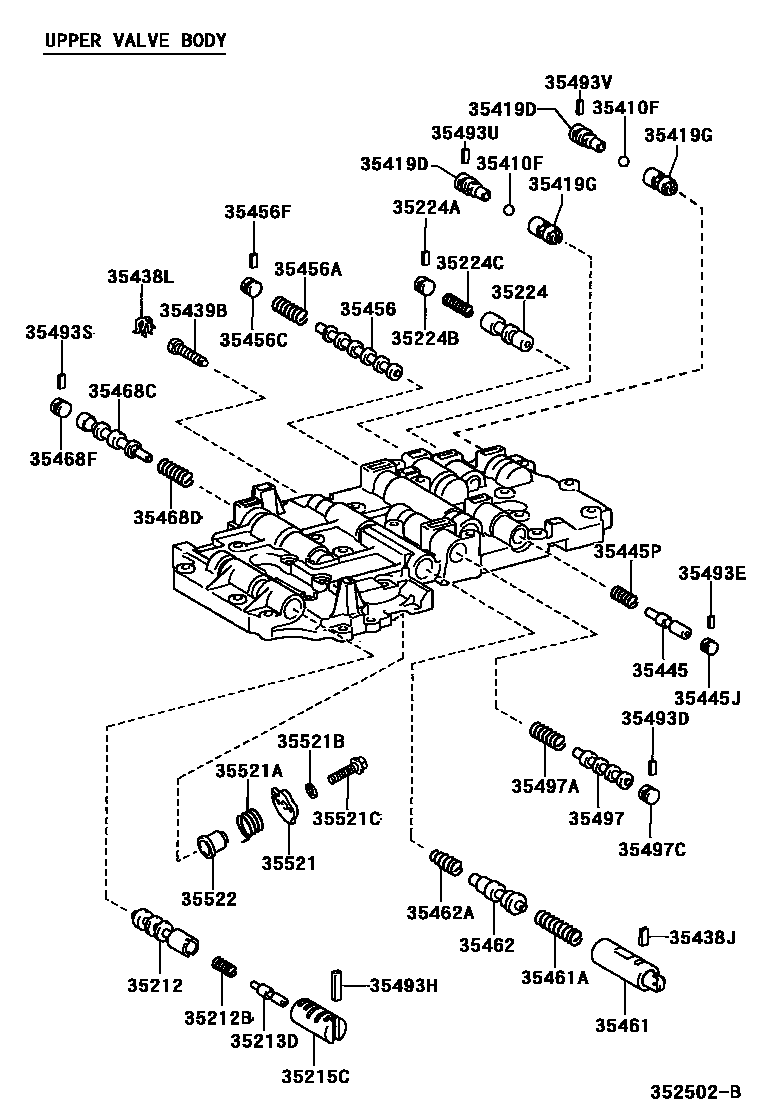

Toyota HILUX 阀体和滤油网(ATM) — Figure 3512
Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 14 images and 192 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35207 | B-0 accumulator spring sub-assembly | 35207-22010 · 35207-50010 |
| 35207A | Hole snap ring (for B-0 accumulator spring) | 90521-22004 |
| 35208 | B-2 Accumulator Spring Sub-Assembly | 35208-30010 |
| 35208A | Hole snap ring (for B-2 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-30010 |
| 35209A | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35212 | lock relay valve | 35212-12010 · 35212-24010 |
| 35212B | Compression spring (for locking relay valve) | 90501-06037 · 90501-06057 |
| 35213D | Lock relay valve plunger | 35213-24010 · 35213-30020 |
| 35215C | No. 1 locking relay valve sleeve | 35215-24010 · 35215-30020 |
| 35224 | reverse gear control valve | 35224-30010 |
| 35224A | Straight key (for reverse gear control valve) | 90282-03010 |
| 35224B | Plunger (for reverse control valve) | 90339-05020 |
| 35224C | Compression spring (for reverse control valve) | 90501-06056 |
| 35250 | Ball check valve body assembly | 35250-30010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35303 | Oil filter sub-assembly | 35303-30050 · 35303-35010 · 35303-35020 |
| 35330 | Valve body oil filter assembly | 35330-60030 |
| 35336A | Oil filter separator gasket | 35336-60010 |
| 35338 | Oil filter septum | 35338-35010 |
| 35339 | Oil filter gasket | 35339-28010 |
| 35339A | No. 1 oil filter gasket | 35339-30070 |
| 35339B | No. 2 oil filter gasket | 90430-10010 |
| 35348 | No. 1 oil filter bracket | 35348-35010 |
| 35349 | No. 2 oil filter bracket | 35349-35010 |
| 35396 | Throttle valve oil filter | 35396-30010 |
| 35409 | Manual lock spring sub-assembly | 35409-30010 · 35409-30020 |
| 35410 | Transmission valve body assembly | 35410-35371 · 35410-35520 · 35410-35650 · 35410-35690 |
| 35410D | One-way valve | 90917-10073 |
| 35410F | Ball (for one-way valve) | 90360-06004 |
| 35415 | pressure regulator valve | 35415-22021 |
| 35415A | Compression spring (for pressure regulator valve) | 90501-15017 |
| 35415F | Main regulator valve | 35415-30030 · 35415-30050 |
| 35415H | Compression spring (for main regulator valve) | 90501-14117 · 90501-16077 |
| 35415J | Gasket (for main regulator valve) | 90201-08021 · 90201-08067 |
| 35416 | No. 1 main regulator valve plunger | 35416-22010 · 35416-30050 · 35416-50010 |
| 35417 | pressure regulator valve sleeve | 35417-22020 |
| 35417A | Main regulator valve sleeve | 35417-30070 · 35417-50010 |
| 35418 | Manual valve | 35418-24010 · 35418-30050 · 35418-30070 |
| 35419 | No. 1 one-way valve | 35419-12030 · 35419-22010 · 35419-50010 |
| 35419A | Compression spring (for one-way valve) | 90501-11039 · 90501-16083 |
| 35419D | No. 2 one-way valve | 35419-50020 |
| 35419G | No. 4 one-way valve | 35419-50030 |

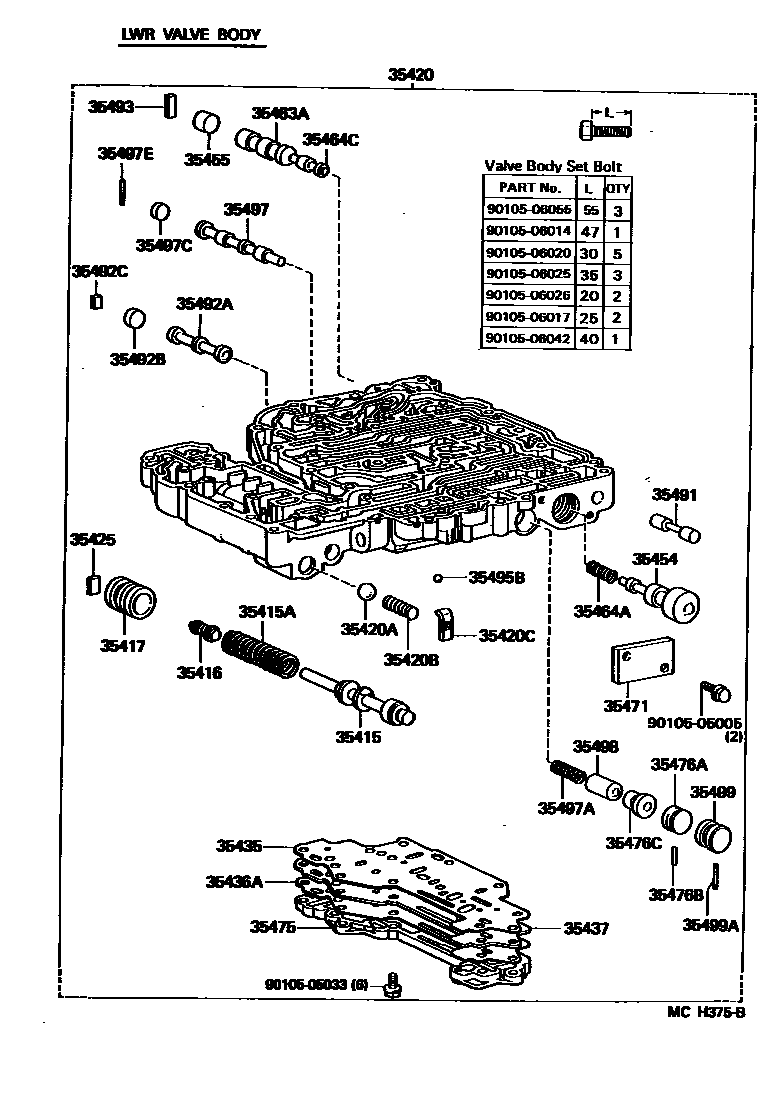

| 35420 | Lower valve body assembly | 35420-35080 |
| 35420A | Ball (for pressure reducing valve) | 90360-13024 |
| 35420B | Spring (for pressure reducing valve) | 90501-18677 |
| 35420C | Seat (for pressure reducing valve) | 35427-22011 |
| 35420D | Ball (for lower valve body) | 35495-22020 · 35496-22030 · 90360-08003 |
| 35420E | Spring (for lower valve body) | 90501-04727 · 90501-12142 |
| 35421 | No. 1 accumulator piston | 35421-30020 |
| 35421D | Ring (for accumulator piston No. 1) | 90301-29011 · 90301-29187 |
| 35421E | Ring (for accumulator piston No. 1) | 90301-23010 · 90301-23194 |
| 35421F | No. 2 accumulator piston | 35441-30010 |
| 35421H | Ring (for accumulator piston No. 2) | 90301-26012 · 90301-26190 |
| 35421J | Ring (for accumulator piston No. 2) | 90301-18010 · 90301-18186 |
| 35421P | No. 3 accumulator piston | 35421-22030 |
| 35421R | Ring (for No. 3 accumulator piston) | 90301-26012 · 90301-26190 |
| 35421S | Ring (for No. 3 accumulator piston) | 90301-21012 · 90301-22185 |
| 35422B | No. 2 main regulator valve plunger | 35422-50010 |
| 35422F | Valve damping stop | 35422-22010 · 35422-30010 |
| 35423 | B-2 Accumulator Piston | 35423-30030 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-24015 · 90501-25026 · 90501-28025 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-23010 · 90301-31010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-20016 |
| 35425 | Pressure regulator valve sleeve seat | 35425-14010 |
| 35425A | C-2 Accumulator Piston | 35425-30020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22016 · 90501-23093 · 90501-25027 · 90501-27016 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-25010 · 90301-31010 |
| 35426A | C-0 Accumulator Piston | 35426-40010 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-24010 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-22008 · 90501-23073 |
| 35427E | B-0 accumulator piston | 35427-30040 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-21006 · 90501-23095 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20008 · 90301-26011 |

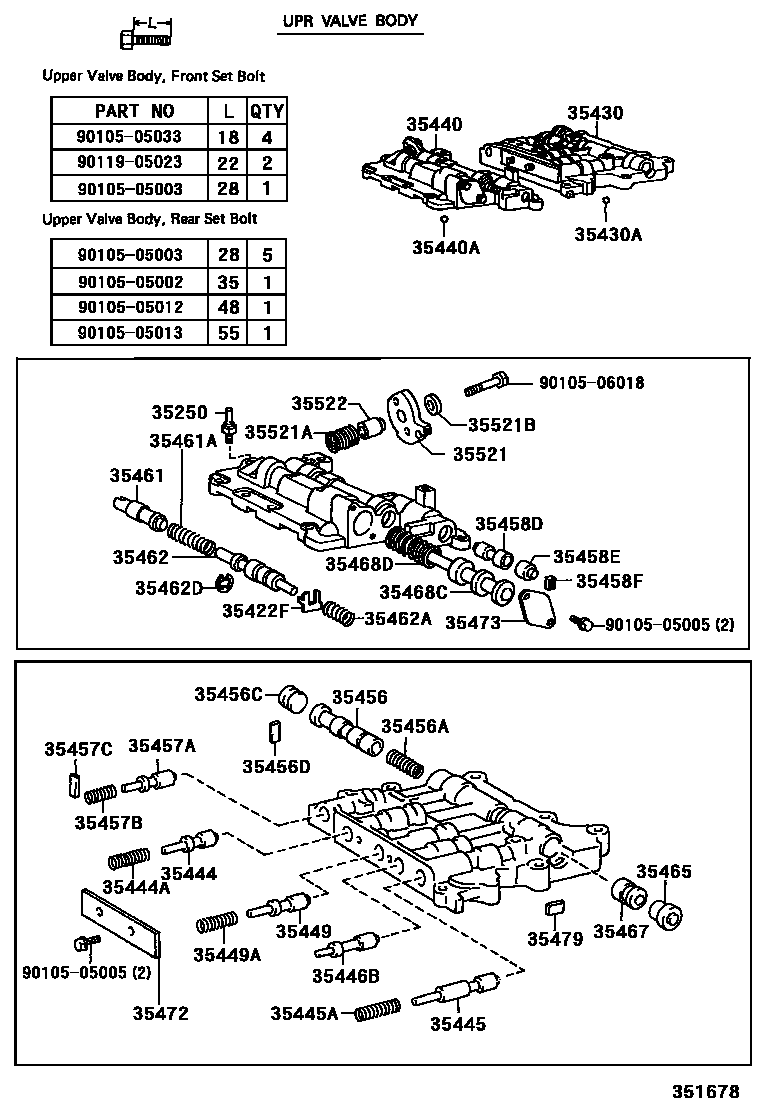

| 35430 | Rear upper valve body assembly | 35430-28020 |
| 35430A | Ball (for rear upper valve body) | 35495-22020 · 90360-06023 |
| 35432 | No. 1 valve body plate | 35432-30071 · 35432-35090 · 35432-35260 |
| 35433 | No. 1 valve body gasket | 35433-30052 · 35433-30064 · 35433-60040 |
| 35434 | No. 2 valve body gasket | 35434-30052 · 35434-30076 · 35434-60040 |
| 35435 | No. 3 valve body plate gasket | 35435-30030 |
| 35436A | No. 4 valve body plate gasket | 35436-30040 |
| 35437 | 3rd-4th gear shift valve separation plate | 35437-22040 |
| 35438D | Accumulator control valve spring seat | 35438-22020 |
| 35438F | Lock spring seat | 35438-22020 |
| 35438J | Throttle valve spring seat | 35493-50050 |
| 35438L | Throttle valve seat ring | 35438-50010 |
| 35439B | Throttle valve screw | 35439-50010 |
| 35440 | Front upper valve body assembly | 35440-30051 |
| 35440A | Ball (for front upper valve body) | 35495-22020 |
| 35441C | Solenoid valve oil filter | 35441-24010 · 35441-24020 · 35441-30020 · 35441-30031 · 35441-50030 |
| 35444 | intermediate regulator valve | 35444-22010 |
| 35444A | Compression spring (for intermediate regulator valve) | 90501-11009 |
| 35444D | release control valve | 35444-30020 |
| 35444H | Direct pin (for intermediate regulator valve plunger) | 90250-03045 |
| 35445 | Low speed regulator valve | 35445-22010 · 35445-50010 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08725 |
| 35445H | Second gear slide regulator valve | 35445-30011 · 35445-50010 |
| 35445J | Plunger (for second gear slide regulator valve) | 90339-04002 |
| 35445P | Compression spring (for second gear coast regulator valve) | 90501-10140 · 90501-11026 |
| 35445Q | Low gear coast regulator valve | 35445-30011 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-08168 · 90501-08169 |
| 35445V | Plunger (for low range coast regulator valve) | 90339-04002 |
| 35445W | Shift valve plunger seat (for low range regulator valve) | 35493-24010 |
| 35446B | governor regulator valve plunger | 35446-20010 |
| 35449 | sequence valve | 35447-22010 |
| 35449A | Compression spring (for sequence valve) | 90501-12726 |
| 35449B | Pressure reducing valve | 35449-32010 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 · 90501-09093 |
| 35450E | Ball (for upper valve body) | 35495-22020 · 35496-22030 |
| 35454 | Low gear coast shift valve | 35454-30010 |
| 35455 | 1-2 gear low gear shift valve plunger | 35455-22010 |
| 35456 | 2nd-3rd gear shift valve | 35456-22010 · 35456-30060 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08724 · 90501-09053 |
| 35456C | Plunger (for 2-3 gear shift valve) | 35452-22010 · 90339-05014 |
| 35456D | Seat (for 2-3 gear shift valve) | 35493-22020 |
| 35456F | Straight key (for 2-3 gear shift valve) | 35493-22020 |
| 35457A | lock regulator valve | 35457-22010 |
| 35457B | Compression spring (for locking regulator valve) | 90501-09022 |
| 35457C | Seat (for locking regulator valve) | 35438-22020 |
| 35458D | reverse valve | 35458-22010 · 35458-24010 · 35458-30030 |
| 35458E | Plunger (for reverse valve) | 35459-22010 · 90339-04002 · 90339-04056 |
| 35458F | Seat (for reverse valve) | 35493-22010 |
| 35458G | Compression spring (for reverse valve) | 90501-06026 · 90501-07113 |
| 35458H | Straight key (for reverse valve) | 90282-03003 |
| 35461 | Downshift plug | 35408-22050 · 35408-30010 · 35408-30040 |
| 35461A | Compression spring (for downshift plug) | 90501-10119 · 90501-12011 |
| 35461B | Direct sales (for downshift plug) | 90250-03045 |
| 35462 | throttle valve | 35462-22011 · 35462-30020 · 35462-50010 |
| 35462A | Compression spring (for throttle valve) | 90501-07051 · 90501-07680 · 90504-06002 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35463A | 1-2 gear lower shift valve | 35463-22010 |
| 35464 | 1-2 gear shift valve | 35464-12030 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-06684 · 90501-09053 |
| 35464C | 1-2 gear upper shift valve | 35464-22020 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-05014 |
| 35465 | Intermediate shift valve plunger | 35465-22010 |
| 35467 | Intermediate shift valve | 35467-22010 |
| 35468C | Secondary regulator valve | 35468-12020 · 35468-22010 · 35468-24010 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-12170 · 90501-15007 · 90501-19001 |
| 35468E | Straight key (for secondary regulator valve) | 35493-22020 |
| 35468F | Plunger (for secondary regulator valve) | 90339-05014 · 90339-05020 |
| 35471 | No. 1 valve body cover | 35471-22010 |
| 35472 | No. 2 valve body cover | 35472-22010 |
| 35473 | Transmission valve body cover | 35473-22010 |
| 35474 | No. 4 valve body cover | 35474-22010 |
| 35475 | No. 5 valve body cover | 35475-30020 |
| 35476A | Straight screw plug (for third-speed coaster shift valve) | 90334-12001 |
| 35476B | Locating pin (for third-speed coaster shift valve) | 90250-02012 |
| 35476C | Three-speed slide valve | 35476-30010 |
| 35479 | Intermediate shift valve seat | 35479-22010 |
| 35481B | Valve body wiring harness clip | 35481-24010 |
| 35486B | Pressure reducing valve spring seat | 35486-30020 |
| 35487B | No. 4 one-way ball | 35487-30010 |
| 35487C | Compression spring (for one-way balls) | 90504-05006 |
| 35491 | Reverse brake plug | 35491-22010 |
| 35491A | No. 1 accumulator control valve | 35491-30020 · 35491-60050 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-08096 · 90501-08191 |
| 35491C | Straight key (for No. 1 accumulator control valve) | 90282-03016 |
| 35492A | Manual downshift timing valve | 35492-30010 |
| 35492B | Plunger (for manual downshift timing valve) | 35494-30010 |
| 35492C | Valve seat (for manual downshift timing valve) | 35493-30040 |
| 35492E | Accumulator control valve sleeve | 35492-30030 |
| 35493 | Shift valve spring seat | 35493-22010 |
| 35493A | Main regulator valve plunger seat | 35493-30020 · 35493-50010 |
| 35493B | 1-2 gear shift valve plunger seat | 35493-30090 |
| 35493D | 3rd-4th gear shift valve plunger seat | 35493-30090 |
| 35493E | Second gear slide regulator valve plunger seat | 35493-30080 · 35493-30090 |
| 35493G | Low gear coast regulator valve plunger seat | 35493-30090 |
| 35493H | Shift valve plunger seat (for locking relay valve) | 35493-22020 |
| 35493P | Reverse valve plunger seat | 35493-30100 |
| 35493Q | No. 1 accumulator control valve plunger seat | 90339-05028 |
| 35493S | Secondary regulator valve plunger seat | 35493-30030 |
| 35493U | No. 1 one-way valve seat | 35493-30030 |
| 35493V | No. 2 one-way valve seat | 35493-30030 |
| 35495B | One-way ball No. 1 | 35495-22020 |
| 35497 | 3rd-4th gear shift valve | 35497-30020 · 35497-30040 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-09053 · 90501-11010 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90334-13001 · 90339-05014 |
| 35497E | Needle roller (for 3-4 gear shift valve) | 90361-02051 |
| 35498 | 3rd-4th gear slide shift valve | 35498-30010 |
| 35499 | 3rd-4th gear shift valve plunger | 35499-30030 |
| 35499A | Direct sales (for 3-4 gear shift valve) | 90250-02012 |
| 35521 | throttle cam | 35521-30010 · 35521-35010 |
| 35521A | Spring (for throttle cam return) | 90508-11007 · 90508-12331 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90105-06018 |
| 35522 | Throttle valve cam pin | 35522-22010 · 35522-22020 |
| 35599 | Manual locking spring cover | 35599-30010 · 35599-30020 |
| 35892 | overdrive brake pipe | 35892-28010 · 35892-28020 |
| 35895 | Front clutch oil supply pipe | 35895-30021 |
| 35897A | No. 1 first and reverse brake pipe | 35897-35010 · 35897-60030 |
