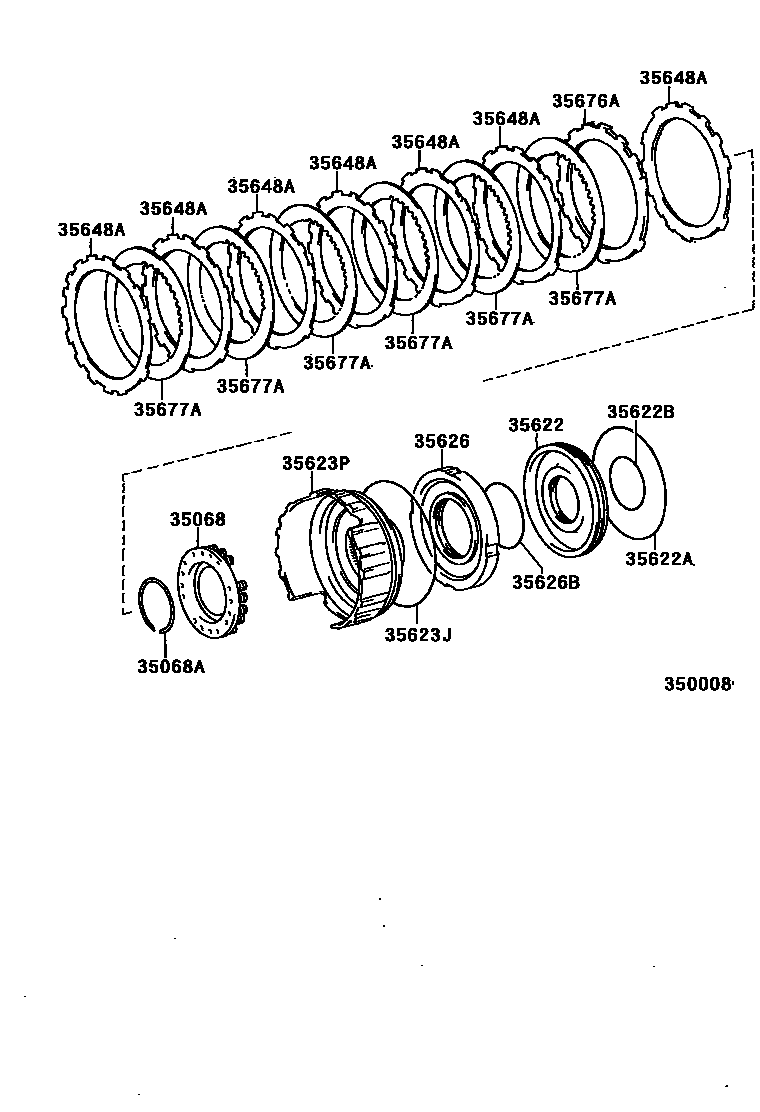

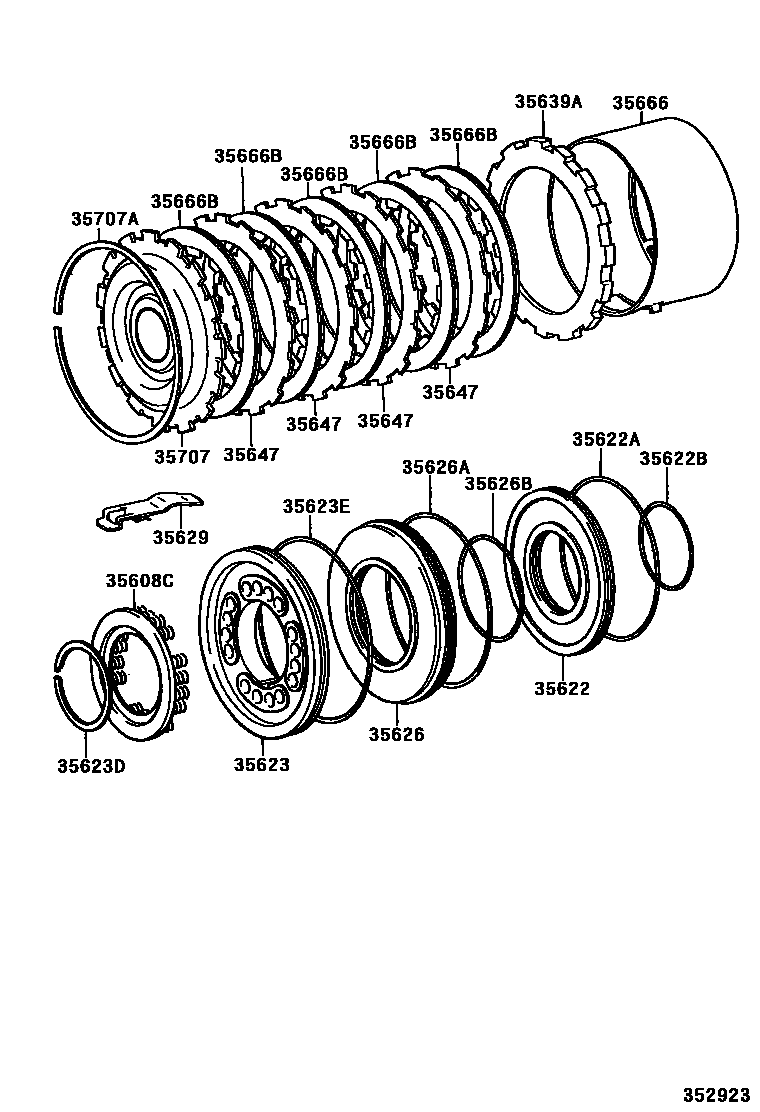

Toyota HILUX 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota HILUX EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-30011 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-52262 |
| 35608C | No. 3 brake piston return spring sub-assembly | 35608-20020 |
| 35622 | Brake piston No. 2 | 35622-22010 · 35622-30010 |
| 35622A | Outer ring (for brake piston) | 90301-99084 · 90301-99193 |
| 35622B | Inner ring (for brake piston) | 90301-56007 · 90301-57188 |
| 35623 | No. 3 brake piston | 35623-22010 |
| 35623D | Shaft snap ring (for brake) | 90520-52262 |
| 35623E | No. 1 O-ring (for brake piston) | 90301-99110 · 90301-99192 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99192 |
| 35623P | No. 2 first and reverse brake piston | 35623-30012 |
| 35626 | Brake reaction sleeve | 35626-22010 · 35626-30020 |
| 35626A | Outer ring (for brake reaction sleeve) | 90301-99109 · 90301-99200 |
| 35626B | Inner ring (for brake reaction sleeve) | 90301-67005 · 90301-68191 |
| 35629 | Limit spring (first and reverse brake pads) | 35629-22010 |
| 35639A | Clutch pressure plate (for brake) | 35639-22010 · 35639-22020 · 35639-22030 · 35639-22040 · 35639-22050 · 35639-22060 |
| 35647 | Clutch plate No. 2 | 35647-22010 |
| 35648A | Clutch disc (for first and reverse brakes) | 35648-30031 |
| 35666 | Brake oil supply pipe | 35666-30010 |
| 35666B | Clutch disc (for brakes) | 35633-30060 |
| 35676A | Brake flange (for first and reverse brakes) | 35676-30100 · 35676-30110 · 35676-50010 · 35676-50020 · 35676-50030 · 35676-50040 · 35676-50050 · 35676-50060 |
| 35677A | Clutch disc (for first and reverse brake) | 35677-30130 · 35677-30180 |
| 35707 | One-way clutch inner race sub-assembly | 35707-30030 · 35707-30040 |
| 35707A | Hole snap ring (for one-way clutch inner race) | 90521-99140 |
