Toyota HILUX 制动带和多片式离合器(ATM) — Figure 3507

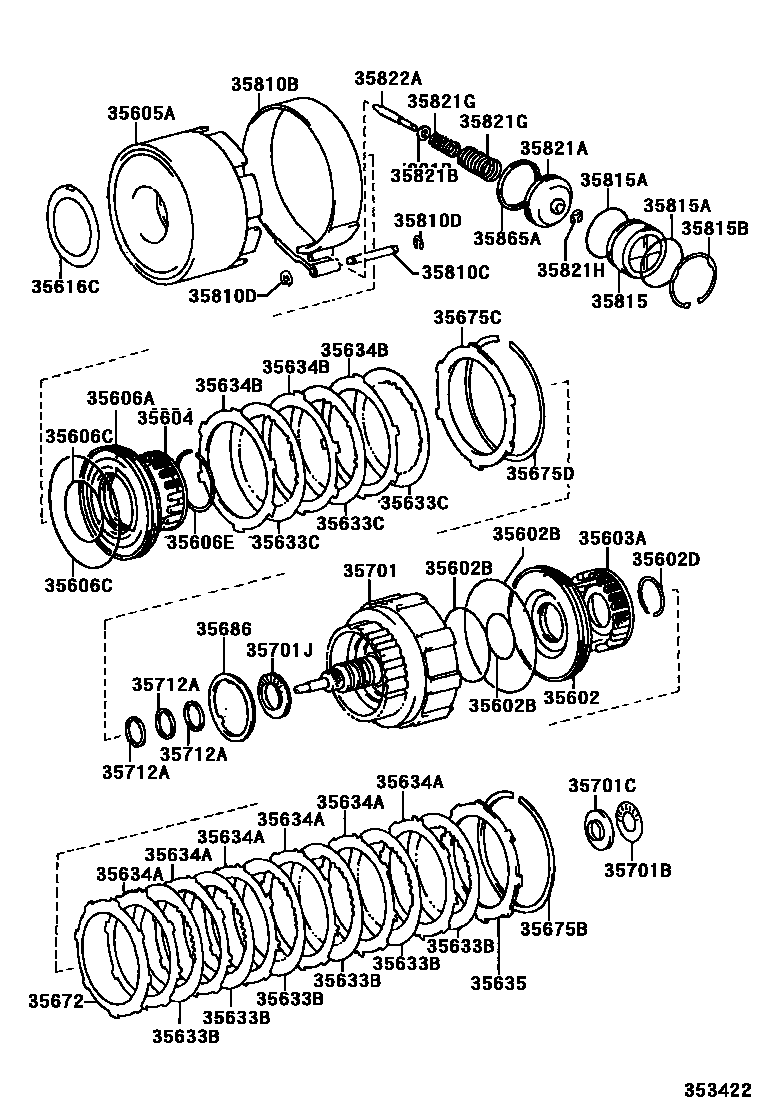

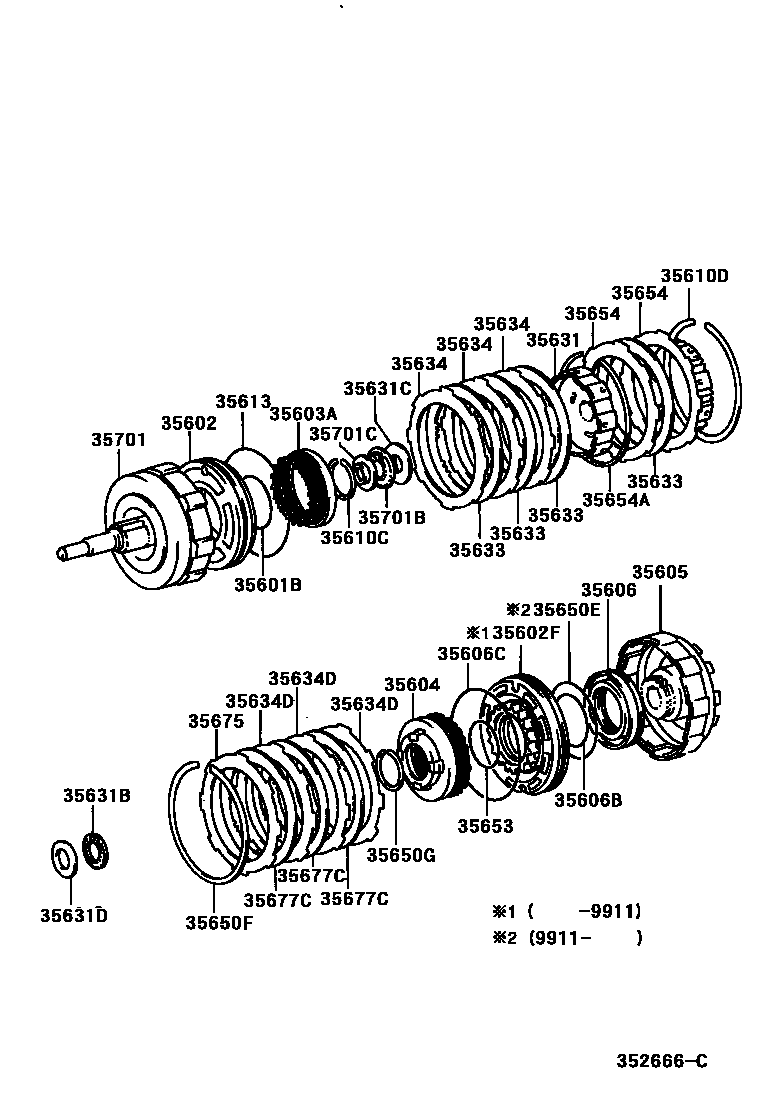

Toyota HILUX EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35601B | O-ring (for front clutch drum) | 90301-56007 · 90301-57188 |
| 35602 | Front clutch piston sub-assembly | 35602-30042 · 35602-30062 |
| 35602B | O-ring (for forward clutch piston) | 90301-39005 · 90301-72003 · 90301-99058 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-35001 |
| 35602F | No. 2 rear clutch piston sub-assembly | 35602-30041 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-22030 · 35603-30011 |
| 35604 | Direct clutch return spring sub-assembly | 35603-22010 · 35603-22020 · 35604-35010 |
| 35605 | Rear clutch drum sub-assembly with second gear sun gear | 35605-30021 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-22040 · 35605-30031 |
| 35606 | Rear clutch piston sub-assembly | 35606-22010 · 35606-30021 |
| 35606A | Direct clutch piston sub-assembly | 35606-35010 |
| 35606B | Inner O-ring (for rear clutch piston) | 90301-56007 · 90301-57188 |
| 35606C | O-ring (for direct clutch piston) | 90301-65006 · 90301-99058 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90520-58001 |
| 35610C | Shaft snap ring (for front clutch piston return spring) | 90520-39261 |
| 35610D | Hole snap ring (for front multi-plate clutch) | 90520-99012 |
| 35613 | Clutch piston outer oil ring | 90301-99016 · 90301-99058 |
| 35616C | Clutch drum thrust washer (for direct gear clutch drum) | 35616-30050 |
| 35631 | Clutch hub (for multi-plate clutches) | 35631-30050 · 35631-43010 |
| 35631B | Thrust bearing (for front clutch hub) | 90374-28014 |
| 35631C | Front thrust bearing race (for front clutch hub) | 35789-22050 |
| 35631D | Rear thrust bearing race (for front clutch hub) | 35789-22020 · 35789-43010 |
| 35633 | Clutch disc (for front clutch) | 35677-30160 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35677-30170 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35667-22010 · 35667-34010 |
| 35634 | front clutch plate | 35634-22040 · 35634-30070 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-30110 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35647-22030 · 35647-30011 |
| 35634D | rear clutch plate | 35634-22040 · 35634-30070 |
| 35635 | forward clutch flange | 35635-30020 · 35635-30030 · 35635-30040 · 35635-30050 · 35635-30060 · 35635-30070 · 35635-30080 · 35635-30090 · 35635-30100 · 35635-30110 · 35635-50010 · 35635-50020 · 35635-50030 · 35635-50040 · 35635-50050 · 35635-50060 |
| 35650E | Outer O-ring (for rear clutch piston) | 90301-56007 |
| 35650F | Shaft snap ring | 90521-99139 |
| 35650G | Shaft snap ring (for rear clutch piston return spring) | 90520-39261 |
| 35653 | Rear clutch outer oil ring | 90301-83001 · 90301-84184 |
| 35654 | rear clutch hub | 35654-30010 |
| 35654A | Hole snap ring (for rear clutch hub) | 90521-99146 |
| 35672 | clutch cushion | 35672-30010 |
| 35675 | rear clutch flange | 35675-22010 · 35675-22120 · 35675-22130 · 35675-22140 |
| 35675B | Hole snap ring (for forward clutch flange) | 90521-99001 |
| 35675C | Direct clutch flange | 35675-22030 · 35675-22040 · 35675-22080 · 35675-22090 · 35675-22100 · 35675-30051 · 35675-30061 · 35675-30071 · 35675-30081 · 35675-30091 · 35675-30101 · 35675-30111 · 35675-30120 · 35675-30210 · 35675-30220 · 35675-30230 · 35675-30240 · 35675-30250 · 35675-30260 · 35675-30270 |
| 35675D | Hole snap ring (for direct clutch flange) | 90520-99018 · 90521-99032 |
| 35677C | rear clutch disc | 35677-22080 · 35677-30160 |
| 35686 | Clutch drum thrust washer (for input shaft) | 35686-30010 |
| 35701 | Input shaft sub-assembly | 35701-22050 · 35701-30043 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-23012 · 90374-25005 |
| 35701C | Rear thrust bearing race (for input shaft) | 35789-22010 · 35789-30110 |
| 35701J | Front thrust needle roller bearing (for input shaft) | 90374-33001 |
| 35712A | Input shaft oil ring | 35712-30020 |
| 35810B | Second gear coasting brake band assembly | 35810-30020 · 35810-50020 |
| 35810C | Pin (for second gear coast brake band) | 90249-07011 |
| 35810D | E-ring (for second gear coasting brake belt pin) | 96160-00500 |
| 35815 | Second gear coast brake cover | 35815-30010 |
| 35815A | O-ring (for second gear coast brake cover) | 90301-48001 |
| 35815B | Hole snap ring (for second gear coast brake cover) | 90521-60002 · 90521-60003 |
| 35821A | Second gear coast brake piston | 35821-30020 |
| 35821B | Flat washer (for second gear coast brake piston) | 90201-06557 |
| 35821G | Compression spring (for second gear coast brake piston) | 90501-26024 · 90501-27009 |
| 35821H | E-ring (for second gear coast brake piston) | 96160-00500 |
| 35822A | Second gear coast brake piston rod | 35822-32010 · 35822-32020 |
| 35865A | Second gear coasting brake piston oil protection ring | 35865-30010 |
