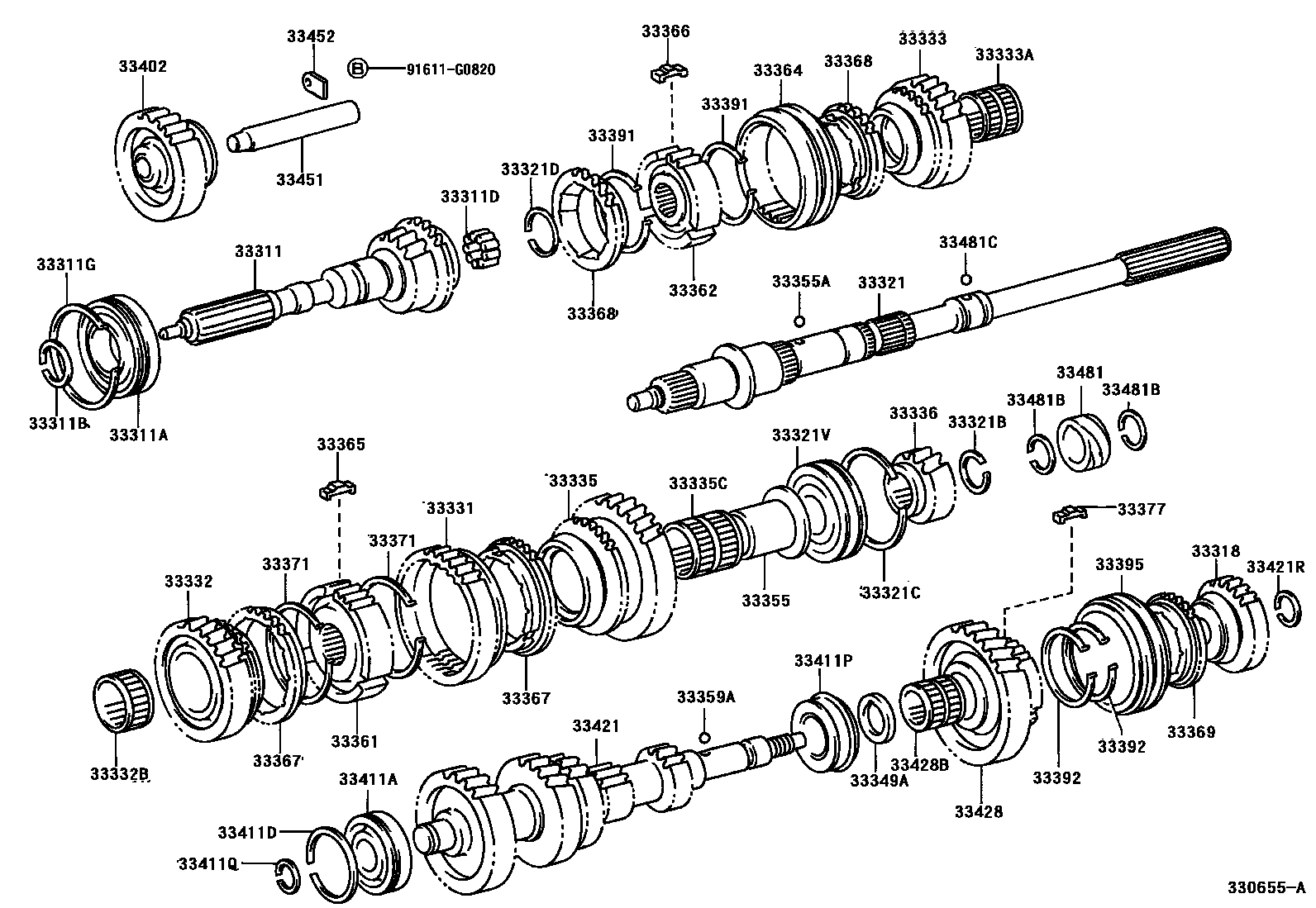

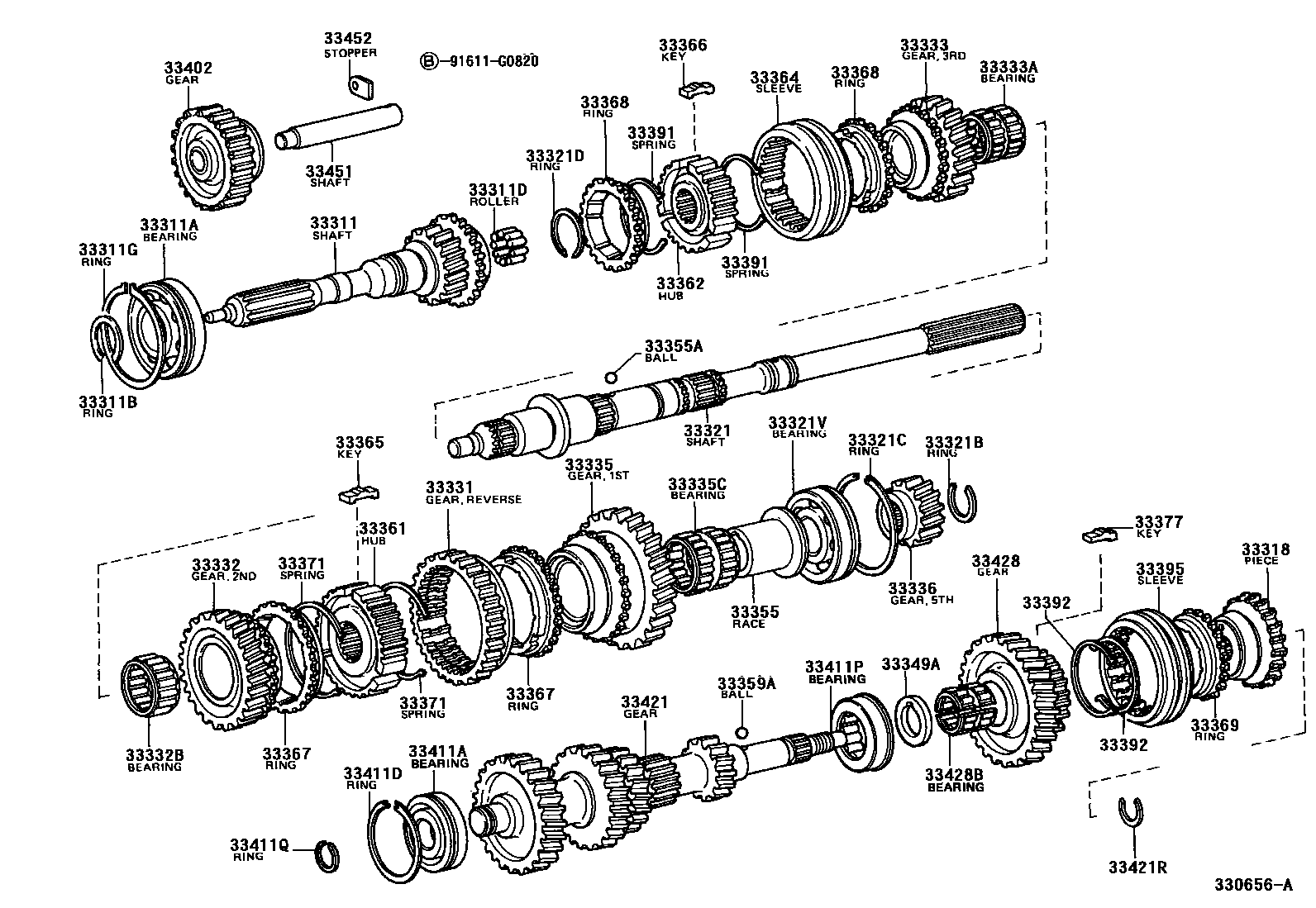

Toyota HILUX 变速器齿轮(MTM) — Figure 3305
Toyota HILUX EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33311 | input shaft | 33301-35070 · 33301-35071 · 33301-35080 |
| 33311A | Bearing (for front input shaft) | 90363-32024 |
| 33311B | Shaft snap ring (for front bearing) | 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 |
| 33311D | Input shaft bearing | 90361-06002 |
| 33311G | Shaft snap ring (for front bearing) | 90520-76002 |
| 33318 | No. 5 gear spline | 33318-35030 |
| 33321 | output shaft | 33321-35092 · 33321-60090 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-25005 · 90520-25006 · 90520-25009 · 90520-25010 · 90520-25011 · 90520-25012 · 90520-25013 · 90520-25014 · 90520-25015 · 90520-25016 · 90520-25017 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-71221 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-28010 · 90520-28011 · 90520-28012 · 90520-28013 · 90520-28245 · 90520-28246 · 90520-28248 |
| 33321V | Bearings (for center output shaft) | 90363-30059 |
| 33331 | reverse gear | 33331-35061 |
| 33332 | Second gear | 33033-26021 · 33033-35011 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-38002 |
| 33333 | Third gear | 33034-35030 · 33034-35050 · 33034-35100 |
| 33333A | Needle roller bearing (for third gear) | 90364-35005 |
| 33335 | first gear | 33032-26020 · 33032-26030 · 33032-35060 |
| 33335C | Needle roller bearing (for first gear) | 90364-39011 |
| 33336 | fifth gear | 33336-28020 |
| 33349A | Fourth gear gear washer | 33349-35010 |
| 33355 | First gear bearing inner race | 33355-35020 |
| 33355A | First gear bearing inner race locking key or steel ball | 90360-06004 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-06004 |
| 33361 | No. 1 transmission clutch hub | 33361-35020 |
| 33362 | No. 2 transmission clutch hub | 33362-35040 |
| 33364 | No. 2 transmission hub sleeve | 33364-26020 |
| 33365 | No. 1 synchromesh shift key | 33365-35020 · 33365-35021 |
| 33366 | No. 2 synchromesh shift key | 33366-35040 · 33366-35041 |
| 33367 | Synchronizer lock ring No. 1 | 33368-20012 |
| 33368 | Synchronizer lock ring No. 2 | 33367-14010 |
| 33369 | No. 3 synchronizer lock ring | 33367-14010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-14031 |
| 33377 | Synchronizer shift key (for clutch hub No. 3) | 33394-30011 |
| 33391 | No. 2 synchromesh shift key spring | 33371-14010 |
| 33392 | No. 3 synchromesh shift key spring | 33371-14010 |
| 33395 | No. 3 transmission hub sleeve | 33395-35020 |
| 33402 | Reverse idler gear sub-assembly | 33402-35050 |
| 33411A | Bearing or roller (for front countershaft gear) | 90365-25023 |
| 33411D | No. 1 countershaft gear front bearing snap ring | 90520-49222 |
| 33411P | intermediate shaft intermediate bearing | 90365-31006 |
| 33411Q | No. 2 countershaft gear front bearing snap ring | 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 |
| 33421 | countershaft gear | 33421-26140 · 33421-35160 · 33421-35170 |
| 33421R | Shaft snap ring (for countershaft rear gear) | 90520-19008 · 90520-19009 · 90520-19010 · 90520-19011 · 90520-19012 · 90520-19013 · 90520-19014 |
| 33428 | Countershaft fifth gear | 33046-35062 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-26002 |
| 33451 | Reverse gear idler shaft | 33451-28010 |
| 33452 | Reverse gear idler shaft stop | 33452-36030 |
| 33481 | Speedometer driving gear (MTM) | 33481-22010 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-26061 |
| 33481C | Reverse gear shift positioning steel ball | 90360-06004 |
