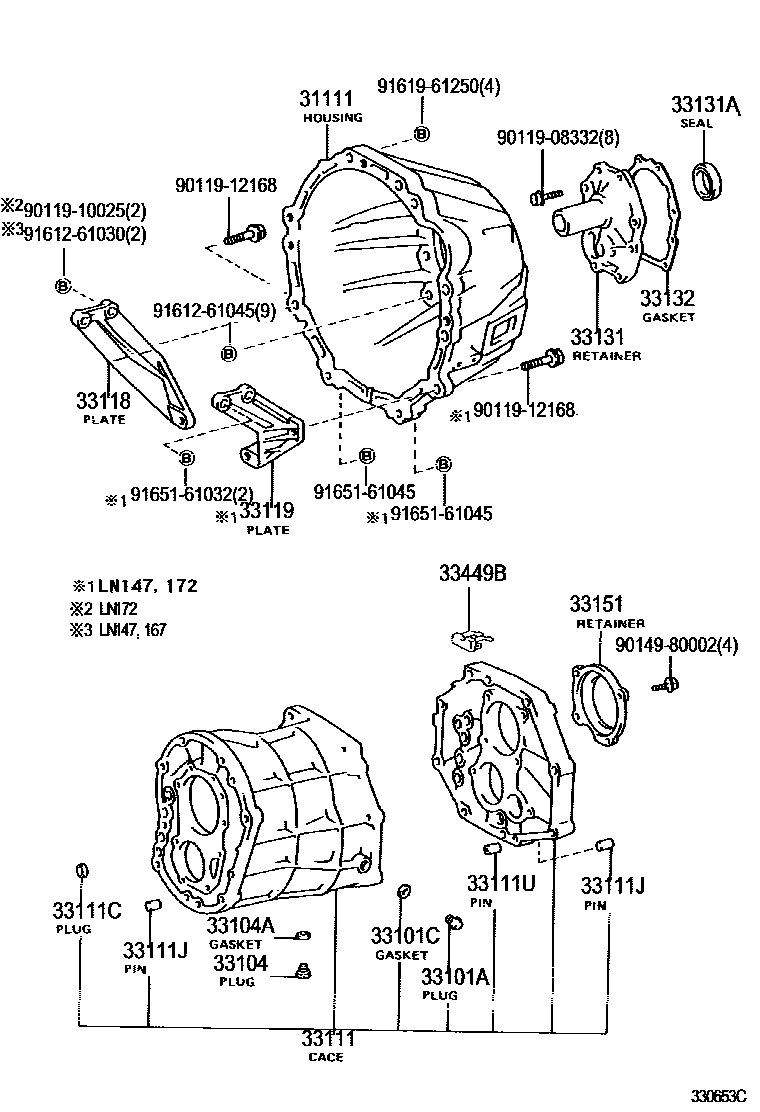

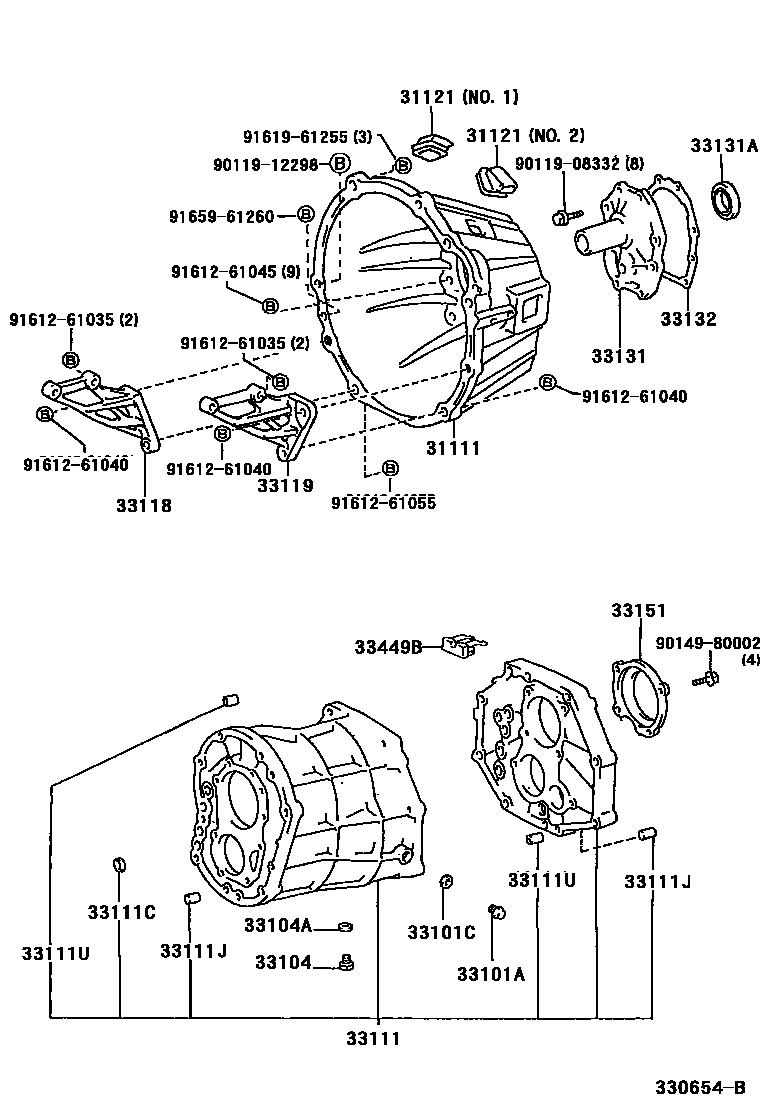

Toyota HILUX 离合器壳和变速器壳(MTM) — Figure 3302
Toyota HILUX EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-22114 · 31111-26032 · 31111-35032 |
| 31121 | No. 1 clutch housing cover | 31121-26020 · 31121-35020 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18057 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-35050 |
| 33111C | Screw plug (for gearbox) | 90331-14004 |
| 33111J | Direct sales (for manual transmission) | 90250-12002 |
| 33111U | Ring pin (for manual transmission) | 90253-15001 |
| 33118 | Right reinforcement plate (MTM) | 33118-25020 · 33118-26011 · 33118-35060 |
| 33119 | Left reinforcement plate (MTM) | 33119-25020 · 33119-26021 |
| 33131 | Front bearing retainer (MTM) | 33131-26020 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-30014 |
| 33132 | Front bearing retainer pad (MTM) | 33132-28010 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33151-35030 |
| 33449B | derailleur magnet | 33449-26010 |
