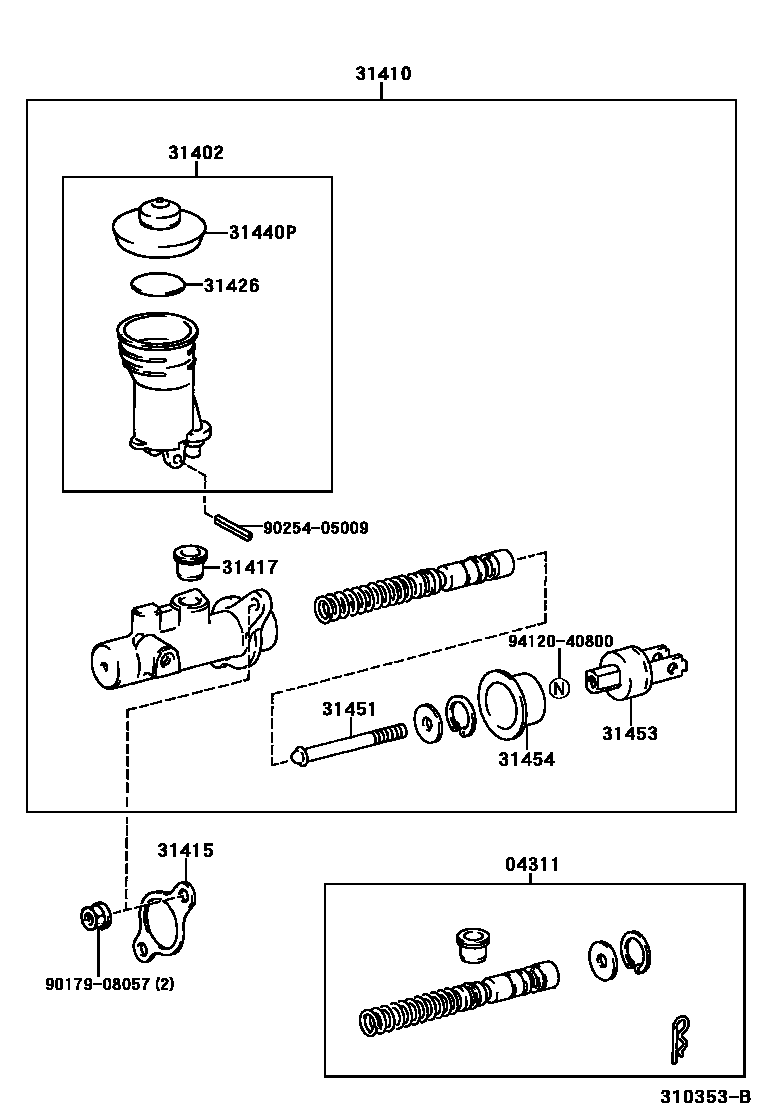

Toyota HILUX 离合器总泵 — Figure 3103
Toyota HILUX EPC diagram 3103, 离合器总泵, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-26070 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-35120 |
| 31410 | Clutch master cylinder assembly | 31410-34012 |
| 31415 | Clutch master cylinder gasket | 31415-10010 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 31405-35020 |
| 31451 | Clutch master cylinder push rod | 31451-35080 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28020 |
| 31454 | Clutch master cylinder dust boot | 31454-16010 |
