Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

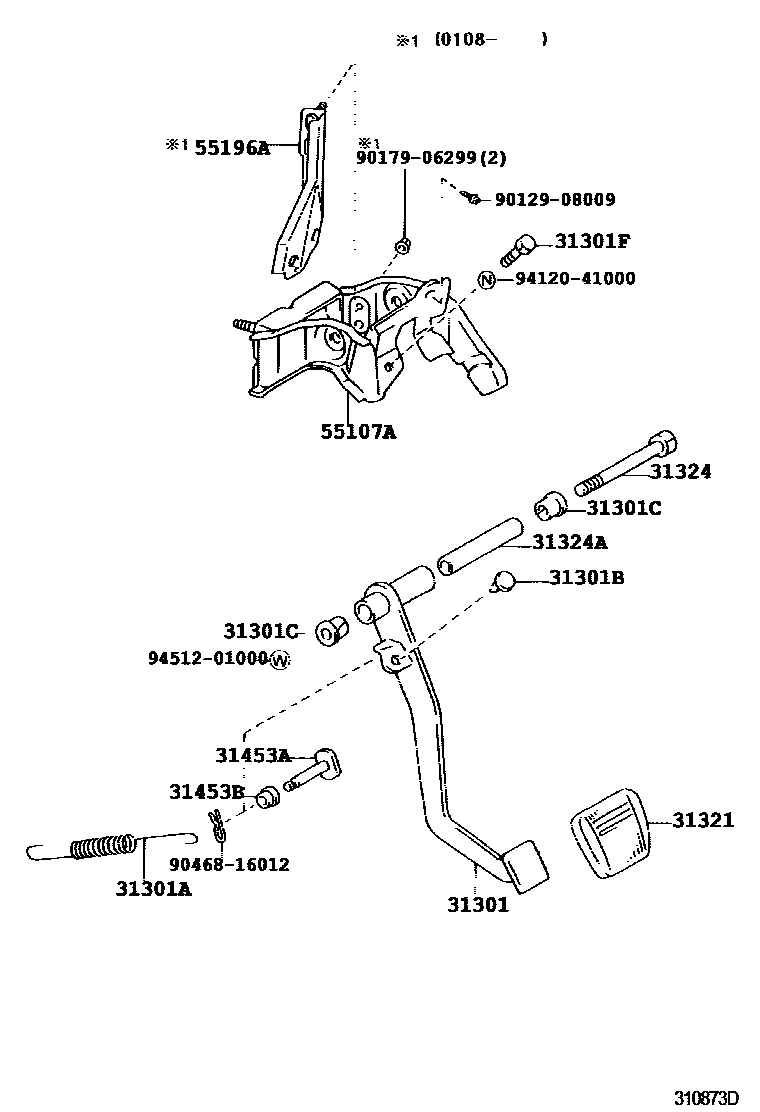

| 31301 | Clutch pedal sub-assembly | 31301-35240 · 31310-35080 |
| 31301A | Spring (for clutch pedal) | 90507-14030 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10177 |
| 31324A | clutch pedal collar | 90387-10082 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-34010 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |

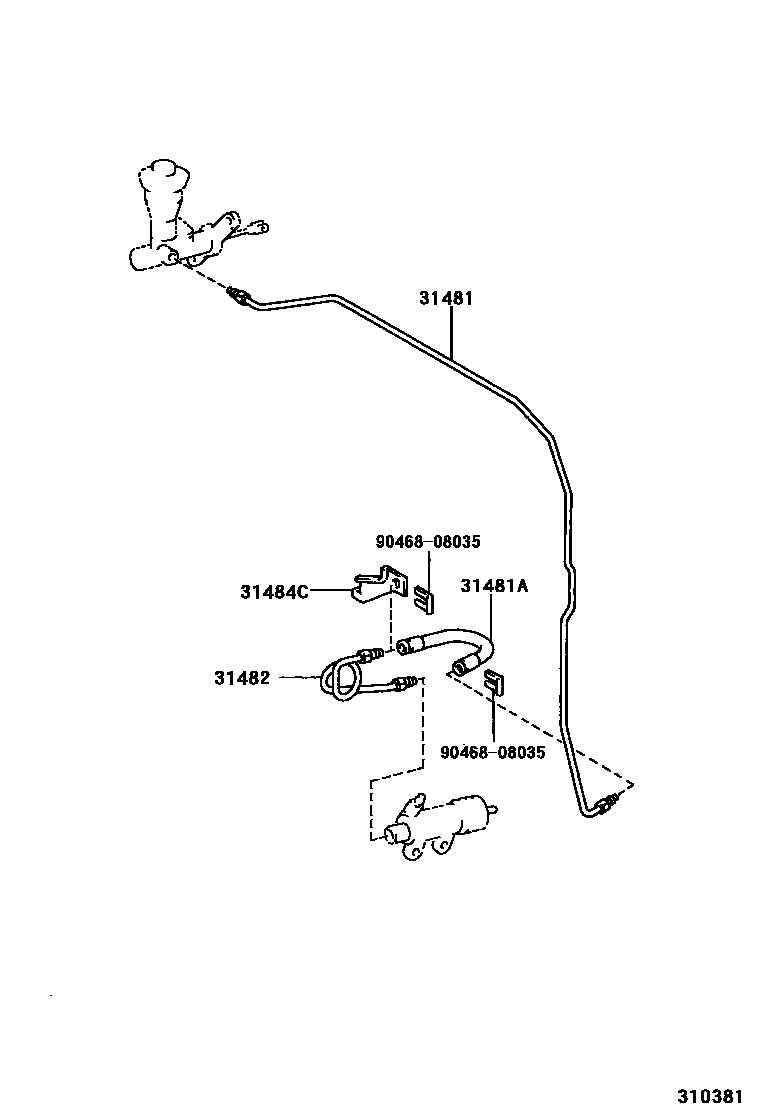

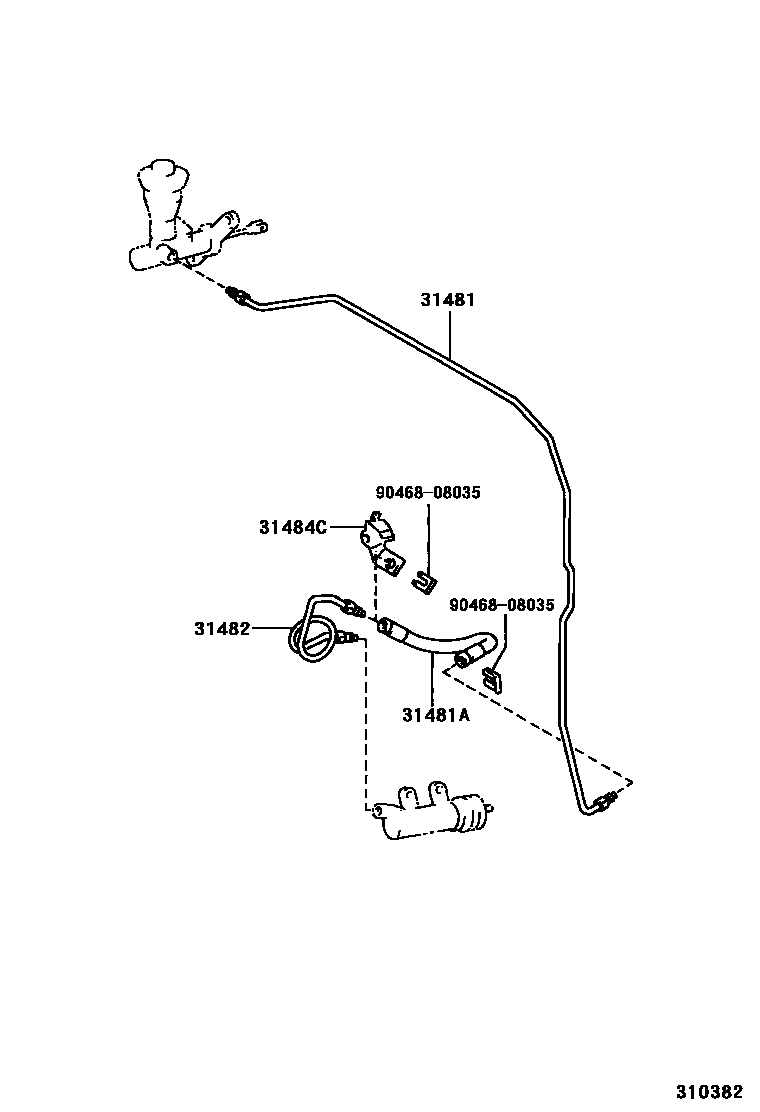

| 31481 | Clutch master cylinder to flexible hose pipe | 31481-35440 |
| 31481A | No. 1 clutch hose | 90947-02953 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-35400 · 31482-35410 |
| 31484C | No. 1 clutch tube bracket | 31484-35300 · 31484-35310 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-35100 · 55107-35130 |
| 55196A | Clutch starter switch mounting bracket | 55196-60020 |
