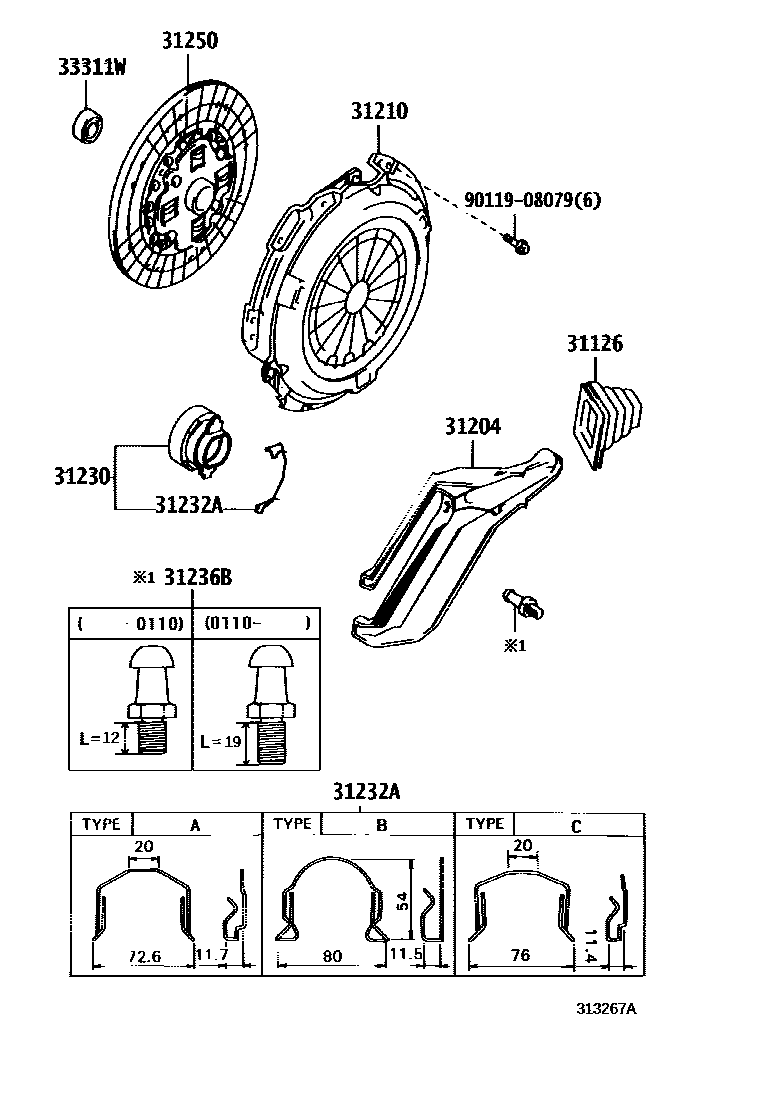

Toyota HILUX 离合器和分离叉 — Figure 3101
Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20070 · 31126-26020 |
| 31204 | Clutch release fork assembly | 31204-20071 · 31204-35050 |
| 31210 | Clutch cover assembly | 31210-26110 · 31210-35121 · 31210-35122 · 31210-35181 |
| 31230 | Clutch release bearing assembly | 31230-22091 · 31230-35060 · 31230-35061 · 31230-35090 · 31230-35091 |
| 31232A | Release bearing hub clip | 31232-35020 · 31232-35030 · 31232-35040 |
| 31236B | Split fork bracket | 31236-26010 · 31236-30060 |
| 31250 | Clutch disc assembly | 31250-26181 · 31250-26182 · 31250-35301 · 31250-35302 · 31250-35303 · 31250-35380 · 31250-35381 |
| 33311W | Bearings (for input shaft) | 90363-12002 · 90363-12018 · 90363-12020 |
