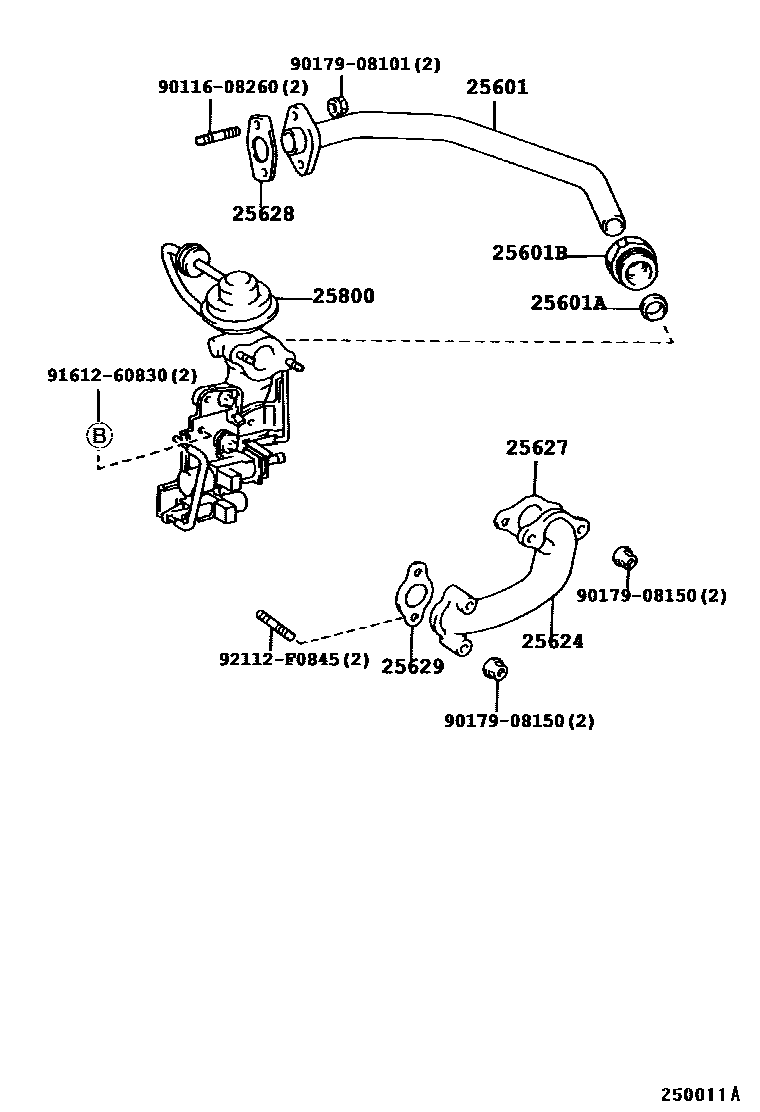

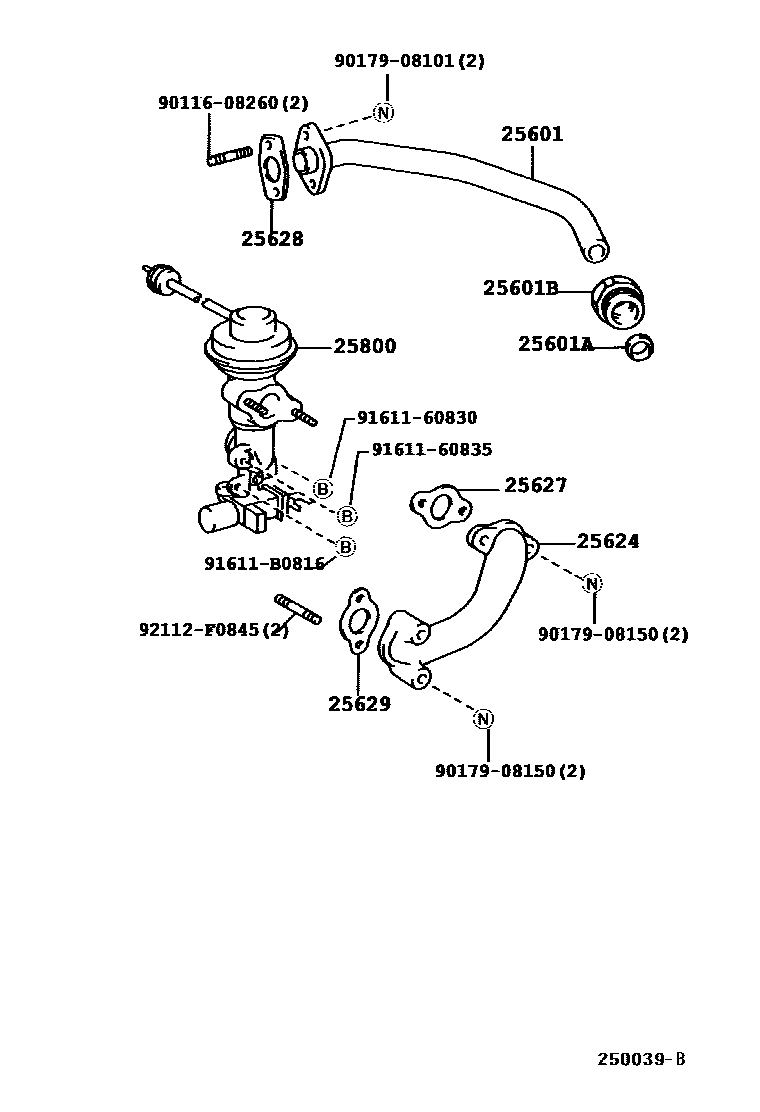

Toyota HILUX 废气再循环系统 — Figure 2501
Toyota HILUX EPC diagram 2501, 废气再循环系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-54061 · 25601-54070 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-25001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-33001 |
| 25624 | EGR valve adapter | 25624-54040 · 25624-54051 |
| 25627 | EGR valve gasket | 25627-54011 |
| 25628 | EGR air intake gasket | 25628-54012 |
| 25629 | EGR valve adapter gasket | 25629-54011 |
| 25800 | Electronic EGR control valve assembly | 25800-54170 · 25800-54180 · 25800-54190 |
