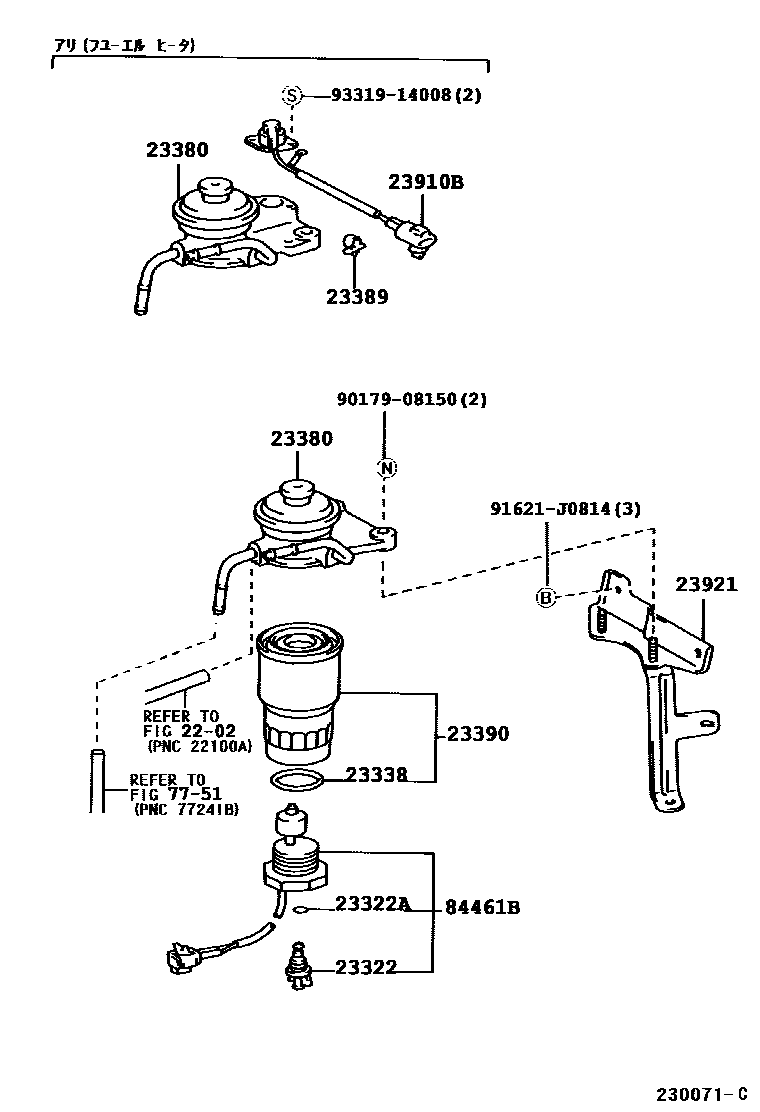

Toyota HILUX fuel filter — Figure 2302
Toyota HILUX EPC diagram 2302, fuel filter, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23380 | Fuel filter cover assembly | 23380-5B100 · 23380-5B120 |
| 23389 | fuel filter clip | 23389-64490 |
| 23390 | Fuel filter element assembly | 23390-64450 |
| 23910B | Fuel heater assembly | 23910-54140 |
| 23921 | Fuel filter support | 23921-54451 |
| 84461B | Liquid level warning switch | 84461-28040 |
