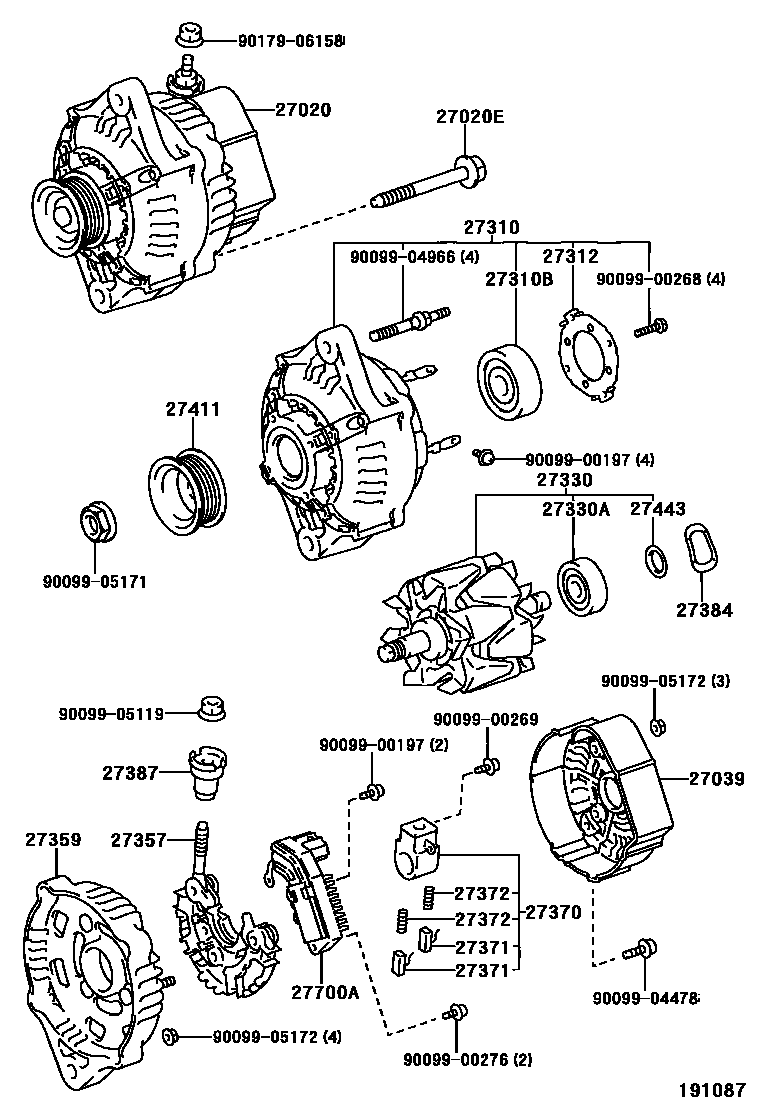

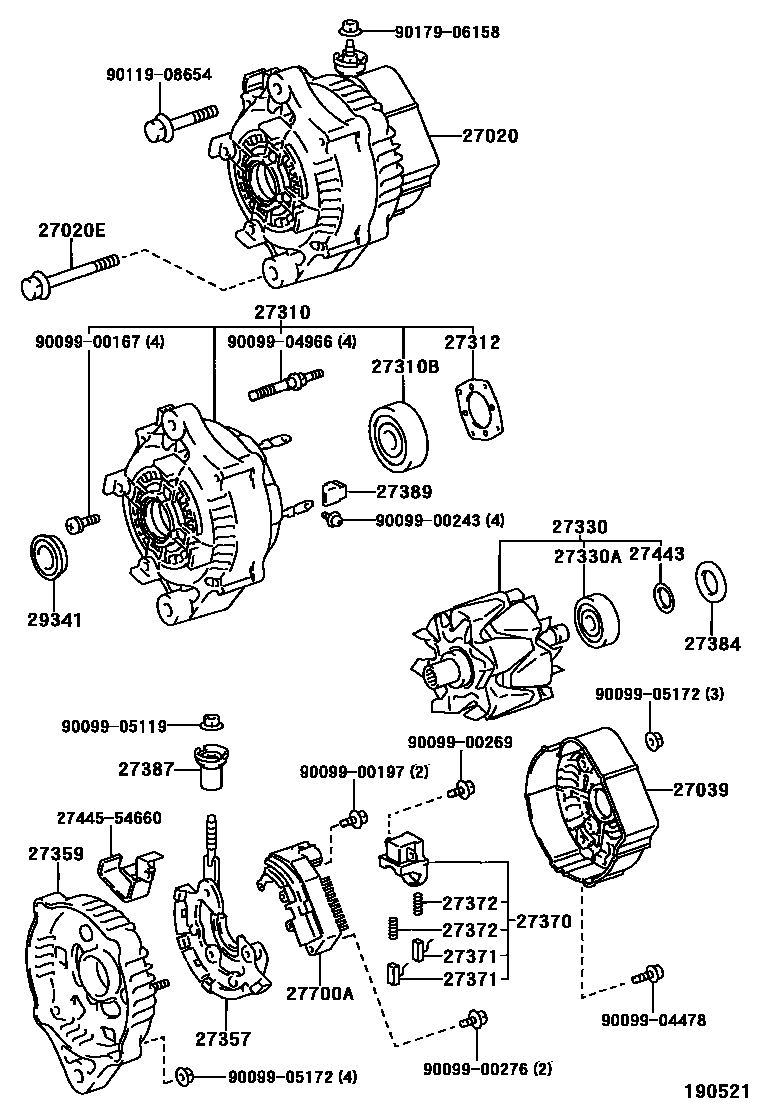

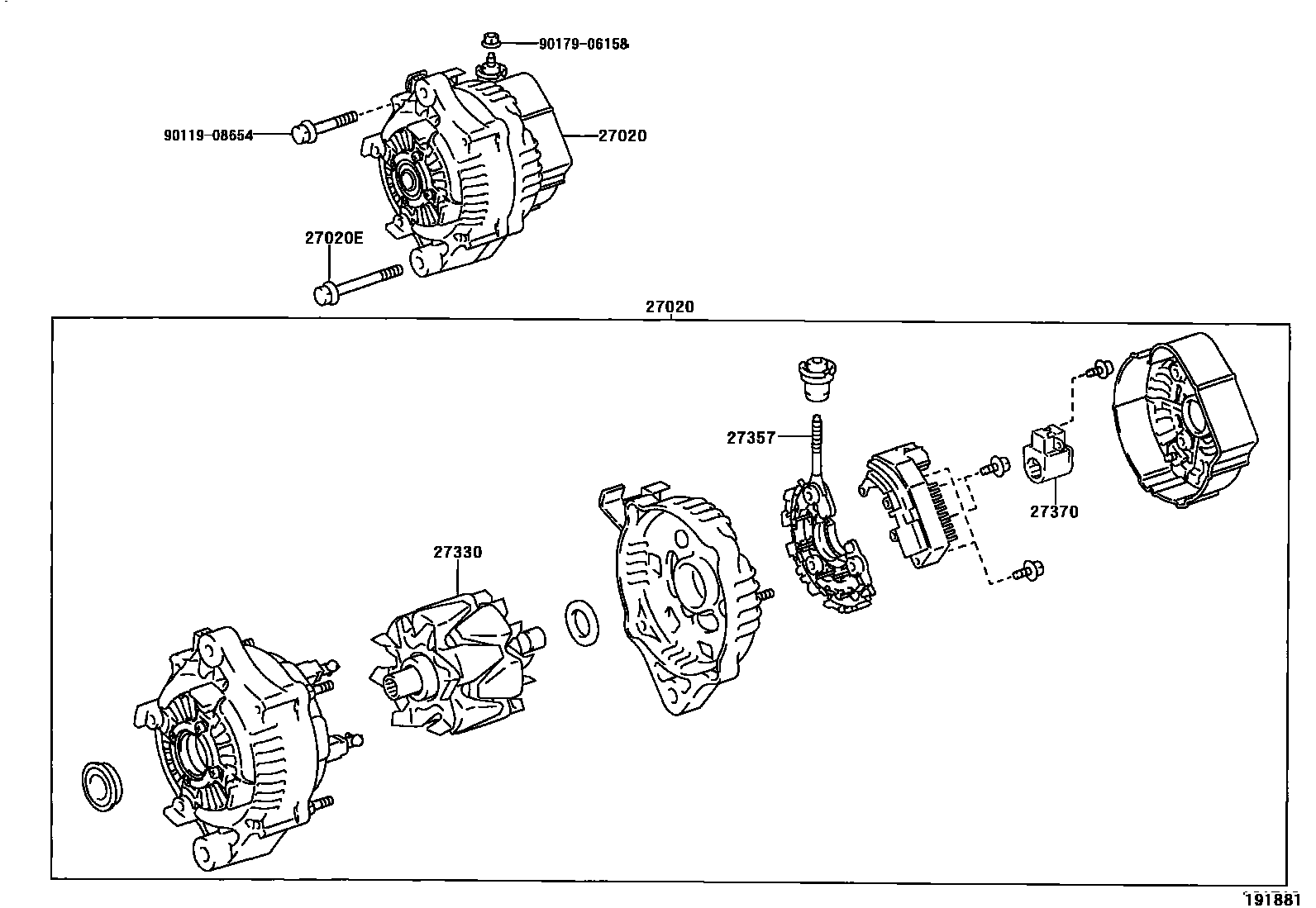

Toyota HILUX Alternator — Figure 1903
Toyota HILUX EPC diagram 1903, Alternator, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-54290 · 27060-54440 · 27060-75150 · 27060-75190 |
| 27020E | Bolts (for generator) | 90105-10221 · 90105-10287 |
| 27039 | Alternator Rear End Cover | 27039-16380 · 27039-67100 |
| 27310 | Alternator Drive End Frame Assembly | 27310-54630 · 27310-75040 · 27310-75160 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10165 · 90099-10178 · 90099-10199 |
| 27312 | Retainer Plate | 27312-64130 · 27312-70200 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-11250 · 27330-64130 · 27330-64190 · 27330-67100 |
| 27330A | Bearings (for generator rotor) | 90099-10140 · 90099-10216 |
| 27357 | Generator rectifier frame | 27357-13360 · 27357-16380 · 27357-23040 · 27357-67100 |
| 27359 | Generator rectifier end frame | 27359-16182 · 27359-75160 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-58320 · 27370-75060 |
| 27371 | Generator brushes | 27371-70300 |
| 27372 | Generator brush spring | 27372-87501 |
| 27384 | Washer | 27384-16380 |
| 27387 | Terminal Insulator | 27387-70171 |
| 27389 | Terminal Insulator | 27389-63020 |
| 27411 | Alternator Pulley | 27411-16150 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-50030 · 27700-75020 |
| 29341 | Generator oil seal | 29341-64130 |
