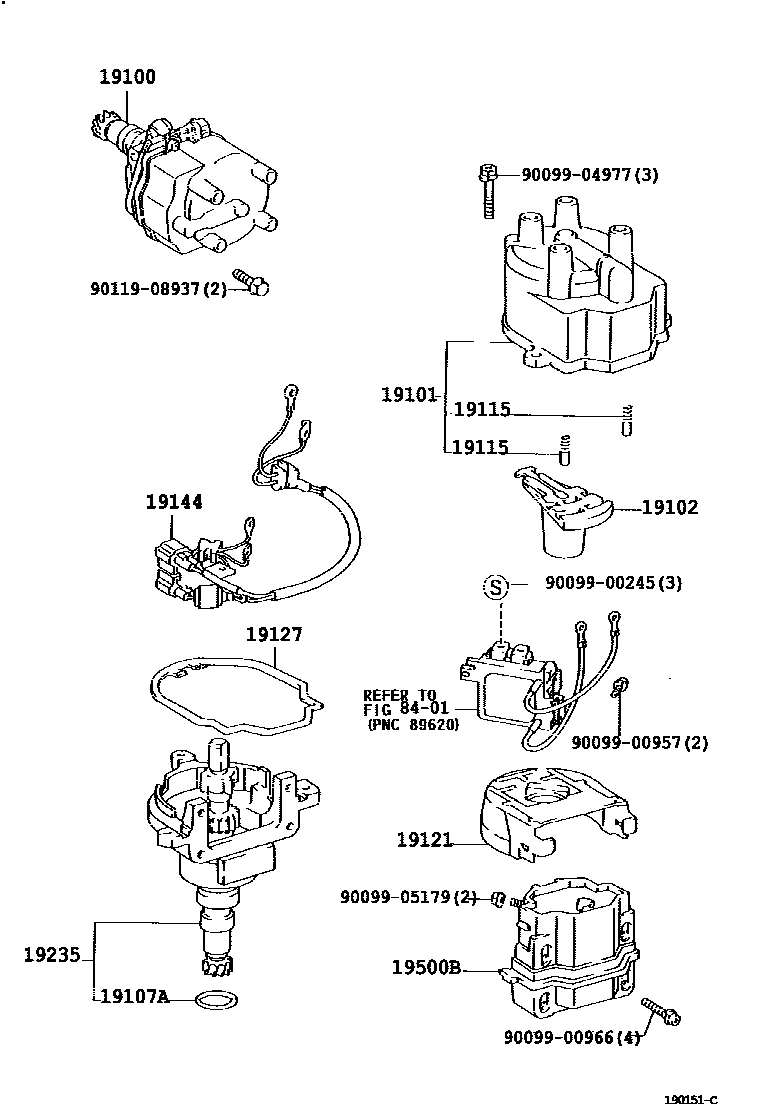

Toyota HILUX 分电器 — Figure 1902
Toyota HILUX EPC diagram 1902, 分电器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-75031 |
| 19101 | Distributor cover sub-assembly | 19101-75010 |
| 19102 | Distributor flame head sub-assembly | 19102-16010 |
| 19107A | Distributor housing O-ring | 90099-14091 |
| 19115 | Distributor cover center piece | 19115-63010 |
| 19121 | dust cover | 19121-11080 |
| 19127 | Dust seal | 19127-15120 |
| 19144 | Distributor breaker lead | 19144-75030 |
| 19235 | Distributor housing | 19235-75030 |
| 19500B | Ignition coil assembly | 90919-02164 |
