Toyota HILUX 点火线圈和火花塞 — Figure 1901

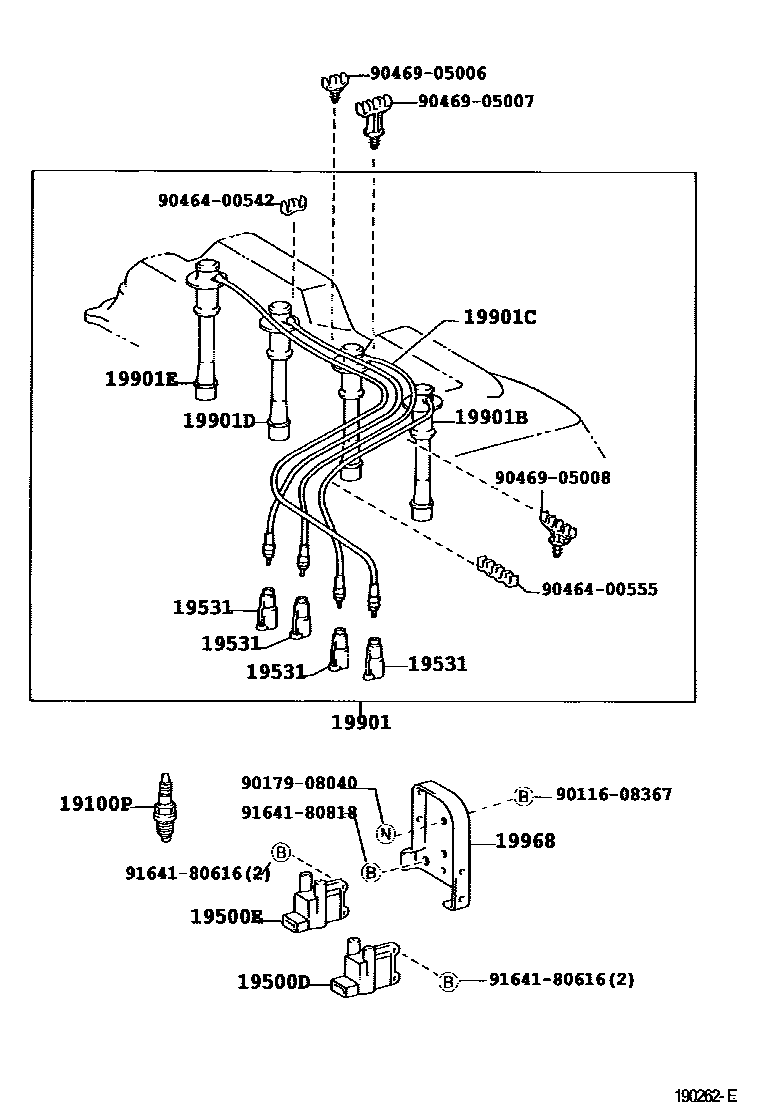

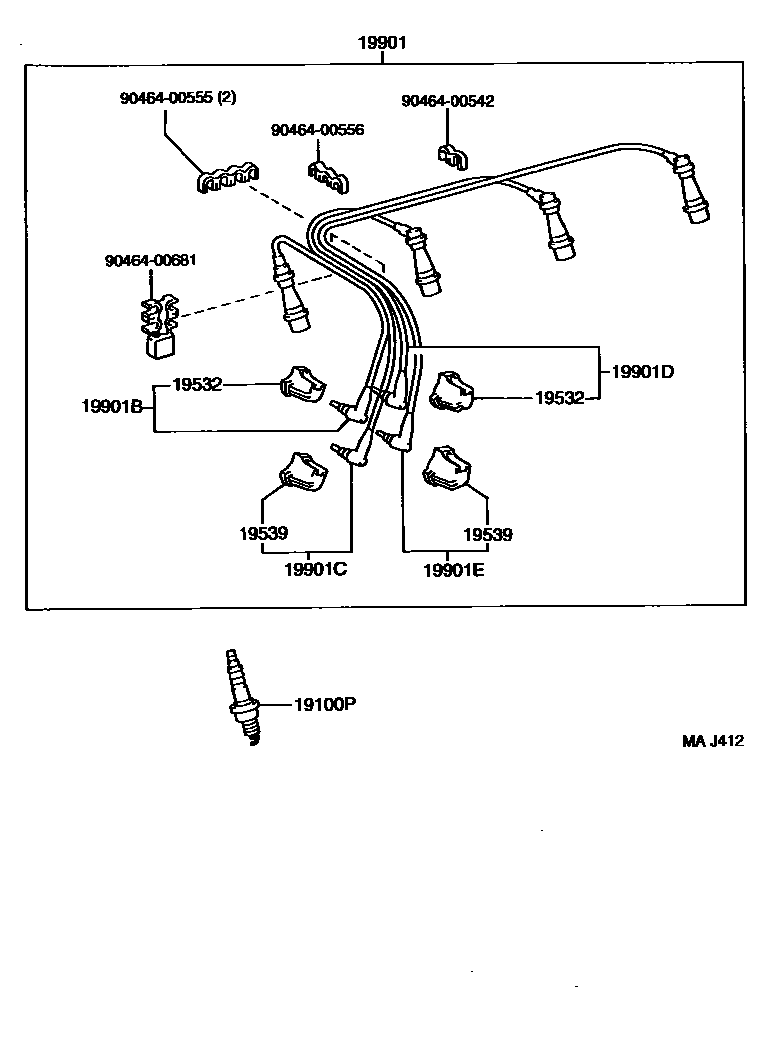

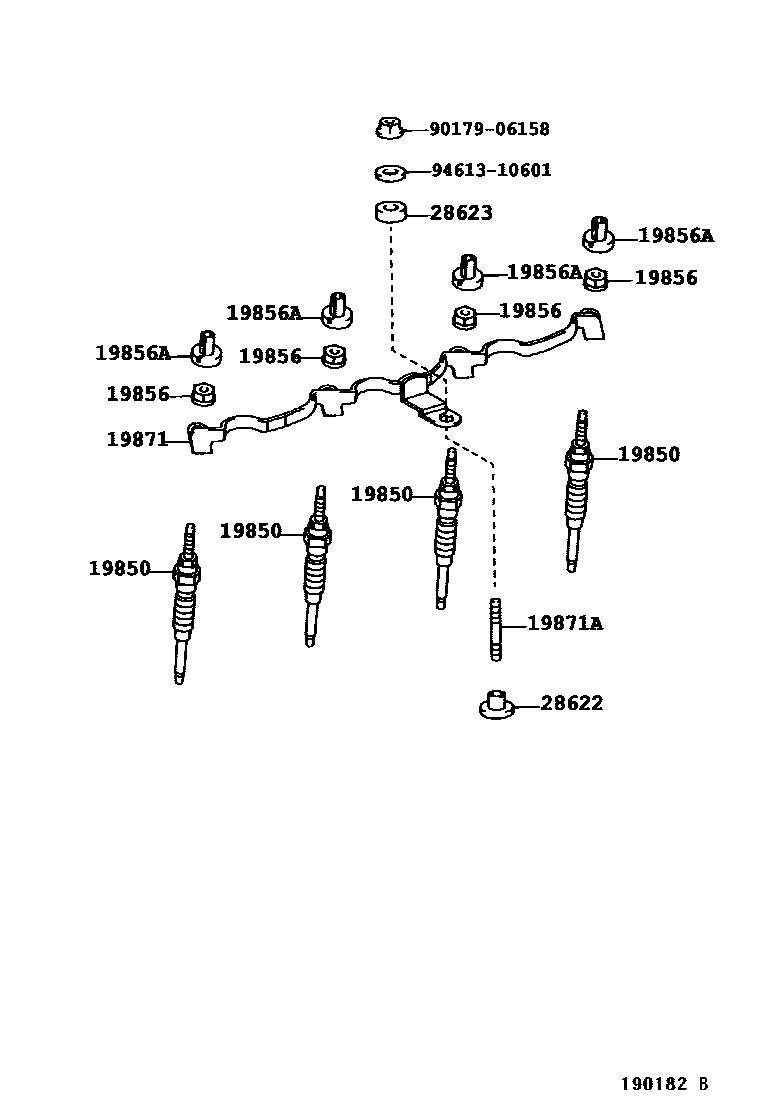

Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01064 · 90919-01102 · 90919-01176 |
| 19500D | No. 1 ignition coil | 90919-02217 |
| 19500E | No. 2 ignition coil | 90919-02220 |
| 19531 | No. 1 damping wire fixing piece | 19539-74050 |
| 19532 | No. 2 damping wire fixing piece | 19532-46010 |
| 19539 | No. 4 damping wire fixing piece | 19539-74020 |
| 19850 | Glow plug assembly | 19850-05010 · 19850-54120 |
| 19856 | Connecting nut (for glow plug) | 90179-04030 |
| 19856A | Screw seal (for glow plug connector) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-54020 |
| 19871A | Stud bolts (for intake manifold to glow plug connector No. 1) | 90116-06041 · 90116-06095 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-22371 · 90919-22387 |
| 19901B | No. 1 spark plug damper wire | 90919-15412 · 90919-15474 |
| 19901C | No. 2 spark plug damper wire | 90919-15413 · 90919-15475 |
| 19901D | No. 3 spark plug damper wire | 90919-15414 · 90919-15476 |
| 19901E | No. 4 spark plug damper wire | 90919-15415 · 90919-15477 |
| 19968 | Ignition coil bracket | 19968-75010 |
| 28622 | No. 1 glow plug resistor insulation pad | 28622-57010 |
| 28623 | No. 2 glow plug resistor insulation pad | 28623-54010 |
