Toyota HILUX 警示铭牌和名称铭牌(发动机) — Figure 1709

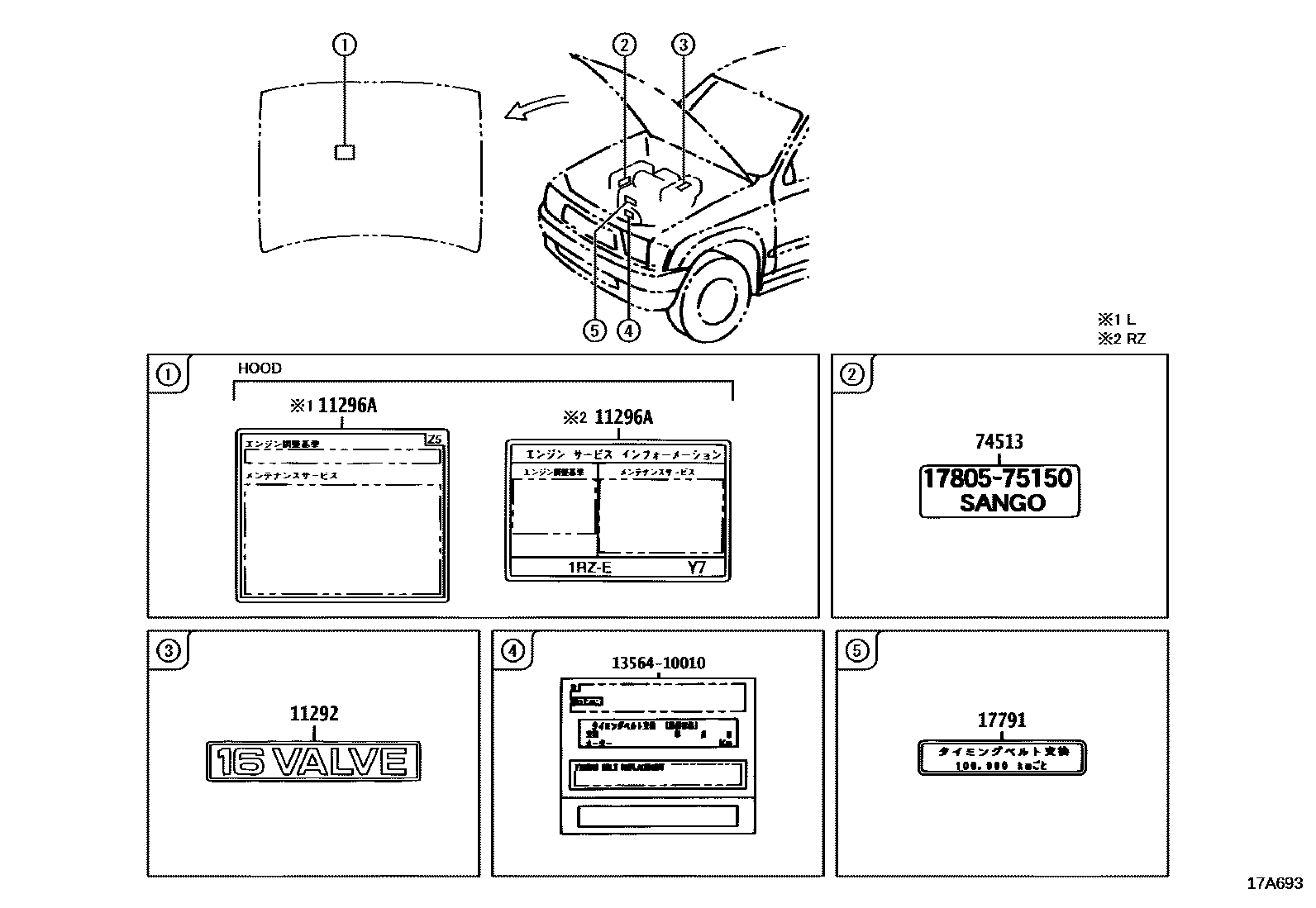

Toyota HILUX EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11292 | Engine No. 2 name plate | 11292-74130 |
| 11296A | Engine maintenance information label | 11296-54070 · 11296-54071 · 11296-54072 · 11296-54073 · 11296-54090 · 11296-75061 · 11296-75062 · 11296-75120 · 11296-75121 |
| 17791 | Maintenance information label | 17791-74040 |
| 74513 | Identification number information label | 74513-35230 |
