Toyota HILUX vacuum tube — Figure 1708

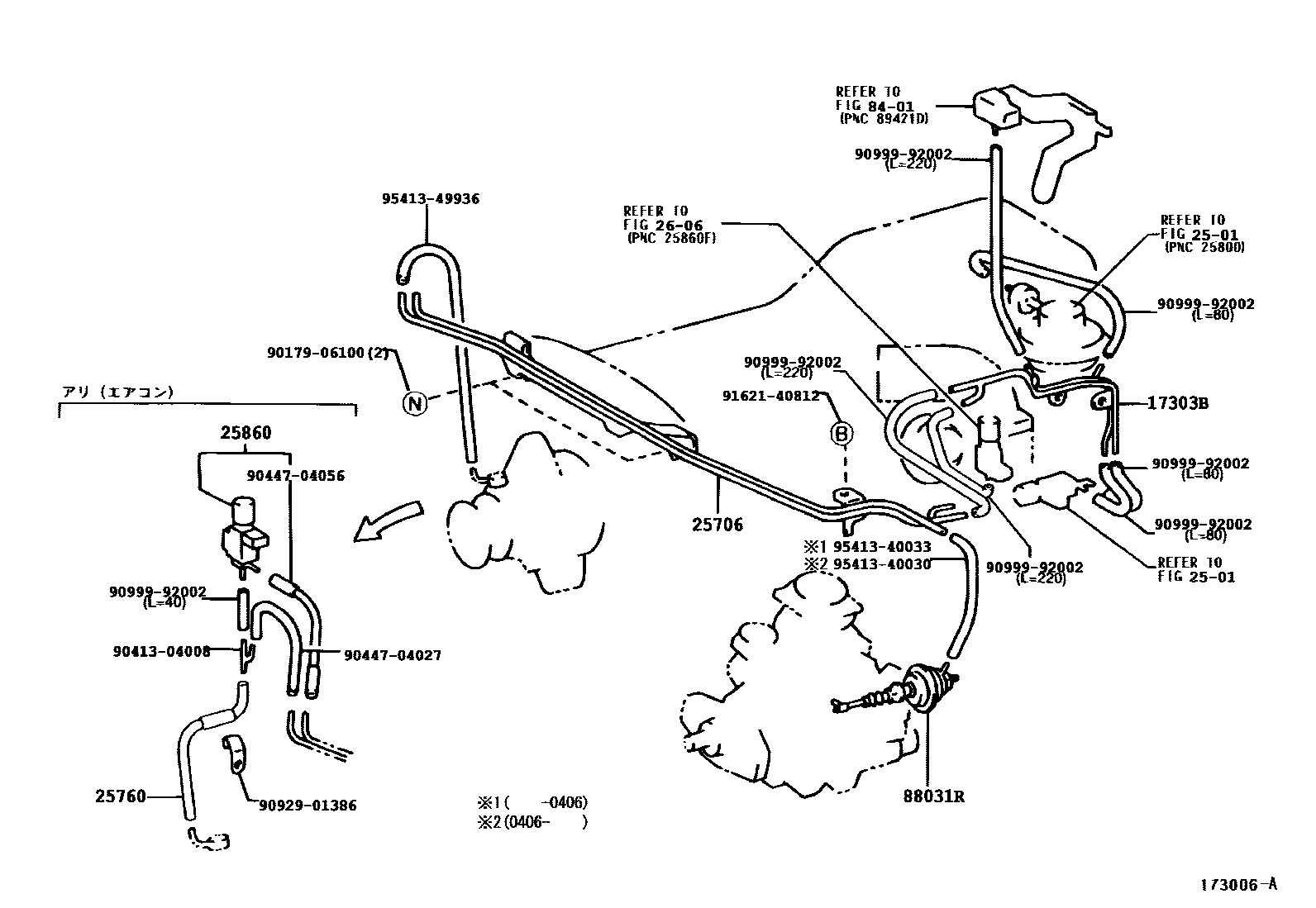

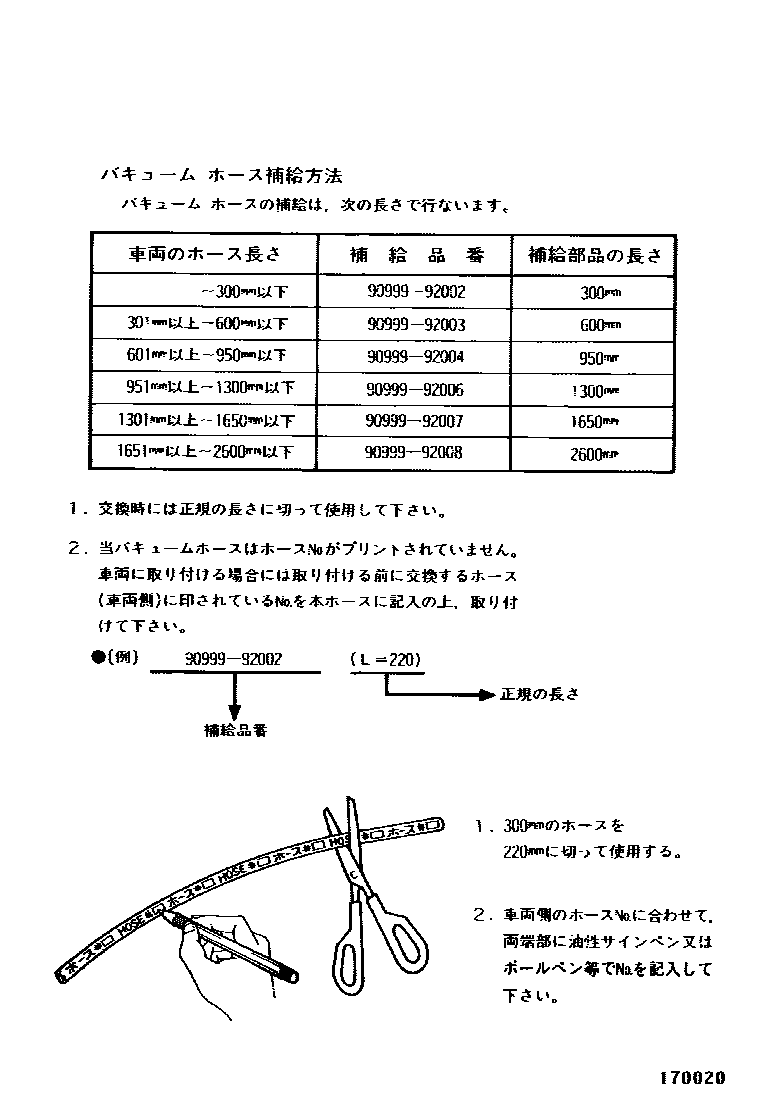

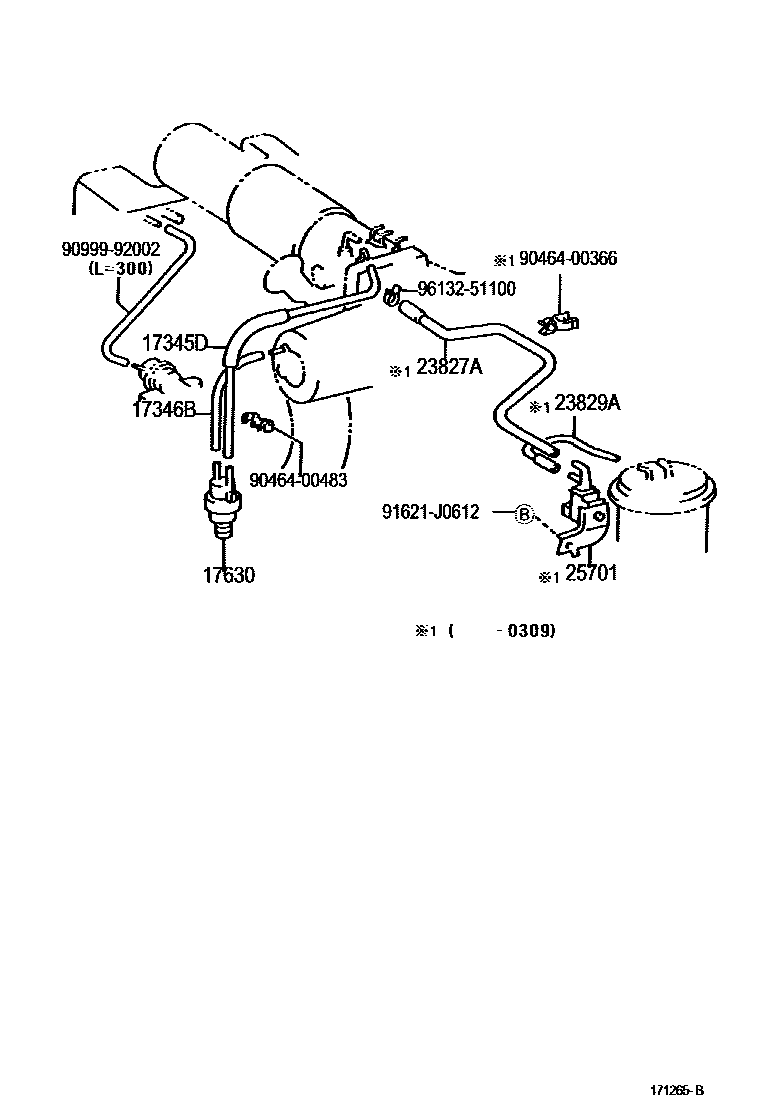

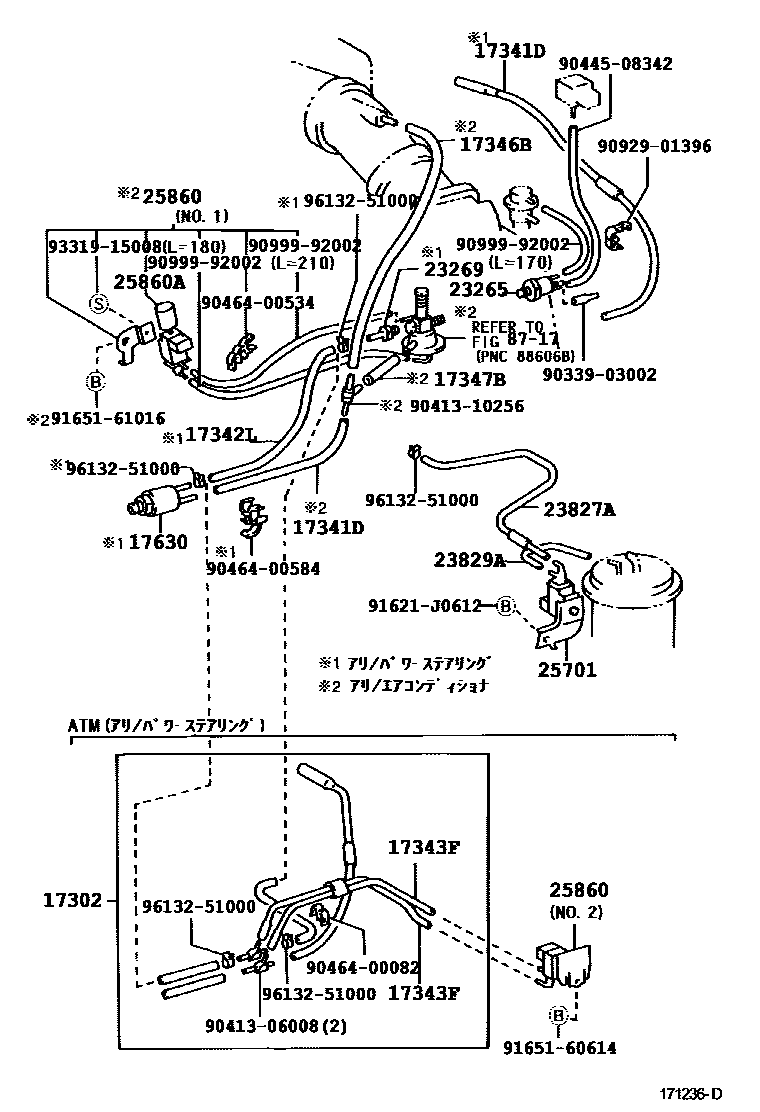

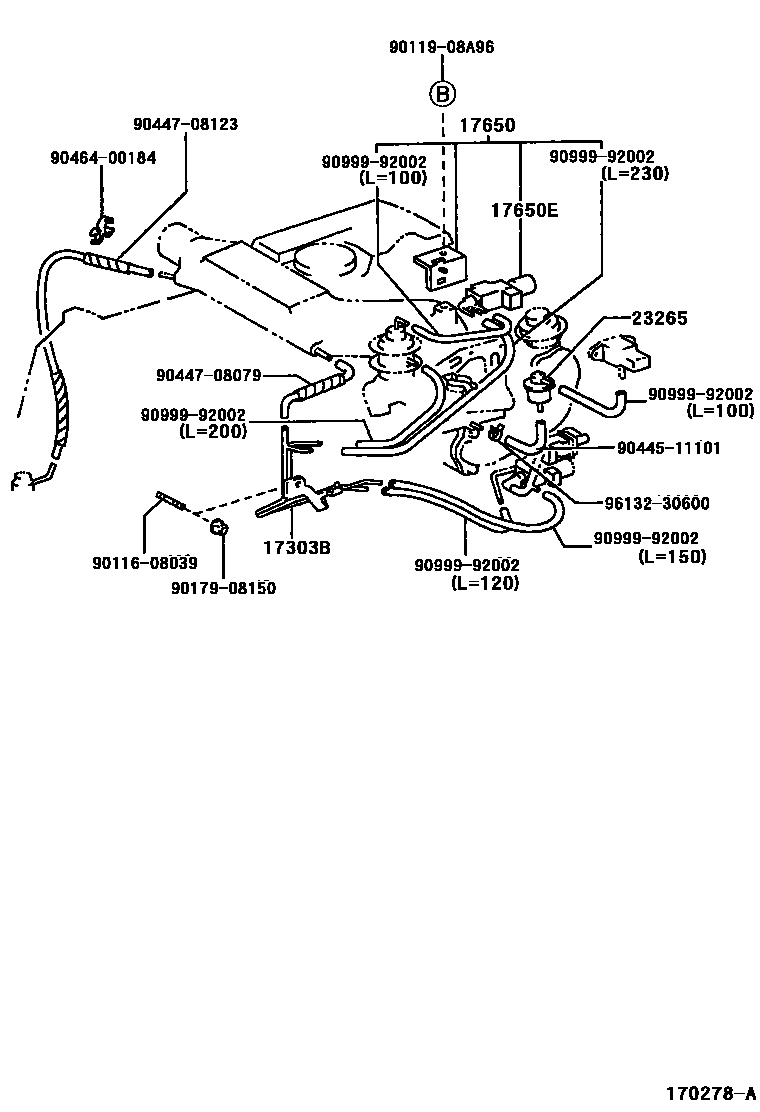

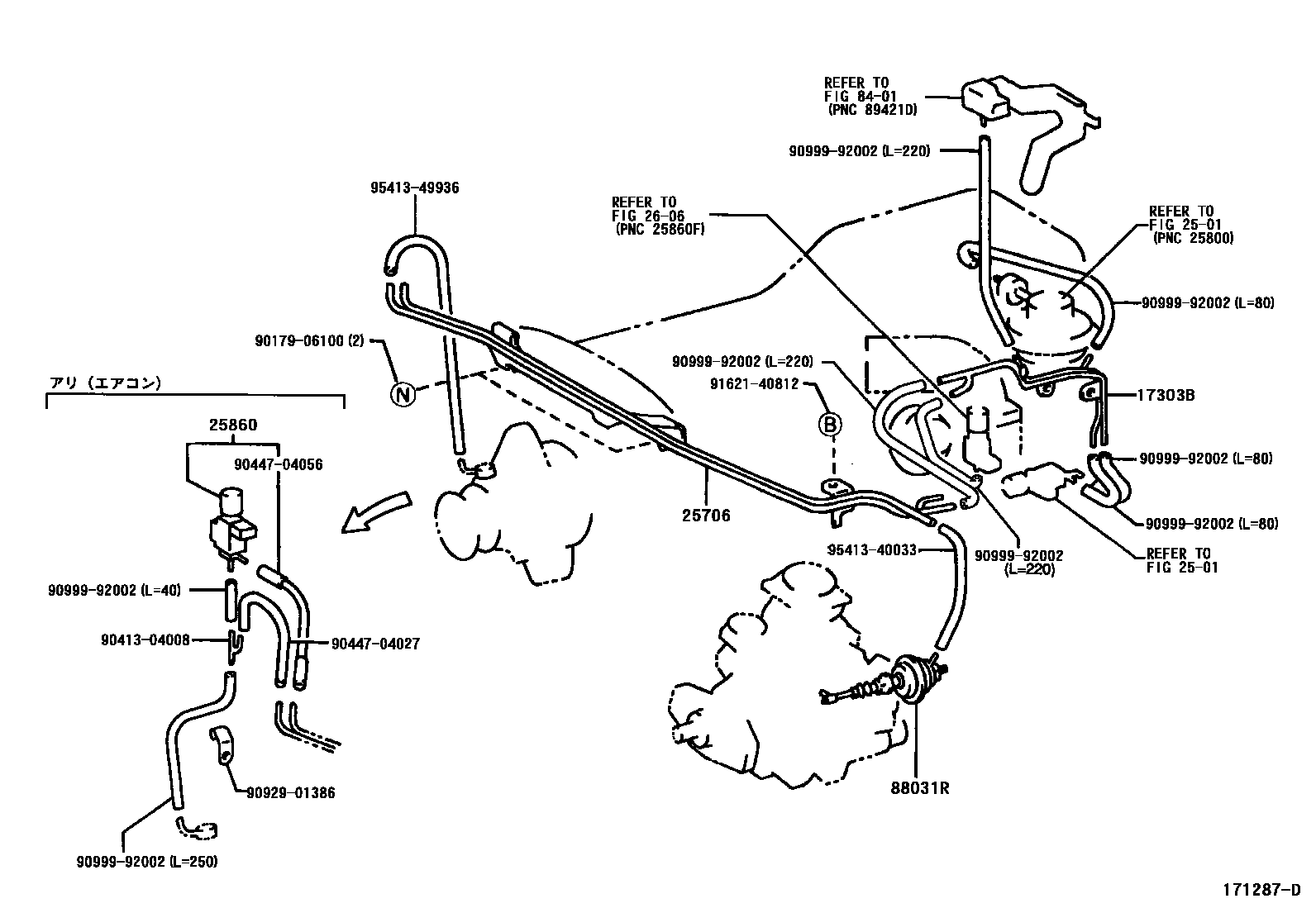

Toyota HILUX EPC diagram 1708, vacuum tube, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-75020 |
| 17303B | No. 1 air pipe sub-assembly | 17303-54021 · 17303-54050 |
| 17341D | No. 1 hose (for idle boost) | 17341-75090 · 17341-75160 |
| 17342L | Air hose No. 2 | 17342-75030 |
| 17343F | No. 3 air hose | 17343-75020 |
| 17345D | No. 5 air hose | 17345-75010 |
| 17346B | No. 6 air hose | 17346-75010 · 17346-75030 |
| 17347B | No. 7 air hose | 17347-75020 |
| 17630 | Air control valve assembly | 17630-15090 · 17630-74010 |
| 17650 | Vacuum switch valve assembly | 89470-60021 |
| 17650E | Vacuum switch valve | 90910-12134 |
| 23265 | No. 1 gas filter | 90917-11033 · 90917-11041 |
| 23269 | Connector (for gas filter) | 90404-51026 |
| 23827A | No. 2 fuel vapor supply hose | 23827-75110 · 23827-75120 |
| 23829A | Fuel vapor supply hose | 23829-75170 |
| 25701 | Emission control valve assembly | 25701-75030 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-54040 · 25706-54041 · 25706-54050 · 25706-54051 |
| 25760 | Vacuum transfer hose assembly | 25760-54370 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-54150 · 25860-75130 · 25860-75200 |
| 25860A | No. 1 vacuum switch valve | 90910-12089 |
| 88031R | Idle speed lift actuator assembly | 88031-35130 · 88031-35131 |
