Toyota HILUX Air Cleaner — Figure 1703

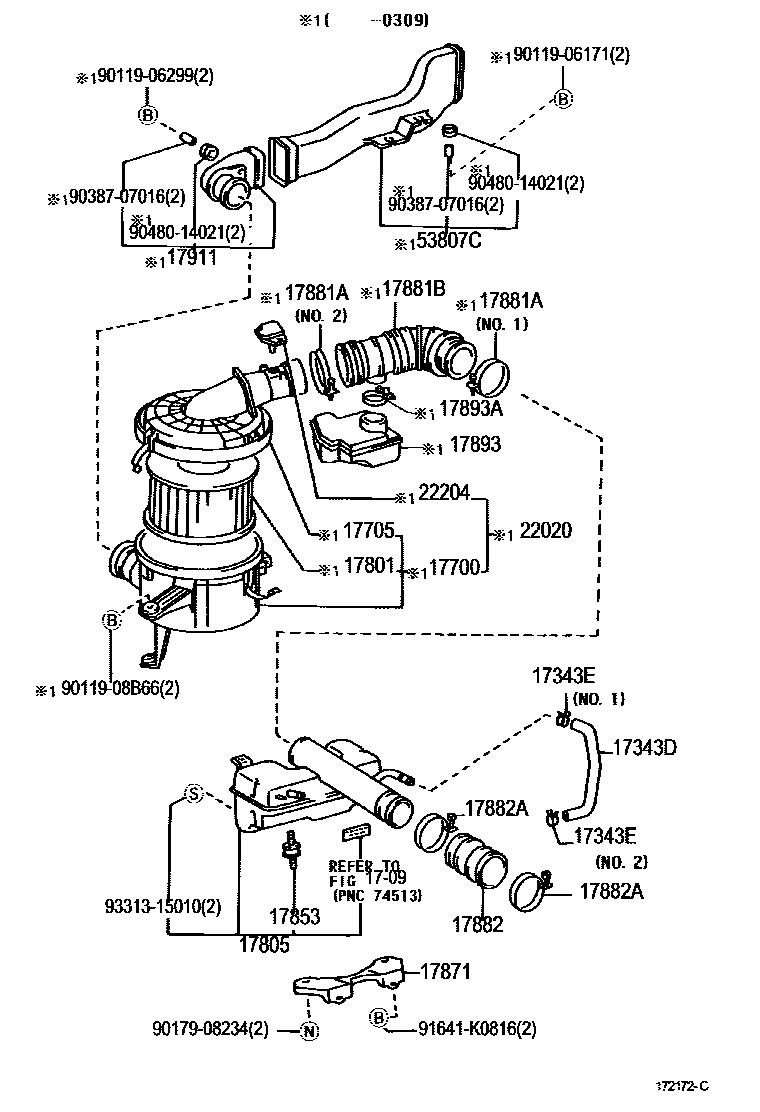

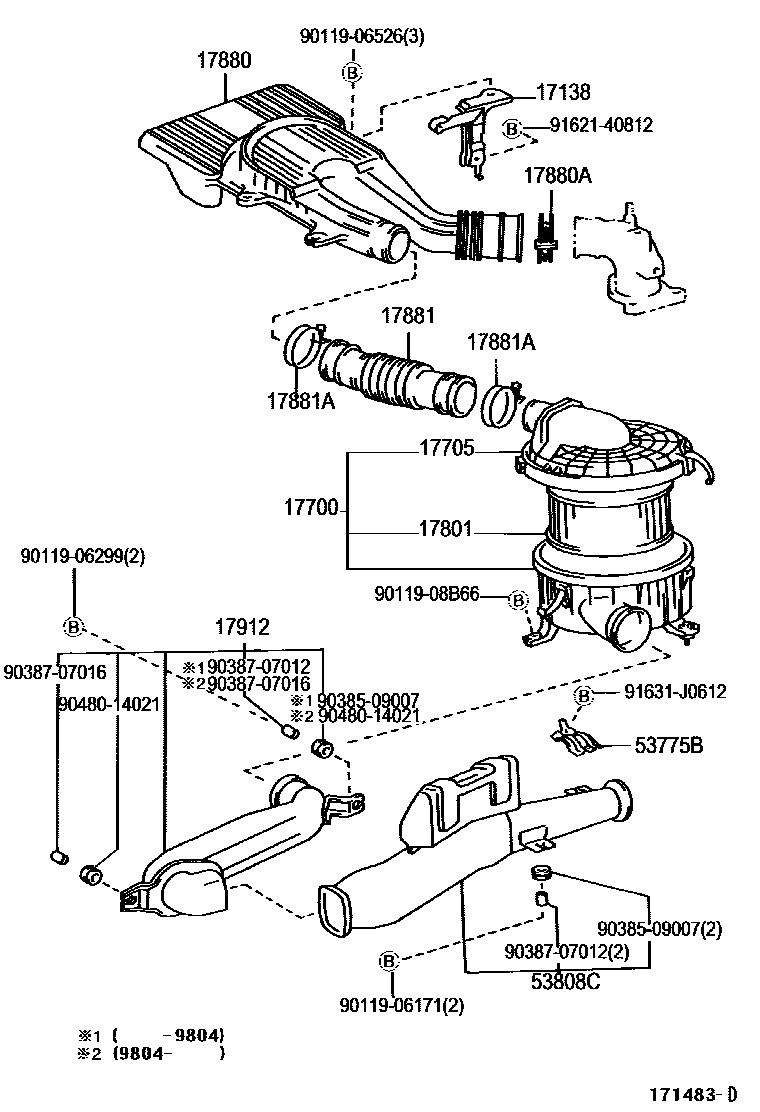

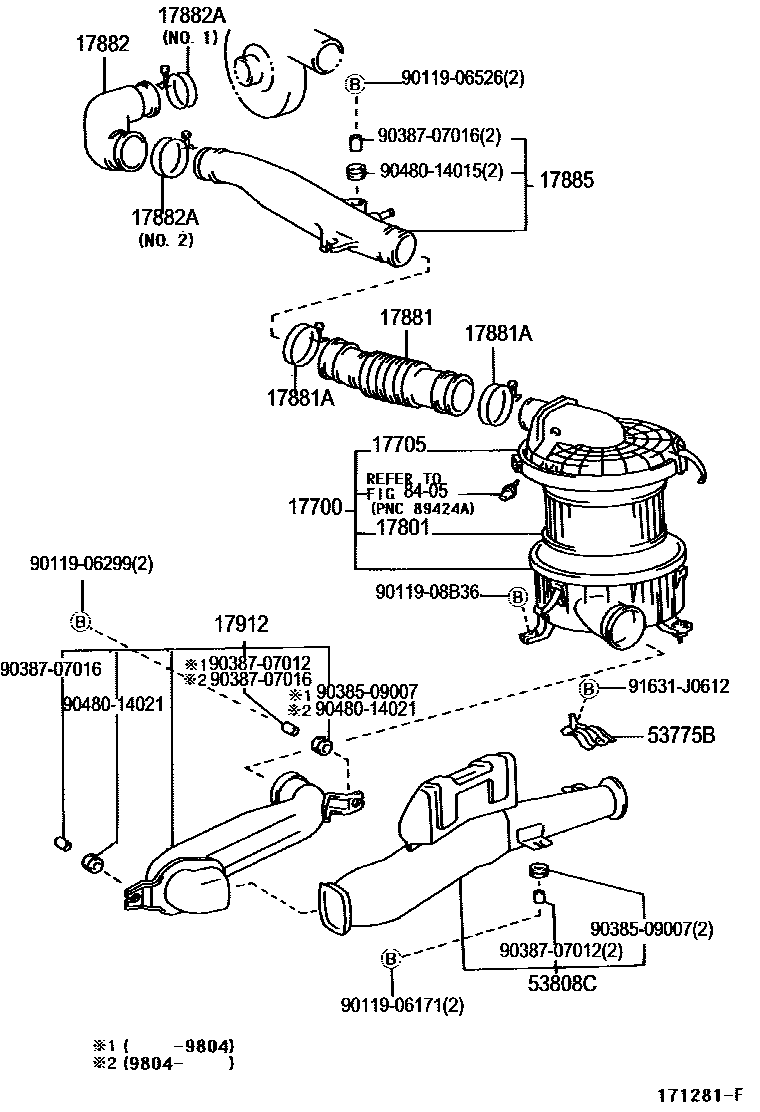

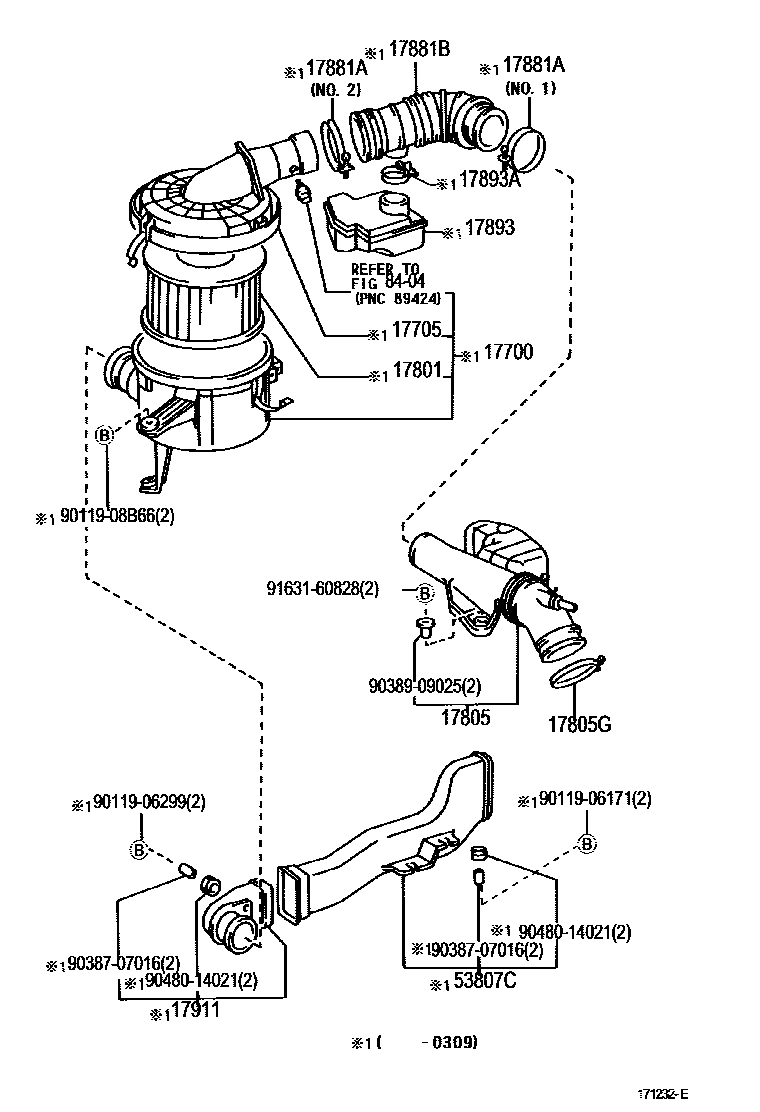

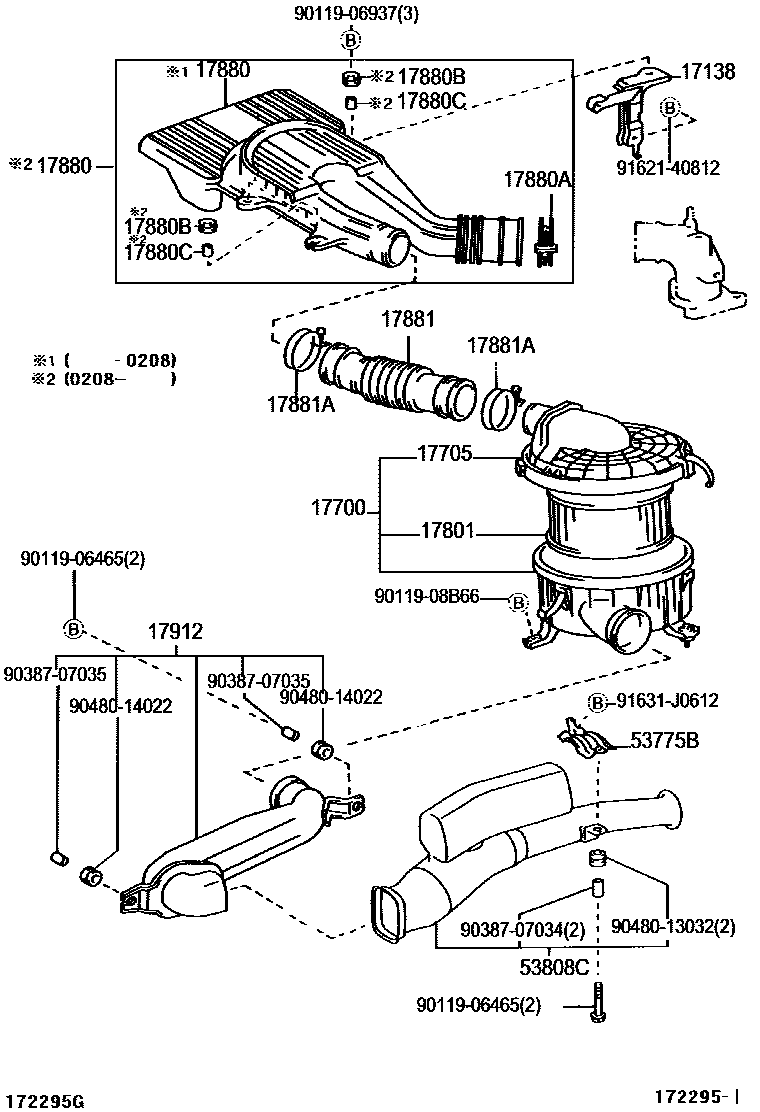

Toyota HILUX EPC diagram 1703, Air Cleaner, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17138 | Air intake pipe or air intake hose stay | 17138-54010 · 17138-54011 |
| 17343D | No. 3 air hose | 17343-75010 |
| 17343E | Hose clamp (for size 3 air hose) | 90467-21010 · 90467-22004 · 96134-42100 |
| 17700 | air filter assembly | 17700-5B090 · 17700-5B091 · 17700-5B110 · 17700-75220 · 17700-75230 |
| 17705 | Air filter cover sub-assembly | 17705-54410 · 17705-54411 · 17705-54420 · 17705-75170 · 17705-75180 |
| 17801 | Air filter element sub-assembly | 17801-54150 · 17801-75030 |
| 17805 | Intake connecting pipe sub-assembly | 17805-75150 · 17860-75050 |
| 17805G | Hose clamp (for air connector) | 96111-10780 |
| 17853 | Air filter bracket vibration isolation pad | 17853-75010 |
| 17871 | Air intake connecting pipe stay | 17871-75011 |
| 17880 | Air cleaner hose assembly | 17880-54240 · 17880-54241 |
| 17880A | hose clamp | 96111-10710 |
| 17880B | Collar (for air cleaner hose) | 90387-07016 |
| 17880C | Gasket (for air cleaner hose) | 90480-14024 |
| 17881 | No. 1 air cleaner hose | 17881-54640 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10830 · 96111-10900 |
| 17881B | No. 1 air cleaner hose | 17881-75110 |
| 17882 | No. 2 air cleaner hose | 17882-0C010 · 17882-54460 · 17882-75040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10600 · 96111-10730 · 96111-10800 |
| 17885 | air cleaner tube | 17885-54200 |
| 17893 | Intake resonator | 17893-75050 |
| 17893A | hose clamp | 96111-10480 |
| 17911 | No. 1 cold air intake pipe | 52810-35010 |
| 17912 | No. 2 cold air intake pipe | 52820-35020 · 52820-35021 · 52820-35022 · 52820-35060 |
| 22020 | Air flow meter assembly with air filter | 22020-75010 |
| 22204 | Intake air flow meter assembly | 22204-75020 |
| 53775B | Cold air intake pipe mounting bracket | 53775-35010 |
| 53807C | Right front fender air duct sub-assembly | 53807-35050 |
| 53808C | Left front fender air duct sub-assembly | 53808-35030 · 53808-35070 |
