Toyota HILUX Exhaust Pipe — Figure 1702

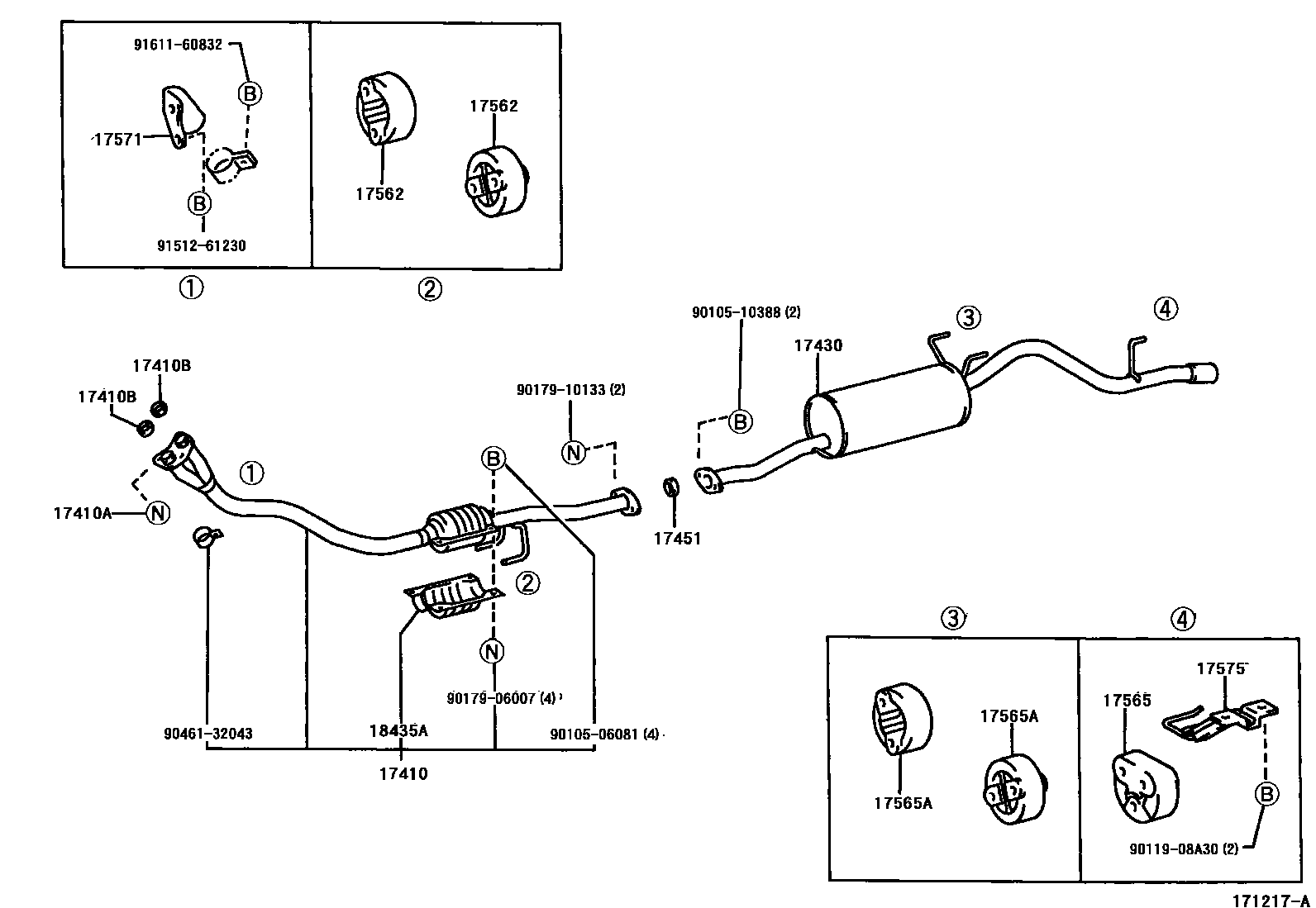

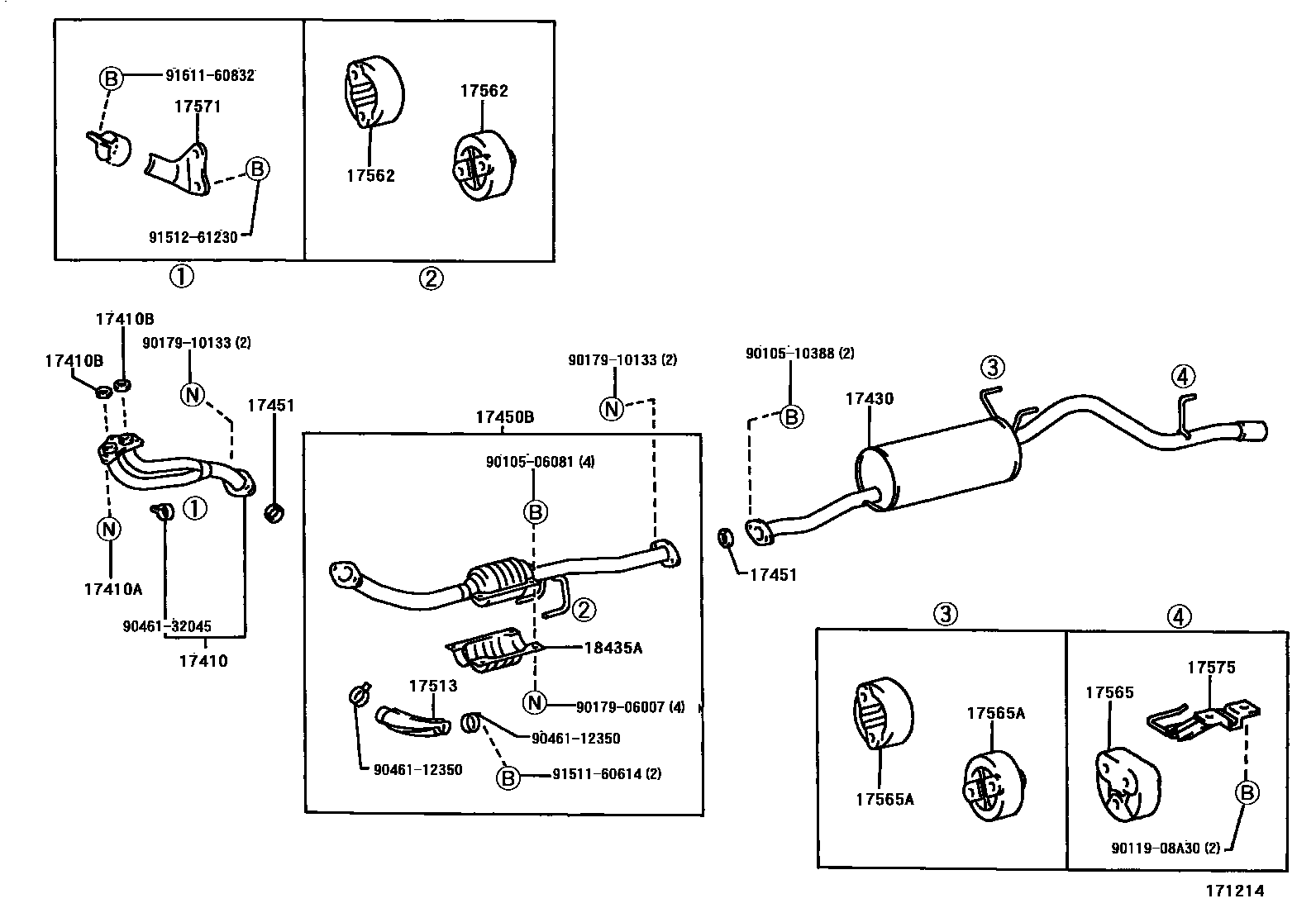

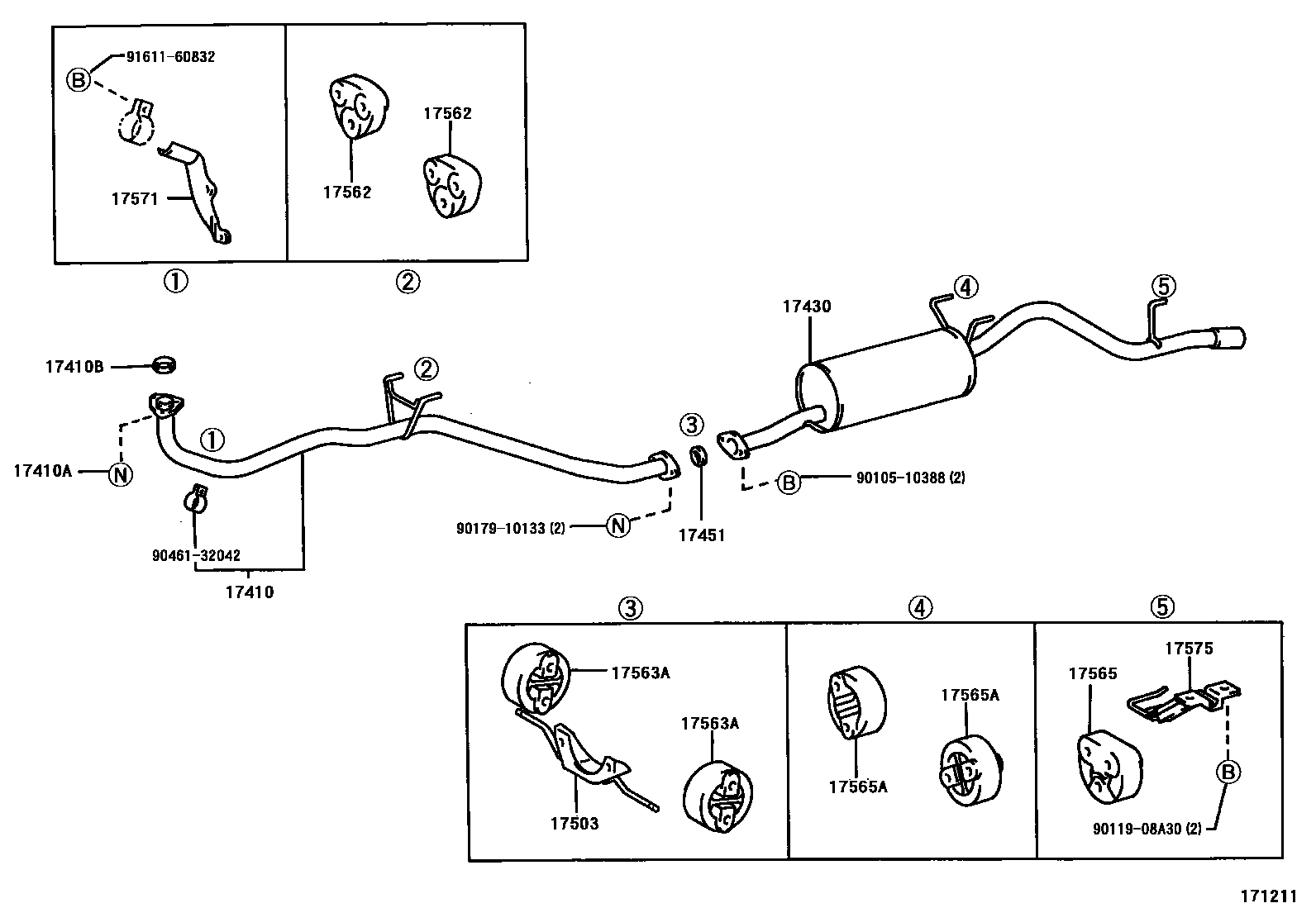

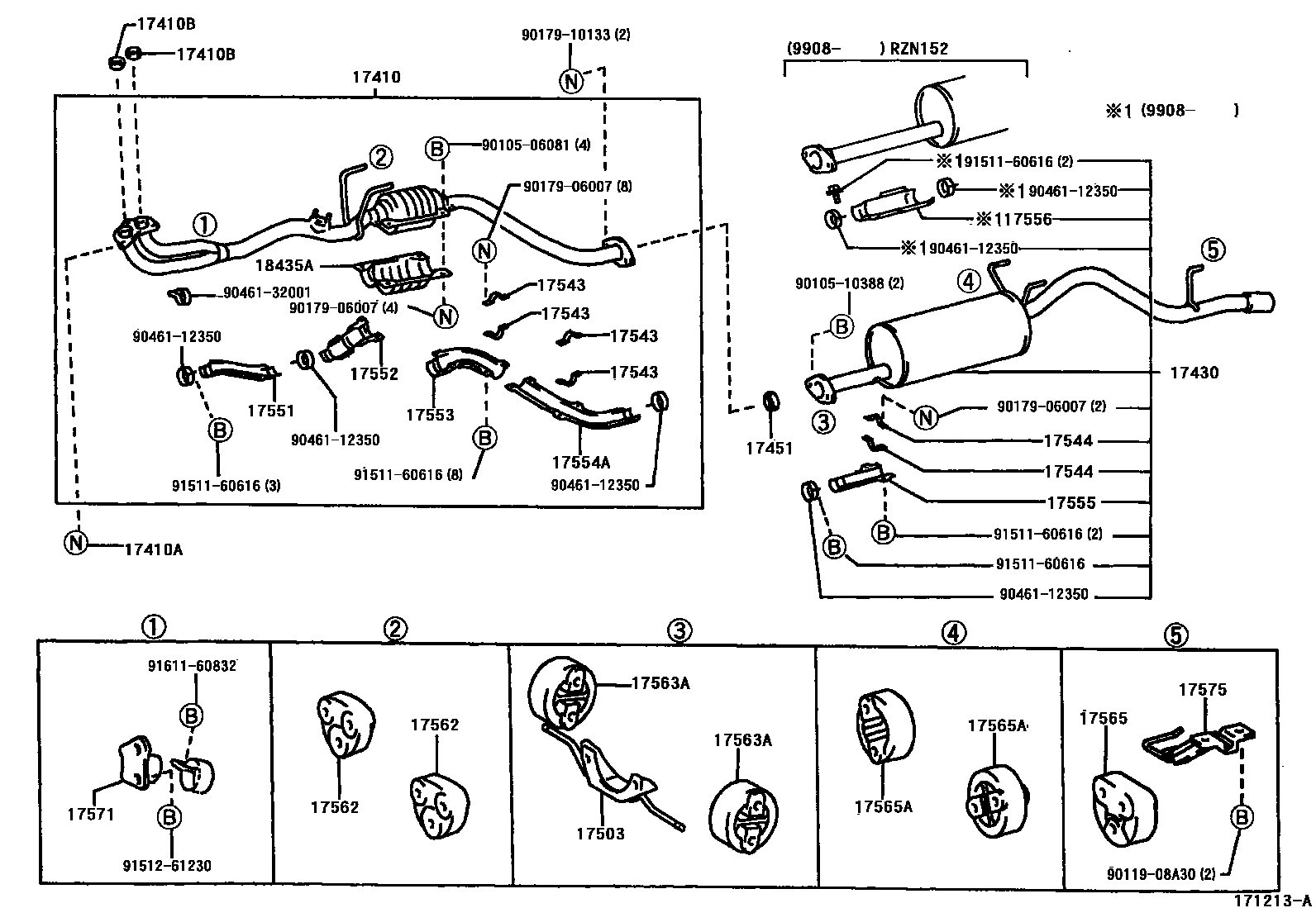

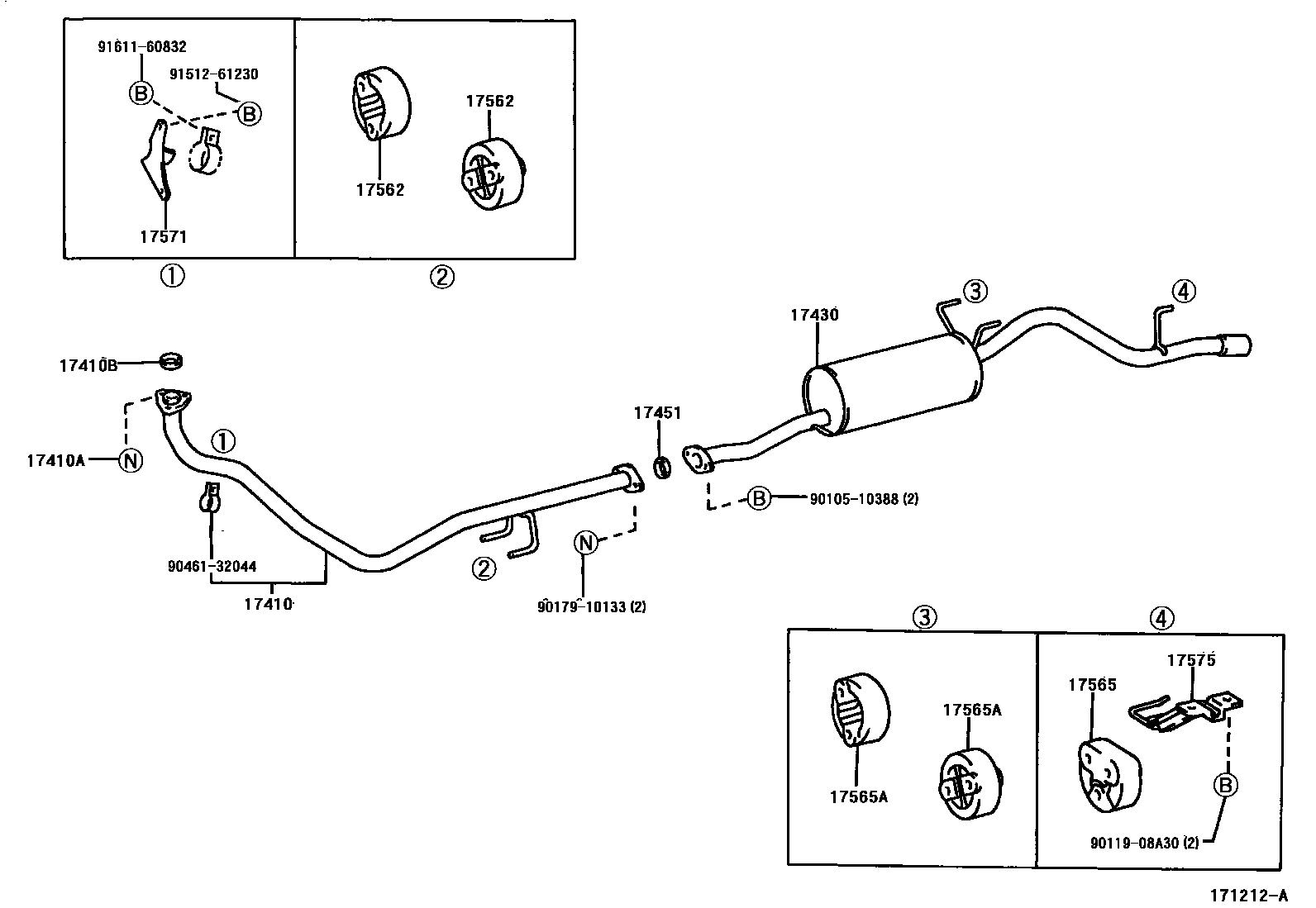

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17401-54200 · 17401-54230 · 17401-54231 · 17401-54240 · 17401-54241 · 17401-54250 · 17401-54251 · 17401-54260 · 17401-54261 · 17401-75230 · 17401-75310 · 17401-75311 · 17401-75320 · 17401-75321 · 17410-75160 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06061 · 90917-06064 · 90917-06066 |
| 17430 | Exhaust tailpipe assembly | 17405-54330 · 17405-54350 · 17405-54370 · 17405-75280 · 17405-75290 · 17405-75330 · 17430-75330 · 17430-75510 |
| 17450B | No. 2 front exhaust pipe assembly | 17450-75010 |
| 17451 | Exhaust pipe gasket | 90917-06046 |
| 17503 | Three-way catalytic converter rear bracket sub-assembly | 17503-75020 · 17503-75030 |
| 17513 | No. 1 lower exhaust pipe insulation pad | 17513-75010 |
| 17543 | No. 3 exhaust pipe protection device stay | 17543-13020 |
| 17544 | No. 4 exhaust pipe protection device stay | 17543-13020 |
| 17551 | No. 1 exhaust pipe insulation pad | 17551-75040 |
| 17552 | No. 2 exhaust pipe insulation pad | 17552-75010 |
| 17553 | No. 3 exhaust pipe insulation pad | 17553-75010 |
| 17554A | No. 4 exhaust pipe insulation pad | 17554-75030 |
| 17555 | No. 5 exhaust pipe insulation pad | 17555-75010 |
| 17556 | No. 6 exhaust pipe insulation pad | 17556-75010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-64060 · 17565-74290 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-74290 |
| 17565 | No. 5 exhaust pipe lifting lug | 17566-35030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-74290 |
| 17571 | No. 1 exhaust pipe bracket | 17571-54350 · 17571-54510 · 17571-75120 · 17571-75140 · 17571-75150 |
| 17575 | No. 5 exhaust pipe bracket | 17575-75040 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-11020 · 18435-11040 · 18435-20020 |
