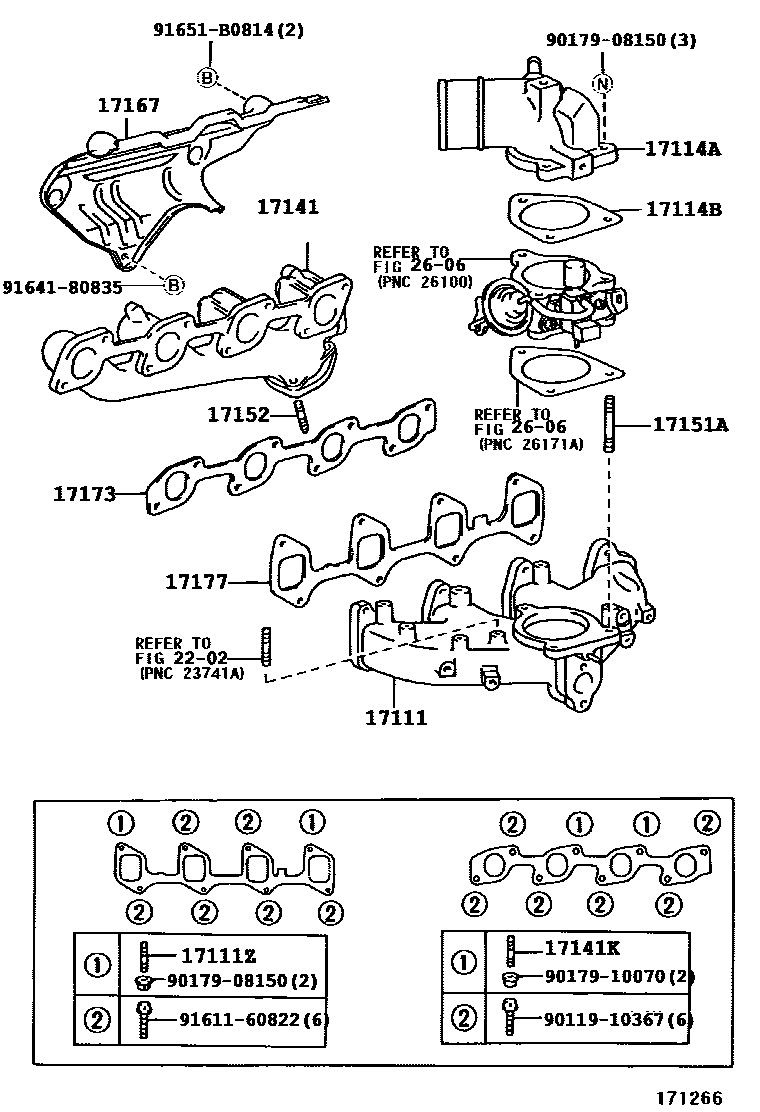

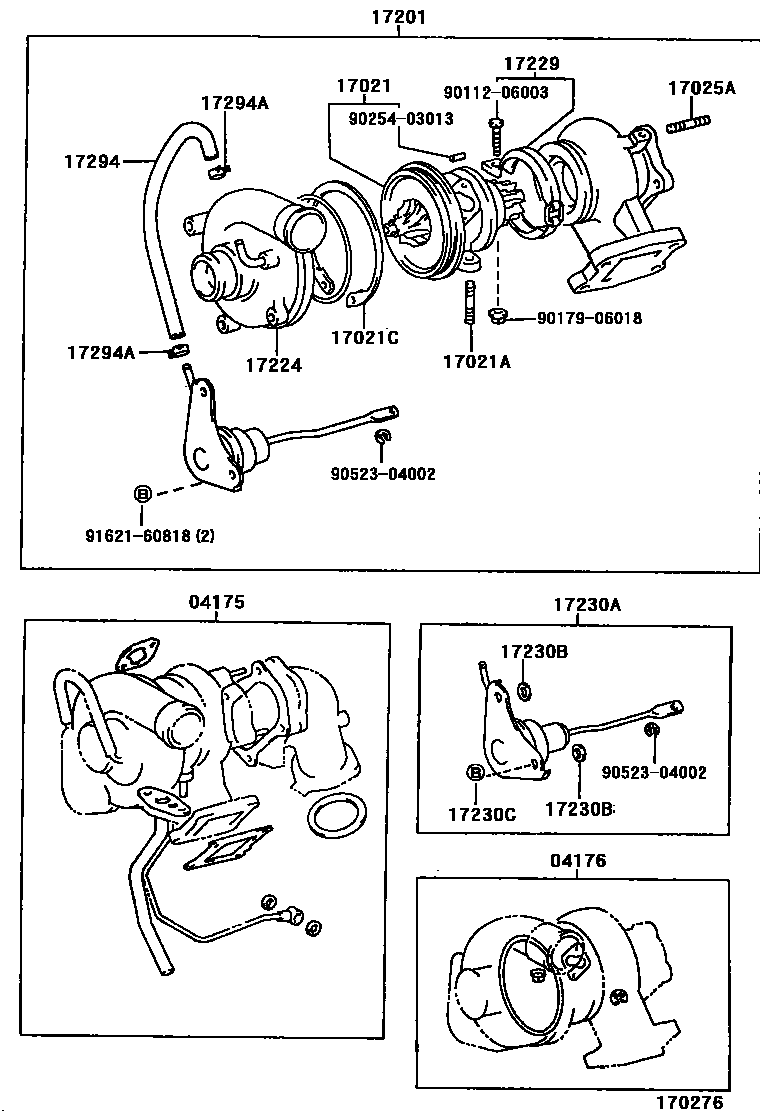

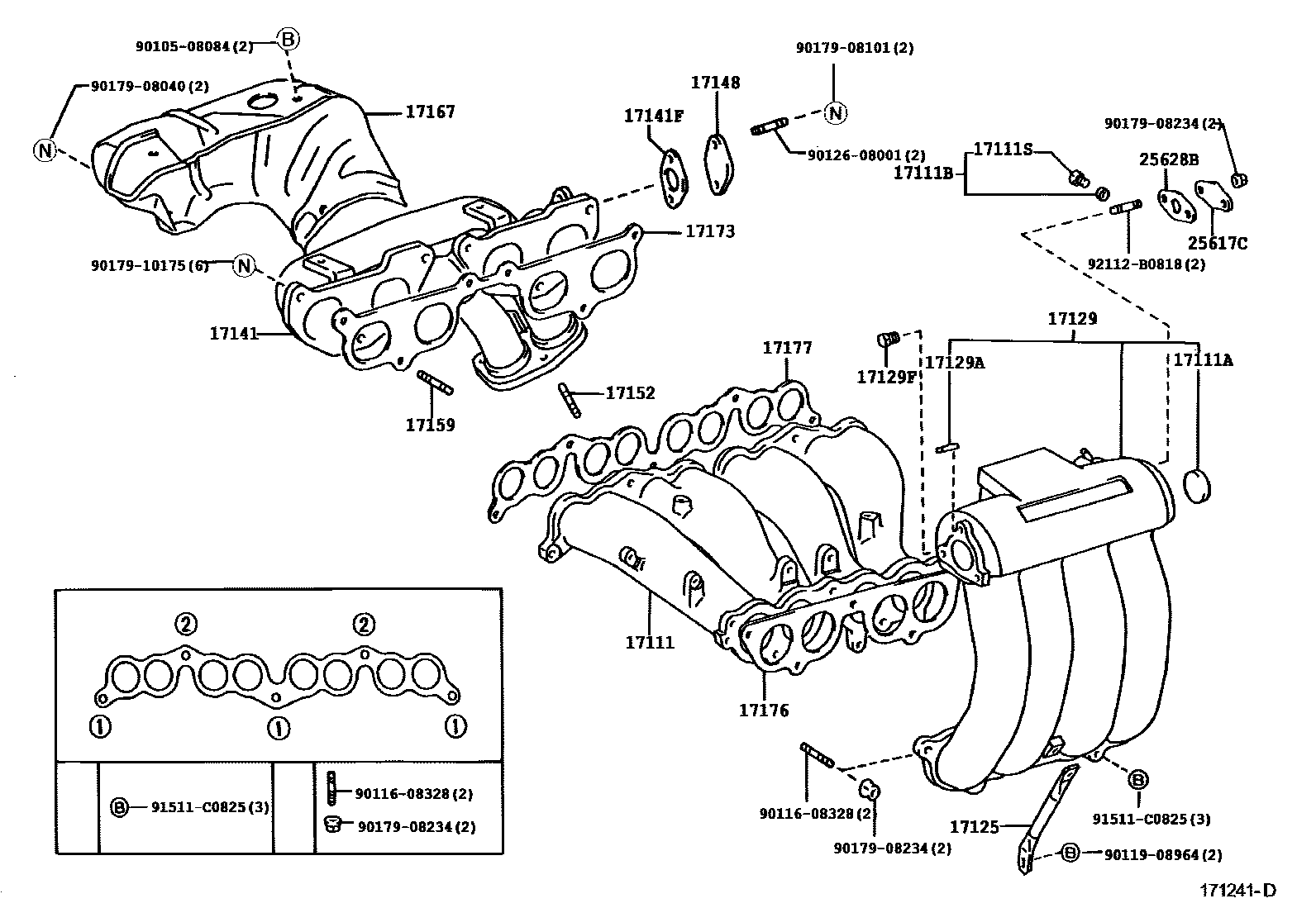

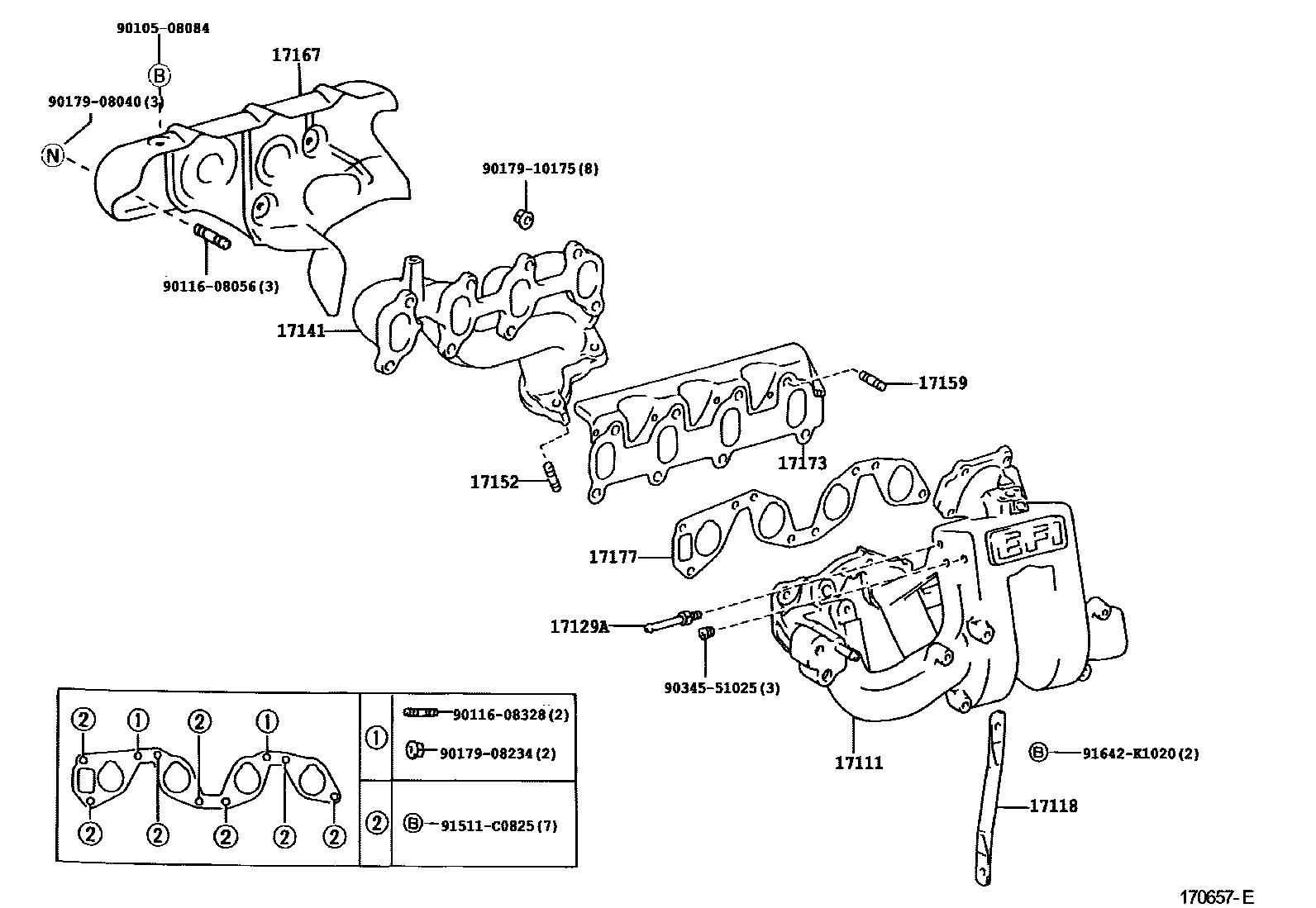

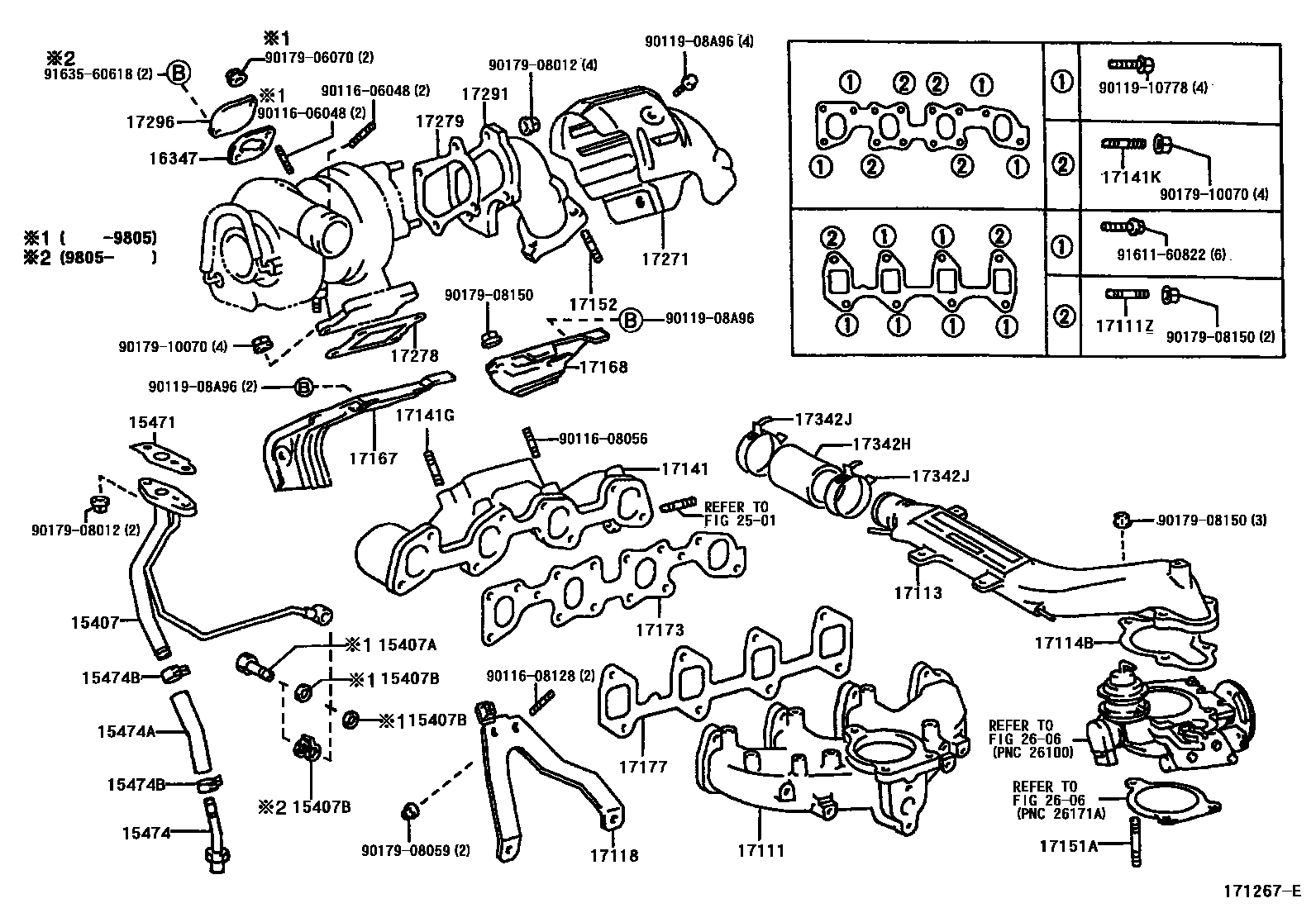

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 5 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-54030 |
| 04176 | Turbocharger seal assembly | 04176-54040 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-54040 · 15407-54041 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 · 96341-11000 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10035 · 90904-30004 |
| 15471 | Turbine oil inlet pipe gasket | 15471-58010 |
| 15474 | Turbine oil outlet pipe | 15476-54020 |
| 15474A | Turbine oil outlet hose | 15491-54020 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-26003 |
| 16347 | water bypass liner | 16347-42020 |
| 17021 | Bearing shell sub-assembly | 17021-54060 · 17021-54070 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17021C | Hole snap ring (for bearing housing) | 90521-99007 |
| 17025A | Stud bolts (for turbine housing) | 90116-08384 |
| 17111 | Intake Manifold | 17101-54092 · 17101-54093 · 17101-75020 · 17101-75021 · 17111-54140 · 17111-75031 |
| 17111A | No. 1 screw plug | 96411-43500 |
| 17111B | No. 2 screw plug | 90341-10009 |
| 17111S | Gasket (for manifold plug) | 90430-09005 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-08220 |
| 17113 | intake pipe | 17113-54120 |
| 17114A | Intake flange | 17114-54120 |
| 17114B | Intake flange gasket | 17116-54011 · 17116-54021 · 17116-54030 |
| 17118 | Manifold stays | 17118-54040 · 17118-75020 |
| 17125 | No. 1 pressure tank stay | 17125-75030 |
| 17129 | Intake pressure tank | 17109-75030 |
| 17129A | Connector No. 1 | 90404-51319 · 90406-06002 |
| 17129F | Intake manifold intake hole plug | 90345-51025 |
| 17141 | exhaust manifold | 17141-54100 · 17141-54121 · 17141-75020 · 17141-75080 |
| 17141F | Gasket (for exhaust manifold plate) | 25634-75010 · 89466-20020 |
| 17141G | Stud bolts (for turbocharger) | 90116-10094 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90116-10140 · 90116-10141 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-41010 |
| 17151A | Studs (for manifold to venturi) | 90116-08292 |
| 17152 | Studs (for manifold to exhaust) | 90116-10088 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10163 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-54100 · 17167-54110 · 17167-75060 · 17167-75100 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-54040 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-54030 · 17173-54050 · 17173-75010 · 17173-75020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-75010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-54021 · 17177-75011 · 17177-75020 |
| 17201 | Turbocharger sub-assembly | 17201-54081 · 17201-54090 |
| 17224 | compressor casing | 17024-54050 · 17024-54060 |
| 17229 | V-Belt | 17229-67010 |
| 17230A | Compensation actuator assembly with bracket | 17230-59135 · 17230-59136 · 17230-59145 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-08081 · 90201-08082 · 90201-08086 · 90201-08087 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60822 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-54100 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-54021 |
| 17279 | Turbine outlet elbow gasket | 17279-54020 |
| 17291 | Turbine oil outlet elbow | 17291-54090 |
| 17294 | Actuator hose | 90445-12111 |
| 17294A | Clamp (for actuator hose) | 96132-41100 |
| 17296 | Bearing shell side plate | 17296-28010 |
| 17342H | Air hose No. 2 (for turbocharger) | 17342-54030 |
| 17342J | Hose clip (for air intake pipe) | 90467-48002 |
| 25617C | EGR hole cover plate | 25617-74020 |
| 25628B | EGR air intake gasket | 25628-75010 |
