Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

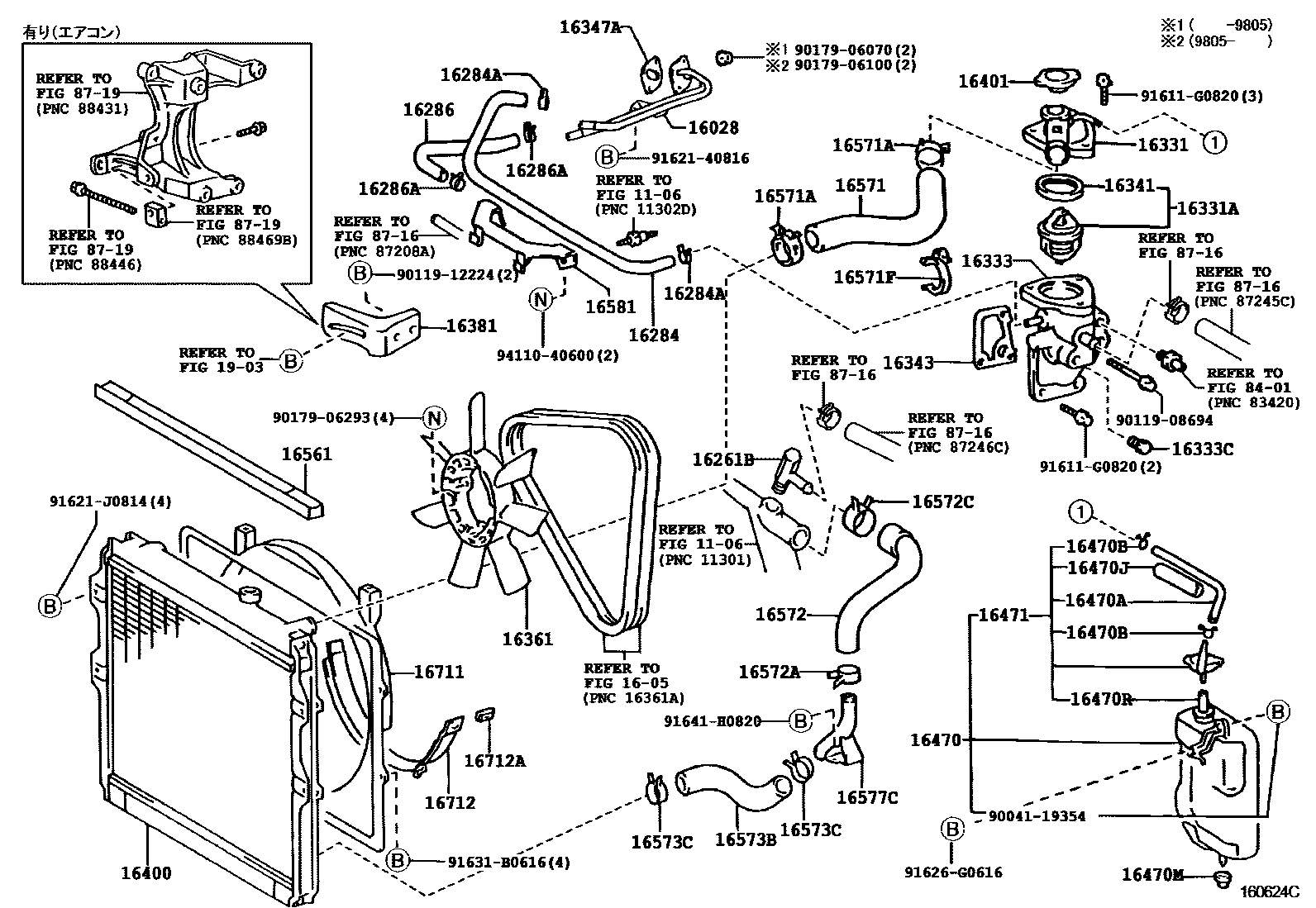

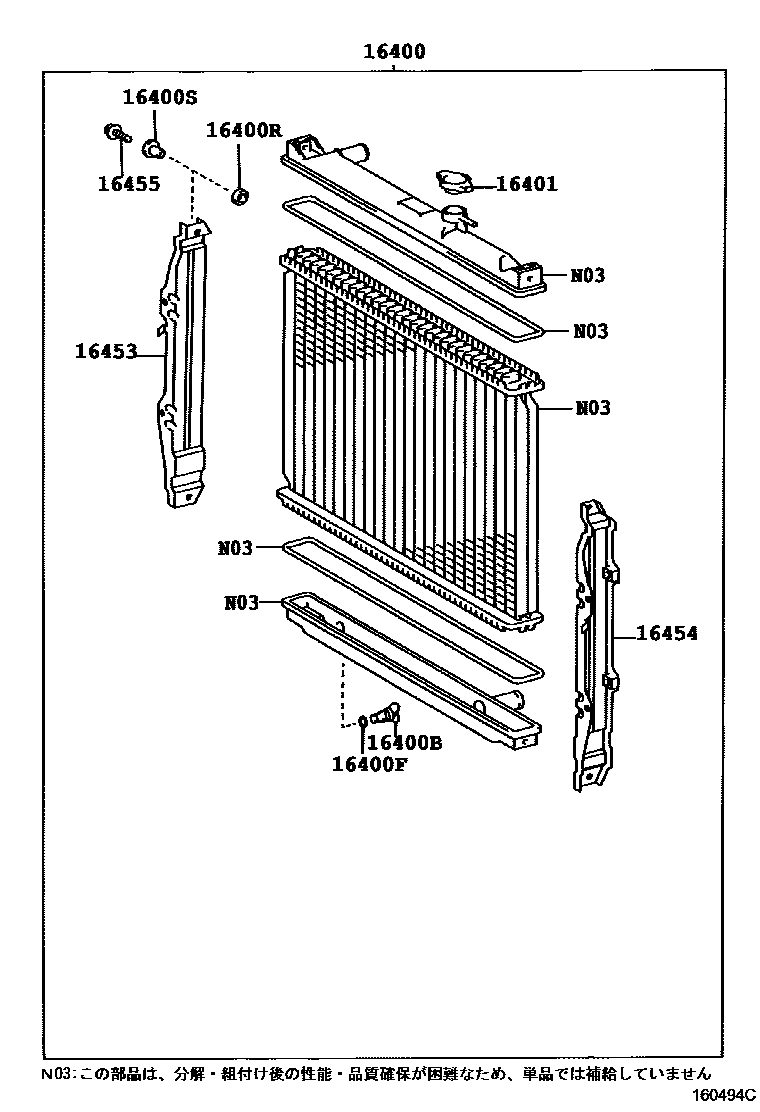

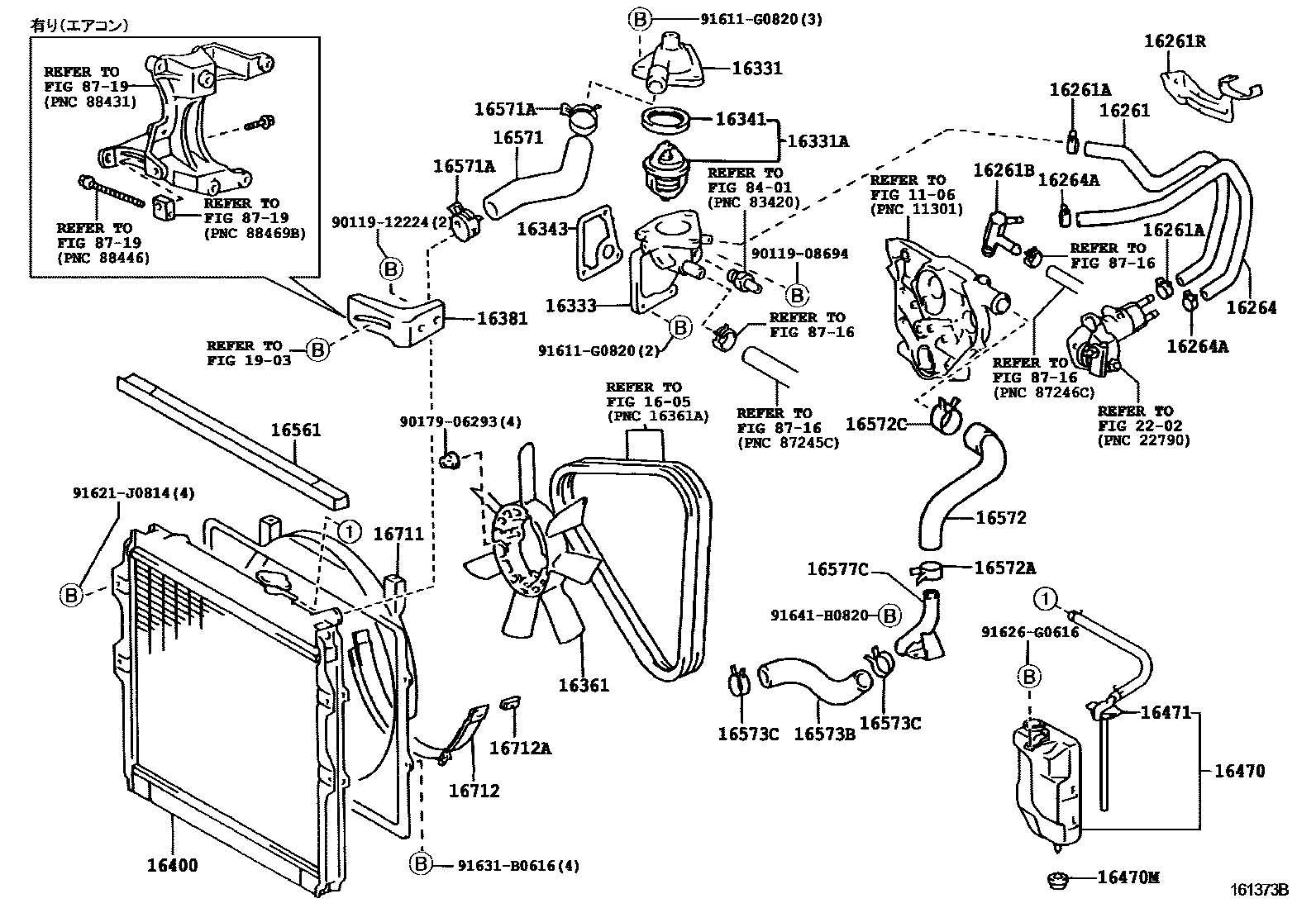

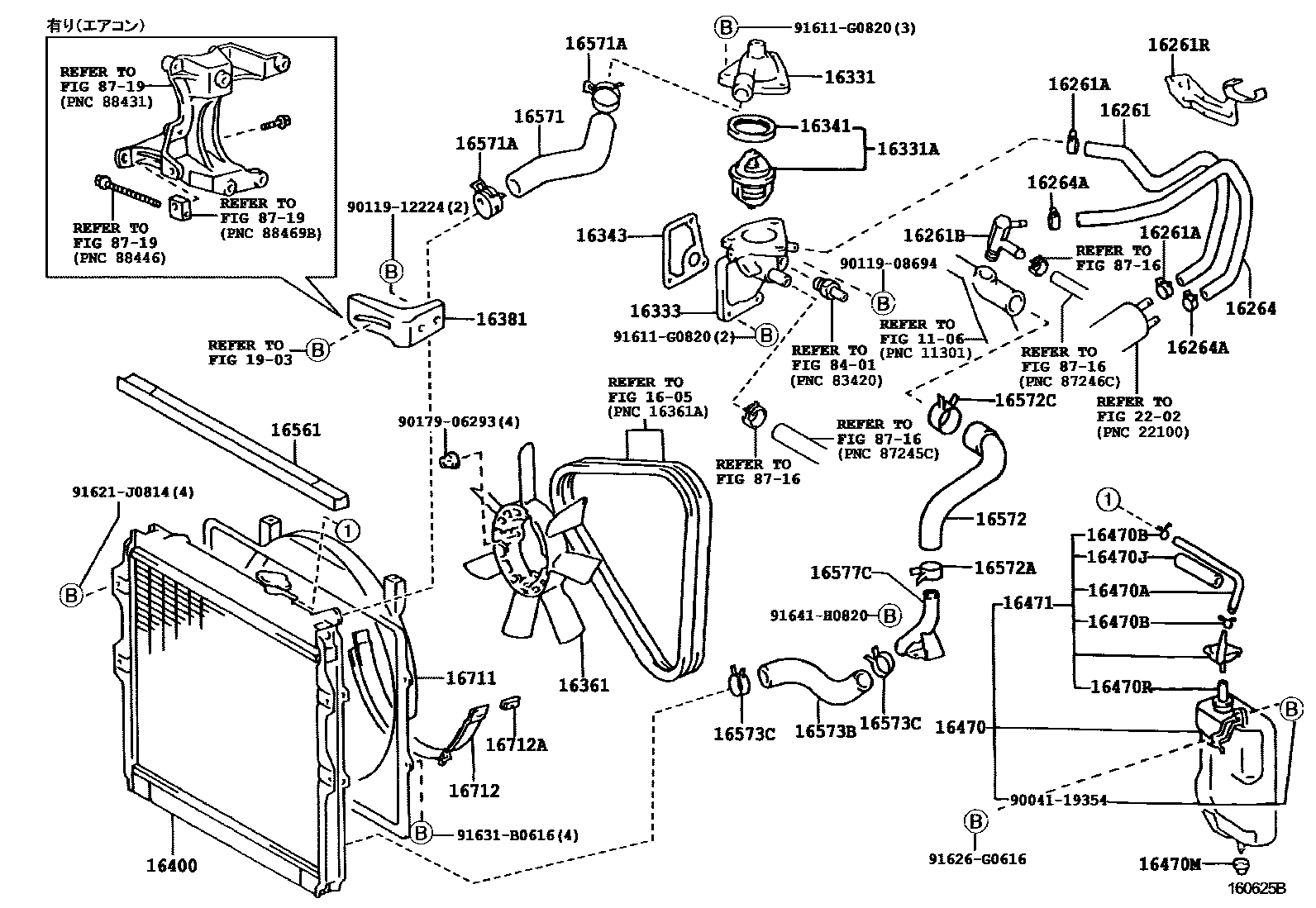

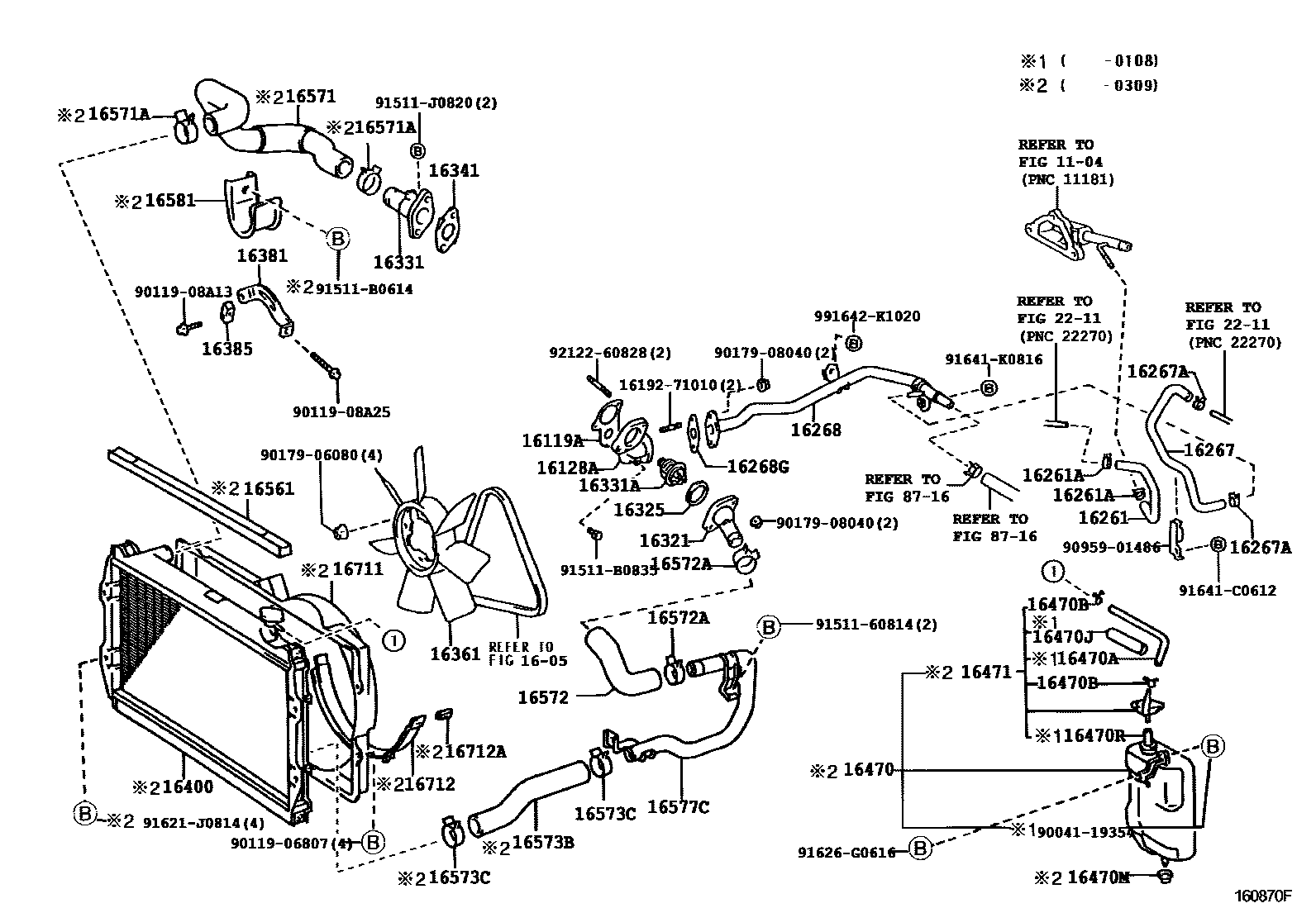

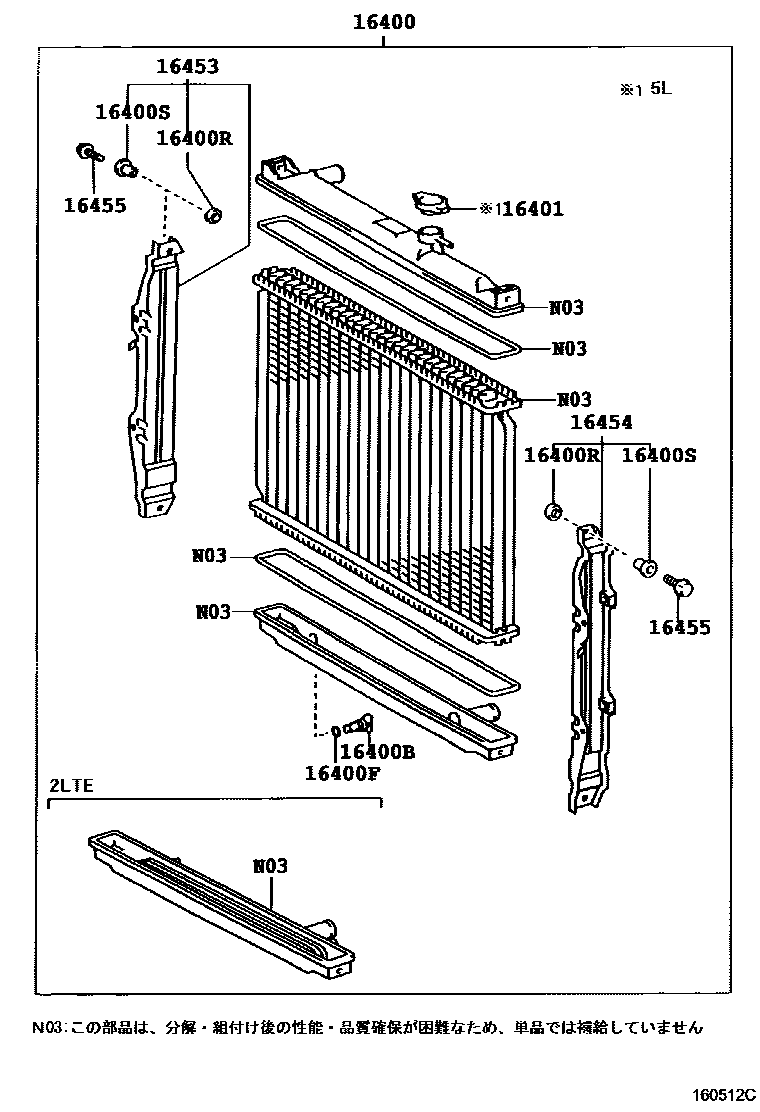

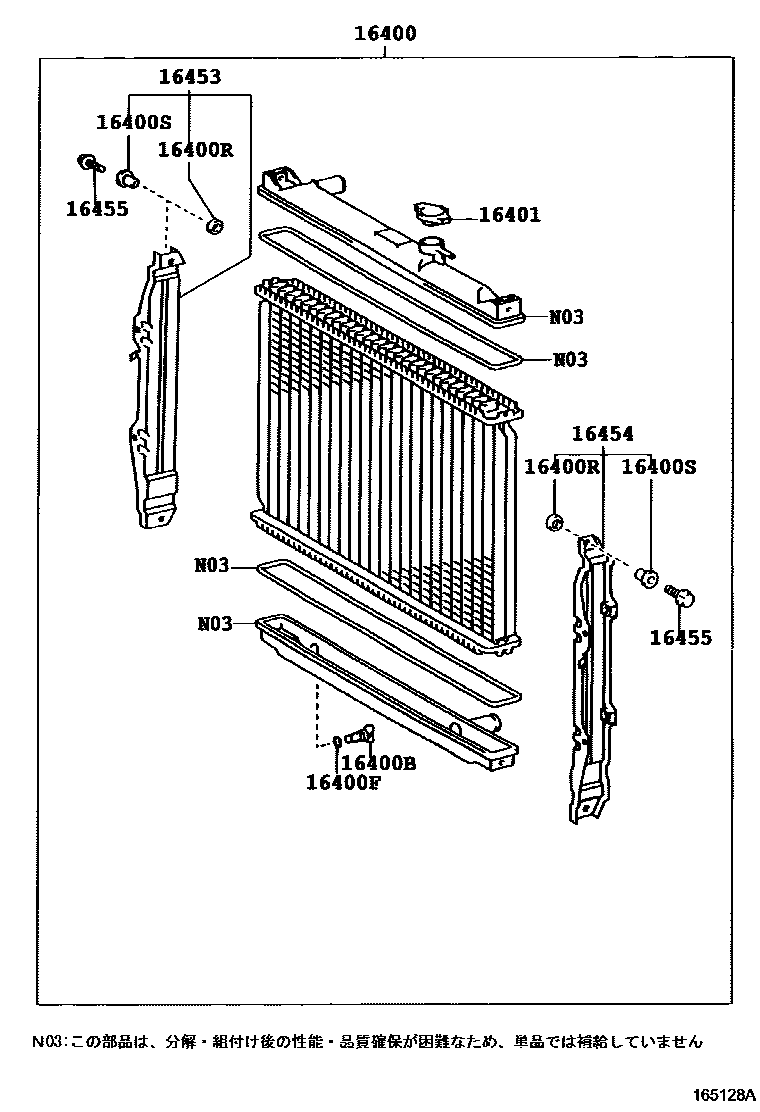

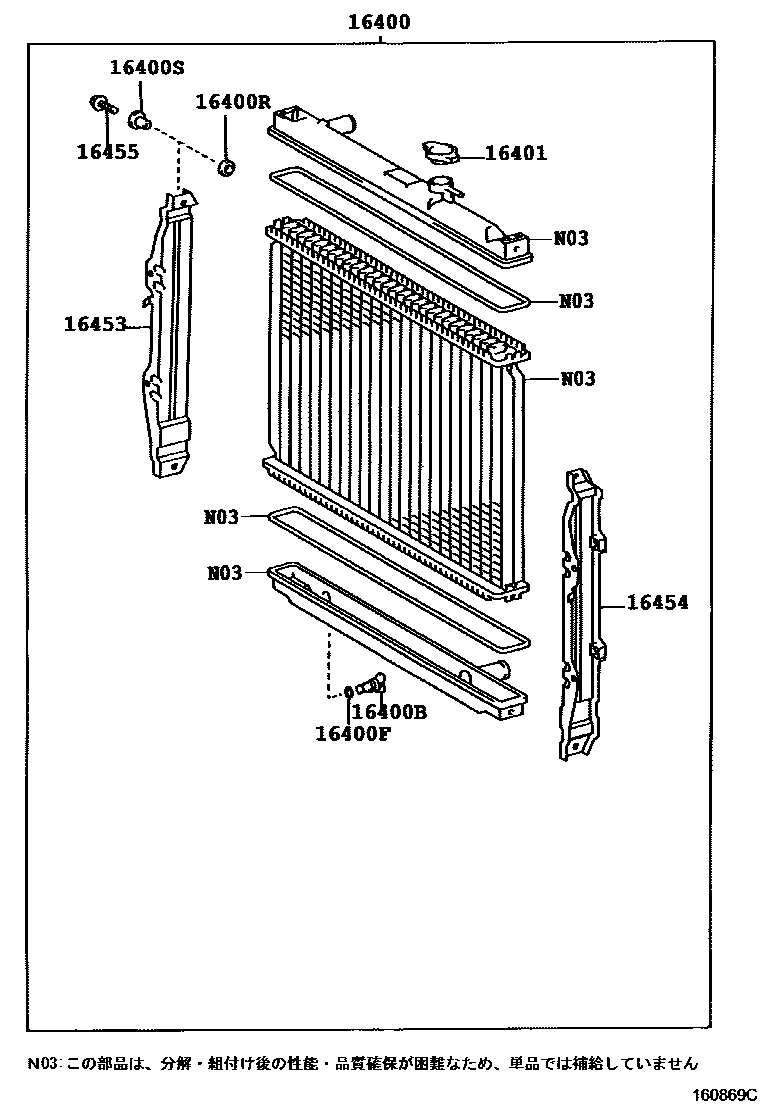

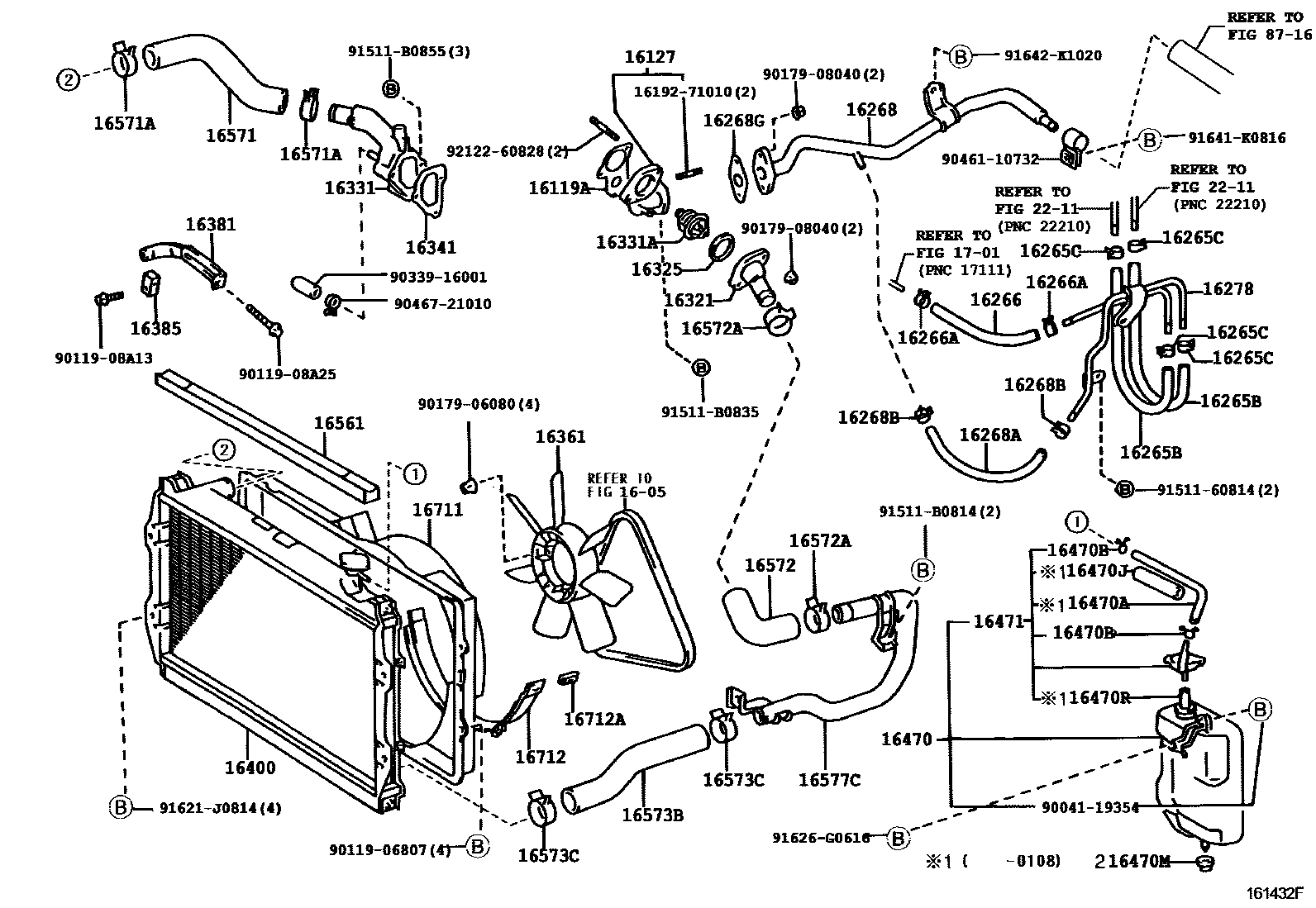

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16028 | No. 2 turbine water pipe sub-assembly | 16028-54030 |
| 16119A | thermostat duct gasket | 16119-75020 |
| 16127 | water pump thermostat guide plate | 16127-75020 |
| 16128A | water pump thermostat guide plate | 16128-75020 |
| 16261 | HOSE, WATER BY-PASS | 16261-54120 · 16261-54121 · 16261-75040 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15022 · 96135-41300 · 96135-51300 |
| 16261B | Connector (for water bypass hose) | 87251-89113 · 90080-34003 · 90404-54037 |
| 16261R | Clip or clip (for water bypass hose) | 90929-01219 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-54121 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 |
| 16265C | Clamp or clip (for intake manifold water hose No. 1) | 96135-41300 · 96135-51300 |
| 16266A | Clip or clip (for No. 2 intake manifold water hose) | 96135-41300 · 96135-51300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-75010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96135-41300 · 96135-51300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-75010 · 16268-75080 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 96135-41300 · 96135-51300 |
| 16268G | Gasket (for water bypass pipe) | 17175-75010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-75011 |
| 16284 | Turbine Water Hose No. 1 | 16284-54021 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15022 |
| 16286 | No. 3 turbine water hose | 16286-54020 |
| 16286A | Clamp (for No. 3 turbine water hose) | 90467-15022 |
| 16321 | water inlet | 16321-0W010 · 16321-75010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-76010 |
| 16331 | Water outlet | 16304-75010 · 16331-0W010 · 16331-54180 · 16331-54210 |
| 16331A | thermostat | 16340-54010 · 16340-54040 · 90916-03101 · 90916-03120 |
| 16333 | Water outlet shell | 16333-54113 · 16333-54270 |
| 16333C | Headed tapered thread plug | 90341-16094 |
| 16341 | GASKET, WATER OUTLET | 16341-05020 · 16341-35010 · 16341-75010 · 16341-75020 |
| 16343 | Outlet shell gasket | 16343-54040 |
| 16347A | Liners (for turbine water pipes) | 16347-42020 |
| 16361 | Fan | 16361-38010 · 16361-54111 · 16361-75020 |
| 16381 | Fan belt adjustment lever | 16381-54120 · 16381-54121 · 16381-75040 · 16381-75050 |
| 16385 | Fan belt adjustment slider | 16385-75030 |
| 16400 | Radiator assembly | 16400-5B590 · 16400-5B610 · 16400-5B630 · 16400-75230 · 16400-75240 · 16400-75270 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 96711-19007 |
| 16400R | Bushing (for radiator) | 16444-75180 |
| 16400S | Collar (for radiator) | 16445-75180 |
| 16401 | Radiator cover sub-assembly | 16401-5B440 · 16401-5B630 · 16401-62100 |
| 16453 | Radiator side panel | 16453-75230 · 16453-75280 |
| 16454 | Radiator side panel | 16454-75230 · 16454-75280 |
| 16455 | Radiator side support plate bolts | 91651-B0820 · 91652-B0820 |
| 16470 | Radiator reservoir assembly | 16470-54350 · 16470-75060 · 16470-75070 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12067 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470J | No. 3 hose (for radiator reservoir) | 16472-70070 · 16477-11110 · 16478-46020 |
| 16470M | gasket | 90480-25025 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-54330 · 16405-75050 · 16405-75070 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-54010 · 16561-54050 |
| 16571 | Radiator water inlet hose | 16571-54490 · 16571-54510 · 16571-75090 · 16571-75100 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-37005 |
| 16571F | Clamps or clips (for water hoses) | 90929-01230 |
| 16572 | Radiator outlet hose | 16572-54570 · 16572-75120 · 16572-75130 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-37005 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90466-41008 · 90467-41006 · 90467-41007 |
| 16573B | Radiator hose No. 3 | 16573-54120 · 16573-54160 · 16573-75020 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-37005 |
| 16577C | radiator pipe | 16577-54200 · 16577-54210 · 16577-75020 |
| 16581 | Hose clamp (for water hose) | 16581-54020 · 16581-75010 |
| 16711 | fan cover | 16711-54640 · 16711-54660 · 16711-75080 · 16711-75090 |
| 16712 | No. 2 fan cover | 16712-54390 · 16712-75050 · 16712-75060 |
| 16712A | clip | 90468-06092 |
