Toyota HILUX Engine Oil Cooler — Figure 1503

Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 1 images and 2 PNC and OE references.

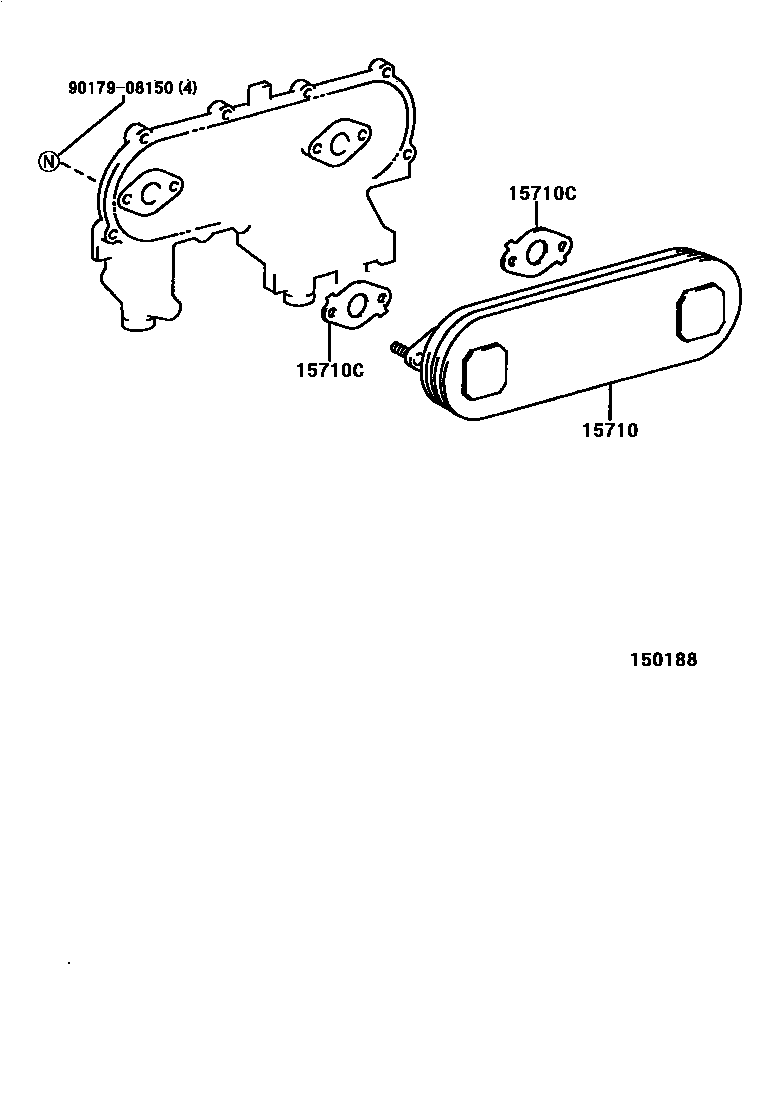

Toyota HILUX Engine Oil Cooler EPC diagram — 150188
Engine Oil Cooler — 150188 (199708 – 200407)

PNC and OE references

PNCPart nameOE numbers
15710Oil cooler assembly15710-54050
15710CGasket (for oil cooler)15785-54010
