Toyota HILUX Crankshaft & Piston — Figure 1301

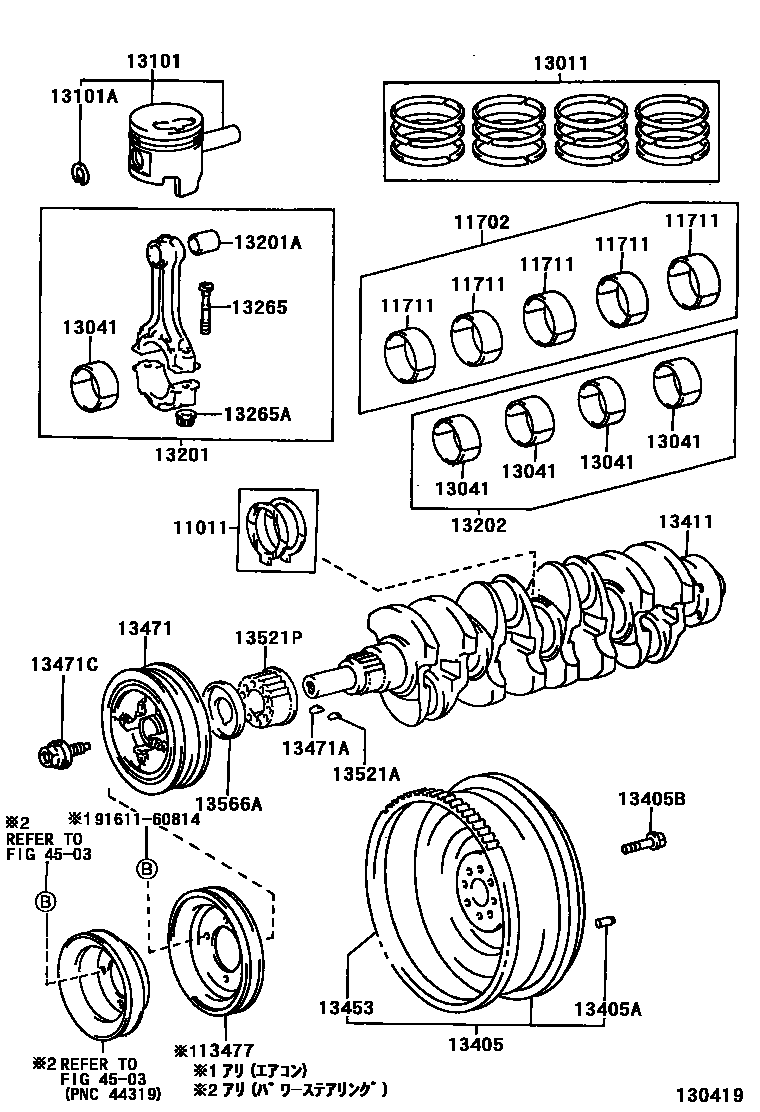

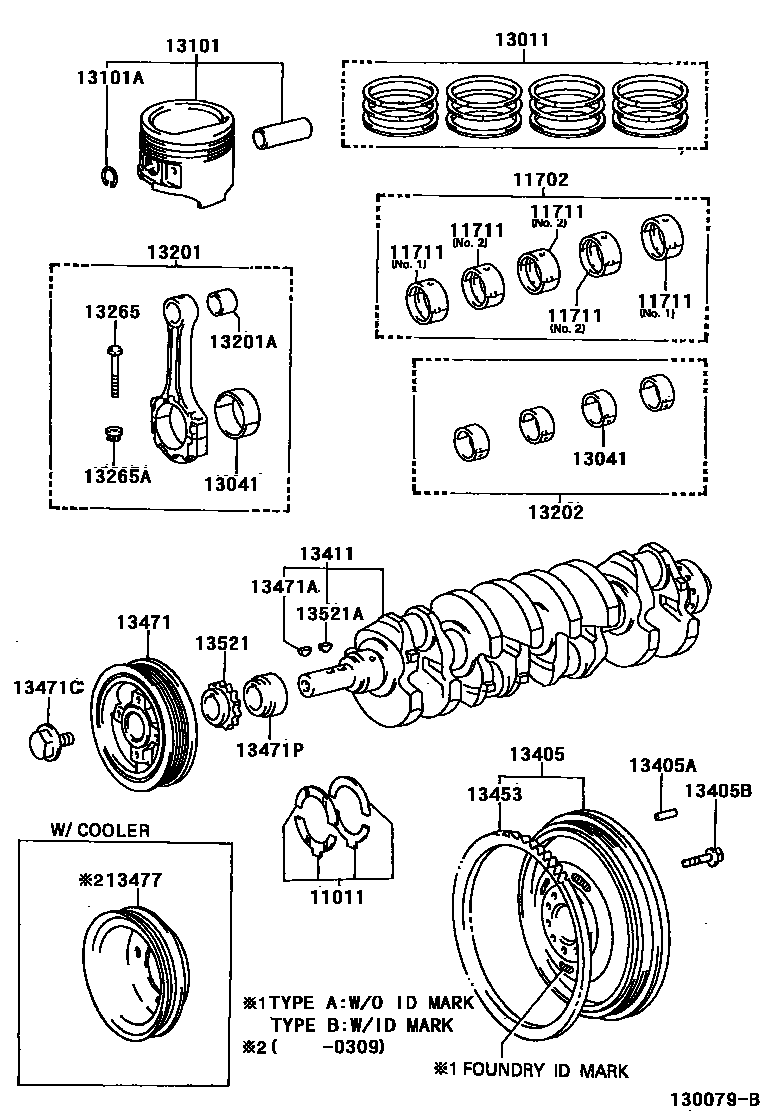

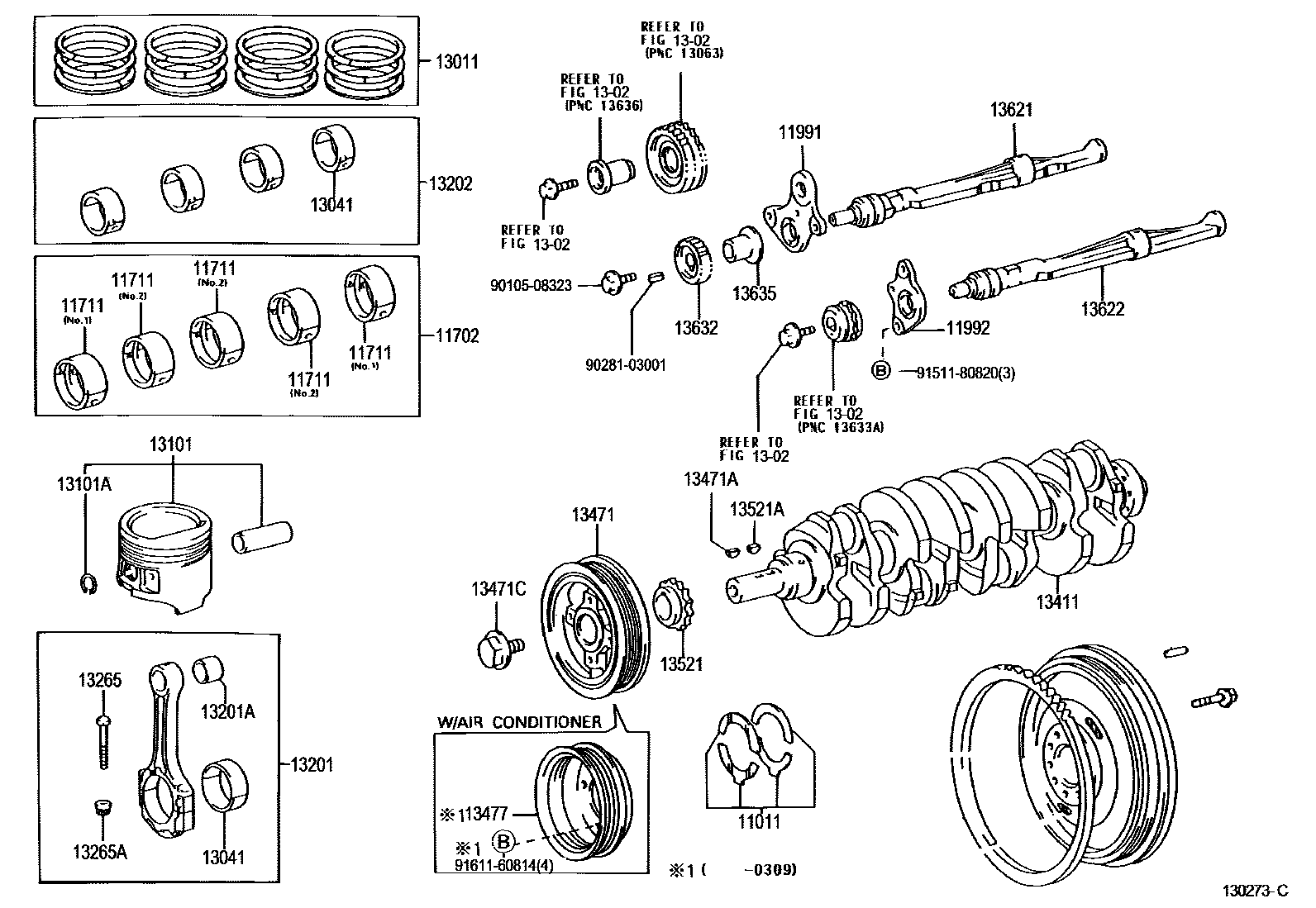

Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-54020 · 11011-75010 · 11012-54020 · 11013-54020 |
| 11702 | crankshaft bearing assembly | 11704-54061 · 11704-54080 · 11704-75020 · 11704-75021 · 11705-54061 · 11705-54080 |
| 11991 | Balance shaft thrust washer | 11991-75010 |
| 11992 | No. 2 balance shaft thrust washer | 11992-75010 |
| 13011 | Piston ring assembly | 13011-54100 · 13011-54130 · 13011-75041 · 13011-75080 · 13013-54100 · 13013-54130 · 13013-75041 · 13013-75080 · 13014-54100 · 13015-54100 |
| 13101 | Piston sub-assembly with pin | 13101-75041 · 13101-75090 · 13103-54091 · 13103-54120 · 13103-75041 · 13103-75090 · 13104-54091 · 13105-54091 |
| 13101A | Bore snap ring (for piston pin) | 90521-28003 · 90521-31001 |
| 13201 | Connecting rod sub-assembly | 13201-59105 · 13201-59106 · 13201-79167 · 13201-79205 |
| 13201A | Bushing (for connecting rod small end) | 90999-73115 · 90999-73129 |
| 13202 | Connecting rod bearing assembly | 13204-54041 · 13204-75021 · 13205-54041 |
| 13265 | Connecting rod bolts | 13265-54020 · 13265-54021 · 13265-75030 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-09009 · 90179-10123 |
| 13405 | Flywheel sub-assembly | 13405-05070 · 13405-54080 · 13405-75030 · 13450-54050 · 13450-54051 |
| 13405A | Direct sales (for flywheel) | 90250-08054 |
| 13405B | Flywheel fixing bolt | 90105-10207 · 90105-12109 · 90105-12172 |
| 13411 | crankshaft | 13401-54061 · 13401-54070 · 13401-54100 · 13411-75020 · 13411-75900 |
| 13453 | flywheel ring gear | 13453-05010 · 13453-0W010 · 13453-20010 · 13453-54010 |
| 13471 | crankshaft pulley | 13408-54090 · 13408-75030 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-30622 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16041 · 90901-19028 |
| 13471P | Spacer ring (for crankshaft pulley) | 90561-33001 |
| 13477 | No. 2 crankshaft pulley | 88451-26050 · 88451-35030 |
| 13521 | Crankshaft timing gear or sprocket | 13521-75010 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-54030 |
| 13566A | timing belt guide | 13566-05010 · 13566-54040 |
| 13621 | No. 1 balance shaft | 13621-75010 |
| 13622 | No. 2 balance shaft | 13622-75010 |
| 13632 | No. 1 balance shaft driven gear | 13632-75010 |
| 13635 | balance shaft thrust spacer | 13635-75010 |
