Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 4 images and 8 PNC and OE references.

Toyota HILUX Ventilation Hose EPC diagram — 120034
Ventilation Hose — 120034 (199708 – 999999)

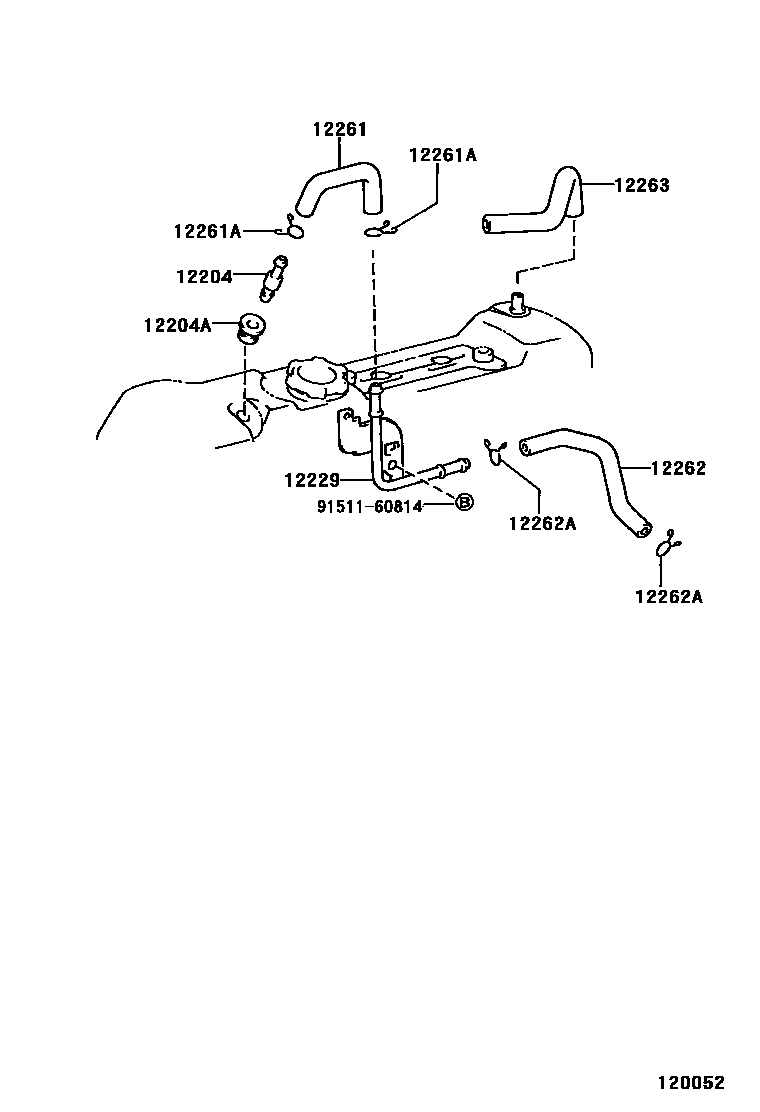

Toyota HILUX Ventilation Hose EPC diagram — 120052
Ventilation Hose — 120052 (199708 – 200308)
Toyota HILUX Ventilation Hose EPC diagram — 120056
Ventilation Hose — 120056 (199708 – 199908)
Toyota HILUX Ventilation Hose EPC diagram — 120117
Ventilation Hose — 120117 (199908 – 200308)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15022 · 12204-75010
12204AGasket (for ventilation system)90480-18001
12229ventilation duct12229-75021
12261Ventilation Hose12261-05020 · 12261-54080 · 12261-54120 · 12261-75080 · 12262-75060
12261AClip or clip (for vent hose)90467-14001 · 90467-18003 · 90467-21152 · 90467-22010
12262Ventilation hose No. 212262-75010 · 12262-75100
12262AClamp (for vent hose No. 2)90467-14001
12263No. 3 ventilation hose12262-75090
