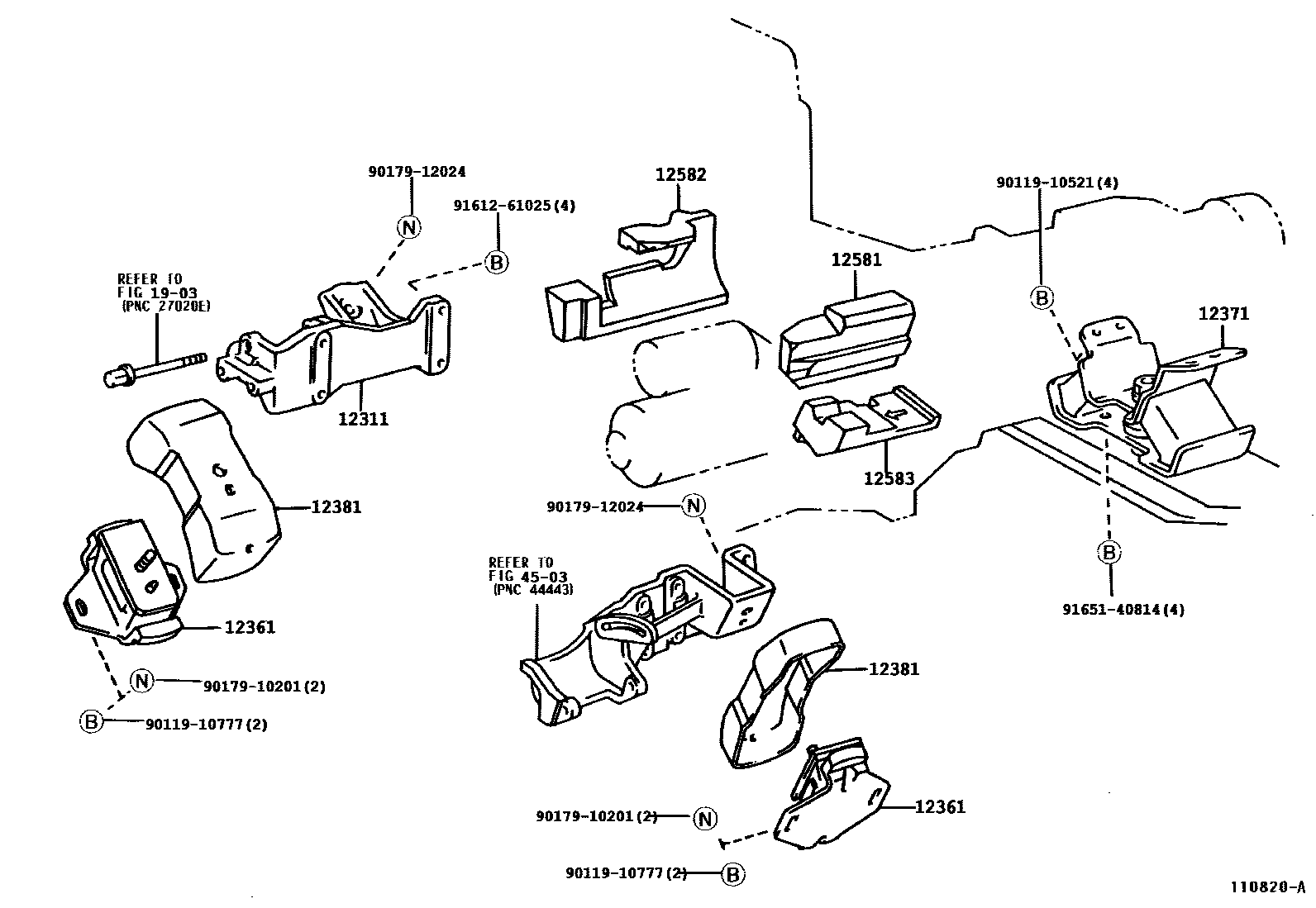

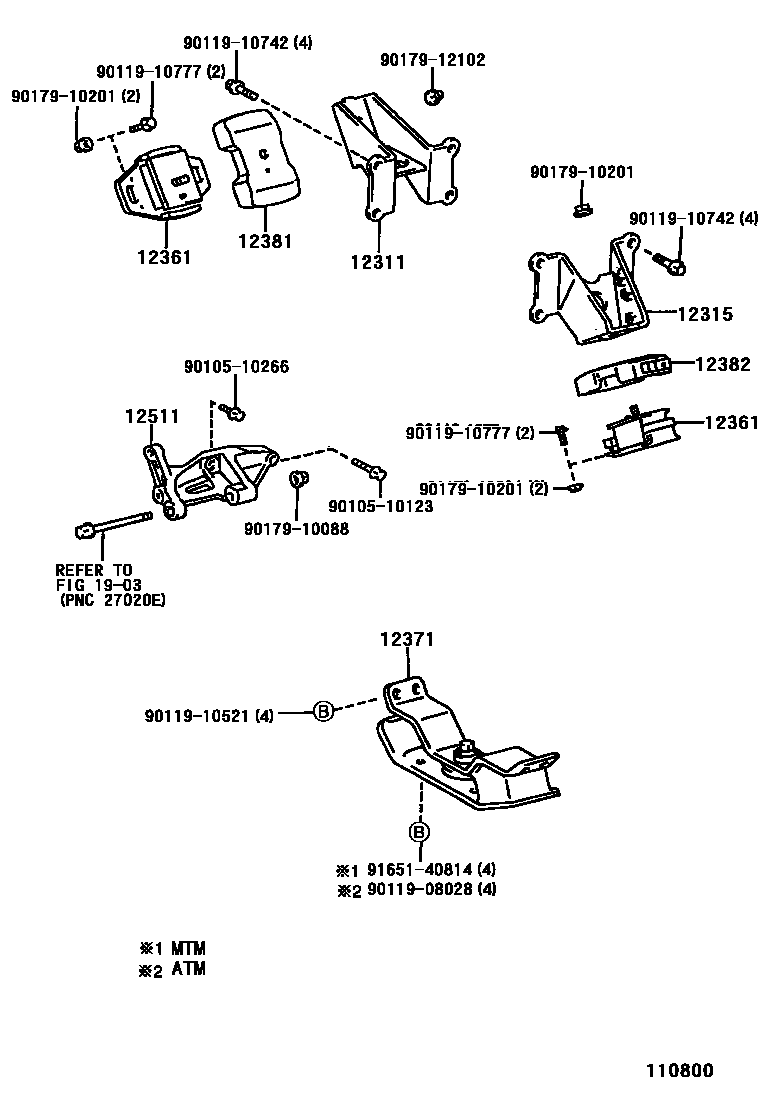

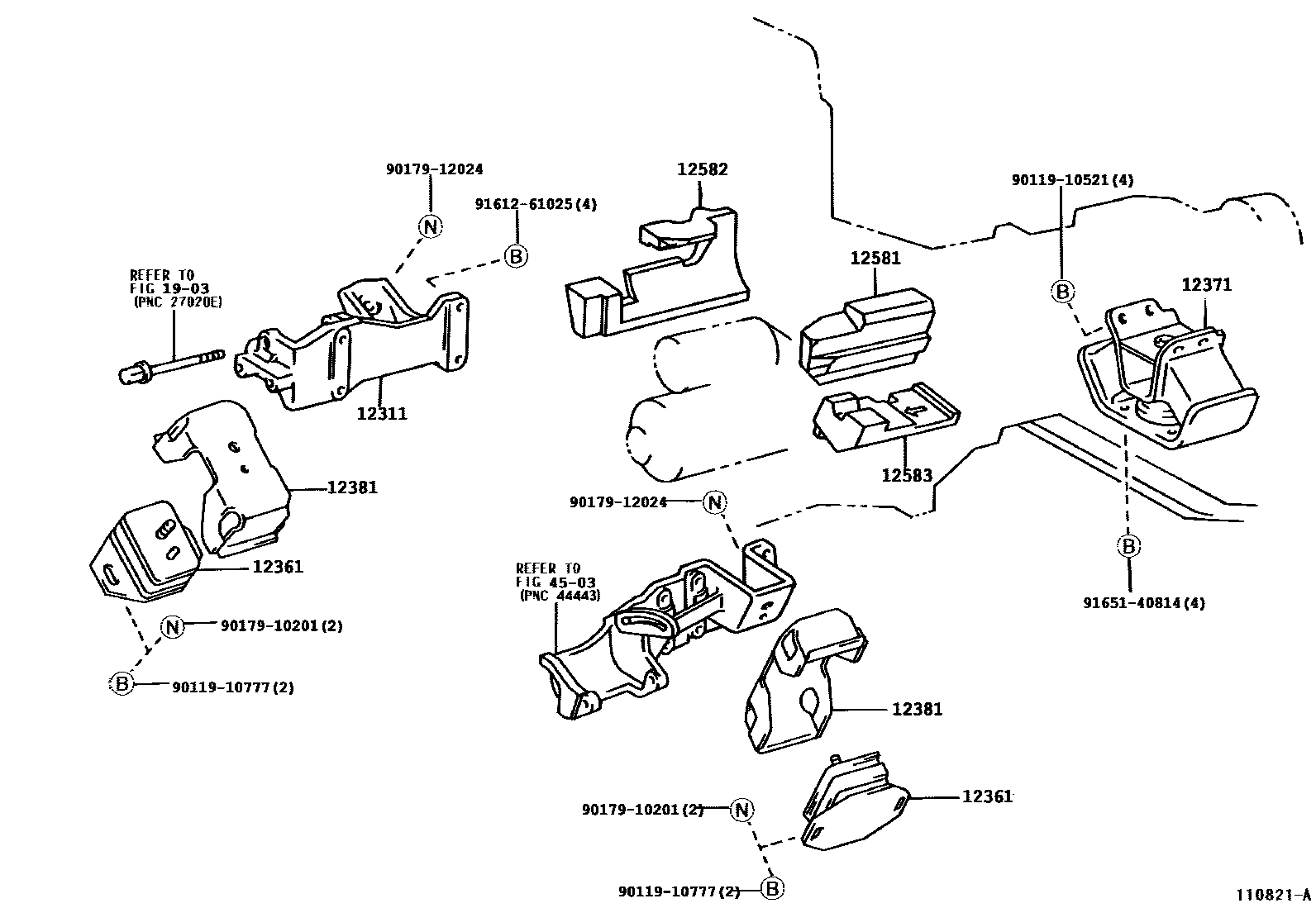

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-54181 · 12311-75080 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-75070 |
| 12361 | Engine front mounting vibration isolation pad | 12361-35090 · 12361-54111 · 12361-54121 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-34030 · 12371-54170 · 12371-54180 · 12371-75050 · 12371-75060 · 12371-75070 · 12371-75110 |
| 12381 | engine mount stabilizer bar | 12381-54010 · 12381-54060 · 12381-75020 |
| 12382 | Engine left mounting stabilizer bar | 12382-75020 |
| 12511 | No. 1 generator bracket | 12511-75041 |
| 12581 | No. 1 cylinder block vibration isolation pad | 12581-54010 |
| 12582 | No. 2 cylinder block vibration isolation pad | 12582-54021 |
| 12583 | No. 3 cylinder block vibration isolation pad | 12583-54030 |
