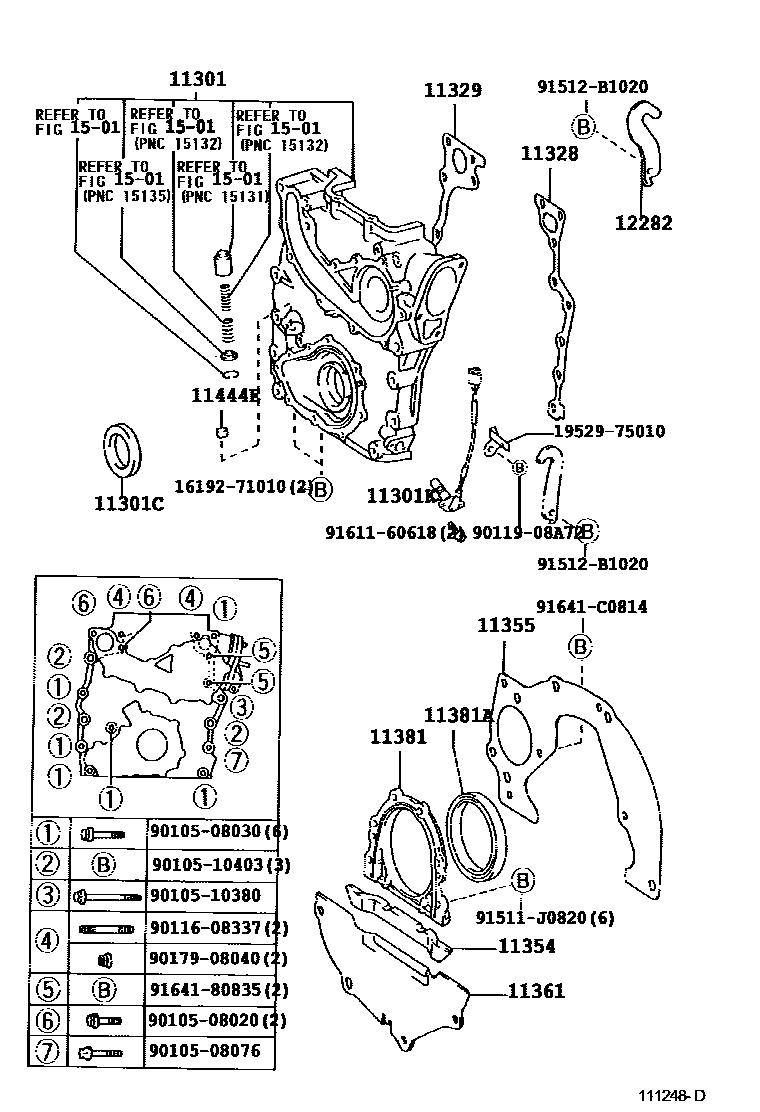

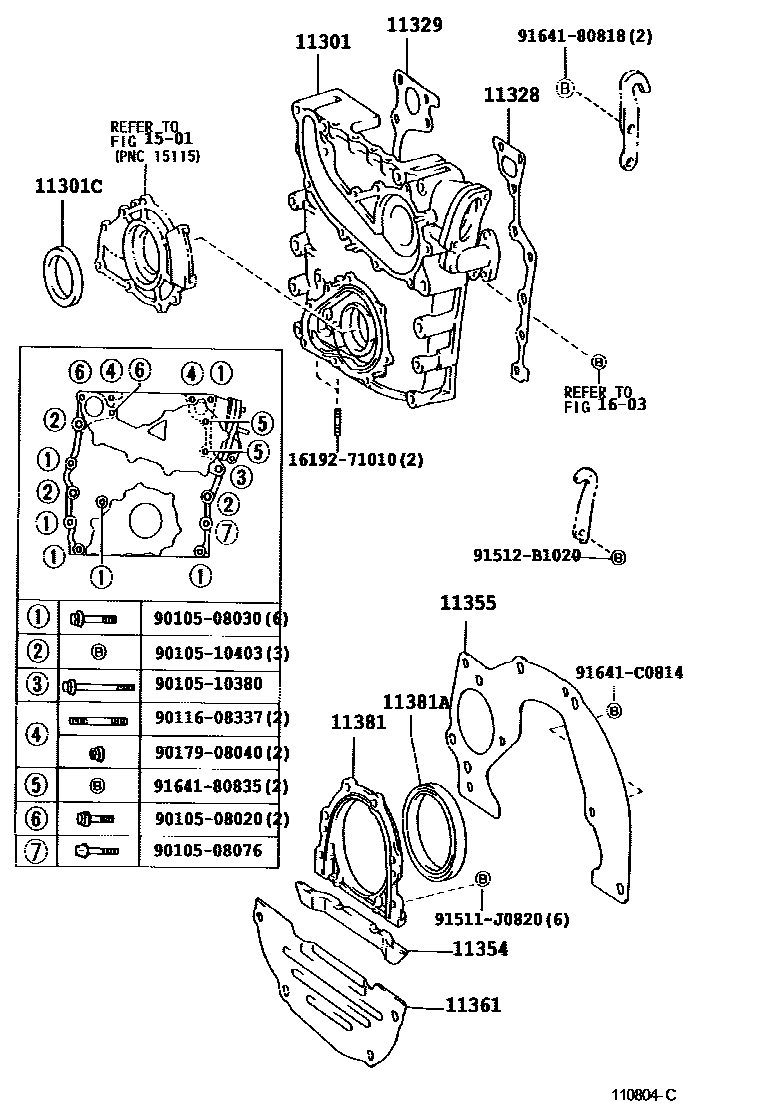

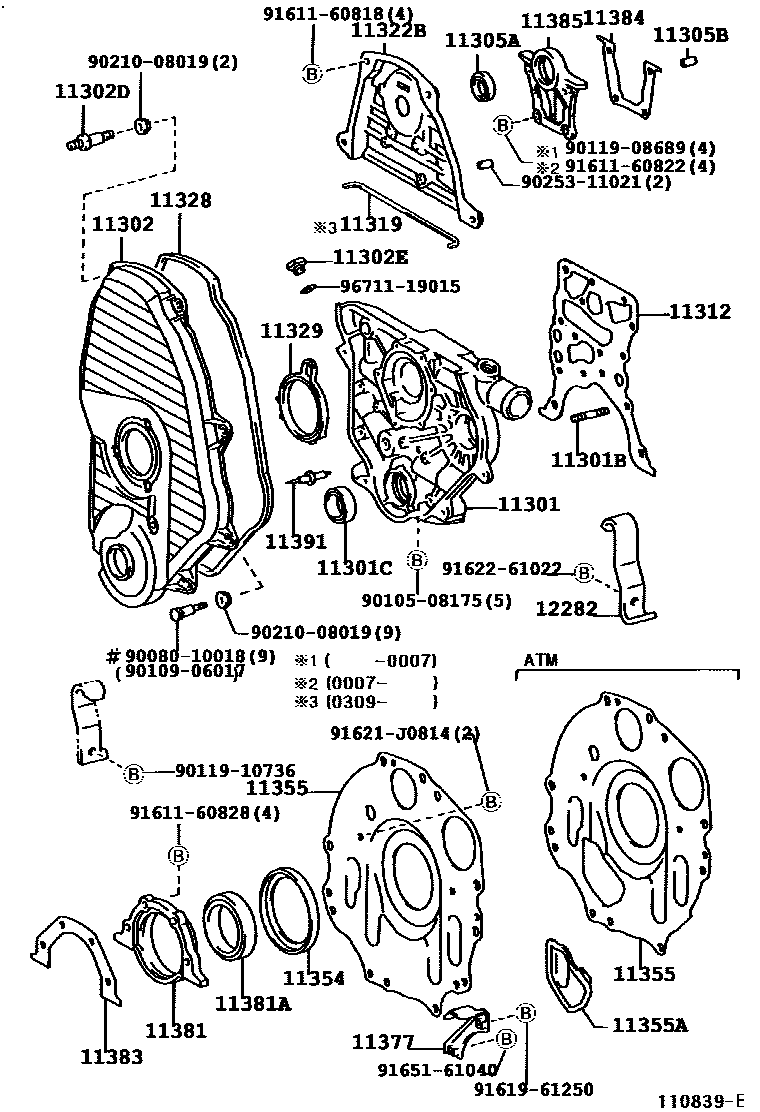

Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106
Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-75021 · 11301-75050 · 11311-54052 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42031 · 90311-48014 · 90311-48020 · 90311-48021 |
| 11301K | crankshaft position sensor | 90919-05016 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-54020 |
| 11302D | Studs (for timing gear cover) | 90116-06100 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32019 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 90253-11021 |
| 11312 | front panel gasket | 11312-54021 · 11312-54040 |
| 11319 | No. 3 timing belt cover gasket | 11319-54010 |
| 11322B | No. 2 timing belt cover | 11322-54031 · 11322-54032 · 11322-54033 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-05010 · 11328-54021 · 11328-75010 · 11328-75021 |
| 11329 | Timing gear rear cover gasket | 11329-05010 · 11329-54021 · 11329-75010 · 11329-75021 |
| 11354 | Flywheel housing dust seal | 11354-54010 · 11354-75010 |
| 11355 | rear end plate | 11355-05040 · 11355-54030 · 11355-54110 · 11355-75010 |
| 11355A | Hole plug (for rear end plate) | 90950-01686 |
| 11361 | Flywheel housing bottom cover | 11361-75020 |
| 11377 | Rear end plate reinforcement | 11377-54010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-54020 · 11381-54030 · 11381-75010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85008 · 90311-88003 · 90311-88004 · 90311-88005 |
| 11383 | Engine rear oil seal seat gasket | 11383-54030 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-54020 |
| 11391 | Timing pointer | 11391-54020 |
| 11444E | hole plug | 11444-75020 |
| 12282 | ENGINE HANGER, NO.2 | 12282-54060 · 12282-75020 |
