Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

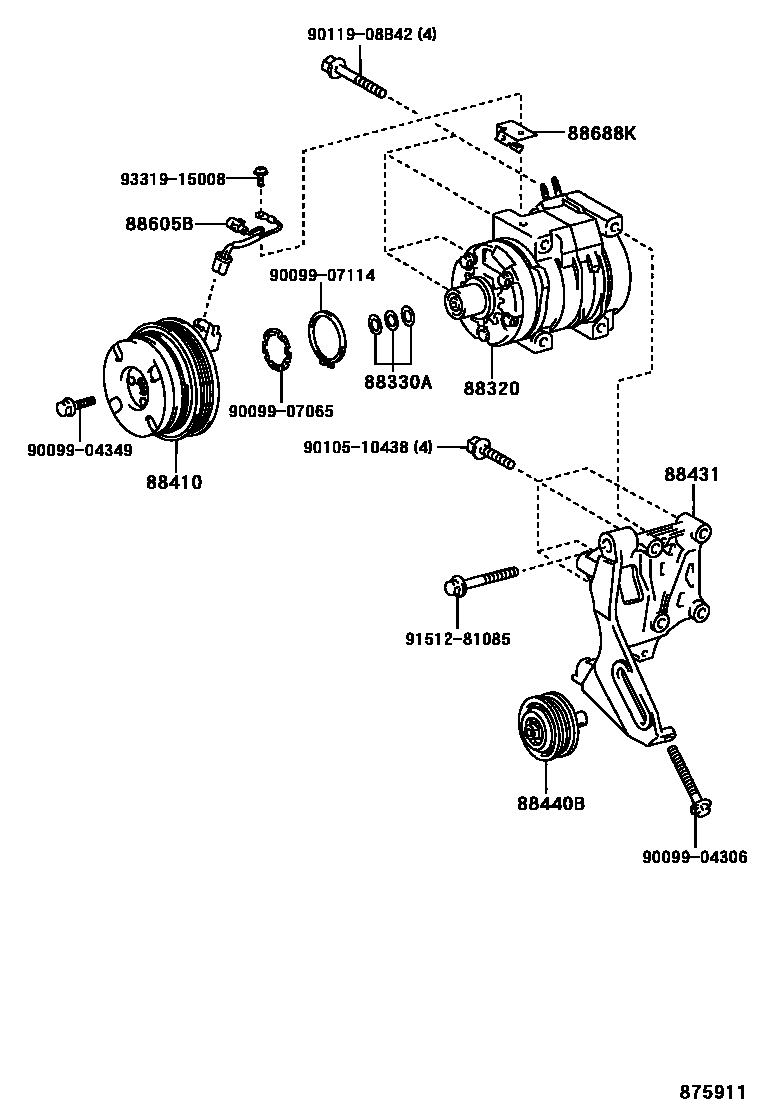

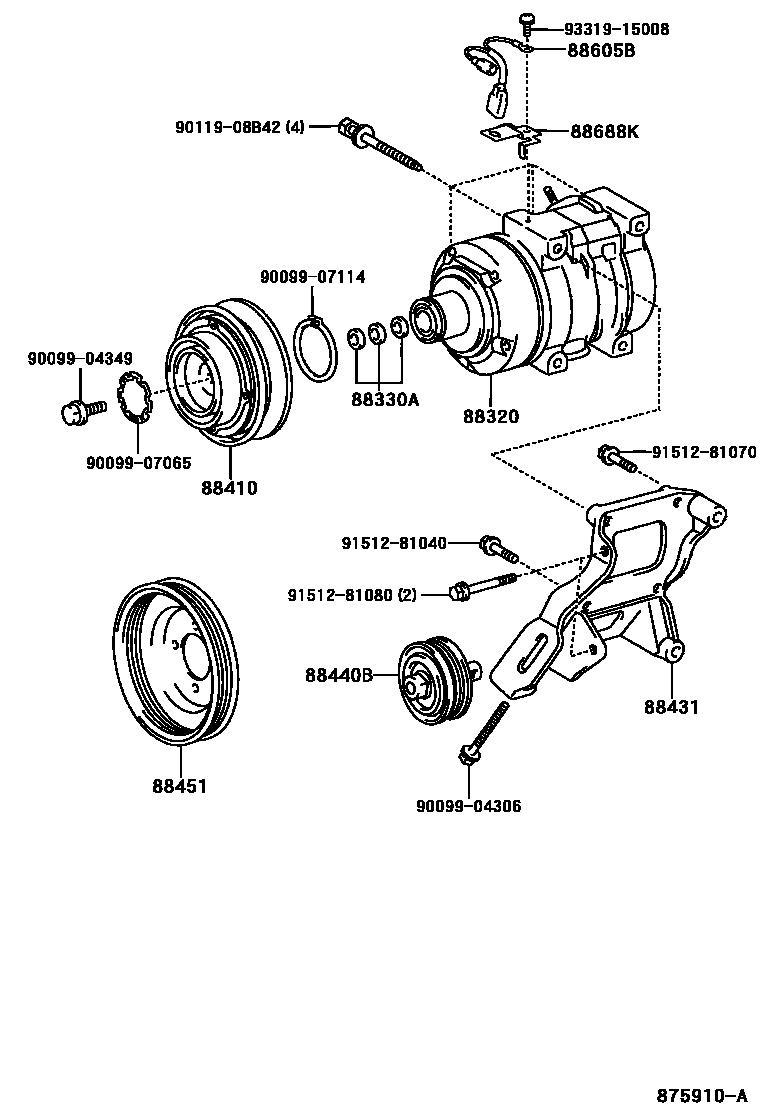

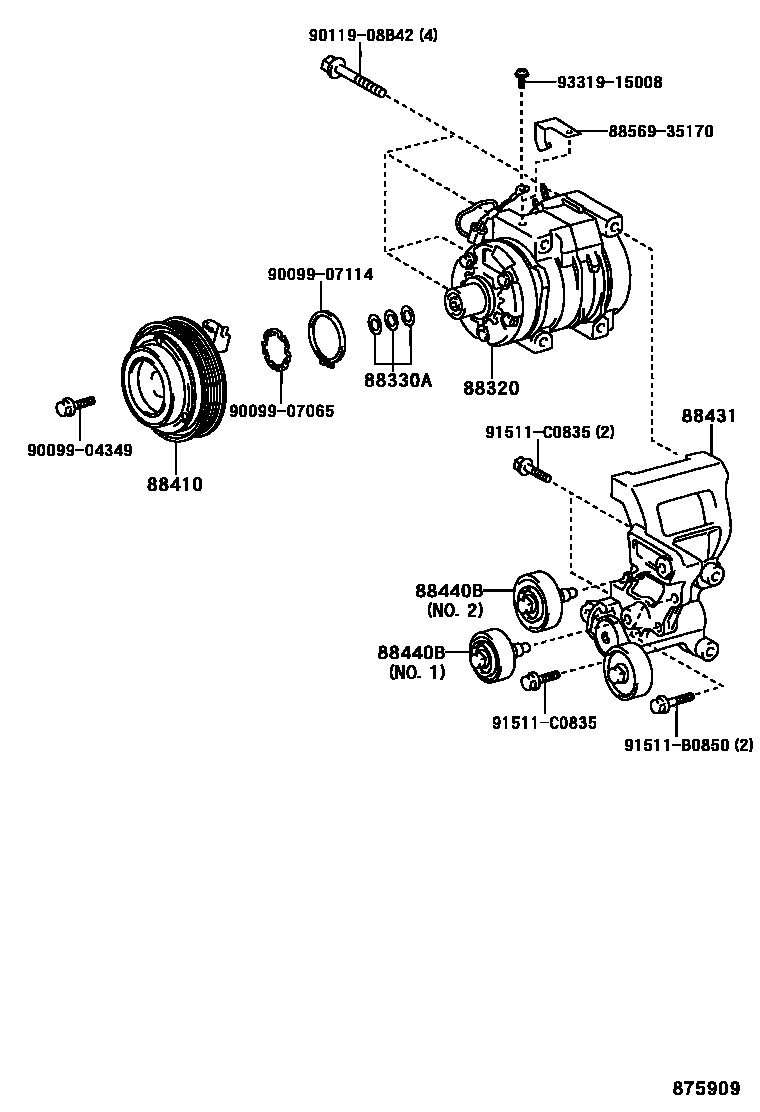

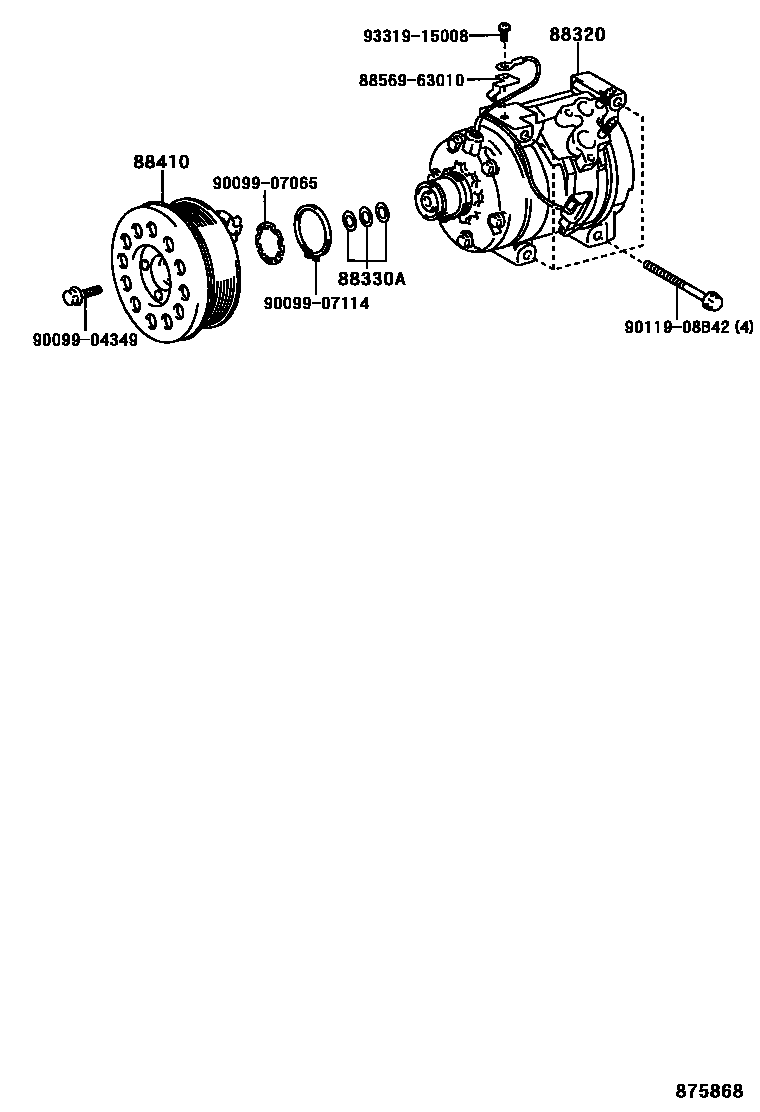

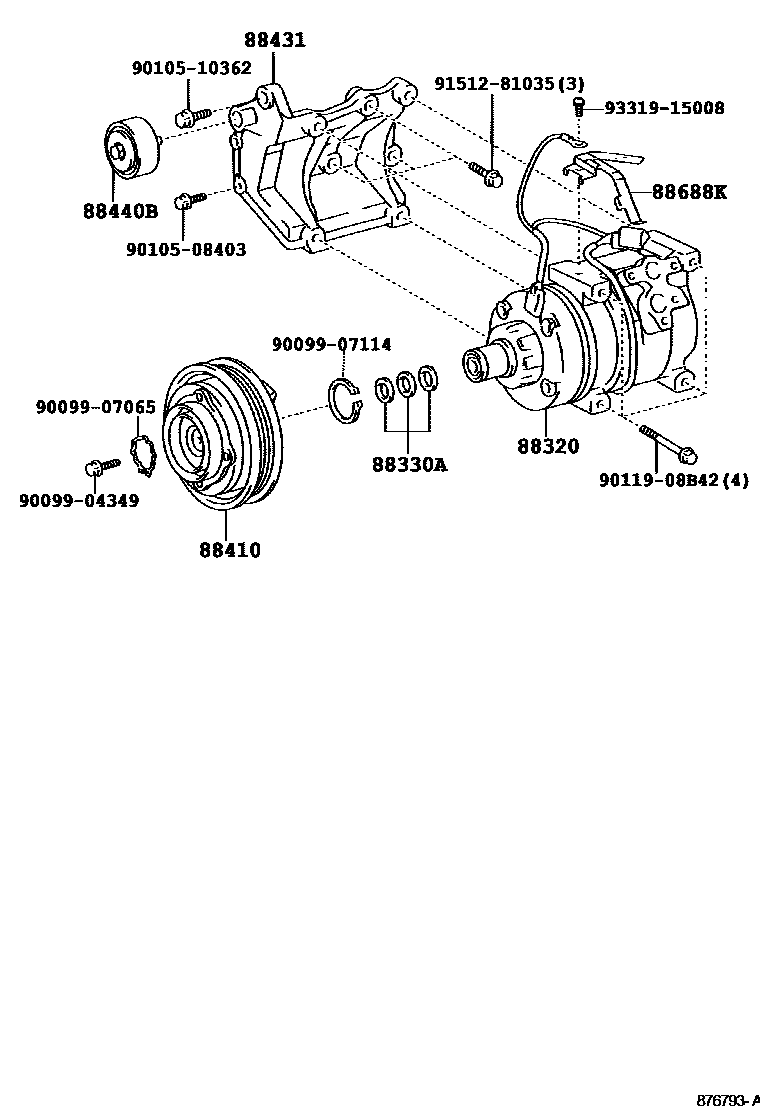

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-35700 · 88320-35710 · 88320-35720 · 88320-35730 · 88320-6A170 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-2F010 · 88410-35390 · 88410-35400 · 88410-35430 · 88410-35440 |
| 88431 | Compressor No. 1 mounting bracket | 16620-30010 · 88431-25290 · 88431-26390 · 88431-35220 |
| 88440B | Idler gear assembly | 88440-25070 · 88440-26100 · 88440-35060 · 88440-35090 · 88440-35100 · 88440-35101 · 88440-35130 |
| 88451 | crankshaft pulley | 88451-26050 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-35420 |
| 88688K | Cooler compressor bracket | 88688-2D770 · 88688-33260 · 88688-35700 |
