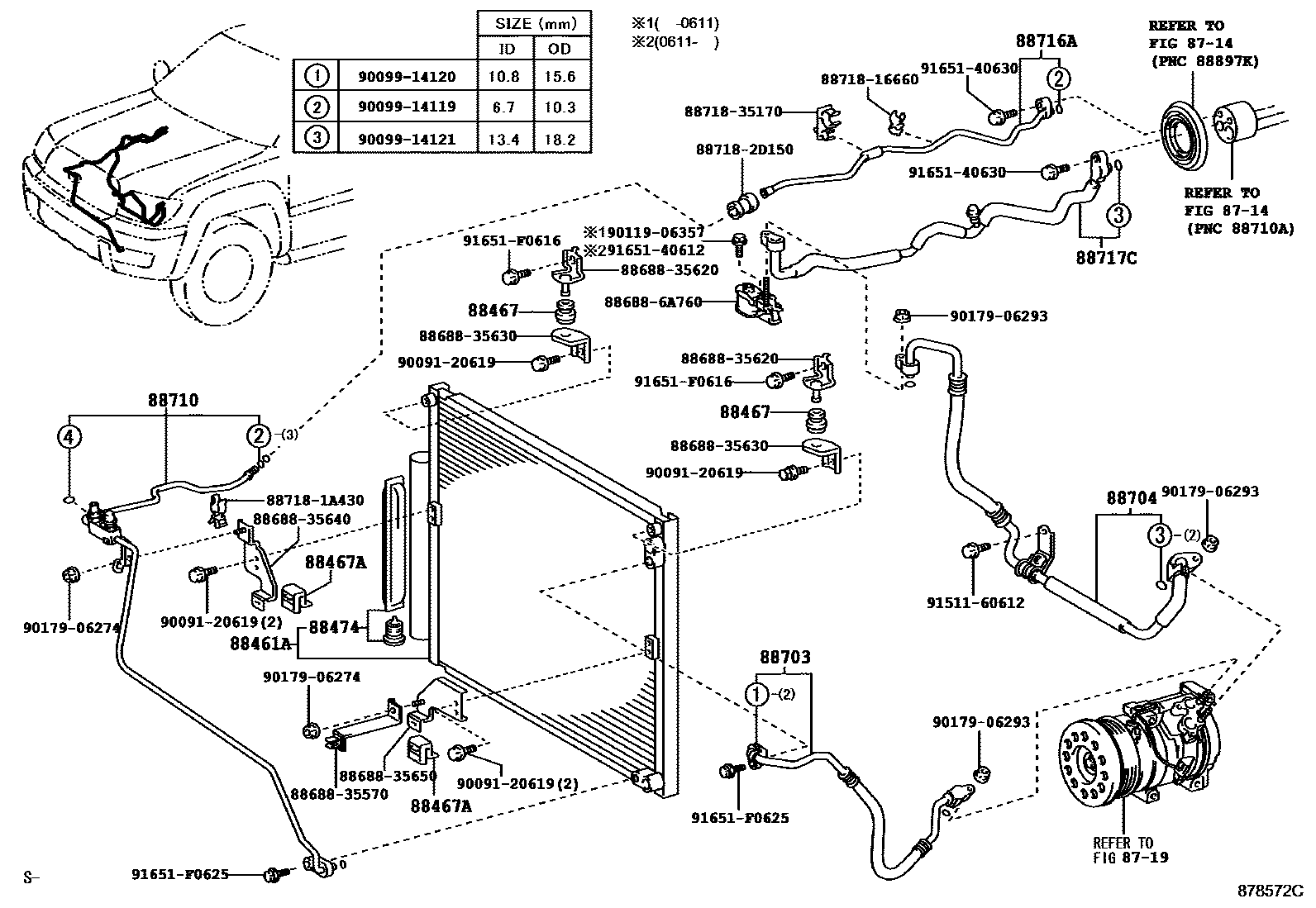

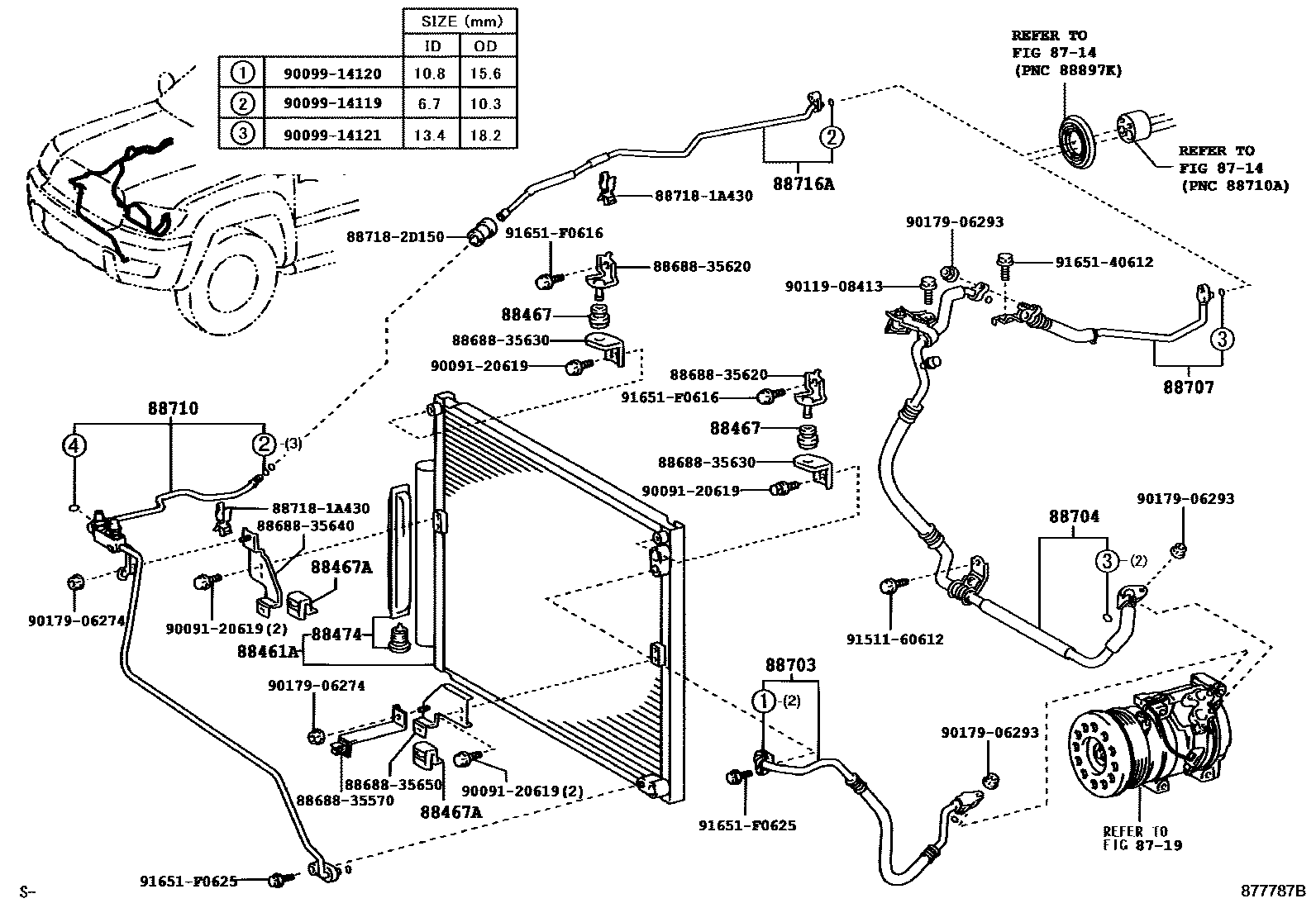

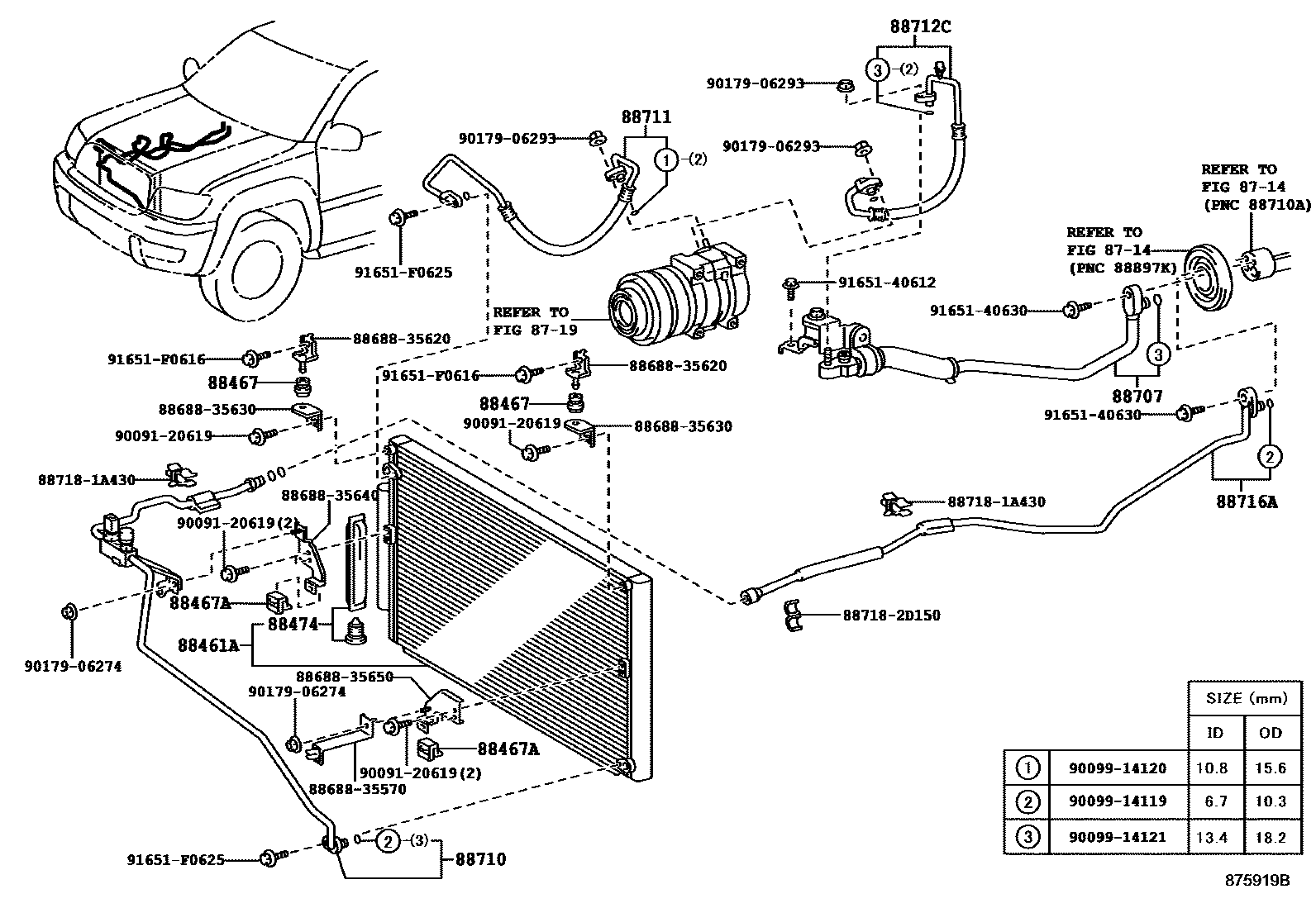

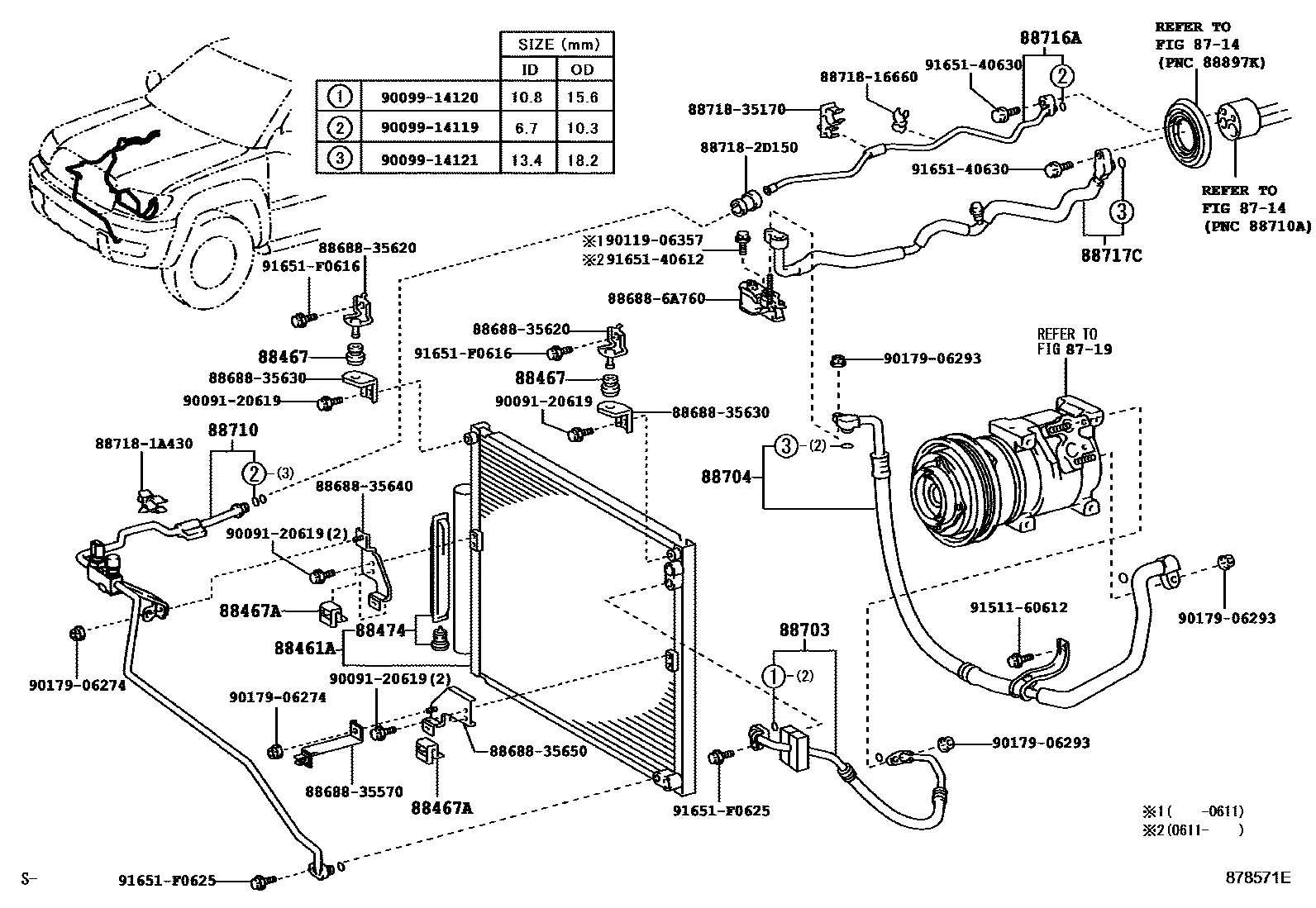

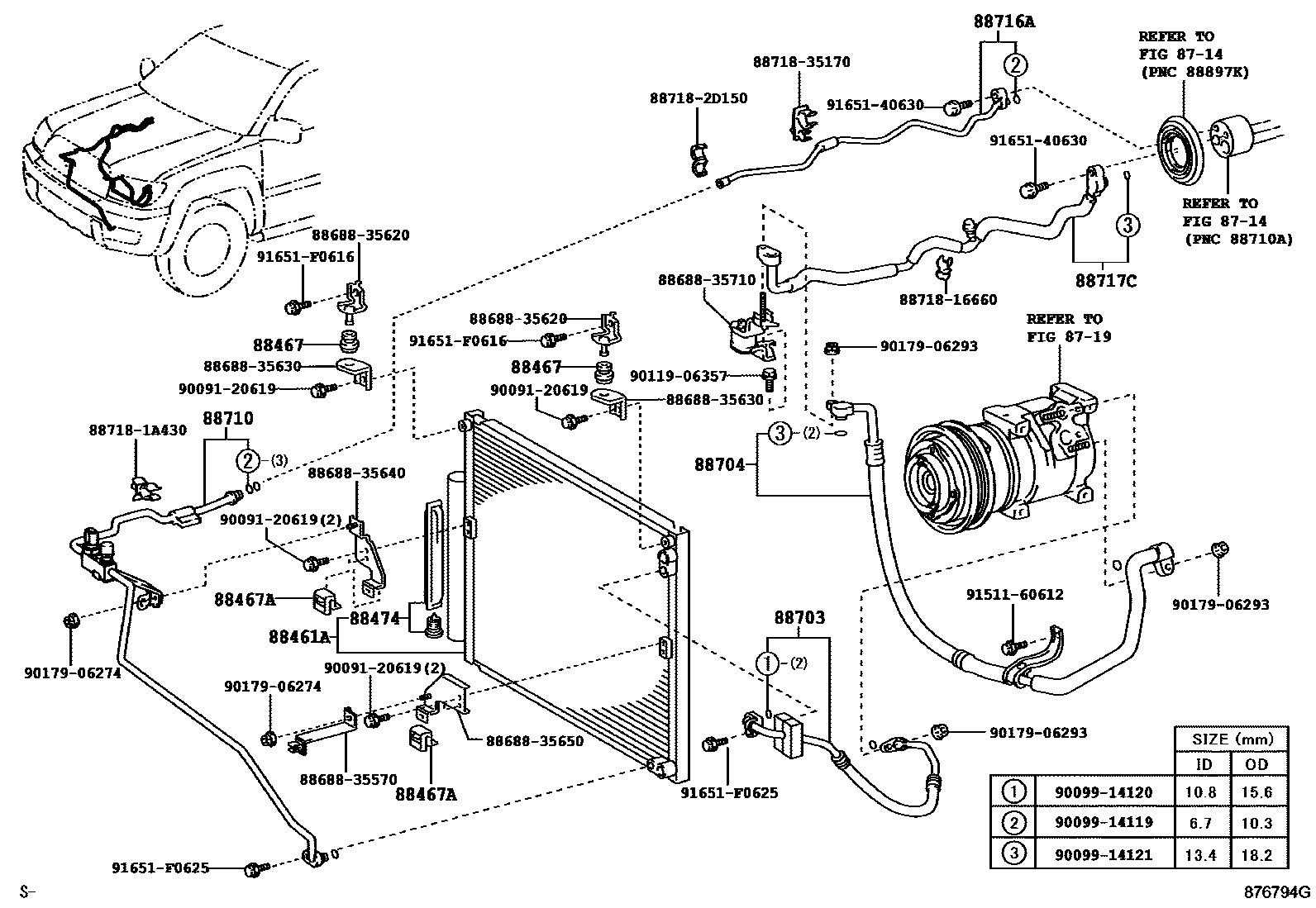

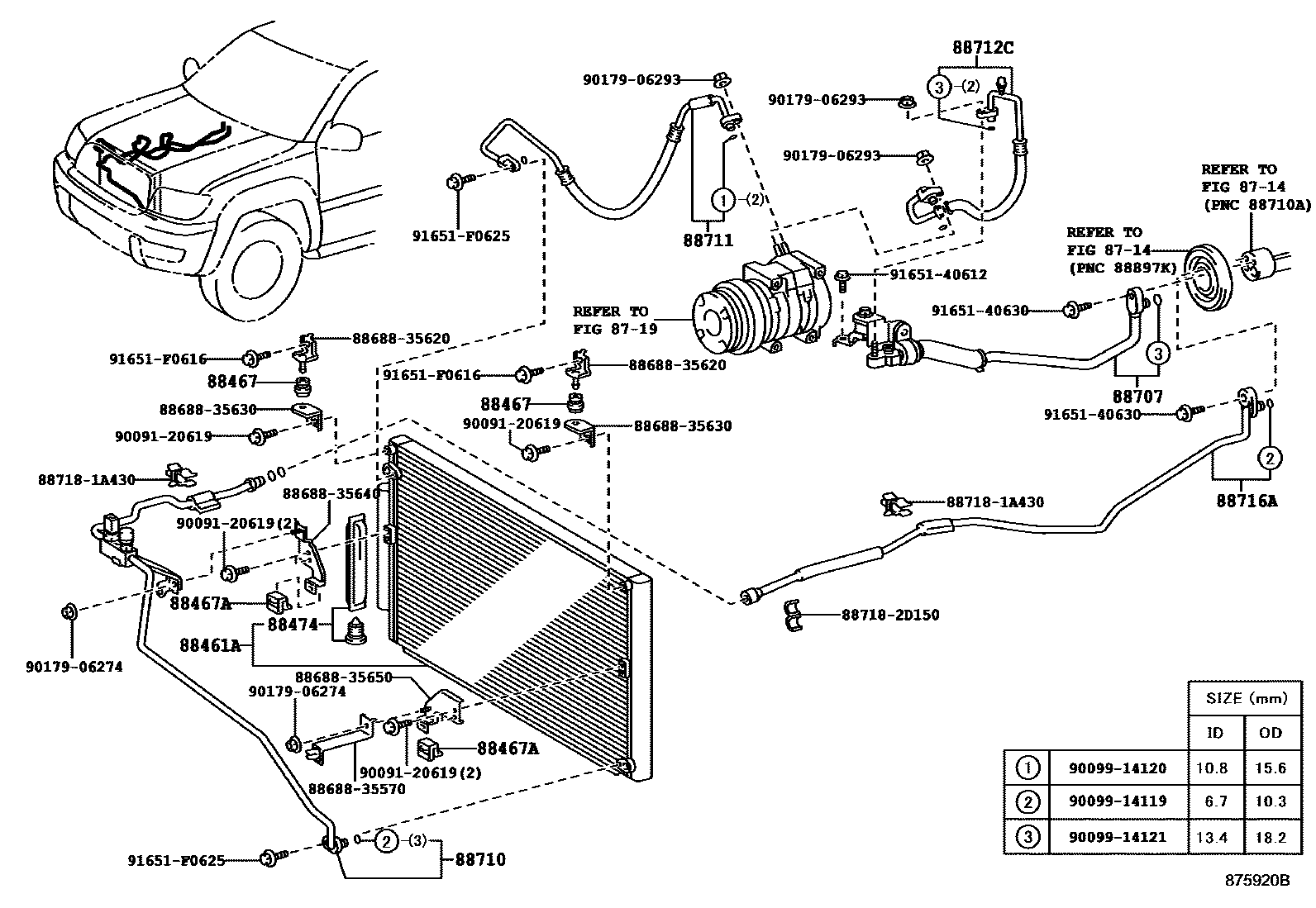

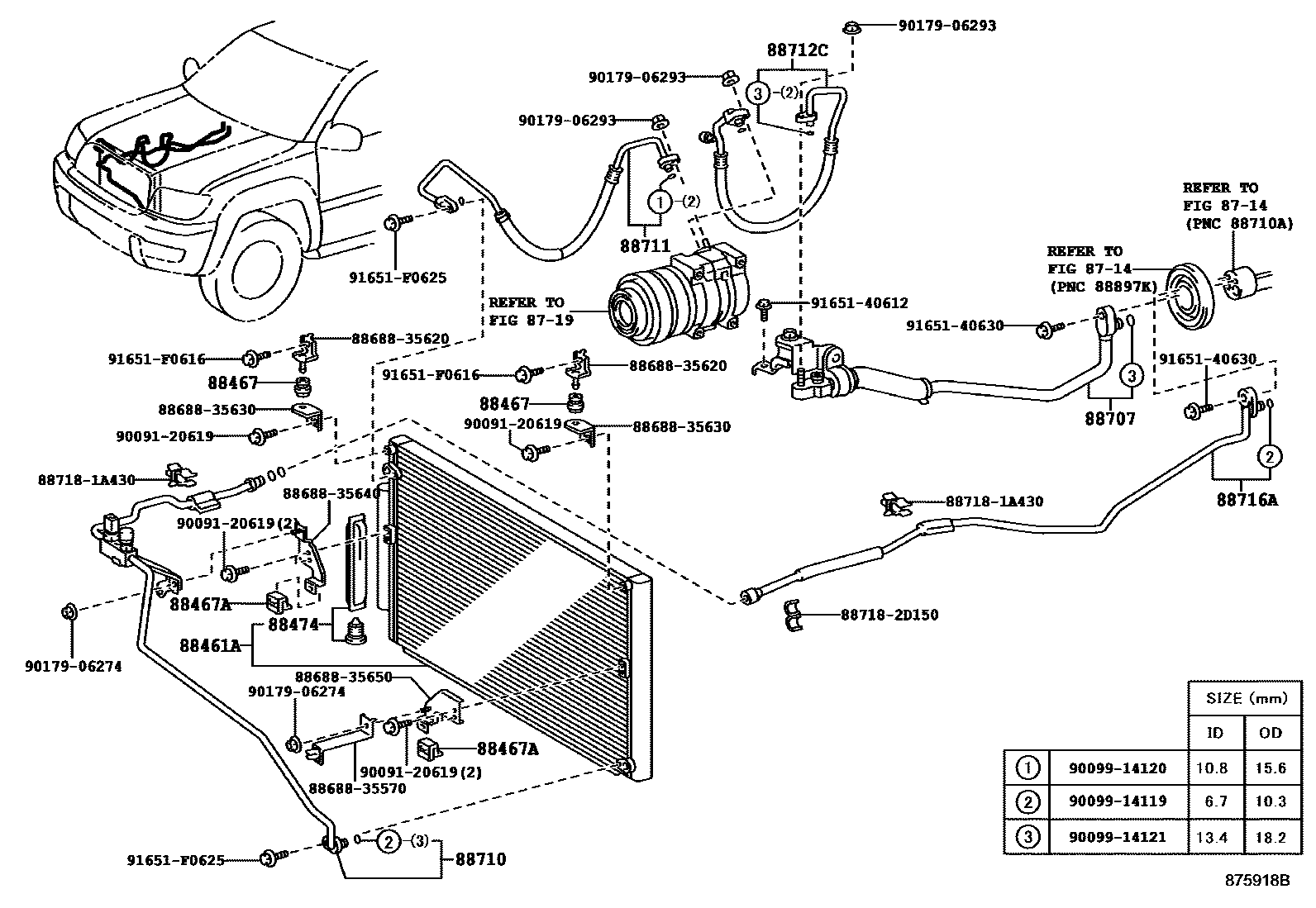

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88461A | Air conditioning condenser core | 88461-35160 · 88461-60091 · 88461-60100 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-28050 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-35080 |
| 88474 | cooler dryer | 88474-17010 |
| 88703 | Discharge hose sub-assembly | 88703-35010 · 88703-35040 |
| 88704 | Oil suction hose sub-assembly | 88704-35040 · 88704-60370 · 88704-60380 · 88704-60390 |
| 88707 | Suction pipe sub-assembly | 88707-35020 · 88707-60190 |
| 88710 | Air conditioning pipe assembly | 88710-35540 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35670 · 88711-35680 · 88711-35690 |
| 88712C | Oil suction hose | 88712-35610 · 88712-35620 · 88712-35630 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-35630 · 88716-35680 |
| 88717C | Cooler refrigerant suction pipe C | 88717-35230 · 88717-6B040 |
