Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

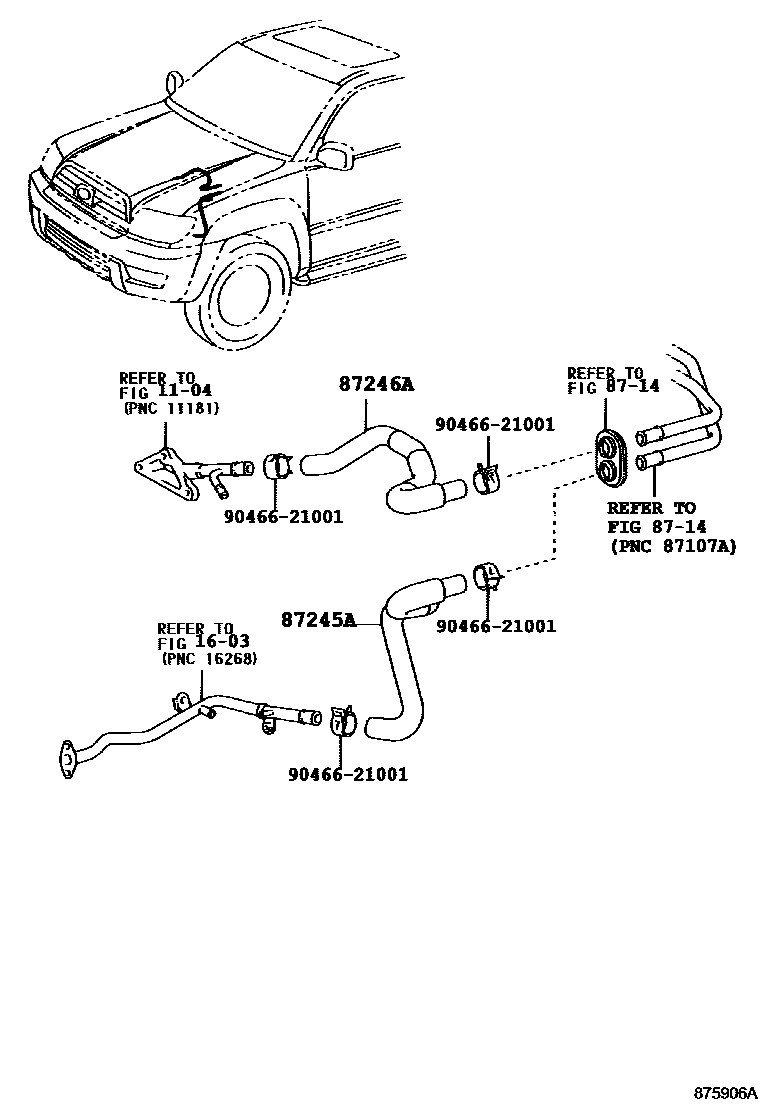

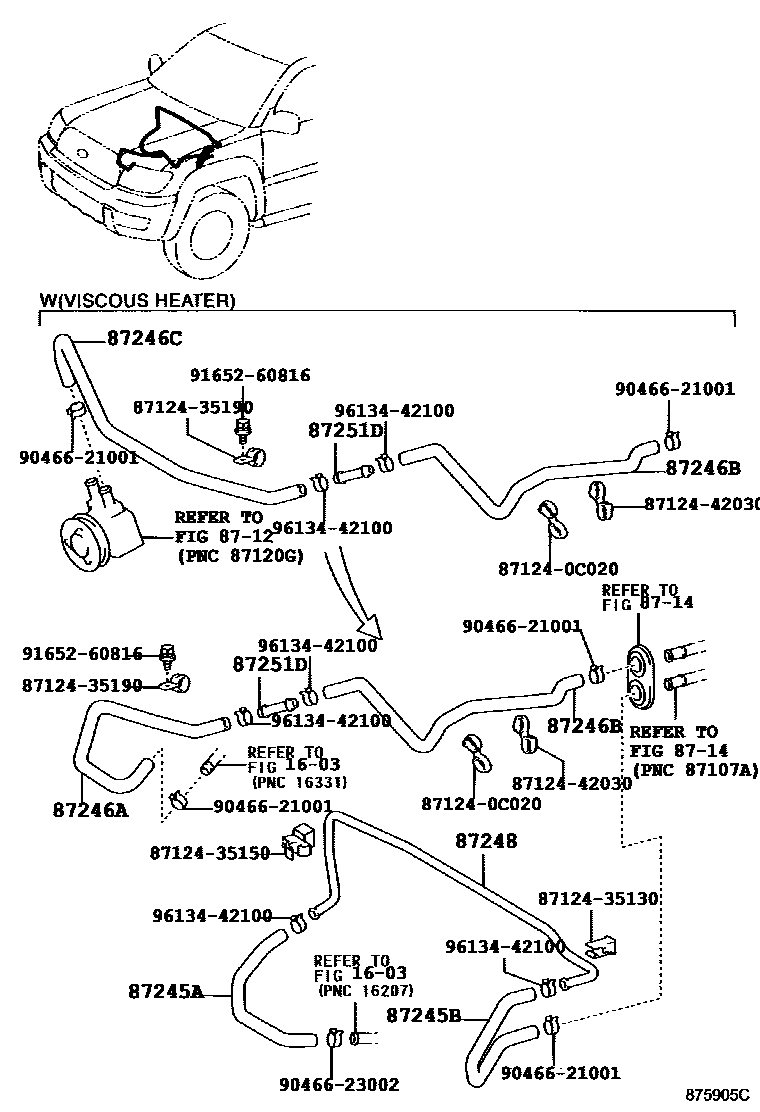

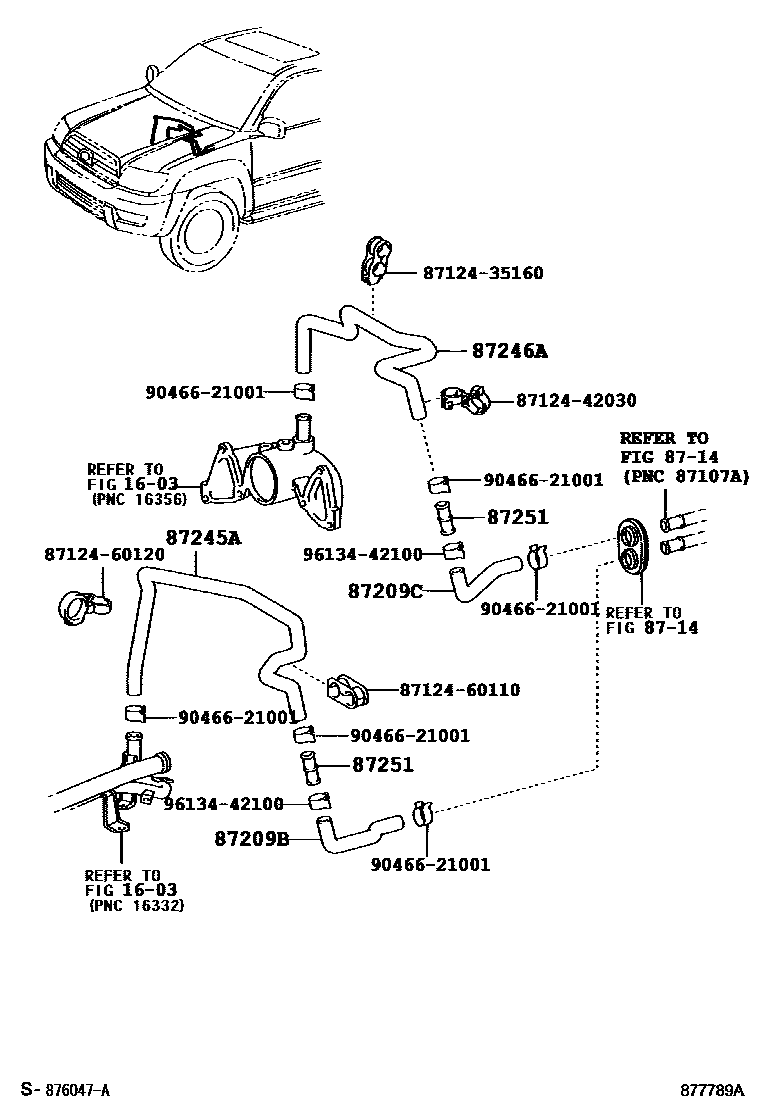

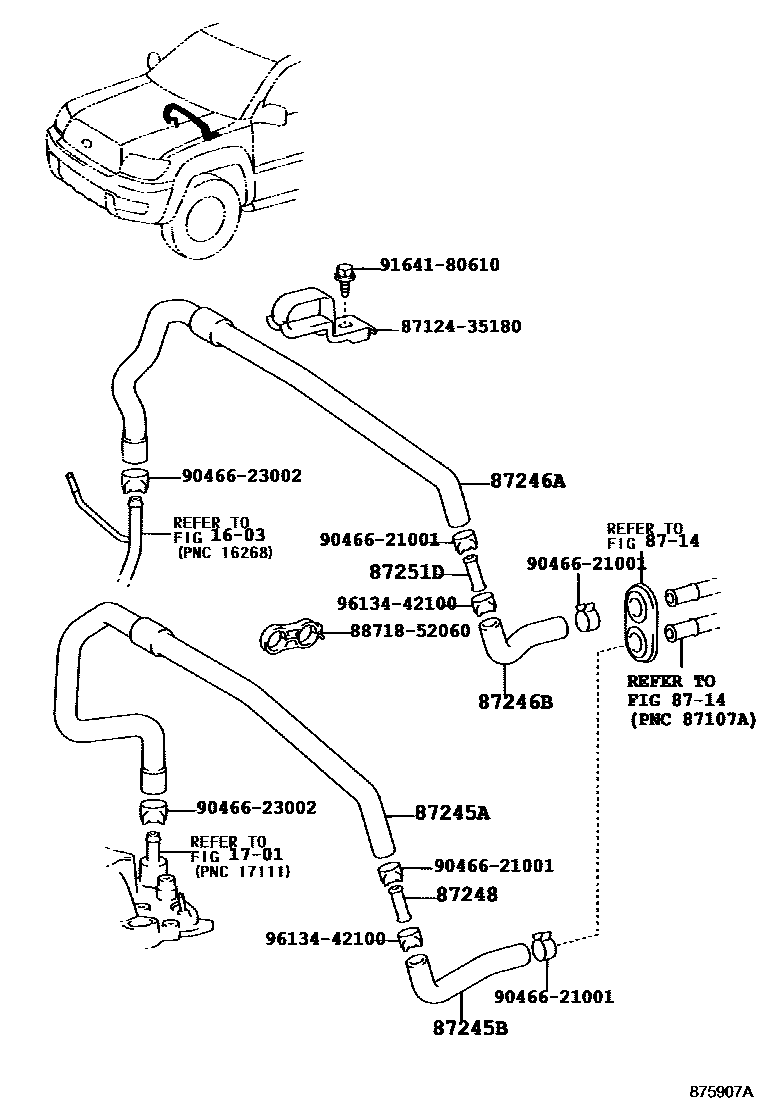

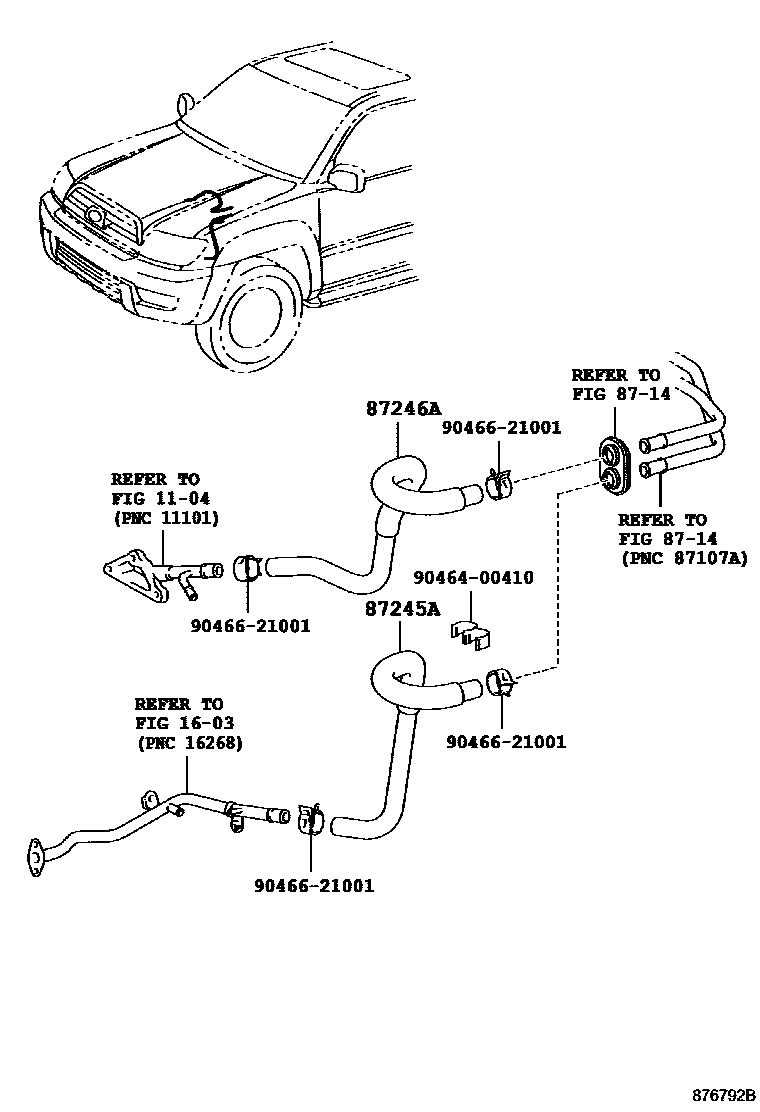

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209B | Water hose sub-assembly B | 87209-60880 |
| 87209C | Water hose sub-assembly C | 87209-60890 |
| 87245A | Heater water inlet hose A | 87245-35A00 · 87245-3D430 · 87245-3D550 · 87245-3D590 · 87245-6A380 |
| 87245B | Heater water inlet hose B | 87245-3D570 · 87245-3D630 |
| 87246A | Heater outlet hose A | 87245-3D440 · 87245-3D460 · 87245-3D560 · 87245-3D600 · 87245-6A620 |
| 87246B | Heater outlet hose B | 87245-3D580 · 87245-3D610 |
| 87246C | Heater outlet hose C | 87245-3D620 |
| 87248 | Water pipe sub-assembly | 87248-35100 · 87251-35020 |
| 87251 | Water hose penetration joint | 87251-35020 |
| 87251D | No. 1 water hose connector | 87251-35020 |
