Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

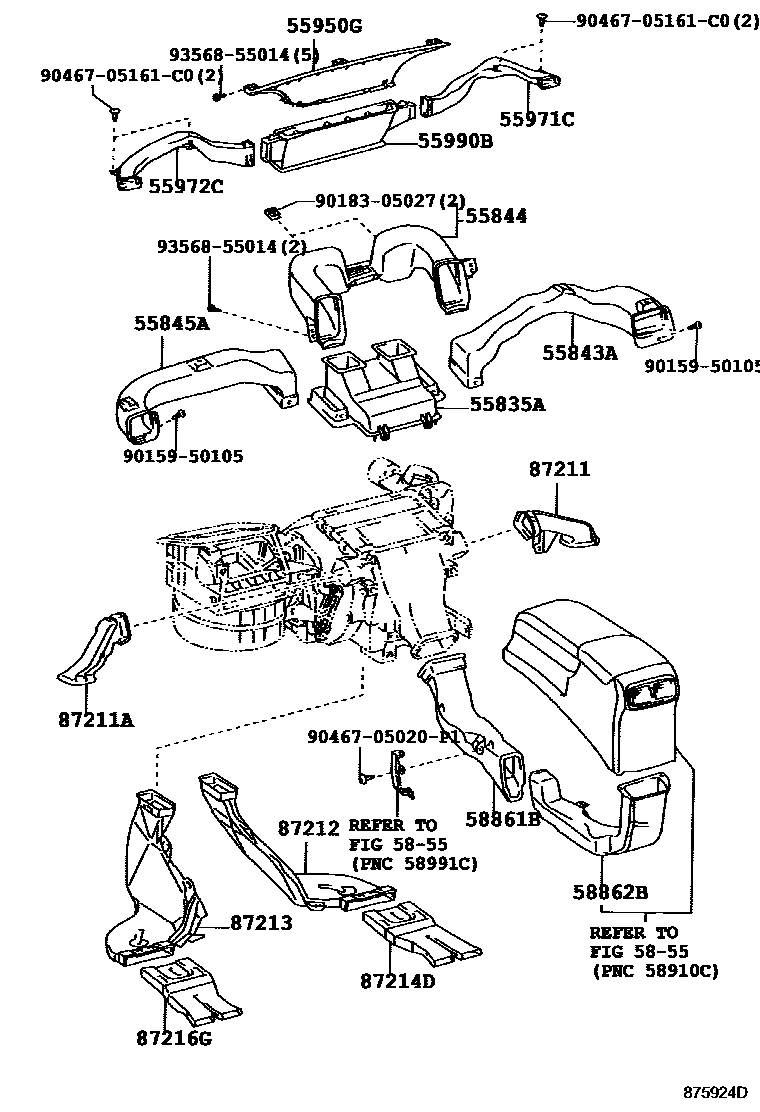

| 55835A | Central air duct from heater to air register | 55835-35080 |
| 55843A | Air duct No. 1 from heater to air register | 55843-35050 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-35070 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-35020 |

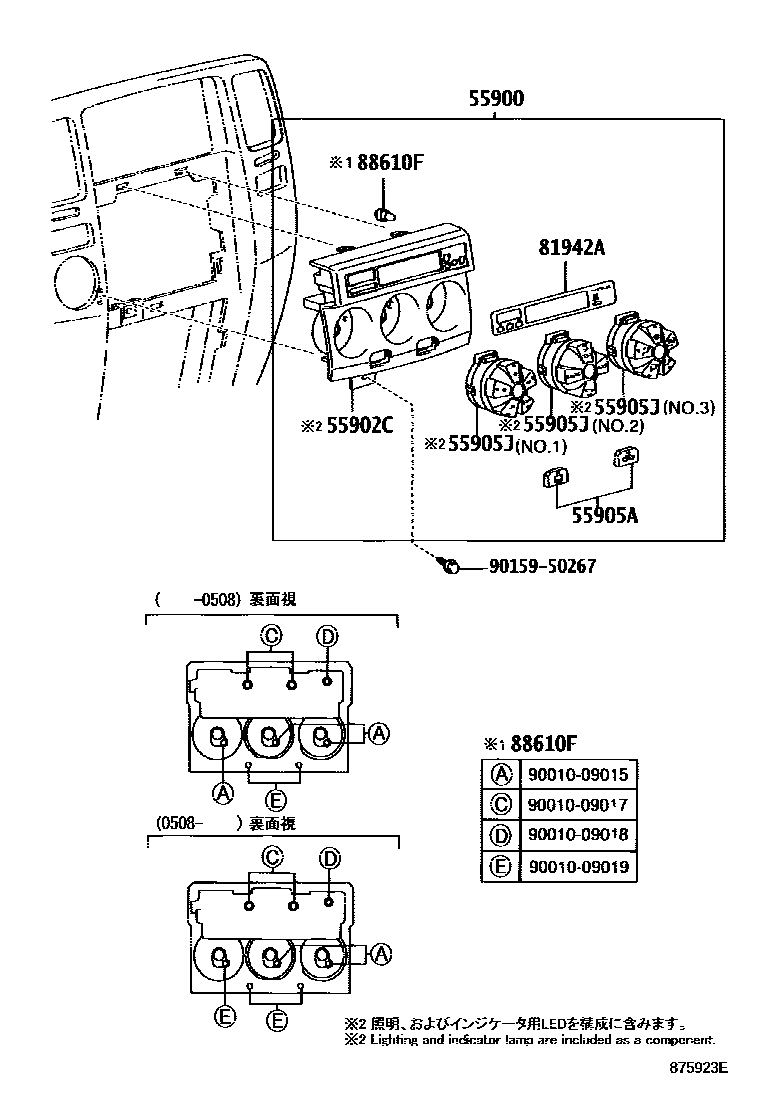

| 55900 | Air conditioning control assembly | 55900-35420 · 55900-35460 · 55900-35510 · 55900-35511 · 55900-35540 · 55900-35541 |
| 55902C | Air conditioning panel sub-assembly | 55902-35020 · 55902-35060 · 55902-35110 · 55902-35111 · 55902-35140 · 55902-35141 |
| 55905A | Heater control button | 55905-35340 |
| 55905J | Control button sub-assembly | 55905-35350 · 55905-35360 · 55905-35370 |
| 55950G | Defroster nozzle assembly | 55950-35050 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-35020 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-35020 |
| 55990B | Lower defroster nozzle assembly | 55990-60040 · 55990-60041 |
| 58861B | Air duct No. 1 for armrest box | 58861-35020 |
| 58862B | Air duct No. 2 for armrest box | 58862-35010 |
| 81942A | Heater No. 1 control nameplate | 81942-35010 |
| 87211 | No. 1 air duct | 87211-35350 |
| 87211A | Duct No. 2 | 87211-35360 |
| 87212 | No. 1 rear air duct | 87212-35020 |
| 87213 | No. 2 rear air duct | 87213-35020 |
| 87214D | No. 3 rear air duct | 87215-35010 |
| 87216G | Left rear air duct deflector | 87216-35010 |
| 88610F | Cooler control switch light bulb | 90010-09015 · 90010-09017 · 90010-09018 · 90010-09019 |

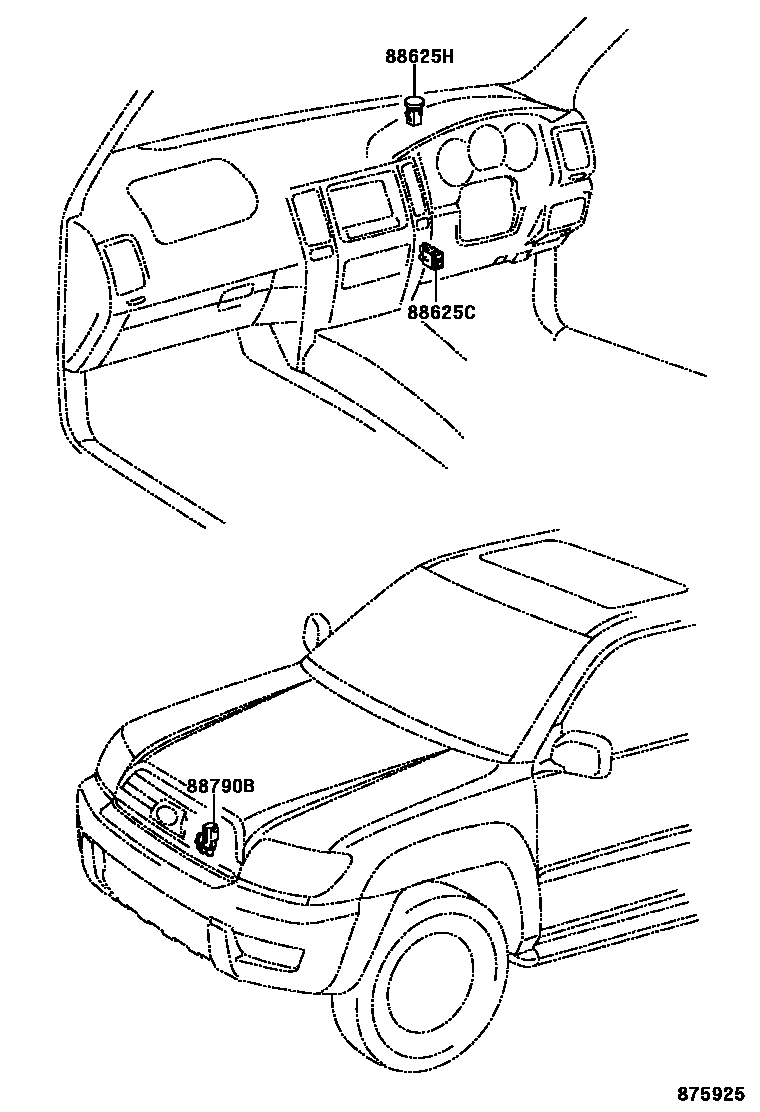

| 88625C | Cooler thermistor | 88625-47021 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88790B | Thermistor assembly | 88790-22131 |
