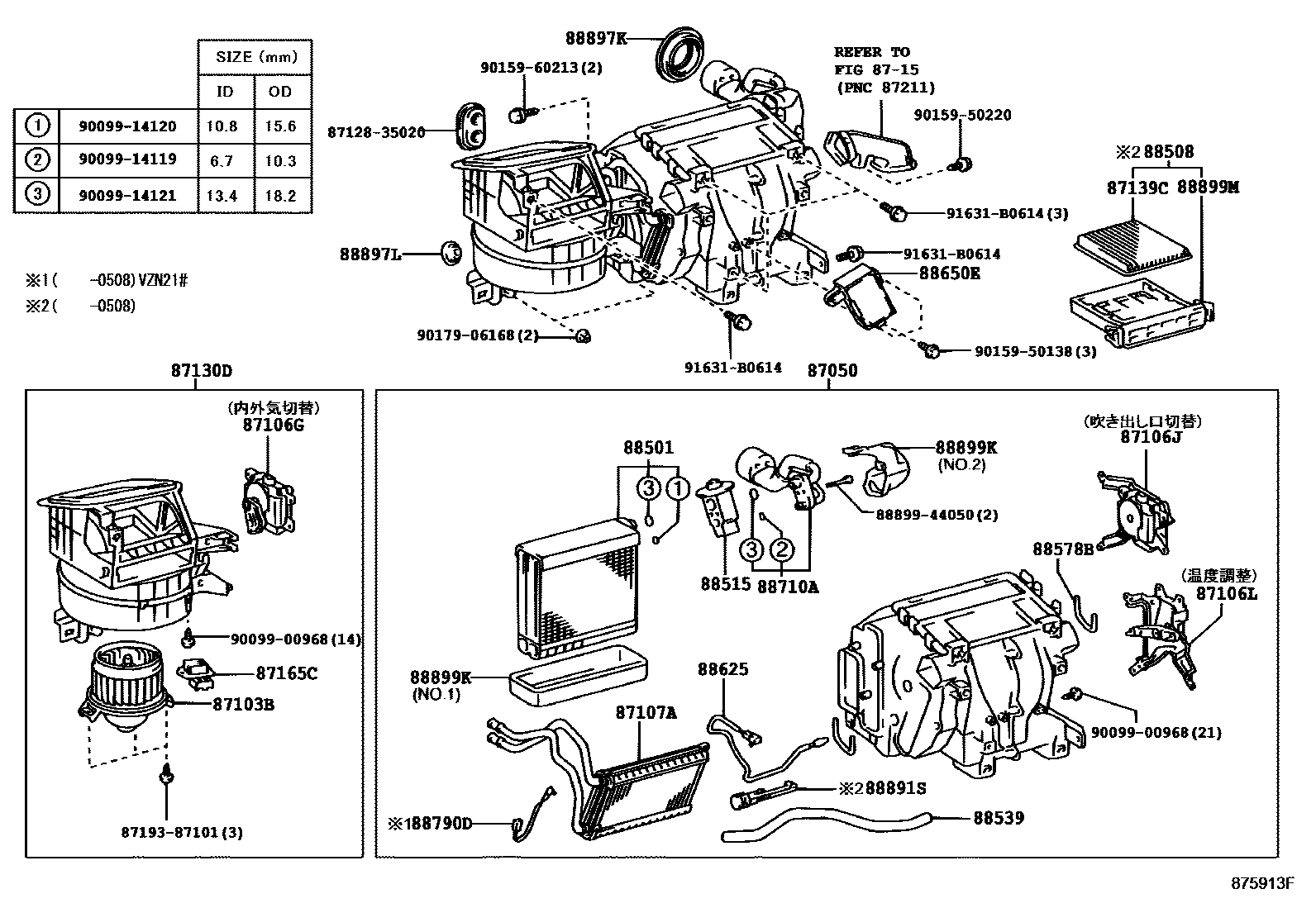

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-35030 · 87050-35031 · 87050-35040 · 87050-35041 · 87050-35090 |
| 87103B | Blower motor sub-assembly with fan | 87103-35050 · 87103-35051 · 87103-35080 |
| 87106G | Damper servo mechanism sub-assembly (for blower) | 87106-35150 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-35120 |
| 87106L | Damper servo mechanism sub-assembly | 87106-35140 · 87106-35180 |
| 87107A | Heater radiator device sub-assembly | 87107-35110 |
| 87130D | Blower assembly | 87130-35160 · 87130-35161 |
| 87139C | air purification filter | 87139-28010 · 87139-47020 |
| 87165C | Blower motor control device | 87165-13010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-35100 · 88501-35130 · 88501-35140 |
| 88508 | Air purification filter sub-assembly | 88508-20120 |
| 88515 | Cooler expansion valve | 88515-35020 · 88515-60150 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-35040 |
| 88578B | Cooling unit seal No. 1 | 88578-35170 |
| 88625 | Cooler No. 1 Thermistor | 88625-35060 · 88625-35080 · 88625-60190 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-35210 · 88650-35220 · 88650-35270 |
| 88710A | Air conditioning pipe assembly | 88710-35530 |
| 88790D | Thermistor assembly | 88790-35060 |
| 88891S | Cooler cover No. 1 | 88891-35030 · 88891-35040 |
| 88897K | Seals (for cooler tubes) | 88897-35030 |
| 88897L | Seal (for discharge hose) | 88899-3A010 |
| 88899K | Cover plate | 88899-60250 · 88899-60260 |
| 88899M | cover (for air cleaner) | 88899-41010 |
