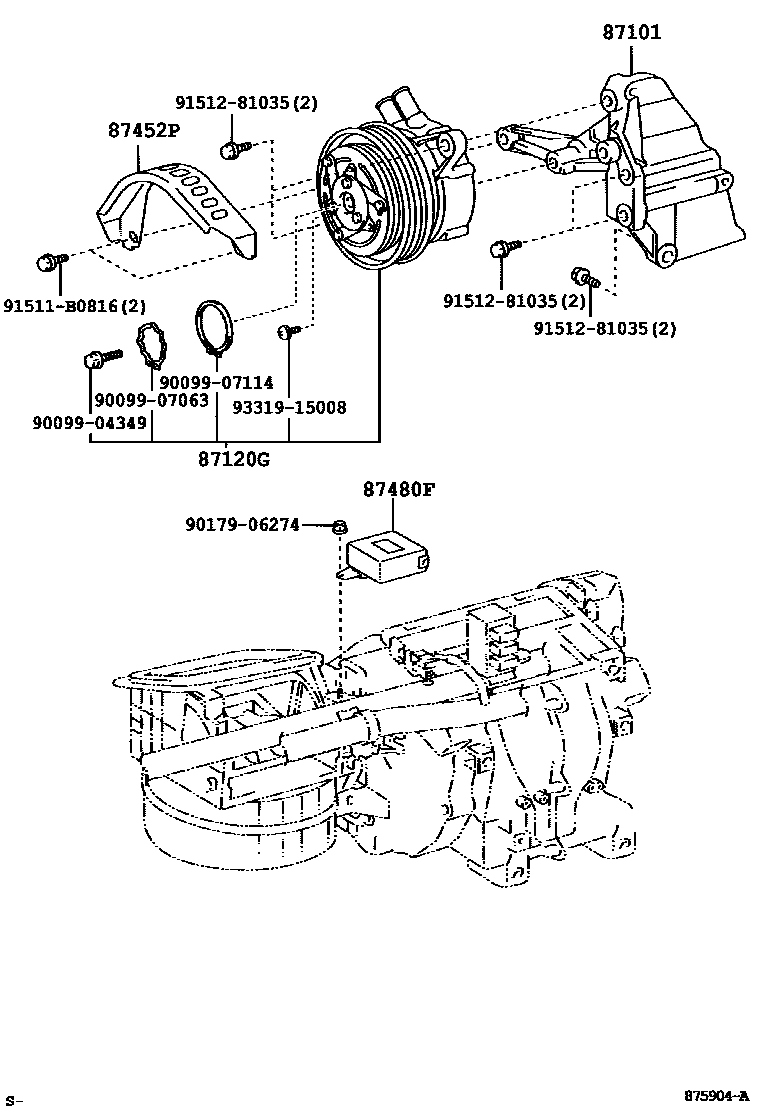

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101 | No. 1 viscous heater bracket sub-assembly | 87101-35010 |
| 87120G | Viscous heater assembly with electromagnetic clutch | 87120-35030 |
| 87452P | Viscous Heater Bracket No. 2 | 87452-35050 |
| 87480F | heater amplifier assembly | 87480-35020 |
