Toyota HILUX 后视镜 — Figure 8701

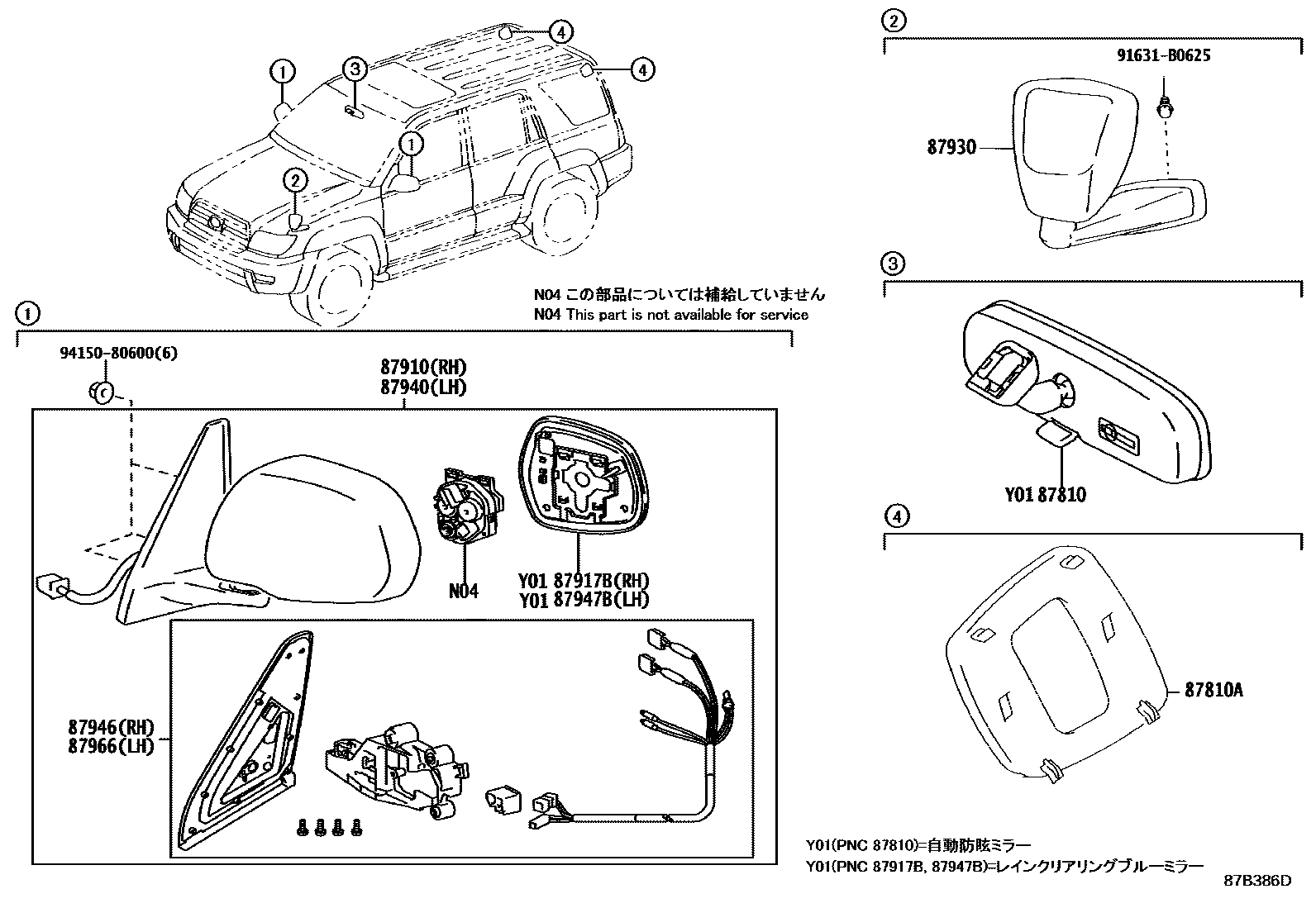

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52040 · 87810-60190 · 87810-60191 |
| 87910 | Right exterior rearview mirror assembly | 87910-35720 |
| 87917B | Right exterior rearview mirror | 87931-6A340 |
| 87940 | Left exterior rearview mirror assembly | 87940-35850 |
| 87946 | Right exterior rearview mirror retractor | 87946-35680 |
| 87947B | Left exterior rearview mirror | 87961-6A220 |
| 87966 | Left exterior rearview mirror retractor | 87966-35680 |
