Toyota HILUX 收音机通信和ETC — Figure 8610

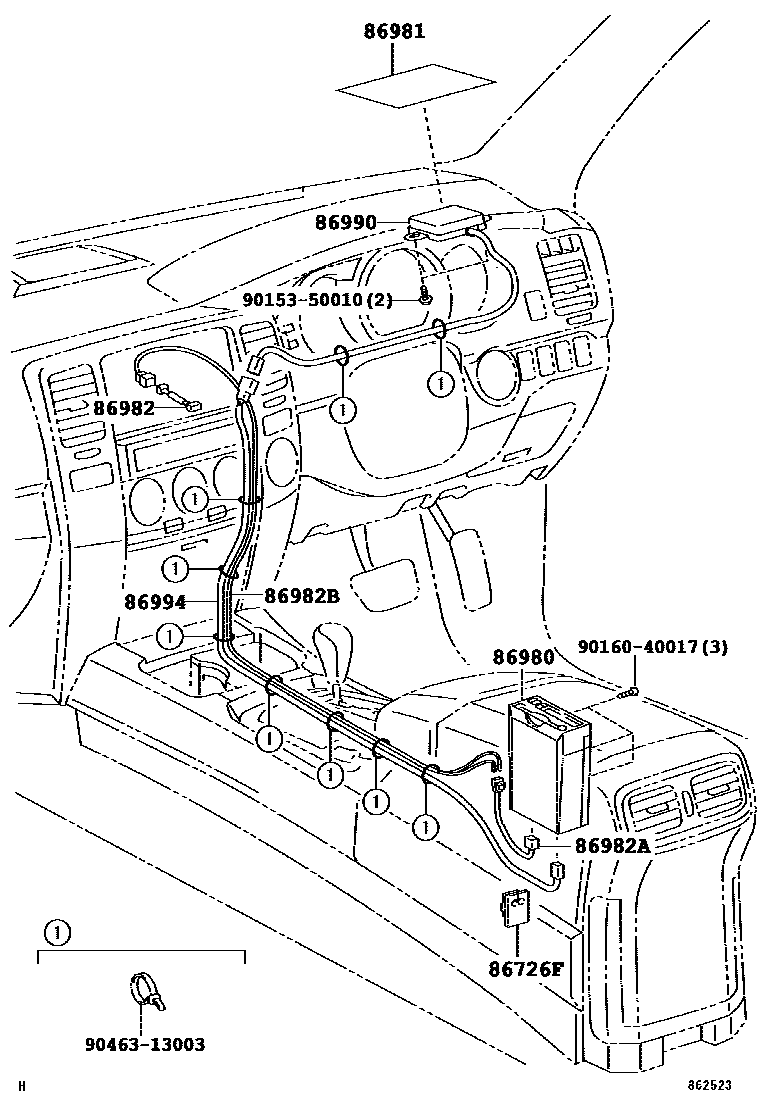

Toyota HILUX EPC diagram 8610, 收音机通信和ETC, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86726F | mobile phone cover | 86726-40010 |
| 86980 | Toll collection machine ECU assembly | 86980-28020 |
| 86981 | Toll cover | 86981-35010 |
| 86982 | Toll collection machine wiring harness | 86982-28030 |
| 86982A | No. 1 toll collection machine auxiliary wiring harness | 86982-35011 |
| 86982B | No. 2 toll collection machine auxiliary wiring harness | 86982-35020 |
| 86990 | Toll collection machine antenna assembly | 86990-28030 |
| 86994 | Toll collection machine antenna lead | 86994-24010 |
