Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.

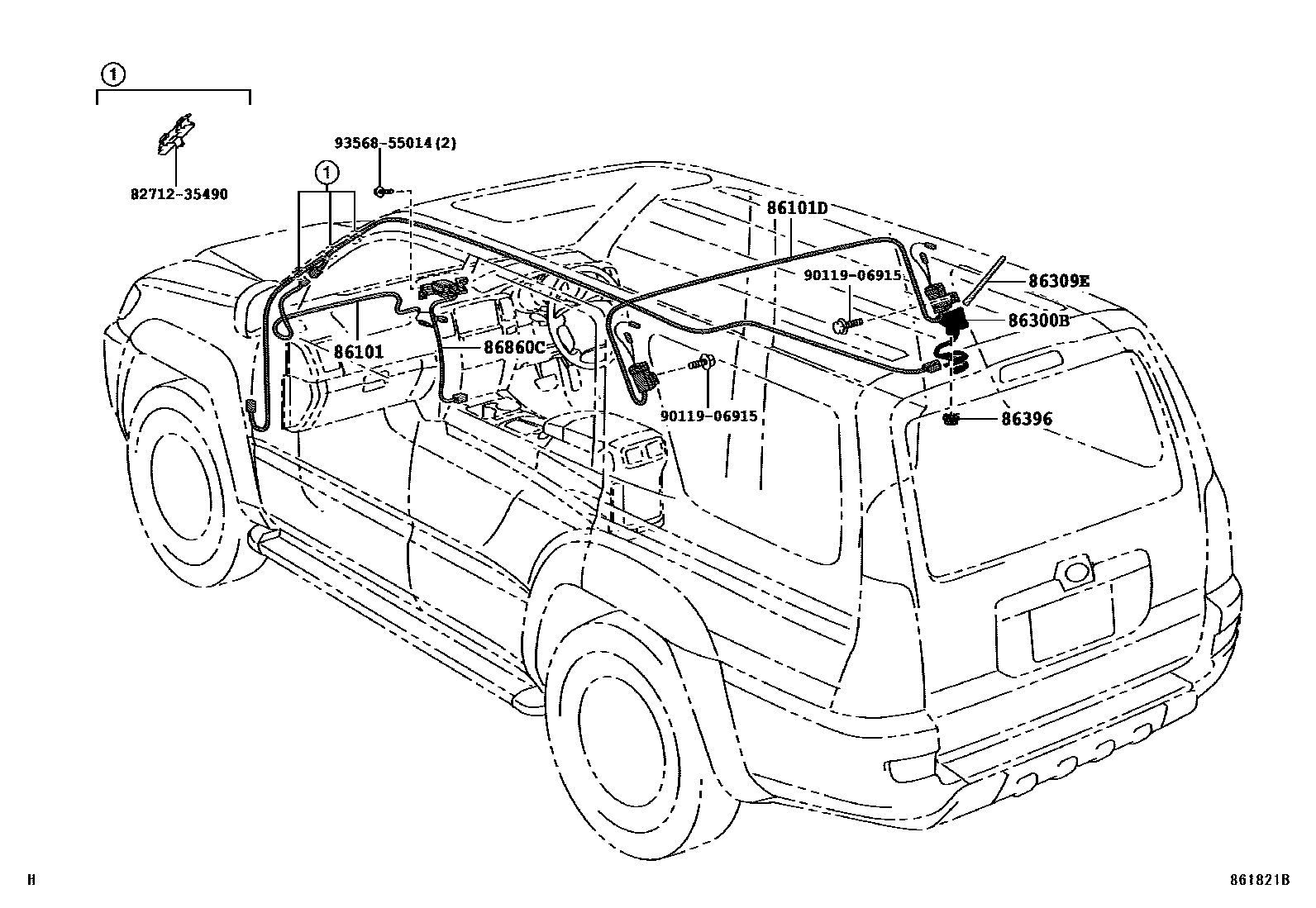

Toyota HILUX antenna EPC diagram — 861821B
antenna — 861821B (200211 – 999999)

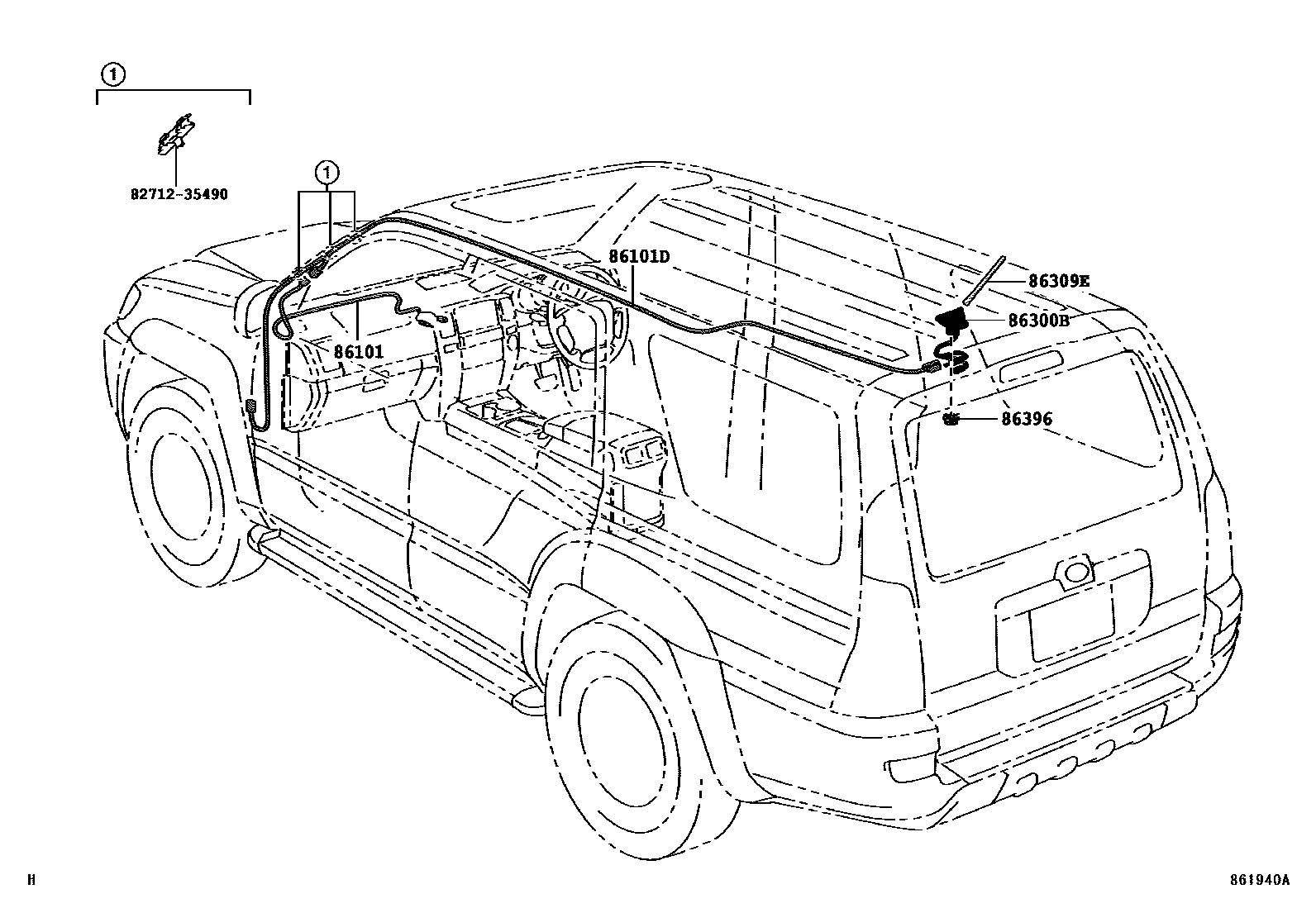

Toyota HILUX antenna EPC diagram — 861940A
antenna — 861940A (200211 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-35070 · 86101-35090
86101DNo. 3 antenna wire sub-assembly86050-35020 · 86050-35030 · 86101-35060
86300BAmplifier antenna assembly86300-35140
86309ERoof antenna sub-assembly86309-20310
86396Antenna nut86396-20040
86860CNavigation antenna assembly86860-35040 · 86860-35050 · 86860-35060
