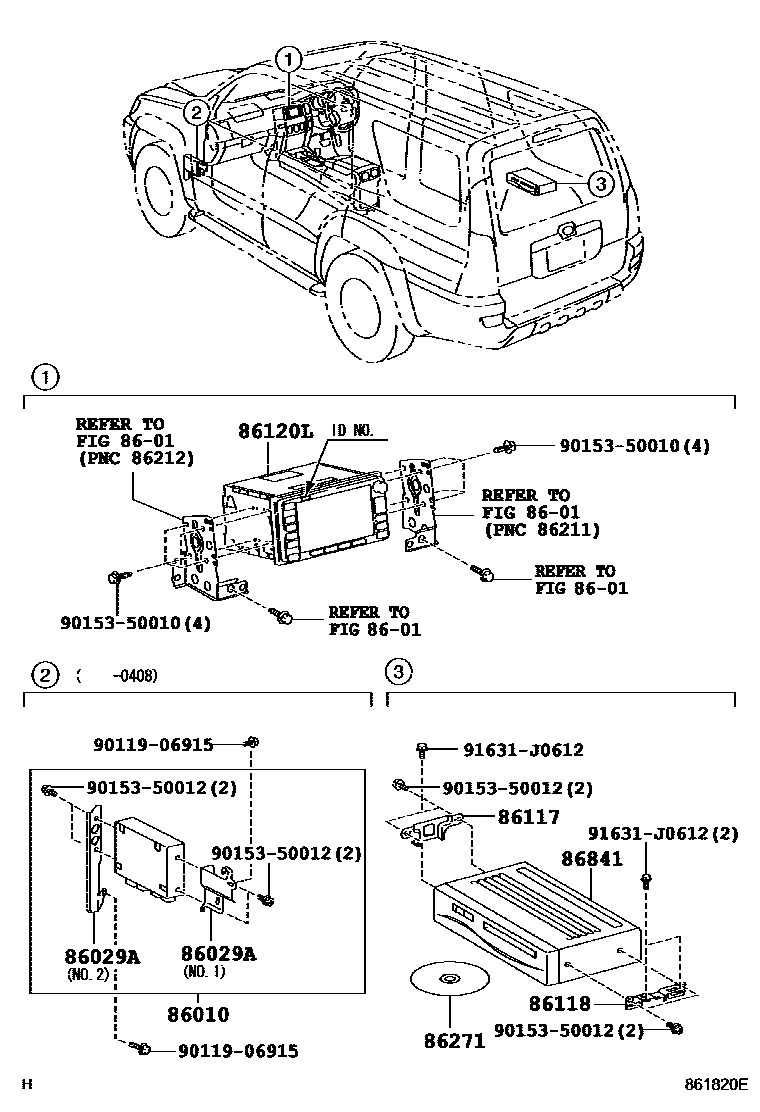

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86010 | Monitor tuner assembly | 86010-35020 |
| 86029A | No. 1 monitor bracket assembly | 86029-35010 · 86029-35020 |
| 86117 | Multifunctional display controller bracket A | 86117-35010 |
| 86118 | Multifunctional display controller bracket B | 86118-35010 |
| 86120L | Navigation receiver assembly | 86100-35110 · 86100-35111 · 86100-35120 · 86100-35121 · 86100-35130 · 86100-35131 · 86100-35132 · 86100-35133 · 86100-35134 · 86100-35135 · 86100-35140 · 86100-35141 · 86100-35142 · 86100-35143 · 86100-35144 · 86100-35145 · 86120-35210 · 86120-35250 · 86120-35300 · 86120-35310 |
| 86271 | CD | 86271-44020 · 86271-44021 · 86271-44022 · 86271-52042 · 86271-52043 |
| 86273B | CD player adapter | 86273-58010 |
| 86730A | Telephone amplifier assembly | 86730-35010 |
| 86841 | Navigation ECU | 86841-44010 · 86841-52020 |
