Toyota HILUX 扬声器 — Figure 8602

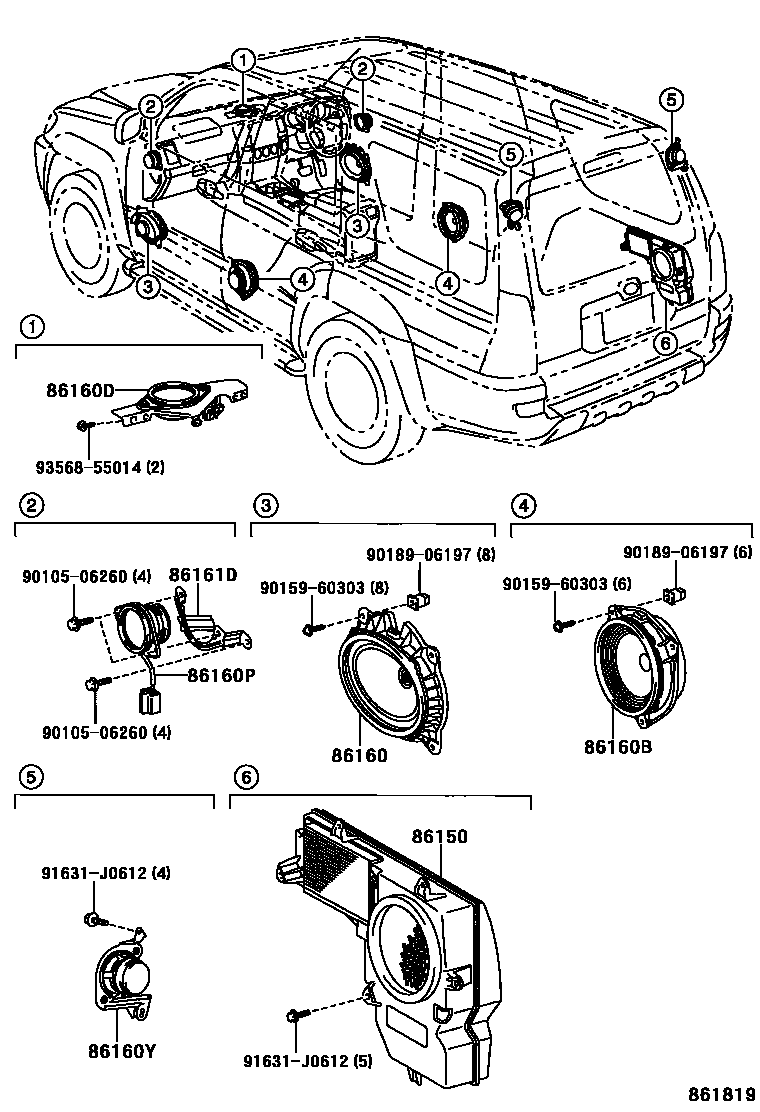

Toyota HILUX EPC diagram 8602, 扬声器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-0W060 · 86150-0W061 · 86150-0W070 |
| 86160 | No. 1 front speaker assembly | 86160-22A00 · 86160-35190 · 86160-AA382 |
| 86160B | Rear speaker assembly | 86160-0W620 · 86160-22890 · 86160-2B580 |
| 86160D | Front stereo part speaker assembly | 86160-0W650 |
| 86160P | No. 2 front speaker assembly | 86160-0W690 · 86160-35180 |
| 86160Y | No. 2 rear speaker assembly | 86160-0W670 · 86160-0W680 |
| 86161D | Speaker 1 mounting bracket | 86161-35010 · 86161-35020 |
