Toyota HILUX 后清洗器 — Figure 8504

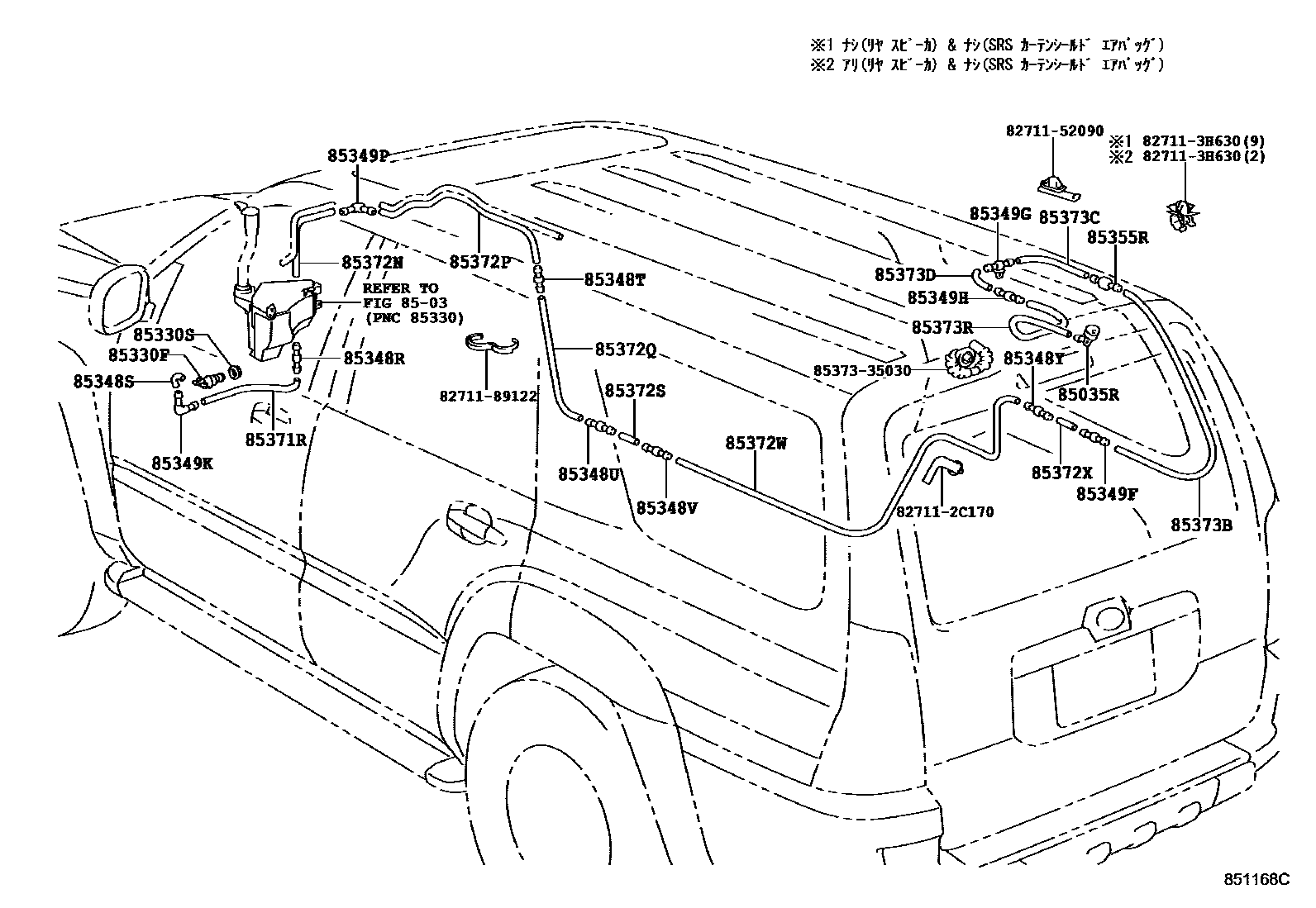

Toyota HILUX EPC diagram 8504, 后清洗器, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-35020 |
| 85330F | Rear washer motor and pump assembly | 85330-60180 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-14481 |
| 85348T | No. 2 rear washer hose connector | 85375-10260 |
| 85348U | No. 3 rear washer hose connector | 85375-10260 |
| 85348V | No. 4 rear washer hose connector | 85375-10260 |
| 85348Y | No. 5 rear washer hose connector | 85375-10260 |
| 85349F | No. 1 rear washer hose connector | 85375-10260 |
| 85349G | No. 2 rear washer hose connector | 85375-17050 |
| 85349H | No. 3 rear washer hose connector | 85375-10260 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85355R | Rear washer hose valve | 85321-26020 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33082 |
